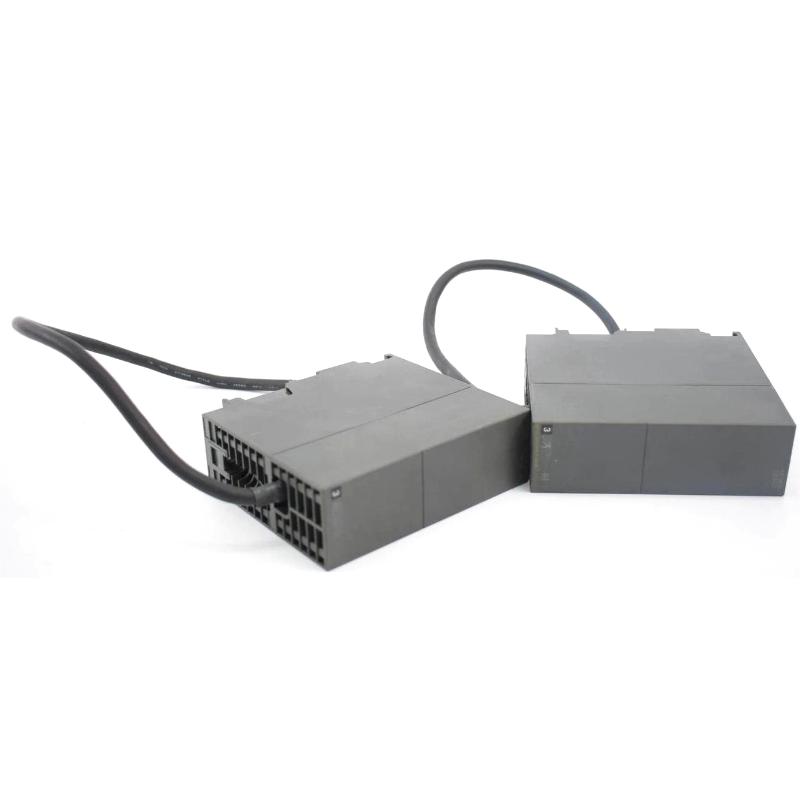

Siemens 6AG1960-1AA04-7BA0 SIPLUS S7-400 2 m HF-Sync Optical Fiber Cable
Siemens 6AG1960-1AA04-7BA0 SIPLUS S7-400 2 m HF-Sync Optical Fiber Cable
0.0
Points
Brand:Siemens Item No.:6AG1960-1AA04-7BA0 Product Origin: Germany Product Dimensions:130 × 90 × 142 mm Product Weight:0.040 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6AG1960-1AA04-7BA0 is a SIPLUS S7-400 optical fiber patch cable with a 2 m cable length. It is designed for HF synchronization module applications and provides the fiber-optic connection required by compatible S7-400H synchronization systems.
The cable is specified for an operating temperature range of approximately -25 °C to +70 °C, making it suitable for demanding industrial automation environments. The appropriate synchronization module and cable length should be confirmed before installation.
Technical Specifications
Parameter
Specification
Brand
Siemens
Part Number
6AG1960-1AA04-7BA0
Product Type
SIPLUS S7-400 Optical Fiber Patch Cable
Cable Type
FO Patch Cable
Application
HF synchronization module
Cable Length
2 m
Operating Temperature
Approx. -25 °C to +70 °C
System Application
Compatible SIMATIC S7-400H synchronization systems
Dimensions (L × W × H)
Not reliably published as a fixed product value
Net Weight
Approx. 0.040 kg
Recommended Companion Models
Model
Product Name
6AG1960-1AA06-7XA0
Siemens SIPLUS S7-400H Synchronization Module for Patch Cables up to 10 m
6AG1960-1AA04-7AA0
Siemens SIPLUS S7-400 1 m HF-Sync Optical Fiber Cable
6AG1960-1AA04-7KA0
Siemens SIPLUS S7-400 10 m HF-Sync Optical Fiber Cable
6AG1960-1AB06-7XA0
Siemens SIPLUS S7-400H Synchronization Module for Fiber-Optic Cables up to 10 km
Frequently Selected Alternatives
Model
Product Name
6AG1960-1AA04-7AA0
Siemens SIPLUS S7-400 1 m HF-Sync Optical Fiber Cable
6AG1960-1AA04-7KA0
Siemens SIPLUS S7-400 10 m HF-Sync Optical Fiber Cable
6AG1960-1AA06-7XA0
Siemens SIPLUS S7-400H Synchronization Module for Patch Cables up to 10 m
6AG1960-1AB06-7XA0
Siemens SIPLUS S7-400H Synchronization Module for Fiber-Optic Cables up to 10 km
Where It Fits in Industrial Applications
• Designed as a 2 m optical fiber patch cable for compatible Siemens SIPLUS S7-400 synchronization modules.
• Provides the fiber-optic connection required for HF synchronization between compatible S7-400H control systems.
• Intended for use with synchronization modules designed for patch cables up to the applicable cable length.
• Suitable for industrial automation environments with an operating temperature range of approximately -25 °C to +70 °C.
Key Strengths at a Glance
• Provides a 2 m fiber-optic connection for S7-400 synchronization applications.
• Designed specifically for HF synchronization module connections.
• Supports an extended operating temperature range of approximately -25 °C to +70 °C.
• Available as part of the SIPLUS S7-400 optical fiber cable family, which includes different cable lengths for compatible installations.
Technical FAQs
1. What is Siemens 6AG1960-1AA04-7BA0?
6AG1960-1AA04-7BA0 is a SIPLUS S7-400 2 m optical fiber patch cable designed for HF synchronization module applications.
2. What is the cable length of 6AG1960-1AA04-7BA0?
The cable has a nominal length of 2 meters.
3. What type of cable is 6AG1960-1AA04-7BA0?
It is a fiber-optic patch cable intended for connection to compatible S7-400 synchronization modules.
4. What is the purpose of the optical fiber cable?
The cable provides the physical fiber-optic connection required for synchronization between compatible S7-400H synchronization components.
5. What is the operating temperature range?
The specified operating temperature range is approximately -25 °C to +70 °C.
6. Is 6AG1960-1AA04-7BA0 a synchronization module?
No. It is an optical fiber cable used as an accessory with compatible synchronization modules.
7. Can this cable be used with any S7-400 module?
No. It is intended for compatible synchronization-module configurations, so the installed synchronization hardware should be checked before ordering.
8. Are other cable lengths available in the same product family?
Yes. The SIPLUS S7-400 HF synchronization cable family includes 1 m, 2 m, and 10 m versions for compatible applications.
9. Can the cable be used for analog signal transmission?
The product is specified as an optical fiber connection for SPS-to-SPS synchronization applications rather than a conventional analog signal cable.
10. What should be verified before ordering this cable?
The synchronization module type, required cable length, existing cable part number, and applicable S7-400H system documentation should be verified before installation.
