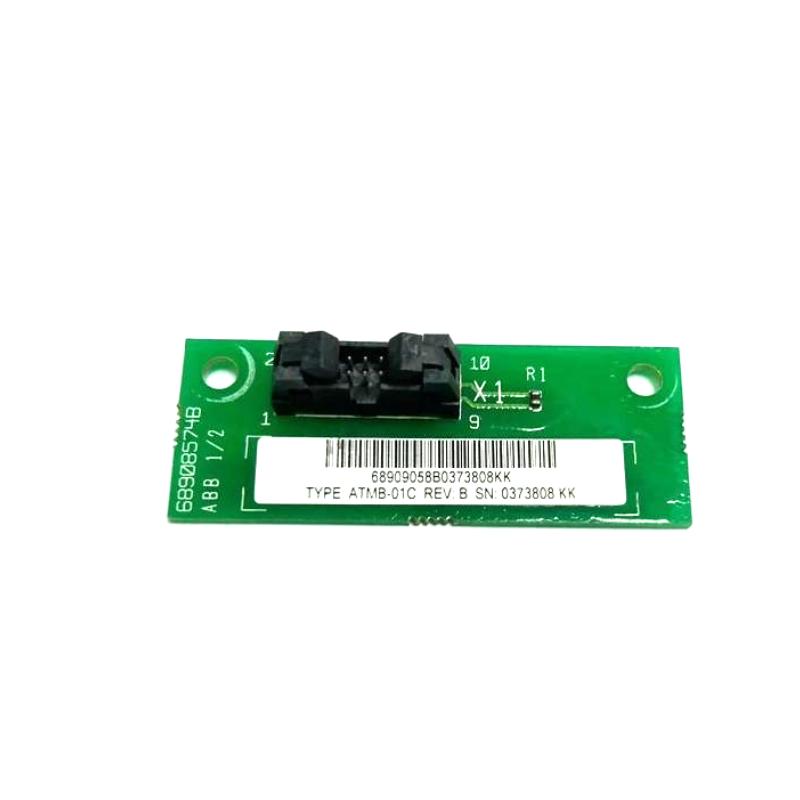

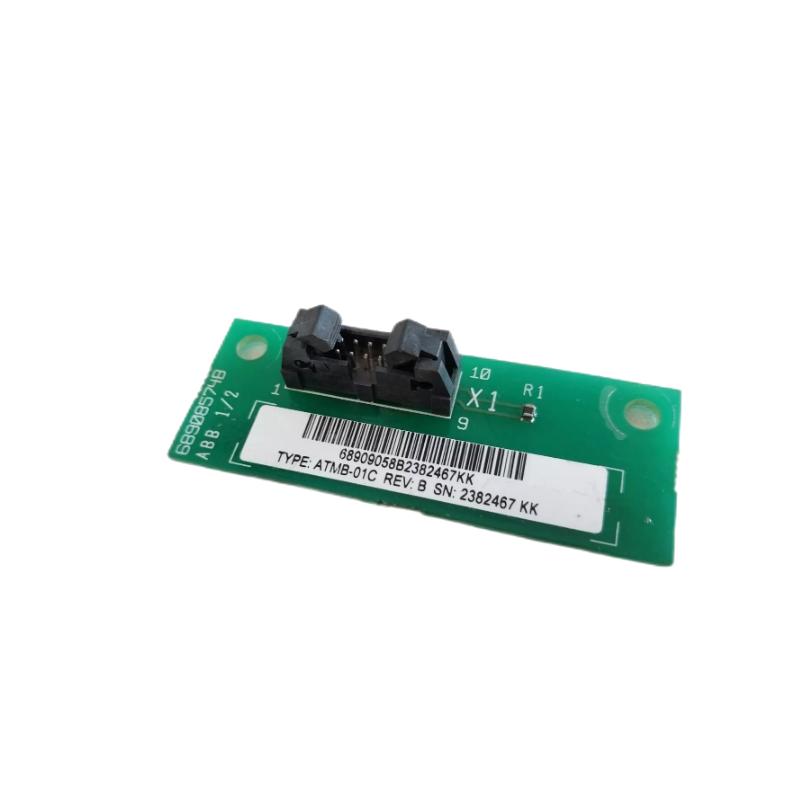

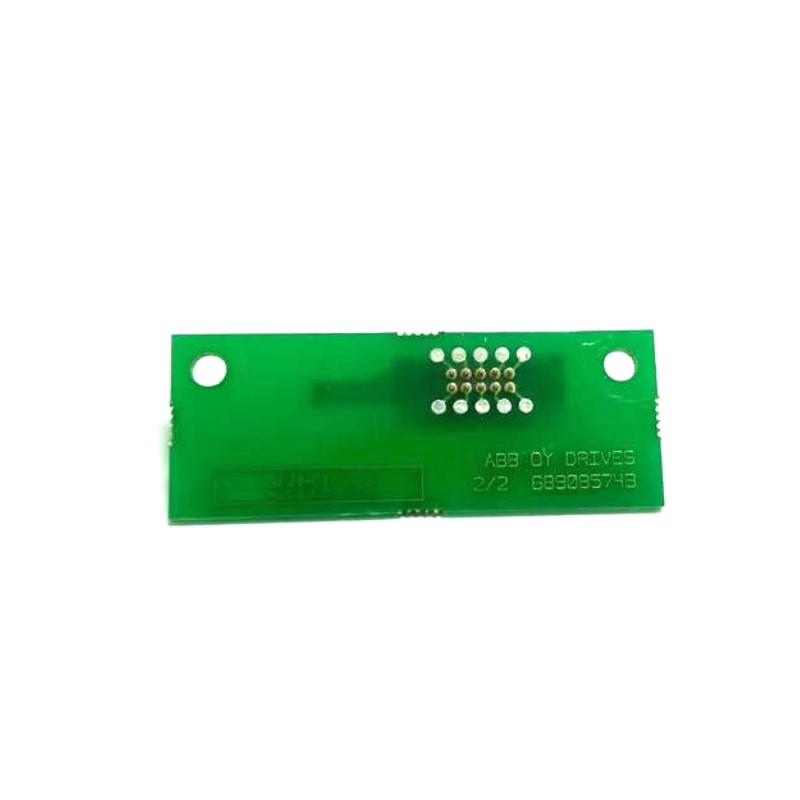

ATMB-01C 68908574B-4 ATMB-01C 68908574B-2 ATMB-01C 68908574B-3 ATMB-01C 68908574B-1

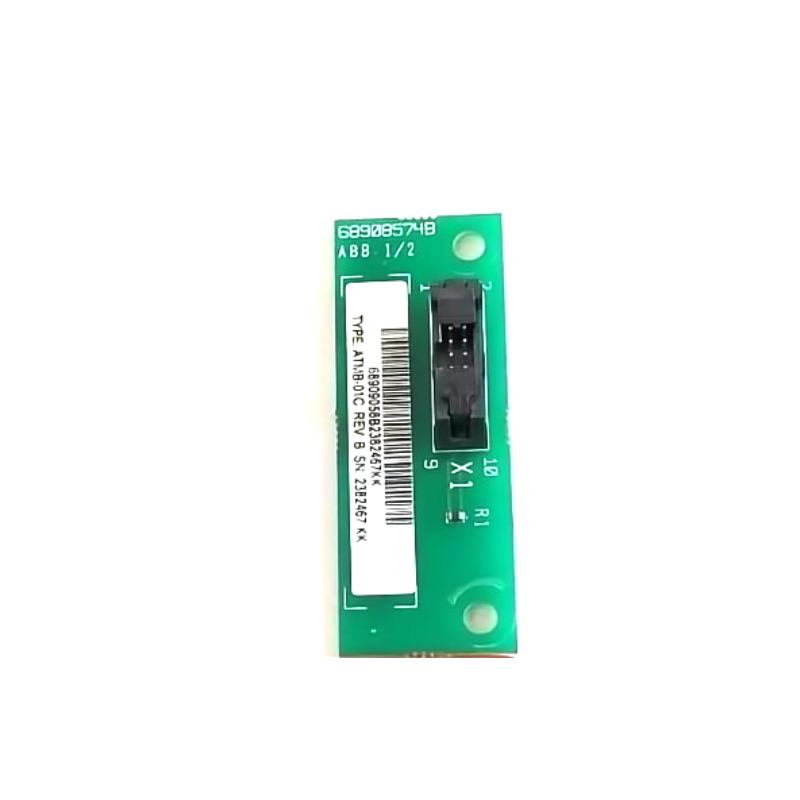

The ABB ATMB-01C Terminal Block Module is a highly reliable and essential component for AC 800M industrial automation systems. It serves as a key interface for connecting field devices to the system, providing safe and organized wiring solutions. The ATMB-01C module simplifies the installation and maintenance of I/O systems by ensuring secure signal connections through high-quality terminal blocks. This module is designed to support both analog and digital signals, facilitating the seamless integration of various field devices such as sensors, actuators, and controllers.

Engineered for high performance, the ATMB-01C enhances the flexibility and efficiency of control systems, making it ideal for industrial applications in sectors like manufacturing, automated machinery, energy management, and water treatment. Its robust design, easy installation, and reliable connection handling make it a valuable addition to any industrial control system.

Technical Specifications

Feature	Specification
Module Type	Terminal Block Module (ATMB-01C)
Mounting	DIN Rail Mount
Input/Output Types	Compatible with Analog and Digital I/O
Power Supply	24 VDC
Operating Temperature	-25°C to 70°C
Weight	0.55 kg
Dimensions	160 mm (W) x 120 mm (H) x 80 mm (D)
Wire Capacity	0.2 mm² to 2.5 mm² (AWG 24 to 12)
Connection Type	Screw Terminals
Environmental Rating	IP20 (Protection against contact and dust)
Compatibility	Fully integrates with AC 800M Controller

Recommended Related Models

ABB DO820 – A digital output module designed for controlling external devices such as relays and solenoids.
ABB AI830A – A high-performance analog input module for acquiring real-time sensor data from industrial systems.
ABB AO810 – A general-purpose analog output module for controlling field devices based on the system's outputs.

Popular ABB Models

ABB AC 800M Controller – The central processing unit of ABB’s industrial automation system, fully compatible with the ATMB-01C Terminal Block Module.
ABB AI840A – A high-resolution, 16-channel analog input module, perfect for real-time monitoring of multiple sensors and devices.
ABB DO820 – A digital output module for controlling actuators, relays, and other field devices based on processed data.
ABB AO830 – An analog output module for controlling field devices using precise analog signals.

Applications

The ABB ATMB-01C Terminal Block Module is designed to be an integral part of an industrial control system, providing secure connections for I/O signals across various applications. Some of the key industries and applications include:

Manufacturing Automation – Simplifies the wiring of machines, robotics, and automated production lines by providing secure and organized terminal connections.
Energy Management – Facilitates the connection of field devices for monitoring and controlling energy use, including meters, sensors, and actuators in energy management systems.
Water Treatment – Provides the necessary connectivity for sensors, pumps, and actuators in water treatment plants, ensuring safe and reliable system control.
Process Control Systems – Simplifies the wiring of controllers, actuators, and sensors in critical process control environments such as chemical plants, refineries, and pharmaceuticals.

Advantages

Reliable Connections: The screw terminal connections offer a secure, stable, and easy-to-maintain interface, ensuring reliable signal transmission in all industrial applications.
High Compatibility: The ATMB-01C module is designed to work seamlessly with both analog and digital signals, making it versatile and compatible with a wide range of field devices.
Space-Efficient Design: The DIN rail-mountable design ensures that the ATMB-01C can be installed in control panels with limited space, optimizing your system’s footprint.
Wide Temperature Range: The ATMB-01C operates effectively in environments ranging from -25°C to 70°C, making it suitable for a variety of industrial conditions.
Enhanced Safety: With an IP20 environmental rating, the module provides protection against contact and dust, ensuring safe operation in industrial environments.
Simplified Maintenance: The terminal block design enables easy wiring and quick maintenance, allowing for minimal downtime during system updates or repairs.

Technical FAQs

What is the primary function of the ATMB-01C?
- The ATMB-01C is a terminal block module that facilitates the secure and organized wiring of analog and digital I/O signals from field devices to the AC 800M Controller.
How many types of signals can the ATMB-01C handle?
- The ATMB-01C is compatible with both analog and digital signals, making it versatile for a wide range of industrial control systems.
What is the operating temperature range of the ATMB-01C?
- The module operates effectively within a temperature range of -25°C to 70°C, making it suitable for various industrial environments.
How is the ATMB-01C mounted?
- The ATMB-01C is designed for DIN rail mounting, ensuring easy installation and efficient use of space in industrial control panels.
What is the wire capacity supported by the ATMB-01C?
- The ATMB-01C supports wire sizes from 0.2 mm² to 2.5 mm² (AWG 24 to 12), making it suitable for a wide variety of industrial wiring configurations.
What is the environmental rating of the ATMB-01C?
- The ATMB-01C has an IP20 environmental rating, providing protection against contact and dust, ensuring safe operation in most industrial environments.
How does the ATMB-01C integrate with the AC 800M controller?
- The ATMB-01C integrates seamlessly with the AC 800M Controller, acting as a reliable terminal block interface for connecting field devices to the control system.
Can the ATMB-01C be used in hazardous environments?
- The ATMB-01C is designed for use in non-hazardous environments. For hazardous locations, ABB provides other certified modules with appropriate certifications.
What power supply is required for the ATMB-01C?
- The ATMB-01C operates on a 24 VDC power supply, ensuring consistent and reliable signal transmission.
Which industries benefit most from the ATMB-01C module?
- The ATMB-01C is ideal for industries such as manufacturing automation, energy management, water treatment, and process control systems, where secure and reliable signal connections are crucial.
