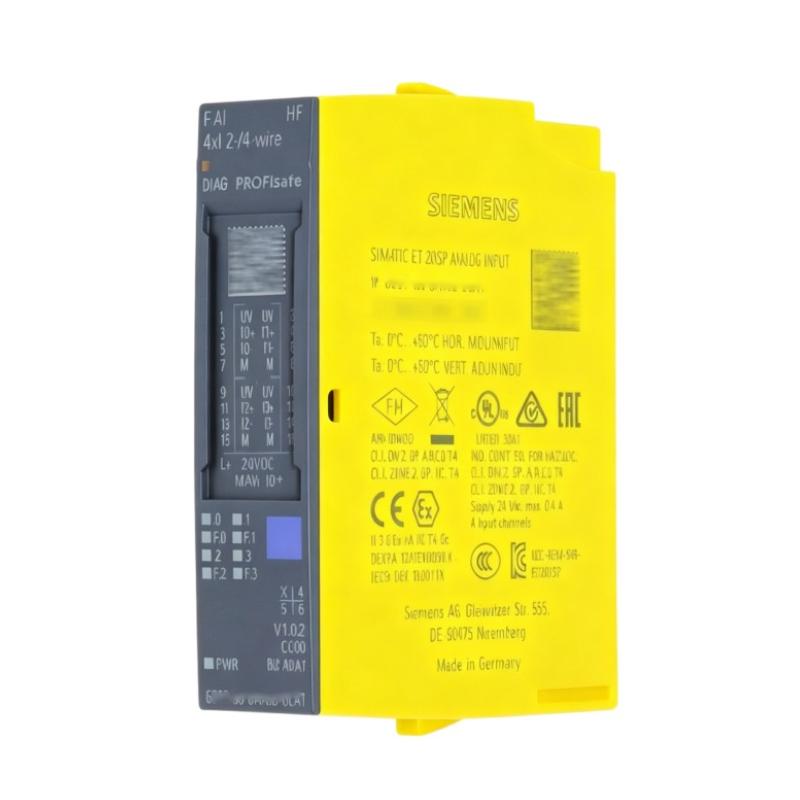

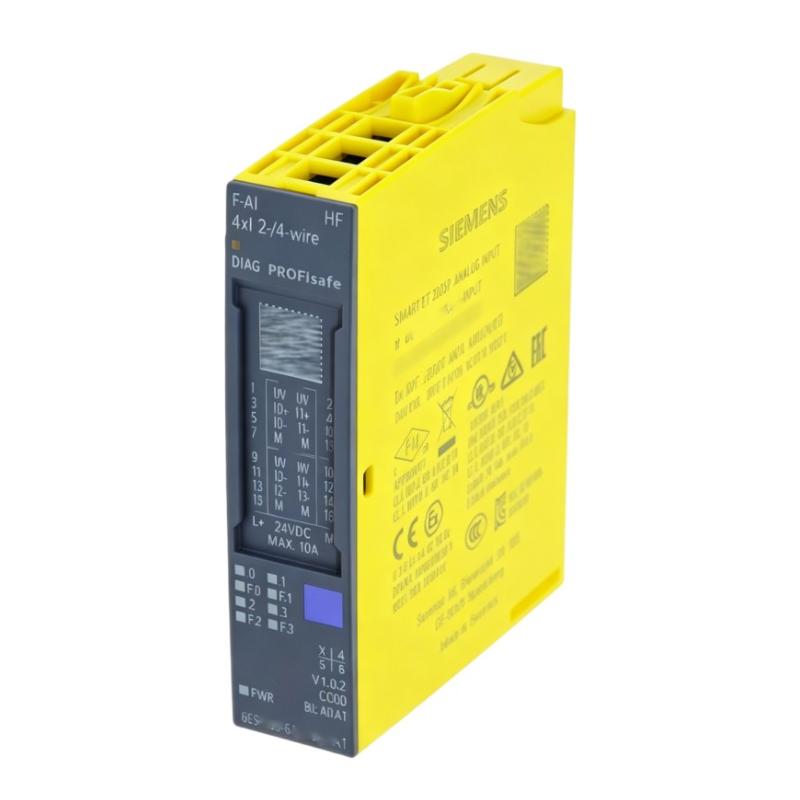

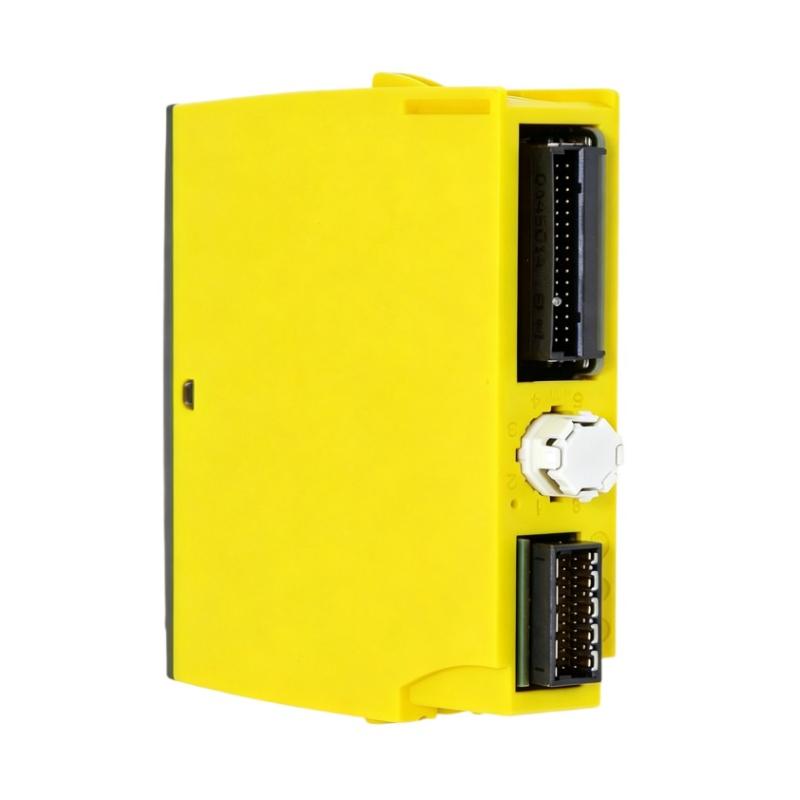

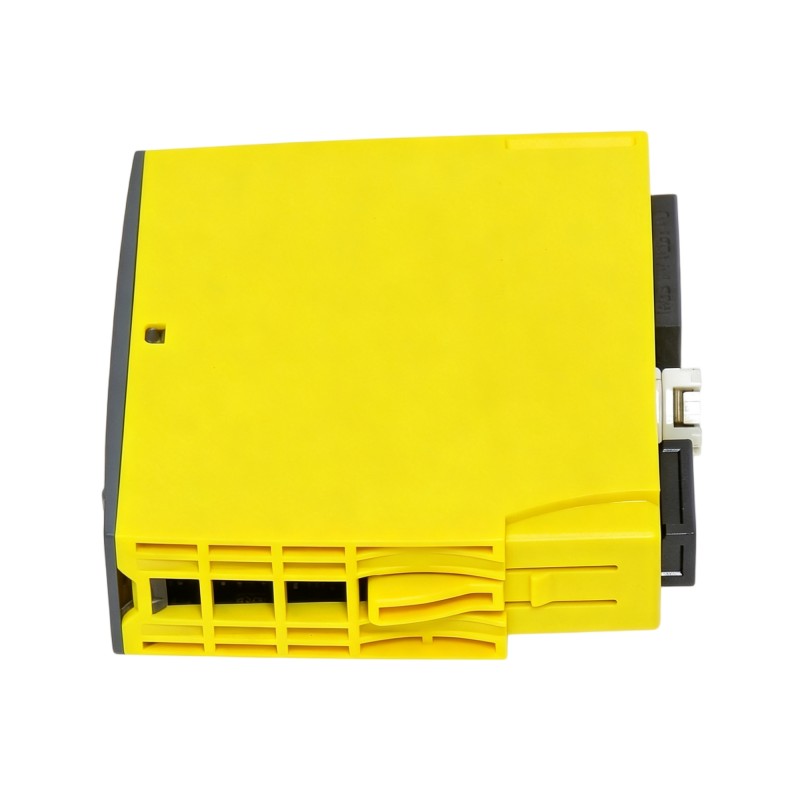

Siemens 6AG2136-6AA00-1CA1 SIPLUS ET 200SP Failsafe Analog Input Module
Siemens 6AG2136-6AA00-1CA1 SIPLUS ET 200SP Failsafe Analog Input Module
0.0
Points
Brand:Siemens Item No.:6AG2136-6AA00-1CA1 Product Origin: Germany Product Dimensions:7.30 × 1.50 × 5.80 cm Product Weight:0.048 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6AG2136-6AA00-1CA1 is a SIPLUS ET 200SP F-AI 4xI 2/4-wire HF analog input module based on the 6ES7136-6AA00-0CA1 design. It provides four configurable analog current inputs for 0–20 mA and 4–20 mA signals and supports both 2-wire and 4-wire transducer connections.
The module provides 16-bit analog resolution and is intended for fail-safe analog input applications up to PL e according to ISO 13849-1 and SIL 3 according to IEC 61508. Its conformal-coated SIPLUS design supports an operating temperature range of -30 to +60 °C, with OT1 operation up to +70 °C for 10 minutes.
Technical Specifications
Parameter
Specification
Brand
Siemens
Part Number
6AG2136-6AA00-1CA1
Product Type
SIPLUS ET 200SP F-AI 4xI 2/4-wire HF
Base Design
6ES7136-6AA00-0CA1
Product Family
SIPLUS ET 200SP Failsafe Analog Input Modules
Number of Analog Inputs
4
Input Type
Analog current
Input Range
0–20 mA / 4–20 mA
Transducer Connection
2-wire / 4-wire
Analog Resolution
16 bit
Rated Supply Voltage
24 V DC
Permissible Supply Voltage
19.2–28.8 V DC
Fail-Safe Performance Level
Up to PL e
Safety Integrity Level
Up to SIL 3
Diagnostic Function
Yes
Protection Rating
IP20
Conformal Coating
Yes
Operating Temperature
-30 to +60 °C
OT1 Extended Temperature
+70 °C for 10 minutes
Mounting
ET 200SP rail system
Electrical Connection
Plug-in connection
Dimensions (L × W × H)
7.30 × 1.50 × 5.80 cm
Net Weight
Approx. 0.048 kg
Application
Fail-safe analog current signal acquisition
Recommended Companion Models
Model
Product Name
6AG2193-6BP00-4DA0
Siemens SIPLUS ET 200SP BU15-P16+A0+2D BaseUnit
6AG2136-6AB00-1CA1
Siemens SIPLUS ET 200SP F-AI 4xU 0–10 V HF Analog Input Module
6AG2136-6BA00-1CA0
Siemens SIPLUS ET 200SP F-DI 4/8x24VDC Failsafe Digital Input Module
6AG2136-6DB00-1CA0
Siemens SIPLUS ET 200SP F-DQ 4x24VDC/2A PM Failsafe Output Module
Frequently Selected Alternatives
Model
Product Name
6ES7136-6AA00-0CA1
Siemens SIMATIC ET 200SP F-AI 4xI 2/4-wire HF Analog Input Module
6AG2136-6AB00-1CA1
Siemens SIPLUS ET 200SP F-AI 4xU 0–10 V HF Analog Input Module
6AG2135-6HB00-1DA1
Siemens SIPLUS ET 200SP AQ 2xU/I HS Analog Output Module
6AG2136-6DC00-1CA0
Siemens SIPLUS ET 200SP F-DQ 8x24VDC/0.5A Failsafe Output Module
Where It Fits in Industrial Applications
• Designed for fail-safe analog current signal acquisition in Siemens SIMATIC ET 200SP distributed I/O systems.
• Provides four analog current inputs for 2-wire and 4-wire transducers.
• Supports 0–20 mA and 4–20 mA signal ranges for industrial measurement and process applications.
• Suitable for safety-related automation applications requiring analog input processing up to PL e and SIL 3.
Key Strengths at a Glance
• SIPLUS ET 200SP F-AI 4xI 2/4-wire HF module based on the Siemens 6ES7136-6AA00-0CA1 design.
• Provides four configurable analog current inputs with 16-bit resolution.
• Supports fail-safe analog input applications up to PL e according to ISO 13849-1 and SIL 3 according to IEC 61508.
• Conformal coating and extended environmental protection support demanding industrial and railway applications.
Technical FAQs
1. What is Siemens 6AG2136-6AA00-1CA1?
6AG2136-6AA00-1CA1 is a SIPLUS ET 200SP F-AI 4xI 2/4-wire HF analog input module designed for fail-safe current signal acquisition.
2. What standard Siemens module is it based on?
The SIPLUS module is based on the Siemens 6ES7136-6AA00-0CA1 ET 200SP F-AI module.
3. How many analog inputs are provided?
The module provides four analog current inputs.
4. What input signal ranges are supported?
The module supports 0–20 mA and 4–20 mA current signals.
5. Can both 2-wire and 4-wire transducers be connected?
Yes. The module supports current transducers using both 2-wire and 4-wire connection methods.
6. What resolution is provided by the analog inputs?
The analog inputs provide 16-bit resolution.
7. What safety performance can the module support?
The module is designed for fail-safe analog input applications up to Performance Level e according to ISO 13849-1 and SIL 3 according to IEC 61508.
8. What supply voltage does the module require?
The module uses a 24 V DC supply and supports a permissible supply range of 19.2 to 28.8 V DC.
9. What environmental conditions are supported?
The SIPLUS version features conformal coating and is specified for -30 to +60 °C operation, with an OT1 extended temperature capability of +70 °C for up to 10 minutes.
10. What should be verified before ordering this analog input module?
The ET 200SP station configuration, required BaseUnit, input signal type, safety requirements, firmware compatibility, and applicable Siemens system documentation should be verified before installation.
