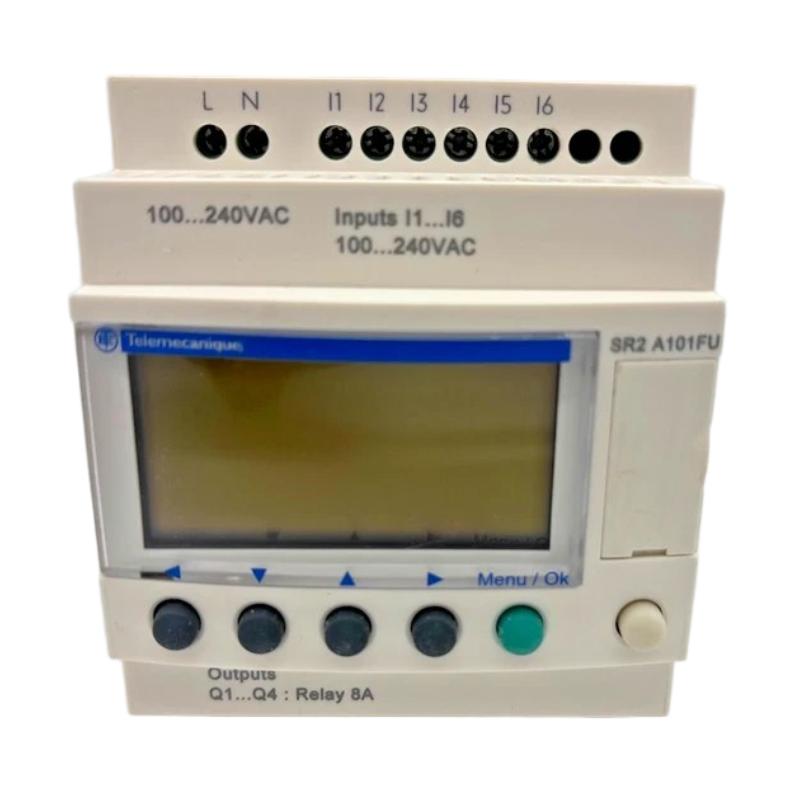

Schneider SR2A101FU Compact Smart Relay

Applications

The Schneider SR2A101FU Compact Smart Relay is designed for straightforward automation and control applications where a compact programmable relay can replace conventional combinations of timers, relays, and discrete control components. It is suitable for small machines, control panels, building equipment, and simple automated processes.

As a compact smart relay, the SR2A101FU can be used to implement control sequences, timing functions, interlocks, and basic logic without requiring a larger PLC architecture. Its compact housing is particularly useful where cabinet space and wiring simplicity are important.

Typical applications include:

• Small machine automation
• Pump and motor control sequences
• Conveyor and material handling systems
• Lighting and building control
• HVAC auxiliary control
• Door and access automation
• Timer and sequencing applications
• Simple production equipment
• Control-panel retrofits and upgrades
• Replacement of conventional relay logic

The unit's 107.6 × 71.2 × 59.5 mm dimensions make it practical for compact electrical enclosures and decentralized control panels.

Advantages

Compact Automation Solution
The SR2A101FU combines programmable control functionality into a small enclosure, helping reduce the space required for simple automation applications.

Simplifies Relay Logic
Instead of using multiple individual relays, timers, and associated wiring, programmable logic can be used to organize control sequences in a more structured way.

Suitable for Small Machines
The compact smart-relay concept is particularly useful for machines and systems that do not require the processing capacity or modular expansion of a full PLC.

Flexible Control Logic
Applications involving timers, counters, sequencing, interlocking, and basic automation logic can be implemented through programmable control functions.

Reduced Control Wiring
Replacing extensive hardwired relay logic with programmed logic can simplify panel wiring and make future control modifications easier to manage.

Practical for Retrofits
The SR2A101FU can be considered for upgrading older relay-based control systems where a compact programmable solution is preferred.

Technical FAQs

1. What is the Schneider SR2A101FU used for?
The SR2A101FU is a compact smart relay designed for programmable control of small machines, equipment, building systems, and simple industrial automation processes.

2. What type of automation applications are suitable for a smart relay?
Smart relays are suitable for applications involving basic sequencing, timing, counting, interlocking, switching, and other relatively straightforward control functions.

3. How does a smart relay differ from a conventional relay?
A conventional relay generally performs a fixed electrical switching function, while a smart relay combines relay-based control with programmable logic, allowing more complex sequences to be implemented without extensive hardwired circuitry.

4. Can the SR2A101FU be used for machine control?
Yes. It can be used in appropriate small-machine applications where the required control logic and electrical interface are compatible with the relay's specifications.

5. What types of control logic can be implemented?
Typical functions include logical operations, timers, counters, sequencing, and interlocking. The actual functions available depend on the device's programming environment and configuration.

6. What should be checked before replacing an existing smart relay?
The supply requirements, input and output configuration, wiring, programmed logic, load characteristics, installation arrangement, and overall control-system requirements should be verified before replacement.

7. Is the SR2A101FU suitable for control cabinets with limited space?
Yes. Its compact dimensions of 107.6 × 71.2 × 59.5 mm make it suitable for applications where installation space is limited.

8. What are common troubleshooting points for a smart relay?
Engineers should check the power supply, input signals, output states, wiring, connected loads, programmed logic, terminal connections, and device diagnostics when investigating an unexpected operating condition.

9. Can a smart relay replace conventional relay logic?
For suitable applications, yes. A programmable smart relay can consolidate multiple logic functions and reduce the amount of physical relay wiring required.

10. What factors determine whether the SR2A101FU is appropriate for an application?
The required number and type of I/O points, supply voltage, output requirements, control complexity, programming needs, environmental conditions, and connected load characteristics should all be evaluated.
