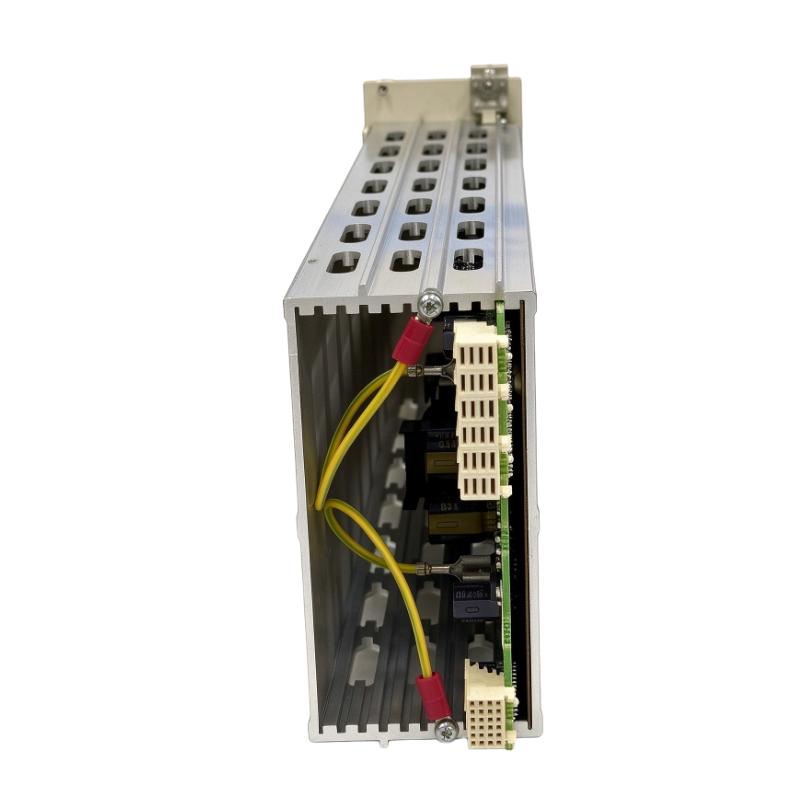

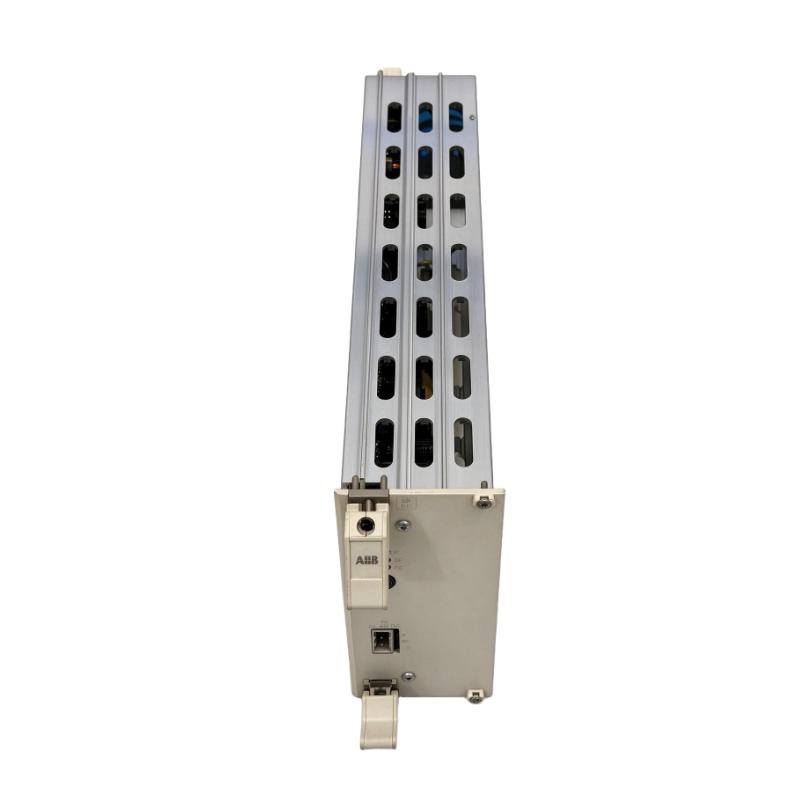

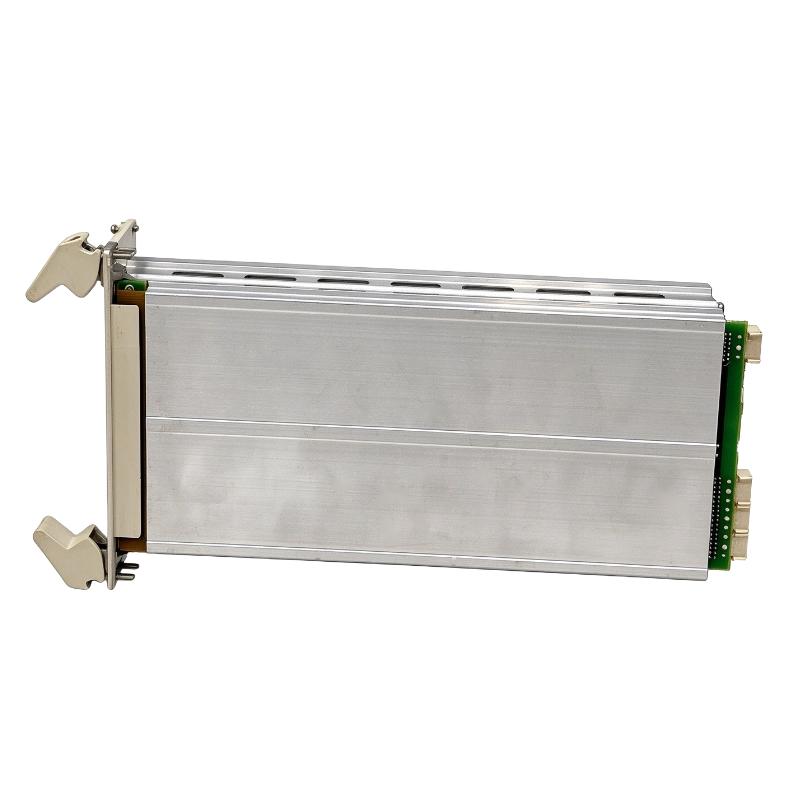

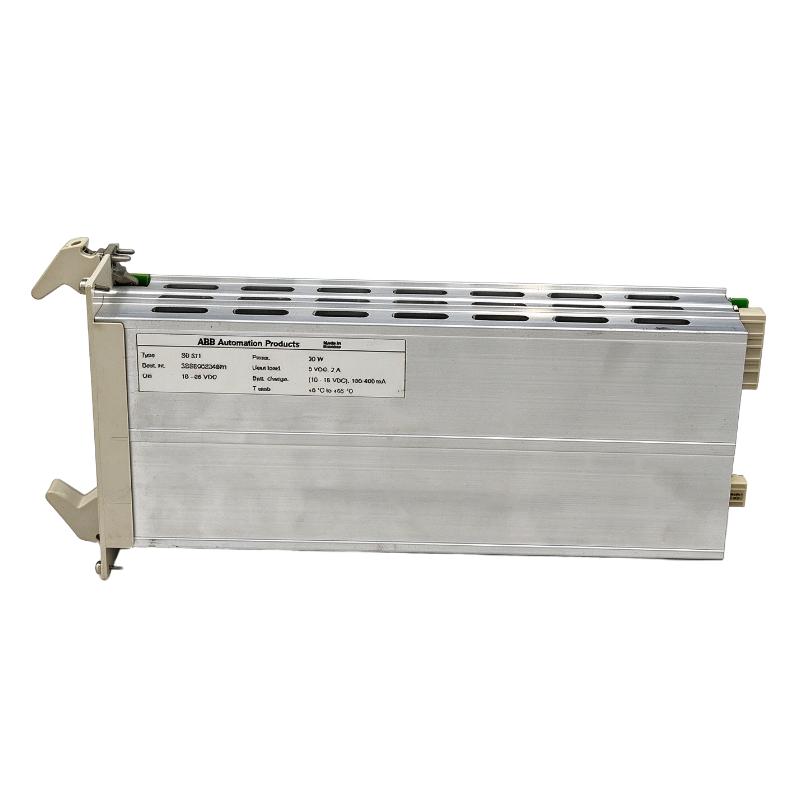

ABB SB511K01 3BSE004451R1 Battery Charger Kit

Applications

The ABB SB511K01 3BSE004451R1 Battery Charger Kit is designed for industrial automation systems that require dependable battery charging and power-support functionality. It is particularly suitable for control environments where maintaining the availability of backup batteries is important to overall system reliability.

Battery charger equipment can play an important role in automation installations by maintaining battery capacity and supporting standby power arrangements. The SB511K01 can therefore be considered for industrial control cabinets, automation power systems, process plants, and other installations where reliable battery management is required.

Typical applications include:

• Industrial automation control systems
• Process control and instrumentation installations
• Backup and standby power arrangements
• Control cabinets requiring battery charging
• Power-support systems for automation equipment
• Industrial plant maintenance and replacement projects
• Existing ABB automation system service applications
• Battery-based control and monitoring systems

Its compact 291 × 150 × 90 mm enclosure size also makes it practical for integration into industrial electrical cabinets where installation space must be managed carefully.

Advantages

Reliable Battery Charging Support
The SB511K01 provides a dedicated battery-charging solution for compatible industrial power arrangements, helping maintain battery readiness for standby applications.

Designed for Industrial Environments
The kit is intended for use within industrial automation and control infrastructures where dependable power-related equipment is essential.

Compact Mechanical Design
With dimensions of 291 × 150 × 90 mm, the charger kit provides useful functionality without requiring a large installation footprint.

Suitable for Maintenance Applications
Keeping a compatible battery charger kit available as a spare can simplify maintenance planning and support faster replacement when an installed unit requires service.

ABB System Compatibility
The ABB identification and associated part number make the unit suitable for applications requiring a matching component within an ABB automation installation.

Practical Power-System Integration
A properly maintained battery charging system helps support the wider reliability of automation equipment that depends on battery-backed or standby power arrangements.

Technical FAQs

1. What is the ABB SB511K01 3BSE004451R1 used for?
It is a battery charger kit intended for compatible ABB industrial automation and power-support applications.

2. Why is a battery charger important in an industrial automation system?
A charger maintains the battery at an appropriate state of charge so that the battery can provide the required backup or standby function when needed.

3. Where can the SB511K01 be applied?
It can be used in compatible industrial control systems, automation installations, process plants, and electrical cabinets where battery charging functionality is required.

4. What should be checked before installing the charger kit?
The system's battery specifications, charging requirements, supply conditions, wiring, installation arrangement, and ABB system compatibility should be verified before installation.

5. Can the SB511K01 be used as a replacement component?
It can be considered for replacement applications where the existing installation specifically requires the same compatible ABB charger kit and associated part number.

6. What are common symptoms of a battery charging problem?
Possible symptoms include insufficient battery charge, unexpected battery discharge, charger alarms, abnormal charging behavior, or failure of the associated backup-power system to maintain the expected battery condition.

7. How should a battery charger fault be investigated?
A systematic check should include the incoming supply, charger status, battery condition, wiring and terminals, charging circuit, protection devices, and relevant system diagnostics.

8. Does the charger itself replace the backup battery?
No. A battery charger maintains the battery's charge; the battery remains a separate energy-storage component unless the particular kit configuration specifies otherwise.

9. Why is correct battery matching important?
The charger must be compatible with the battery technology, voltage, capacity, and charging characteristics required by the installed system. Incorrect matching can result in poor charging performance or equipment damage.

10. What is the physical size of the SB511K01?
The unit measures 291 × 150 × 90 mm and has a specified weight of 1.1 kg (2.43 lb).
