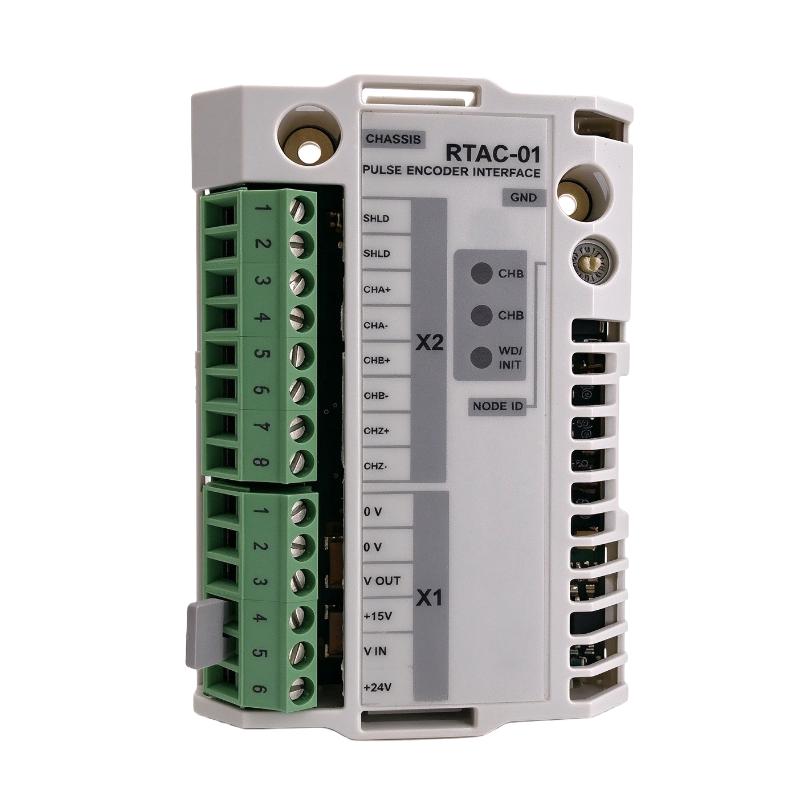

ABB RTAC-01 3ABD64610805 Pulse Encoder Interface Module

Applications

The ABB RTAC-01 3ABD64610805 Pulse Encoder Interface Module is designed to provide pulse encoder interfacing for compatible ABB drive and motion-control applications. It enables encoder feedback to be incorporated into a drive system so that motor speed, position, and rotational information can be used by the control system.

Encoder feedback is particularly valuable in applications where open-loop control is not sufficient and the drive needs more accurate information about motor or machine movement. The RTAC-01 can therefore be applied in machinery requiring reliable feedback for speed regulation, positioning, synchronization, and process control.

Typical applications include:

• Variable-speed drive systems
• Motor speed feedback
• Position monitoring and control
• Conveyor and material handling equipment
• Hoisting and lifting machinery
• Winding and unwinding systems
• Packaging and production machinery
• Motion-control applications
• Industrial machinery requiring encoder feedback
• ABB drive system upgrades and replacement projects

The module's 225 × 52 × 155 mm dimensions provide a compact interface solution for integrating pulse encoder feedback into compatible ABB drive architectures.

Advantages

Reliable Encoder Feedback
The RTAC-01 provides an interface between a compatible pulse encoder and the drive control system, allowing encoder information to be used for more precise motor control.

Improved Speed Regulation
Feedback from an encoder can help the drive determine actual motor speed, supporting applications where stable speed control is important.

Suitable for Motion-Related Applications
Encoder feedback can provide useful rotational and positional information for machinery involving conveyors, hoists, winders, and other moving equipment.

Compact Interface Design
With dimensions of 225 × 52 × 155 mm, the module offers a relatively compact way to add encoder feedback functionality to a compatible ABB drive system.

Practical for Drive Upgrades
The RTAC-01 can be considered when an existing ABB drive installation needs encoder feedback capability for improved control performance.

Useful for Maintenance and Replacement
Maintaining the correct encoder interface module as a spare can help reduce downtime when feedback hardware in an operating drive system needs to be replaced.

Technical FAQs

1. What is the ABB RTAC-01 used for?
The RTAC-01 is a pulse encoder interface module designed to connect compatible encoder feedback to an ABB drive or motion-control system.

2. Why is encoder feedback used in a drive system?
Encoder feedback provides information about actual motor or shaft movement. The drive can use this information to improve speed regulation, positioning, synchronization, and other closed-loop control functions.

3. What type of feedback does the RTAC-01 handle?
The RTAC-01 is designed for pulse encoder feedback applications. The specific encoder signal requirements should be matched with the module and the associated ABB drive configuration.

4. What applications benefit most from encoder feedback?
Applications requiring accurate speed control, positioning, synchronization, or monitoring of rotating equipment can benefit from encoder feedback.

5. Can the RTAC-01 be used with any ABB drive?
No. Compatibility depends on the specific ABB drive family, control unit, firmware, encoder type, and system configuration. The drive documentation should be checked before installation.

6. What should be checked when installing an encoder interface module?
The encoder type, signal configuration, wiring, supply requirements, connector arrangement, drive compatibility, shielding, grounding, and software parameters should be verified.

7. What can cause an encoder feedback fault?
Possible causes include incorrect wiring, damaged encoder cables, signal interference, incorrect parameter settings, encoder power problems, poor shielding or grounding, and failure of the encoder or interface module.

8. How does encoder feedback improve motor control?
The feedback provides the controller with actual motion information instead of relying solely on estimated motor behavior. This allows the control system to respond more accurately to changes in speed or mechanical load.

9. Is encoder cable installation important for system performance?
Yes. Encoder signals can be sensitive to electrical interference. Proper cable routing, shielding, grounding, and separation from high-power conductors are important for reliable feedback transmission.

10. What is the physical size and weight of the RTAC-01?
The module measures 225 × 52 × 155 mm and has a specified weight of 0.5 kg (1.10 lb).
