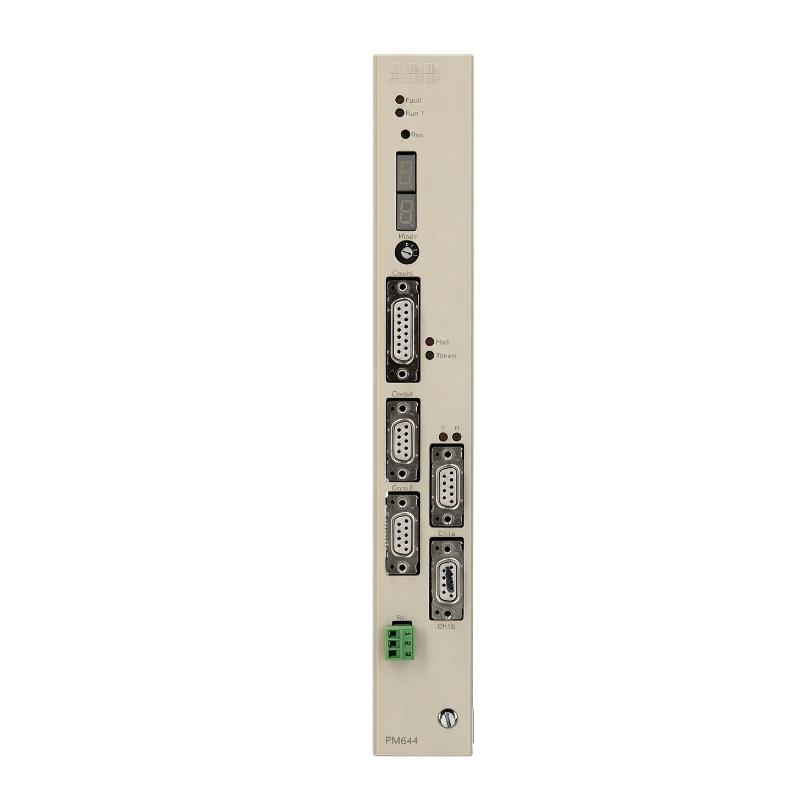

ABB PM644 3BSE014664R1/3BSE014664R0001 Profibus Processor Module

Applications

The ABB PM644 3BSE014664R1 / 3BSE014664R0001 PROFIBUS Processor Module is designed to provide PROFIBUS communication and processing capabilities within compatible ABB industrial automation systems. It serves as an interface for exchanging process data between the automation controller and PROFIBUS-based field devices.

The module is suitable for industrial control architectures where distributed field equipment needs to communicate reliably with the supervisory or control system. It can be applied in process automation, manufacturing, material handling, and other installations that use PROFIBUS for field-level communication.

Typical applications include:

• PROFIBUS-based industrial automation networks
• Distributed I/O communication
• Process control systems
• Manufacturing and production equipment
• Motor and drive communication
• Remote field device integration
• Industrial instrumentation networks
• Existing ABB automation system upgrades
• Replacement and maintenance of compatible PROFIBUS hardware

With dimensions of 273 × 80 × 252 mm, the PM644 provides a substantial communication-processing interface while remaining suitable for structured industrial control cabinet installations.

Advantages

Dedicated PROFIBUS Processing
The PM644 is designed to handle PROFIBUS communication within compatible ABB automation architectures, providing a dedicated interface for field-level data exchange.

Efficient Distributed Communication
PROFIBUS allows field devices and distributed I/O equipment to communicate with the control system over an organized industrial network rather than relying exclusively on individual point-to-point connections.

Suitable for Process Automation
The module is well suited to installations where reliable communication with distributed field devices is an important part of the control architecture.

Supports Centralized Monitoring
Data exchanged over the PROFIBUS network can be incorporated into the wider control strategy, allowing process information and device status to be managed from the automation system.

Industrial-Grade Construction
The PM644 is intended for integration into industrial automation environments where dependable communication hardware is required for continuous operation.

Useful for System Maintenance
The two commonly referenced ordering identifiers, 3BSE014664R1 and 3BSE014664R0001, make it easier for maintenance teams to identify the required replacement component.

Technical FAQs

1. What is the ABB PM644 used for?
The PM644 is a PROFIBUS Processor Module designed to provide PROFIBUS communication and processing functions within compatible ABB automation systems.

2. What is the purpose of PROFIBUS in an automation system?
PROFIBUS provides digital communication between controllers and field-level devices such as distributed I/O, drives, instrumentation, and other automation equipment.

3. What type of devices can communicate through a PROFIBUS network?
Depending on the system configuration, PROFIBUS can connect distributed I/O stations, drives, sensors, actuators, instrumentation equipment, and other compatible field devices.

4. What should be checked before installing a PM644?
The automation platform, module compatibility, PROFIBUS network architecture, firmware requirements, node configuration, cabling, connectors, and engineering parameters should be verified before installation.

5. Can the PM644 be used in distributed I/O applications?
Yes. PROFIBUS is commonly used to connect distributed I/O equipment to a central automation system, provided the complete ABB hardware configuration supports the required architecture.

6. What can cause PROFIBUS communication problems?
Typical causes include incorrect addressing, damaged or incorrectly terminated cables, poor connections, configuration errors, network interference, incompatible parameters, or faults in connected devices.

7. Why is PROFIBUS network termination important?
Proper termination helps maintain the electrical characteristics of the PROFIBUS network and reduces signal reflections. Incorrect termination can result in unstable or completely failed communication.

8. How can a PM644 communication fault be diagnosed?
A structured diagnosis should include checking module status, network configuration, PROFIBUS addressing, cable continuity, connectors, termination, connected nodes, and available system diagnostics.

9. Can the PM644 communicate with ABB drive equipment?
It can support PROFIBUS-based communication with compatible equipment where the drive and overall ABB automation configuration are designed for PROFIBUS integration.

10. What are the dimensions and weight of the PM644?
The module measures 273 × 80 × 252 mm and weighs 1.76 kg (3.88 lb).
