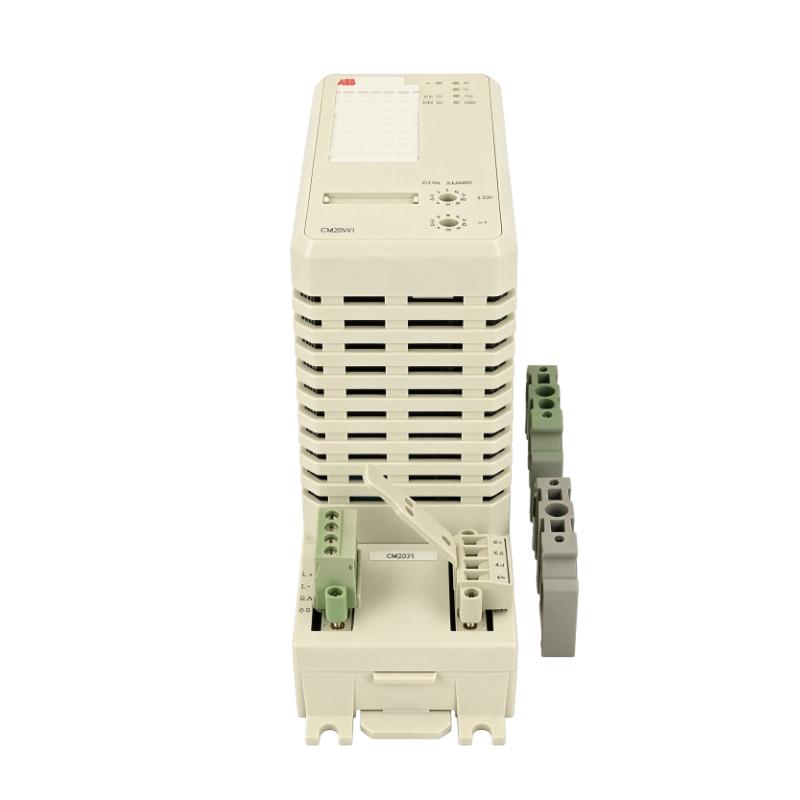

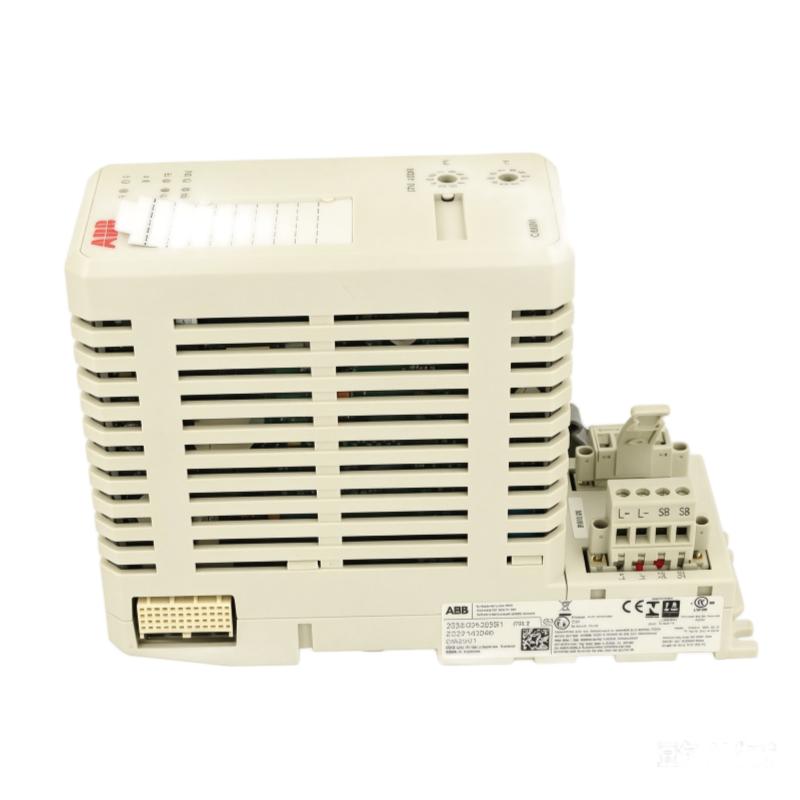

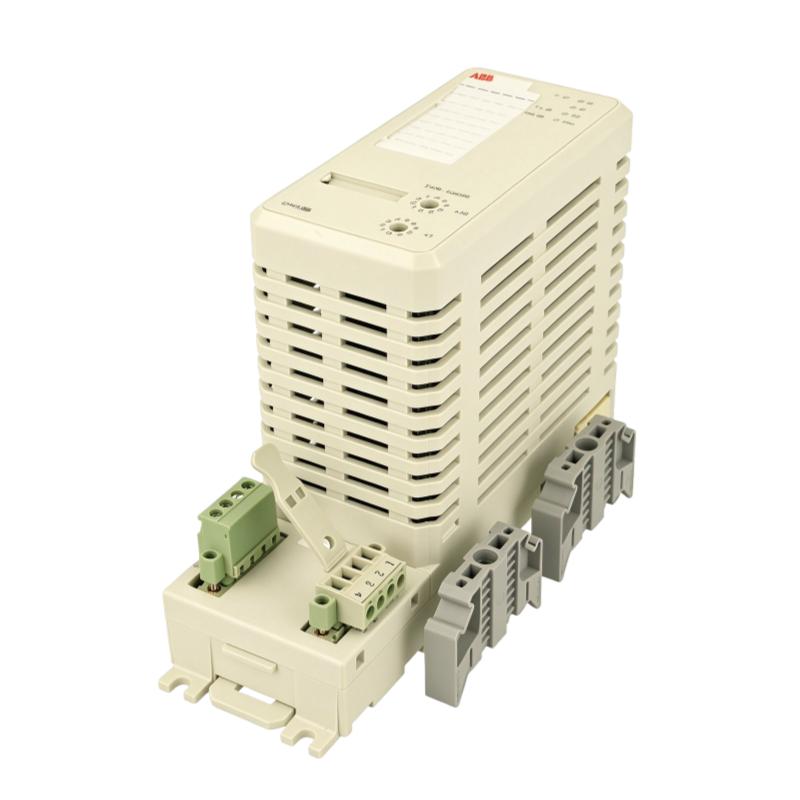

ABB CI820V1 3BSE025255R0001 Redundant Fieldbus Interface Module

Applications

The ABB CI820V1 3BSE025255R0001 Redundant Fieldbus Interface Module is designed to provide reliable fieldbus communication within compatible ABB industrial automation systems. Its redundant communication architecture makes it suitable for applications where maintaining field-level connectivity is important to overall control-system availability.

The module can be used to integrate distributed field devices and I/O equipment into an ABB control architecture while supporting communication arrangements designed for higher system availability. This makes it particularly valuable in process industries and other installations where an unexpected communication interruption can affect production.

Typical applications include:

• Process automation systems
• Distributed I/O architectures
• Redundant fieldbus networks
• Continuous production facilities
• Oil and gas automation
• Chemical and petrochemical plants
• Power and utility control systems
• Industrial manufacturing
• Critical field-device communication
• ABB automation system expansion and replacement

Its 170 × 54 × 122 mm form factor provides a compact communication interface while allowing it to be integrated into structured industrial control assemblies.

Advantages

Redundant Communication Architecture
The CI820V1 is designed for fieldbus applications where communication availability is an important consideration, helping support architectures with redundant communication paths.

Reliable Field-Level Integration
The module provides an interface between the ABB automation system and connected field-level equipment, supporting structured data exchange across the control network.

Suitable for High-Availability Systems
Redundant communication is particularly valuable in process and production environments where loss of field connectivity can have significant operational consequences.

Compact Industrial Design
With dimensions of 170 × 54 × 122 mm, the module can be incorporated into industrial control cabinets without occupying excessive space.

Supports Distributed Automation
The module is suited to architectures in which I/O and field devices are distributed throughout an industrial facility rather than concentrated in a single cabinet.

Useful for System Maintenance
Maintaining a compatible spare CI820V1 can help maintenance teams respond quickly to fieldbus interface faults and minimize communication-related downtime.

Technical FAQs

1. What is the ABB CI820V1 used for?
The CI820V1 is a redundant fieldbus interface module designed to provide field-level communication within compatible ABB industrial automation systems.

2. What is the purpose of fieldbus communication?
Fieldbus communication allows controllers and automation systems to exchange data with distributed I/O, instruments, drives, sensors, actuators, and other field devices.

3. Why is redundancy important in a fieldbus system?
Redundancy can provide an alternative communication path or interface arrangement if a primary communication component or path becomes unavailable, improving system availability.

4. What types of applications benefit from redundant fieldbus communication?
Continuous-process facilities, power systems, chemical plants, oil and gas installations, and other critical automation applications can benefit from communication architectures designed for higher availability.

5. What should be checked before installing a CI820V1?
The ABB system architecture, fieldbus configuration, redundancy arrangement, firmware compatibility, connected I/O equipment, network cabling, addressing, and engineering configuration should be verified.

6. What can cause a fieldbus communication fault?
Potential causes include incorrect network configuration, damaged cables, loose connectors, addressing errors, termination problems, power issues, incompatible firmware, or failure of the interface hardware.

7. How should a redundant fieldbus fault be diagnosed?
Start by checking module diagnostics and system status, then inspect the primary and redundant communication paths, network connections, power supply, configuration, and connected field devices.

8. Can the CI820V1 be used in distributed I/O applications?
Yes. Fieldbus interface modules are commonly used to connect distributed I/O and field devices to a central or distributed automation architecture when the overall ABB configuration supports the required interface.

9. Does redundancy eliminate the need for network maintenance?
No. Redundancy improves availability but does not replace proper network installation, preventive maintenance, diagnostics, cable inspection, and configuration management.

10. What are the dimensions and weight of the CI820V1?
The module measures 170 × 54 × 122 mm and weighs 0.6 kg (1.32 lb).
