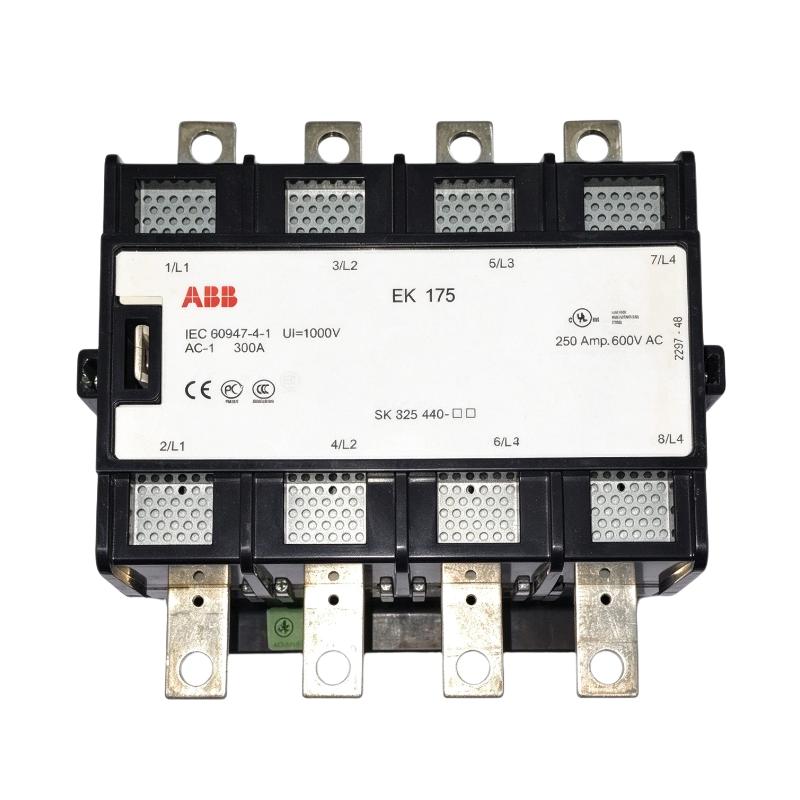

ABB EK175-40-11 SK825440-AM Contactor

Applications

The ABB EK175-40-11 SK825440-AM is a heavy-duty contactor designed for reliable switching and control of electrical loads in industrial power and automation systems. Its robust construction makes it suitable for applications where dependable operation, frequent switching, and long service life are important.

This contactor can be integrated into motor control panels, industrial machinery, process equipment, distribution systems, and other electrical installations requiring controlled switching of higher-power loads.

Typical applications include:

• Industrial motor starting and stopping
• Motor control and switching assemblies
• Industrial machinery and production lines
• Pump and fan control systems
• HVAC and mechanical equipment
• Conveyor and material-handling systems
• Power distribution and control cabinets
• OEM electrical control panels

The EK175-40-11 is particularly useful where a contactor must operate as part of a larger control circuit. It can be paired with overload protection, motor protection devices, circuit breakers, and PLC-based control systems to create a complete motor control solution.

Advantages

Heavy-Duty Switching Capability

The EK175-40-11 is built for demanding industrial switching applications. Its contactor construction supports reliable control of motors and other electrical loads while maintaining stable switching performance.

Robust Industrial Construction

With a substantial mechanical design, the contactor is suited to industrial control cabinets and equipment where durability is a priority. The 7.05 kg unit weight also reflects its larger-duty construction compared with compact contactors.

Reliable Electrical Control

A contactor provides electrically controlled switching between the control circuit and the main power circuit. This allows motors and other loads to be operated remotely through pushbuttons, PLC outputs, relays, or other control devices.

Suitable for Automation Systems

The contactor can form part of an automated motor-control architecture. It can be controlled by a PLC or other automation controller while protection components handle overload and short-circuit conditions.

Flexible Panel Integration

The EK175-40-11 can be installed in industrial electrical cabinets and machine-control assemblies. Its substantial enclosure dimensions should be considered during cabinet layout and maintenance planning.

Practical Choice for Replacement Projects

For maintenance teams replacing an existing ABB contactor, using the correct model and coil configuration helps minimize modifications to the existing control system and simplifies equipment restoration.

Technical FAQs

1. What is the ABB EK175-40-11 SK825440-AM used for?
It is an industrial contactor used to electrically switch and control motors and other suitable power loads in industrial equipment, machinery, and electrical control systems.

2. Can the EK175-40-11 be controlled by a PLC?
Yes. A PLC can control the contactor through an appropriate output interface, provided that the PLC output and the contactor control circuit are electrically compatible.

3. Is the contactor suitable for motor-control applications?
Yes. Its industrial contactor design makes it suitable for motor switching applications when correctly selected according to motor power, voltage, duty category, and operating conditions.

4. What protection should be used with the EK175-40-11?
A motor-control installation normally requires appropriate short-circuit and overload protection. Depending on the application, this can include circuit breakers, fuses, overload relays, or dedicated motor-protection devices.

5. Does the contactor provide overload protection by itself?
No. A contactor is primarily a switching device. Motor overload protection should be provided by a suitable overload relay or motor protection device.

6. What should be checked before replacing this contactor?
Technicians should verify the complete model number, coil/control voltage, main circuit voltage, load current, utilization category, auxiliary contact arrangement, and mounting configuration before replacement.

7. Can the EK175-40-11 be used for frequent switching?
The suitability for frequent switching depends on the electrical load, utilization category, switching frequency, and operating conditions. The application should be evaluated against the contactor's rated operating characteristics.

8. How can contactor wear be detected during maintenance?
Maintenance personnel can inspect the main contacts for excessive erosion, discoloration, pitting, or welding, while also checking terminals, coil operation, mechanical movement, and signs of overheating.

9. What can cause the contactor to chatter or fail to remain energized?
Possible causes include an incorrect or unstable control voltage, loose control wiring, a damaged coil, inadequate control power, mechanical problems, or an unsuitable control circuit.

10. Can the contactor be integrated into an automated motor starter?
Yes. It can be incorporated into a motor starter together with appropriate protection and control components. A PLC or other controller can provide the command signal while the contactor performs the main switching function.
