Brand:Bently Nevada PLC Item No.:330190-040-00-05 Product Origin:USA Product Dimensions:Cable Length: 4 meters Product Weight:0.136 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

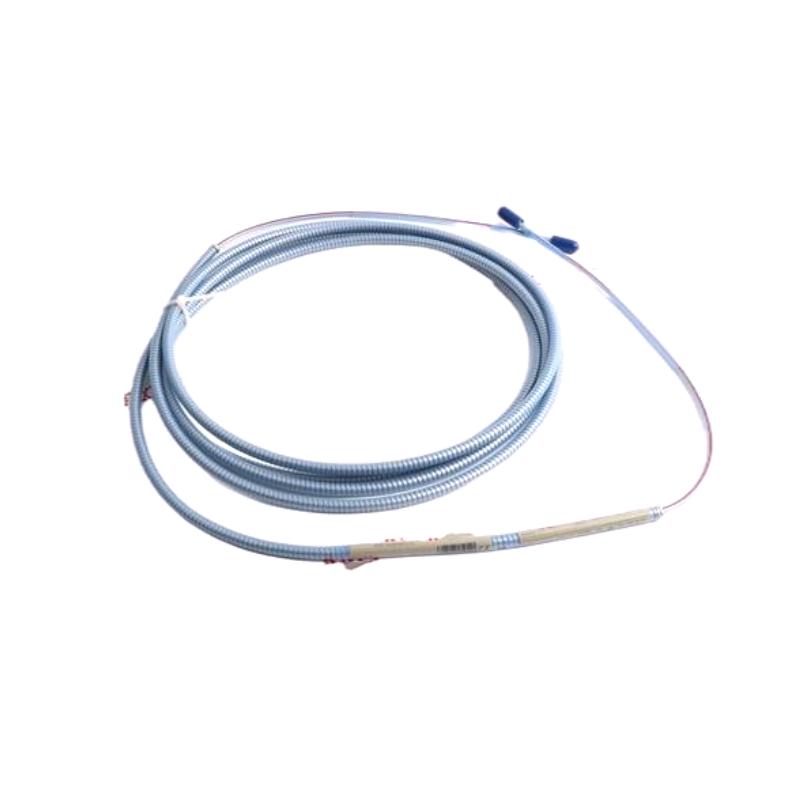

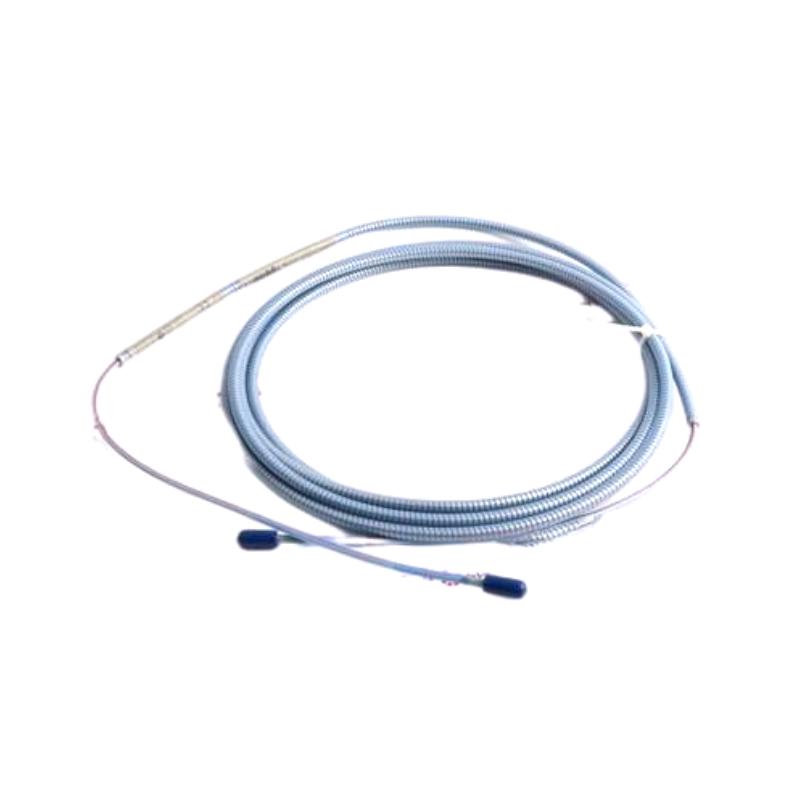

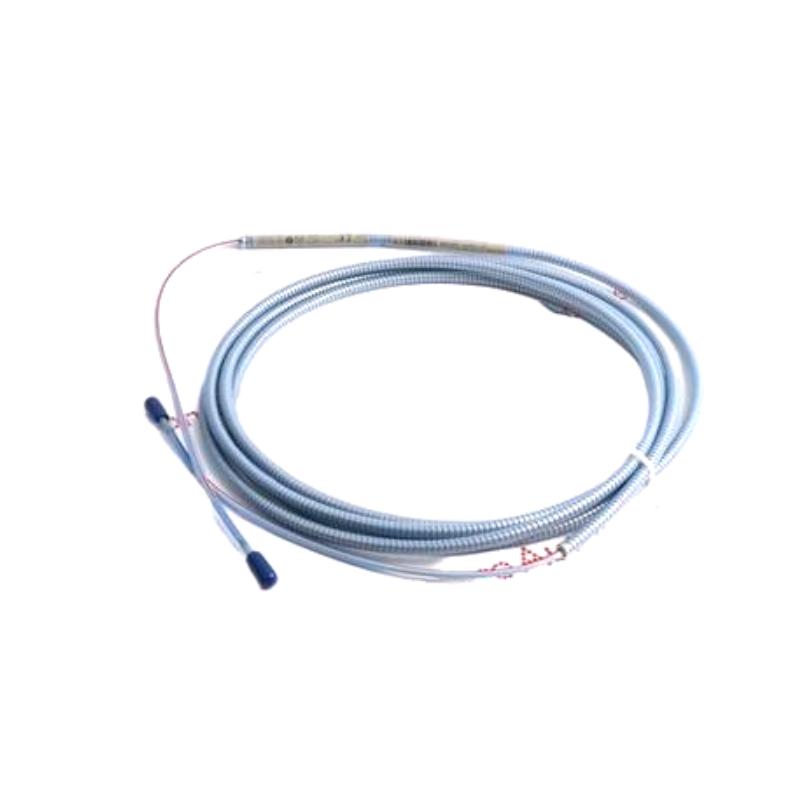

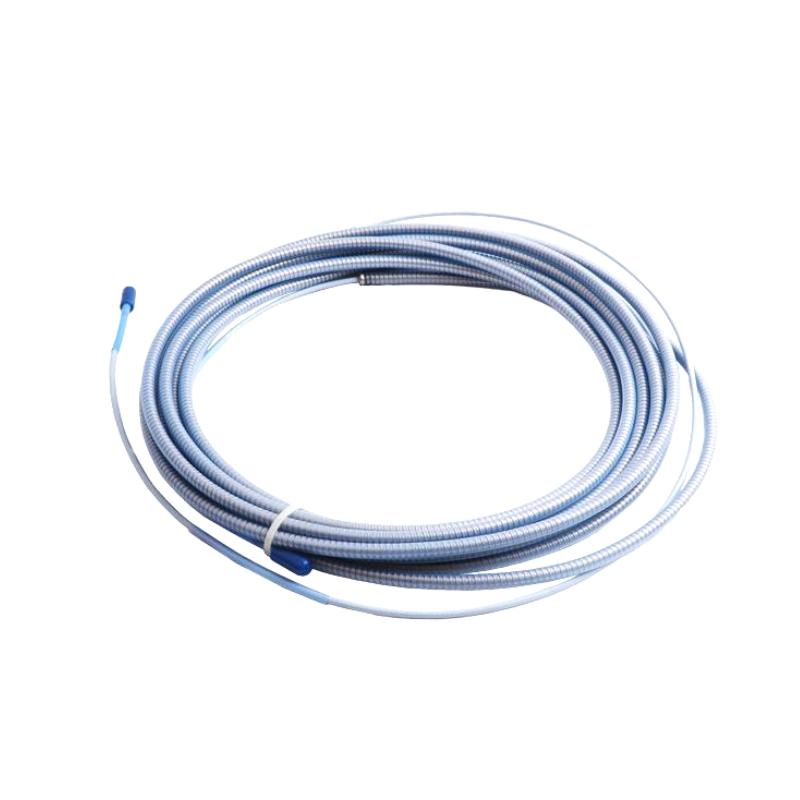

The Bently Nevada 330190-040-00-05 3300 XL ETR Extension Cable is a dedicated extension cable for compatible 3300 XL ETR monitoring configurations. It provides a 4-meter connection length, allowing greater flexibility when positioning machinery sensors and associated monitoring equipment.
In a rotating machinery protection system, the quality and compatibility of every part of the measurement chain are important. Sensors collect physical measurements from the machine, while the associated cables transfer the electrical signal to the monitoring electronics. An appropriately specified extension cable helps maintain the intended connection between these components.
The 330190-040-00-05 is especially useful in installations where standard cable length is insufficient because of equipment dimensions, cabinet location, or machinery layout. Its 4-meter length provides additional routing capacity without requiring an improvised cable solution.
For maintenance and replacement projects, engineers should verify the complete 330190-040-00-05 part number before installation. Cable compatibility should be considered together with the connected sensor, extension arrangement, monitoring channel, and overall 3300 XL system configuration.
For industrial plants relying on continuous machinery monitoring, maintaining the correct cable configuration can contribute to stable measurement performance and easier troubleshooting. The 330190-040-00-05 therefore serves as a practical connection component within compatible Bently Nevada condition-monitoring installations.
Technical Specifications
Specification
Details
Brand
Bently Nevada
Model
330190-040-00-05
Product Series
3300 XL
Product Type
ETR Extension Cable
Cable Length
4 meters
Application
Machinery condition monitoring
Typical Use
Vibration and rotating machinery monitoring systems
The Bently Nevada 330190-040-00-05 is a 3300 XL ETR Extension Cable designed to extend the connection between compatible proximity measurement components in rotating machinery monitoring systems. It is used where the physical distance between the sensor and associated monitoring or signal-conditioning equipment requires additional cable length.
The 4-meter cable provides practical installation flexibility in machinery monitoring applications, particularly when sensors and monitoring equipment cannot be positioned close together. It can help maintain an organized cable route while supporting reliable signal transmission within a properly configured vibration monitoring system.
Typical applications include:
Turbine vibration monitoring
Compressor condition monitoring
Pump and motor monitoring
Industrial rotating machinery
Generator monitoring systems
Mechanical equipment protection systems
Continuous vibration and position monitoring
Predictive maintenance installations
In a Bently Nevada monitoring architecture, extension cables form an important part of the complete measurement chain. Correct cable selection is therefore essential to maintaining compatibility between the sensor, extension cable, and associated monitoring electronics.
Advantages
Purpose-Built for 3300 XL ETR Systems
The 330190-040-00-05 is designed for use within compatible Bently Nevada 3300 XL ETR measurement configurations, making it suitable for installations based on the corresponding monitoring architecture.
4-Meter Installation Length
With a cable length of 4 meters, the cable provides additional routing distance between connected monitoring components. This can be useful when machinery layout or cabinet positioning creates a longer physical connection path.
Reliable Signal Connection
A properly matched extension cable helps preserve the electrical characteristics required by the associated measurement system. Correct cable selection is important for maintaining dependable monitoring performance.
Suitable for Industrial Machinery Monitoring
The cable is intended for use in industrial monitoring environments where vibration, position, and other machinery-condition measurements are continuously collected.
Simplifies Equipment Layout
The extension length provides greater flexibility when installing sensors and monitoring electronics at different physical locations, helping maintenance teams achieve cleaner and more practical cable routing.
Useful for Replacement and Maintenance
For service work, using the correct replacement cable helps restore the original monitoring configuration without unnecessary changes to the installed system.
Technical FAQs
1. What is the Bently Nevada 330190-040-00-05?
It is a 3300 XL ETR Extension Cable used to extend the connection within compatible Bently Nevada machinery monitoring systems.
2. What is the cable length of the 330190-040-00-05?
The cable length is 4 meters.
3. What is the primary function of an ETR extension cable?
Its primary function is to provide additional cable length between compatible measurement components while maintaining the required electrical connection for the monitoring system.
4. Can this cable be used with any proximity sensor system?
No. Extension cables should only be used with compatible sensor and monitoring configurations. The complete system model and electrical requirements should be checked before installation.
5. Why is the correct extension cable important in a vibration monitoring system?
Cable characteristics can affect the electrical behavior of the measurement circuit. Using the specified cable helps maintain compatibility and reliable signal transmission.
6. Can the cable be used for rotating machinery monitoring?
Yes. It is intended for compatible Bently Nevada monitoring configurations used with industrial rotating machinery.
7. What should be checked before installing the cable?
Technicians should verify the complete part number, connector compatibility, cable routing requirements, system configuration, and the requirements of the connected sensor and monitoring electronics.
8. Can a damaged extension cable affect monitoring accuracy?
Yes. Damaged conductors, connectors, insulation, or shielding can introduce intermittent signals, increased electrical noise, or signal loss and may affect the reliability of machinery-condition measurements.
9. How should the cable be routed in an industrial installation?
The cable should be routed according to the installation requirements of the monitoring system, avoiding unnecessary mechanical stress, sharp bends, excessive tension, and potential sources of electrical interference.
10. Is the 330190-040-00-05 suitable as a replacement cable?
Yes, provided the existing system requires the same cable configuration and the replacement is confirmed against the original part number and connected Bently Nevada components.
