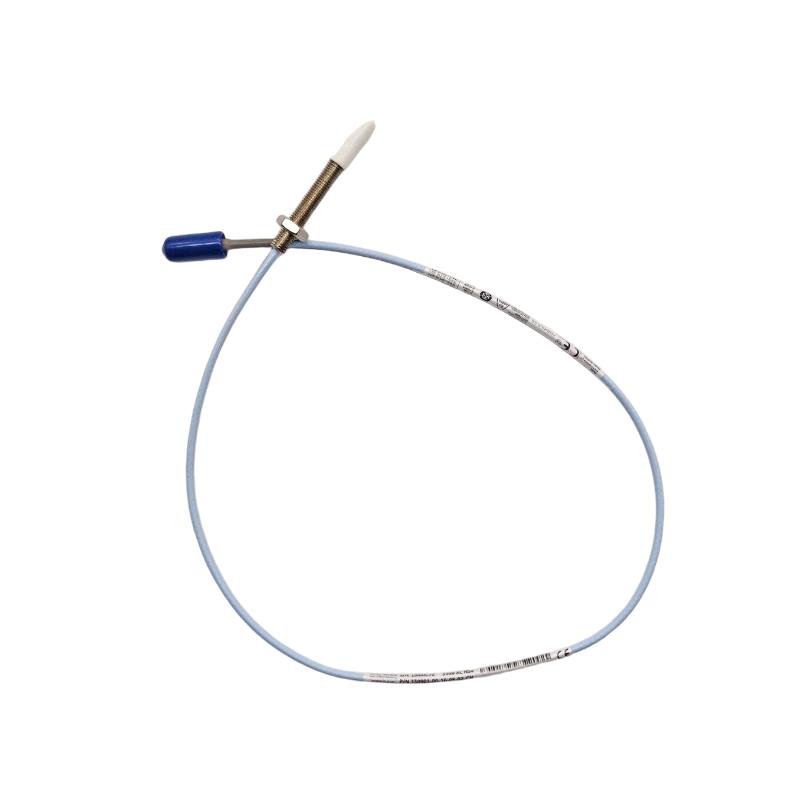

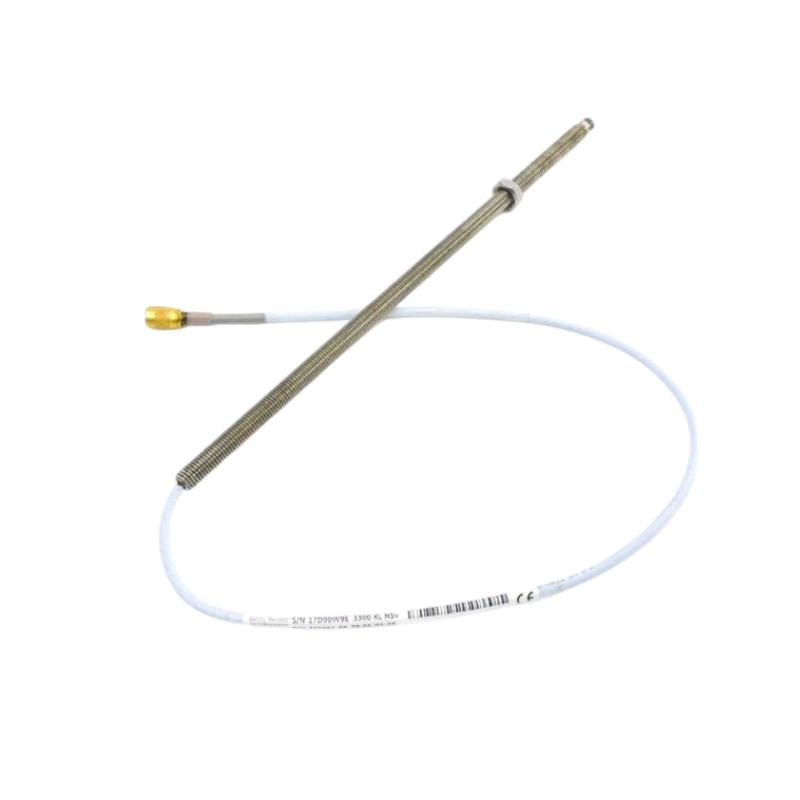

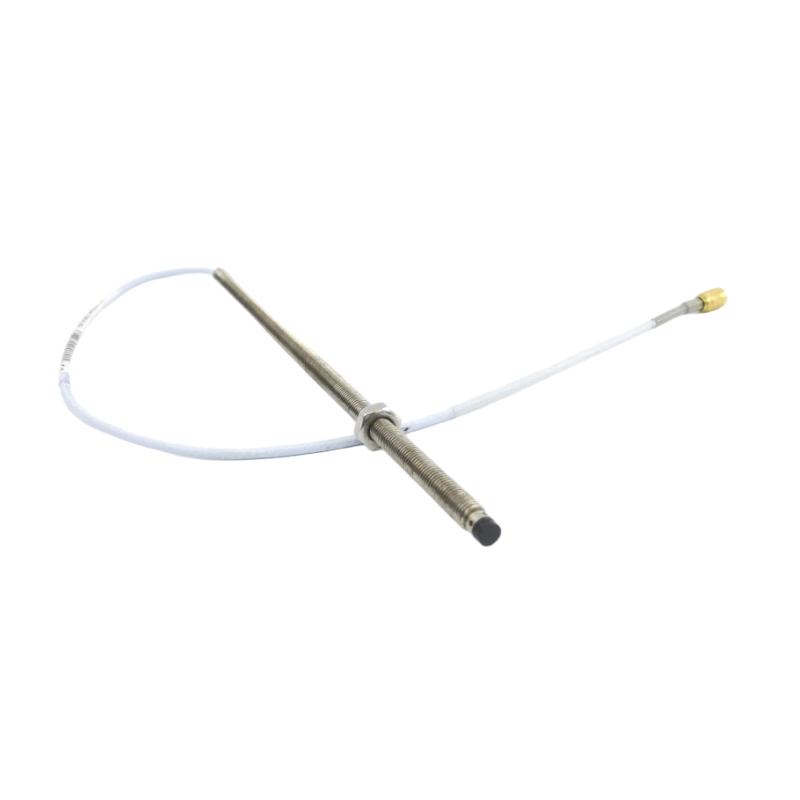

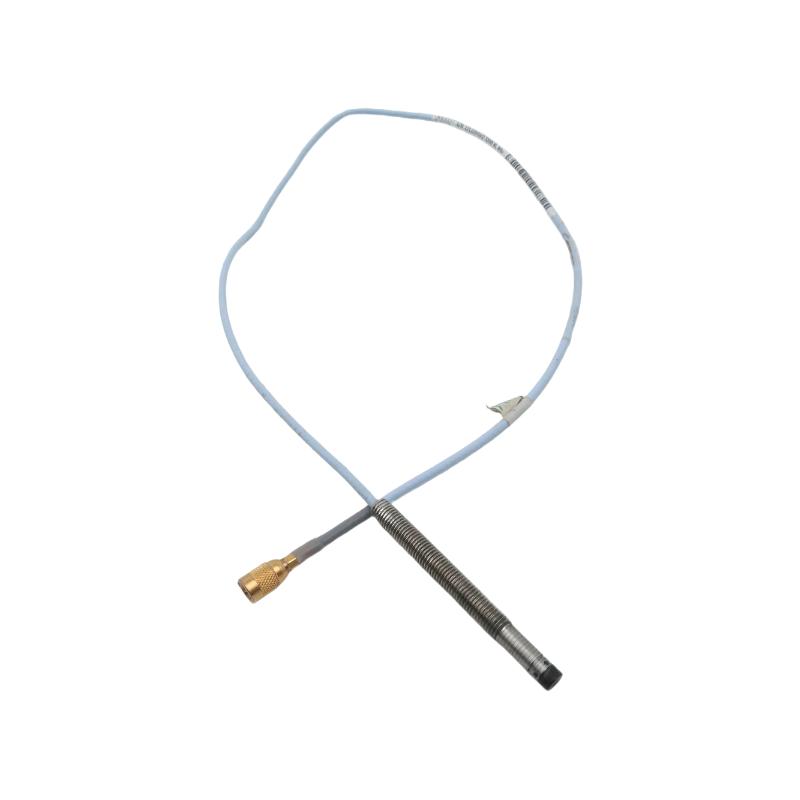

Bently Nevada 330901-00-32-10-02-05 3300 NSv Proximity Probe
Bently Nevada 330901-00-32-10-02-05 3300 NSv Proximity Probe
0.0
Points
Brand:Bently Nevada PLC Item No.:330901-00-32-10-02-05 Product Origin:USA Product Dimensions:Total Length: 1 meter Product Weight:0.15 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330901-00-32-10-02-05 3300 NSv Proximity Probe is an industrial non-contact sensor designed for monitoring shaft movement in rotating machinery. It provides an important sensing point within machinery protection and condition-monitoring systems where continuous observation of shaft behavior is required.
Unlike contact-based mechanical sensors, a proximity probe operates without touching the rotating shaft. This makes the technology particularly suitable for high-speed machinery, where direct mechanical contact would introduce unacceptable wear and could interfere with machine operation.
The probe can be integrated into a compatible Bently Nevada monitoring architecture together with the appropriate signal-conditioning and monitoring equipment. When correctly installed, the measurement chain can provide information about shaft displacement and dynamic behavior, helping maintenance and operations teams identify abnormal machine conditions.
With a total length of 1 meter, the 330901-00-32-10-02-05 provides a practical configuration for installations where the sensing point and associated monitoring components require a defined physical connection length. Its compact sensing arrangement also makes correct mounting and probe-gap adjustment important during commissioning.
For replacement applications, engineers should always compare the complete part number with the installed probe before ordering. Matching the probe to the existing monitoring system helps avoid compatibility problems and supports a smoother maintenance process.
The 3300 NSv series is well suited to industrial environments where machinery reliability, vibration monitoring, and early detection of mechanical abnormalities are important. As part of a properly engineered monitoring system, the 330901-00-32-10-02-05 can contribute to dependable continuous machinery surveillance.
The Bently Nevada 330901-00-32-10-02-05 is a 3300 NSv Proximity Probe designed for non-contact measurement of shaft displacement and position in rotating machinery. It is intended for machinery-monitoring applications where accurate observation of shaft movement is important for equipment protection and condition assessment.
Proximity probes operate by sensing changes in the distance between the probe tip and a conductive target, typically a rotating shaft. The resulting measurement can be used by compatible monitoring electronics to evaluate shaft vibration, radial movement, axial position, or other dynamic mechanical conditions.
Typical applications include:
Steam and gas turbine monitoring
Compressor condition monitoring
Pump and motor monitoring
High-speed rotating machinery
Shaft vibration measurement
Radial shaft displacement monitoring
Machinery protection systems
Predictive maintenance and condition monitoring
The 3300 NSv platform is particularly useful in applications where compact probe construction and reliable shaft-position measurement are required. Correct probe selection is important because probe dimensions, mounting characteristics, cable configuration, and system compatibility all influence measurement performance.
Advantages
Non-Contact Shaft Measurement
The probe measures shaft movement without physically contacting the rotating component. This eliminates mechanical wear at the sensing interface and allows continuous monitoring during machine operation.
Designed for Machinery Protection
The probe can form part of a larger machinery protection system, providing measurement data that can be used to identify abnormal shaft movement and potentially protect critical equipment from damage.
Suitable for Dynamic Measurements
Proximity measurement technology is well suited to monitoring dynamic shaft behavior. It can support applications involving vibration, displacement, and position measurements when used with compatible monitoring electronics.
Compact Monitoring Solution
The 3300 NSv Proximity Probe is designed for industrial machinery installations where reliable sensing must be combined with practical installation requirements.
1-Meter Total Length
The specified total length is 1 meter, providing a practical sensing arrangement for installations where the probe needs to be positioned close to the monitoring point while maintaining a manageable cable route.
Useful for Replacement Projects
For maintenance teams replacing an installed proximity probe, matching the complete part number helps maintain compatibility with the existing monitoring configuration and reduces unnecessary system modifications.
Technical FAQs
1. What is the Bently Nevada 330901-00-32-10-02-05 used for?
It is a 3300 NSv proximity probe used for non-contact measurement of shaft movement, displacement, and position in compatible rotating machinery monitoring systems.
2. How does a proximity probe measure shaft movement?
The probe generates an electromagnetic sensing field and detects changes in the distance between the probe tip and a conductive machine target. Compatible electronics then process the resulting signal.
3. What types of machinery can use the 330901-00-32-10-02-05?
It can be used in compatible rotating machinery monitoring applications such as turbines, compressors, pumps, motors, and other high-speed machinery.
4. Does the probe physically contact the rotating shaft?
No. Proximity probes are non-contact sensors, allowing shaft movement to be monitored without mechanical contact between the probe tip and the rotating surface.
5. What parameters can a proximity probe help monitor?
Depending on the system configuration, proximity probes can be used to monitor shaft vibration, radial displacement, axial position, and other forms of shaft movement.
6. Why is probe-to-target gap important?
The probe must operate within the appropriate measurement range for the sensing system. An incorrect gap can reduce measurement quality or cause the monitoring system to produce an invalid signal.
7. What should be checked before replacing the probe?
Technicians should verify the complete model number, probe type, physical configuration, mounting requirements, cable arrangement, and compatibility with the associated signal-conditioning and monitoring equipment.
8. Can a damaged probe affect machinery monitoring?
Yes. Physical damage, cable faults, connector problems, contamination, or incorrect installation can result in unstable or inaccurate measurements and may generate monitoring-system alarms.
9. How should the probe be installed near rotating machinery?
The probe should be installed according to the requirements of the monitoring system, with correct mechanical positioning, target orientation, probe gap, cable routing, and secure mounting.
10. Why is correct probe selection important in a protection system?
The probe is part of a complete measurement chain. Its electrical and mechanical characteristics must match the associated extension cable, signal-conditioning electronics, and monitoring system to achieve reliable measurements.
