Introduction

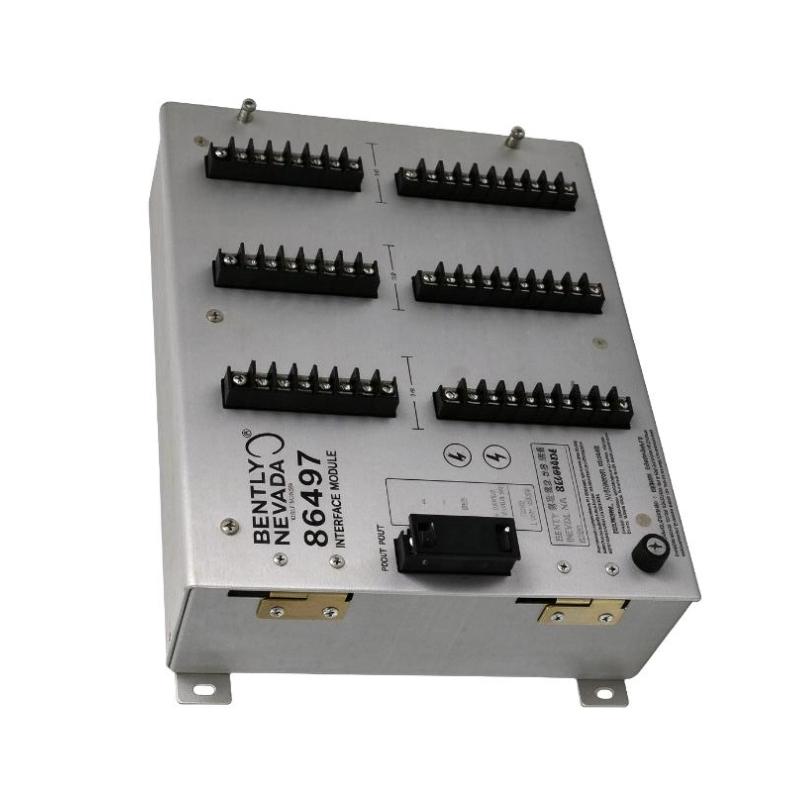

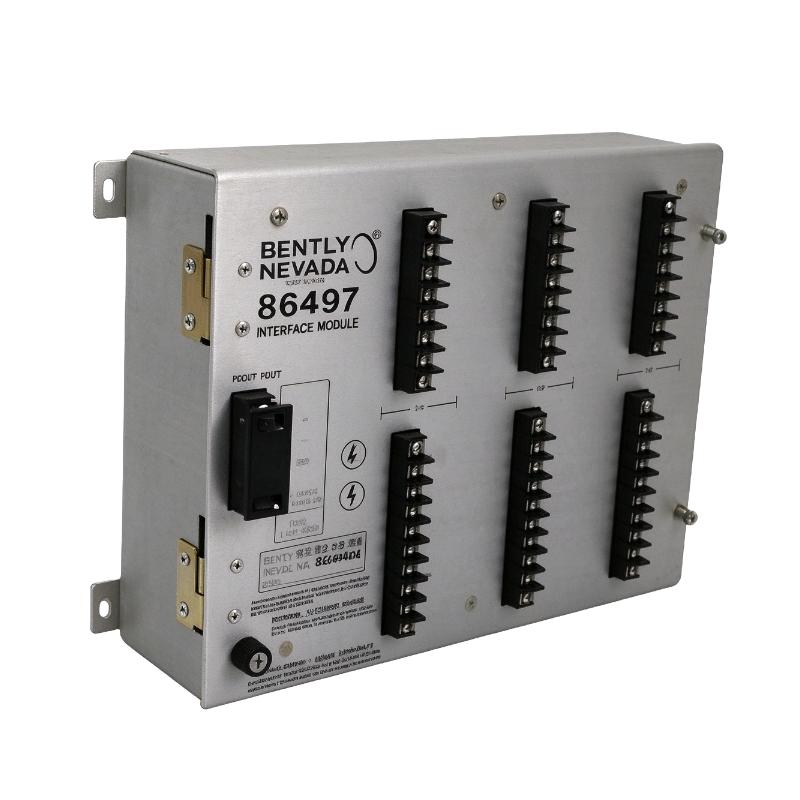

The Bently Nevada 86497-01-02-02-00 Interface Module is an industrial monitoring component intended to provide a structured interface within compatible machinery condition-monitoring systems. Interface hardware is particularly important in complex monitoring installations because it connects different stages of the measurement architecture and helps maintain an organized signal path.

In a typical machinery monitoring application, sensors collect information from the machine, while signal-conditioning and monitoring equipment processes that information. An interface module can serve as an important connection point between these components, helping ensure that the measurement signals reach the appropriate monitoring hardware.

The 86497-01-02-02-00 has a compact 135 × 30 × 100 mm form factor and a specified weight of 1.86 kg, making it suitable for integration into industrial monitoring assemblies where space and equipment arrangement must be considered during system design.

For maintenance applications, correct part-number identification is particularly important. Replacing an interface module with an electrically or functionally incompatible component can cause signal problems even when the physical installation appears suitable. Engineers should therefore verify the complete 86497-01-02-02-00 designation and the associated system architecture before replacement.

When incorporated into a properly configured Bently Nevada monitoring solution, the interface module can contribute to a reliable measurement chain for critical rotating machinery. Its role is especially valuable in installations where dependable signal integration and straightforward maintenance are important to overall equipment availability.

Technical Specifications

Specification	Details
Brand	Bently Nevada
Model	86497-01-02-02-00
Product Type	Interface Module
Application	Machinery condition monitoring
Typical Use	Signal interfacing and monitoring-system integration
Installation	Industrial monitoring / control assembly
Dimensions	135 × 30 × 100 mm
Weight	1.86 kg (4.10 lb)

Recommended Related Models

Model	Product Type
Bently Nevada 3500 Series	Machinery Monitoring System
Bently Nevada 3300 Series	Machinery Monitoring System
Bently Nevada Proximity Probe Series	Proximity Sensor
Bently Nevada Proximitor Sensor Series	Signal Conditioning Module
Bently Nevada Extension Cable Series	Extension Cable

Popular Related Models

Model	Product Type
Bently Nevada 3500/22M	Transient Data Interface
Bently Nevada 3500/42M	Proximity / Seismic Monitor
Bently Nevada 3500/44M	Reciprocating Machinery Monitor
Bently Nevada 3300 XL Proximity Probe	Proximity Probe
Bently Nevada 3300 XL Extension Cable	Extension Cable

Applications

The Bently Nevada 86497-01-02-02-00 Interface Module is designed to provide an interface between compatible field measurement equipment and a machinery monitoring system. In industrial condition-monitoring architectures, interface modules help establish the required electrical connection between sensors, signal-conditioning components, and monitoring electronics.

The module can be used in applications where reliable transfer and integration of machinery measurement signals are required. By providing a dedicated interface within the monitoring architecture, it helps simplify system organization and supports consistent signal handling.

Typical applications include:

Rotating machinery monitoring
Turbine condition monitoring
Compressor monitoring systems
Industrial pump monitoring
Generator monitoring
Vibration and displacement measurement systems
Machinery protection installations
Predictive maintenance systems
Industrial automation and diagnostic systems

In large machinery installations, interface hardware is an important part of the overall signal chain. Correctly matched interface equipment helps maintenance engineers build a structured monitoring system while simplifying troubleshooting and equipment replacement.

Advantages

Reliable System Interfacing

The 86497-01-02-02-00 provides a dedicated interface point within compatible monitoring architectures, helping establish reliable connections between measurement components and system electronics.

Designed for Industrial Monitoring

Its application-oriented construction makes it suitable for industrial machinery monitoring environments where stable signal integration is essential.

Supports Condition Monitoring

Interface hardware plays an important role in transferring measurement information to the monitoring system, allowing vibration, displacement, and other machinery parameters to be evaluated.

Practical Panel Integration

The module has a compact 135 × 30 × 100 mm form factor, making it suitable for organized installation within industrial control and monitoring equipment.

Simplifies Maintenance

Using the correct replacement interface module can help maintenance personnel restore an existing monitoring configuration without redesigning the complete signal architecture.

Suitable for Critical Machinery

When integrated into an appropriate Bently Nevada monitoring system, the module can support monitoring architectures used for critical rotating equipment where reliable measurement availability is important.

Technical FAQs

1. What is the Bently Nevada 86497-01-02-02-00?
It is an interface module designed for use within compatible Bently Nevada machinery monitoring and measurement architectures.

2. What is the primary function of an interface module?
An interface module provides the required electrical interface between compatible measurement equipment and monitoring-system electronics, helping organize and transfer measurement signals.

3. What types of machinery can use interface modules such as the 86497-01-02-02-00?
Compatible applications can include turbines, compressors, pumps, generators, and other industrial rotating machinery requiring condition monitoring.

4. Can the module be used in a vibration monitoring system?
Yes, where the module is specified as part of the corresponding Bently Nevada monitoring architecture. The complete system configuration should be verified before installation.

5. Why is interface compatibility important?
Different monitoring systems use specific electrical interfaces and signal characteristics. The interface module must match the associated sensors, cables, signal-conditioning equipment, and monitoring hardware.

6. Can a faulty interface module affect monitoring performance?
Yes. Electrical faults, damaged connections, or internal module problems can interrupt or degrade signal transmission and may result in missing, unstable, or abnormal monitoring data.

7. What should be checked before replacing the module?
Verify the complete part number, existing system configuration, connected equipment, electrical interfaces, mounting arrangement, and applicable installation requirements.

8. How can an interface-module fault be identified?
Troubleshooting may include checking power and connections, inspecting wiring and connectors, reviewing monitoring-system diagnostics, and comparing the affected channel with known-good channels.

9. Is the 86497-01-02-02-00 suitable for new system design?
Suitability depends on the specific Bently Nevada architecture and equipment being installed. Engineers should confirm that the module is compatible with the intended monitoring system before specifying it for a new installation.

10. Can the module be used with other Bently Nevada monitoring components?
Yes, provided the associated components are electrically and functionally compatible. Interface modules should always be selected as part of the complete measurement-chain configuration.
