Brand:GE Fanuc PLC Item No.:IC200UER016-BC Product Origin:USA Product Dimensions:95 x 90 x 76 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

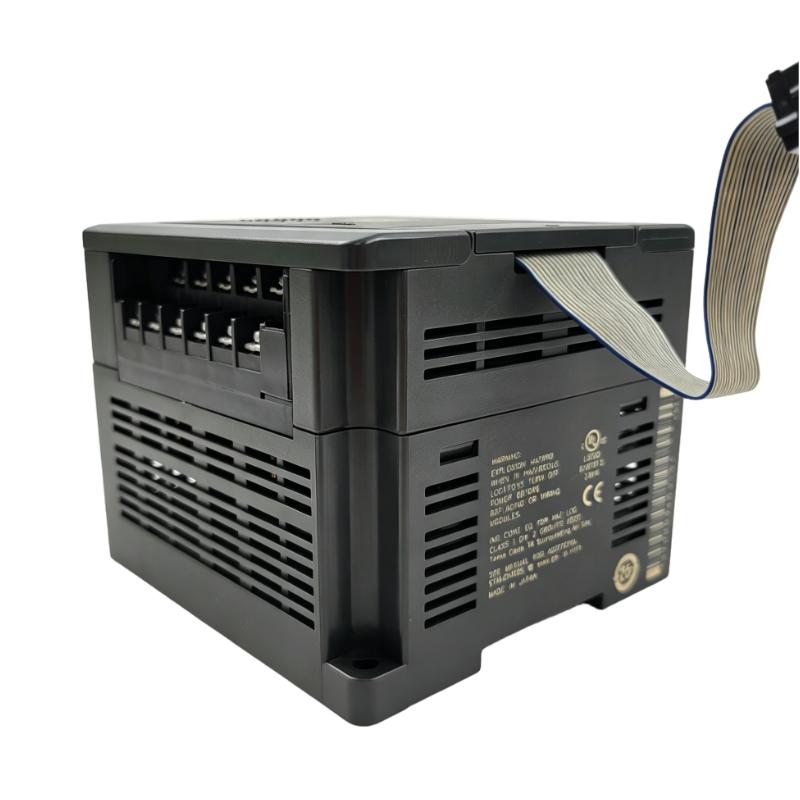

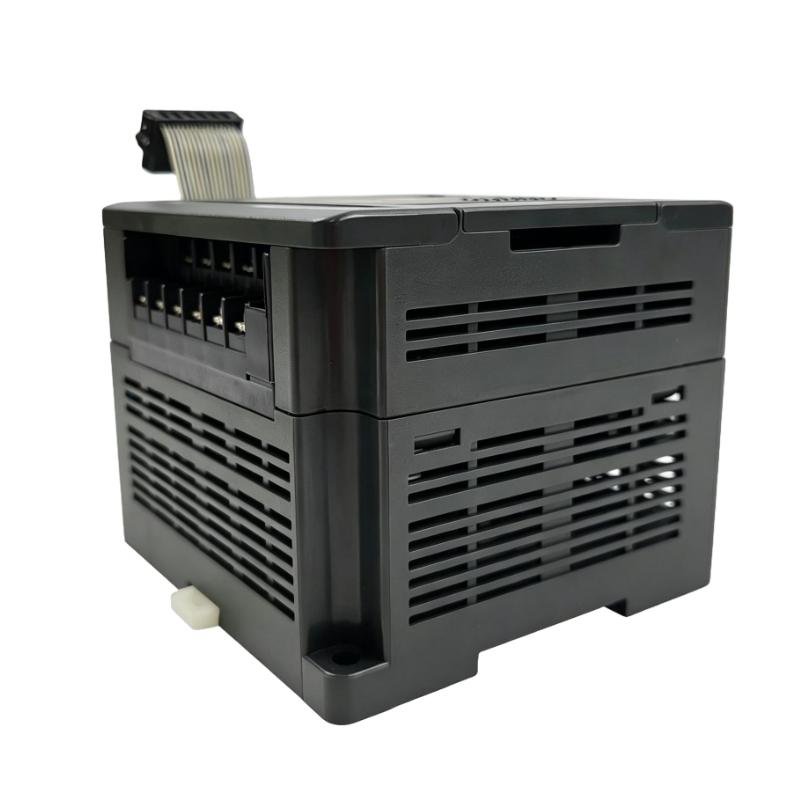

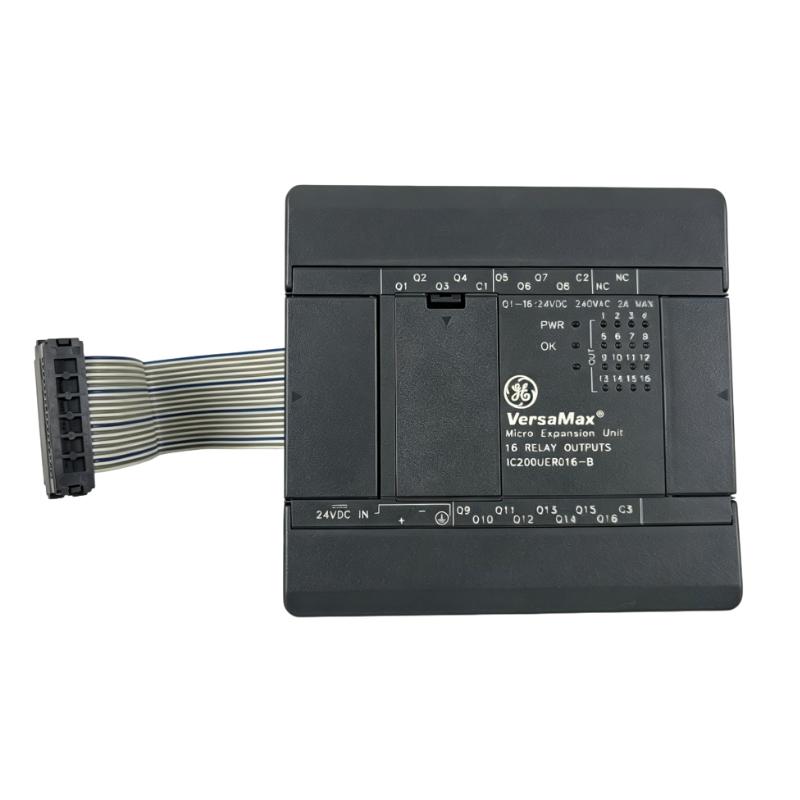

The GE IC200UER016-BC VersaMax Micro Expansion Unit is a compact automation component designed to extend compatible GE VersaMax Micro control systems. It provides a practical approach to increasing system capacity while retaining the compact architecture commonly required in machine-level automation.
In a typical control application, the PLC or controller manages program execution and communicates with field devices through its available I/O resources. As a machine grows or additional functions are added, the original I/O capacity may no longer be sufficient. An expansion unit provides a way to address this requirement without necessarily replacing the complete controller.
This makes the IC200UER016-BC useful for machine upgrades, production-line modifications, OEM equipment, and maintenance projects. Additional sensors, actuators, switches, and control devices can be incorporated into the expanded architecture according to the capabilities of the associated VersaMax Micro system.

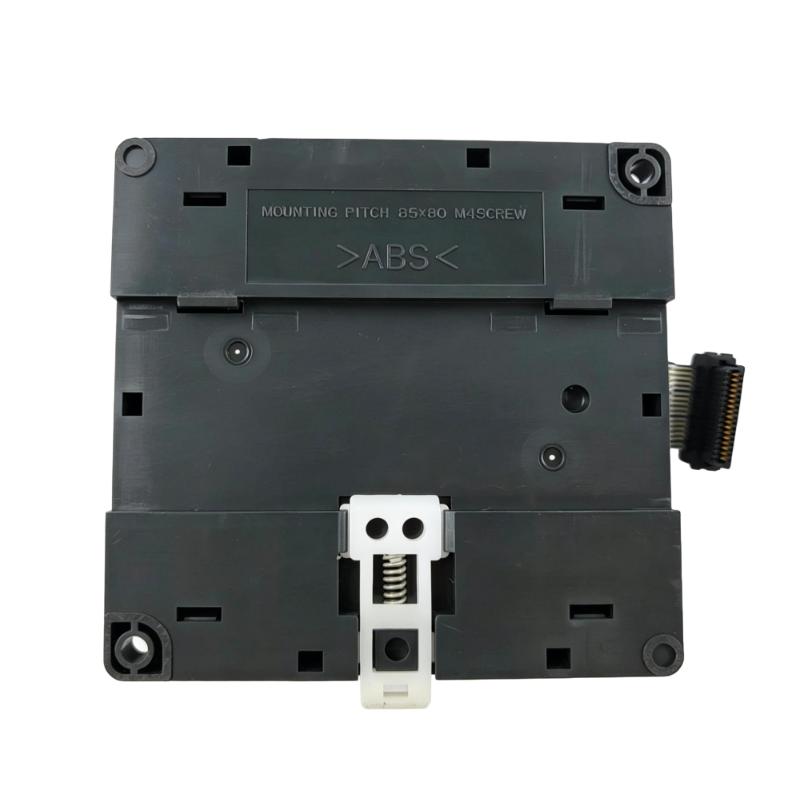

The unit measures 95 × 90 × 76 mm, giving it a compact footprint for industrial control panels. Its 0.29 kg weight also makes it practical for installations where equipment density and cabinet organization are important.
For replacement applications, technicians should verify the complete IC200UER016-BC designation and compare it with the existing hardware configuration before installation. Particular attention should be given to controller compatibility, expansion configuration, wiring, power requirements, and I/O addressing.
For OEM and retrofit projects alike, the VersaMax Micro expansion concept provides a scalable way to increase automation functionality while keeping the overall control architecture compact and serviceable.
Technical Specifications
Specification
Details
Brand
GE
Model
IC200UER016-BC
Product Family
VersaMax Micro
Product Type
Expansion Unit
Application
PLC and machine automation
Typical Use
I/O and system expansion
Installation
Industrial control panel
Dimensions
95 × 90 × 76 mm
Weight
0.29 kg (0.64 lb)
Recommended Related Models
Model
Product Type
GE IC200CPUE05
VersaMax Micro CPU
GE IC200UDR001
VersaMax Micro I/O Module
GE IC200MDL Series
VersaMax I/O Module
GE IC200PWR Series
VersaMax Power Supply
GE IC200CBL Series
VersaMax System Cable
Popular Related Models
Model
Product Type
GE IC200CPUE05
VersaMax Micro CPU
GE IC200UDD110
VersaMax Micro Discrete Input Module
GE IC200UAA003
VersaMax Micro Analog Module
GE IC200MDL650
VersaMax Discrete Output Module
GE IC200PWR002
VersaMax Power Supply
Applications
The GE IC200UER016-BC is a VersaMax Micro Expansion Unit designed to extend the I/O and control capabilities of compatible GE VersaMax Micro automation systems. It provides a practical way to expand an existing controller configuration when additional field signals or control points are required.
Expansion units are particularly useful in compact automation applications where the original controller does not provide enough I/O capacity for the complete machine or process. Instead of replacing the controller with a larger system, an expansion unit can help increase the available control resources while maintaining a compact architecture.
Typical applications include:
Machine automation
Packaging equipment
Conveyor and material-handling systems
Pump and motor control
HVAC automation
Water and wastewater equipment
Small process-control systems
OEM machinery
Factory automation panels
The IC200UER016-BC is well suited to distributed or compact control architectures where panel space, wiring efficiency, and straightforward system expansion are important considerations.
Advantages
Flexible I/O Expansion
The primary advantage of a VersaMax Micro expansion unit is the ability to extend the capabilities of a compatible controller without completely redesigning the control system.
Compact Automation Hardware
With dimensions of only 95 × 90 × 76 mm, the unit is suitable for control panels where available DIN-rail and cabinet space is limited.
Suitable for Machine-Level Control
The expansion approach works well for machine builders and OEMs that need additional control points for sensors, actuators, switches, valves, motors, or other field devices.
Simplifies System Upgrades
An expansion unit can provide a practical solution when an existing automation system requires additional I/O during machine modification or production-line expansion.
Reduced Panel Footprint
The compact design allows additional control functionality to be incorporated without requiring the physical space associated with a larger standalone controller.
Useful for Maintenance and Replacement
For an existing VersaMax Micro installation, using the correct IC200 model can help maintain the original system architecture and minimize changes to established control wiring.
Technical FAQs
1. What is the GE IC200UER016-BC?
It is a VersaMax Micro Expansion Unit designed to extend the capabilities of compatible GE automation systems.
2. Why would an automation system require an expansion unit?
An expansion unit is useful when the existing controller requires additional I/O or control capacity for new field devices or an expanded machine process.
3. Can the IC200UER016-BC be used with any GE PLC?
No. It is intended for compatible GE VersaMax Micro configurations. The controller family and complete system architecture should be verified before installation.
4. What types of applications can use a VersaMax Micro expansion system?
Typical applications include machine automation, packaging, conveyors, pumps, HVAC, water treatment, OEM machinery, and compact process-control systems.
5. Can expansion units help reduce control-panel space?
Yes. The compact architecture allows additional control functionality to be added without necessarily installing a larger standalone controller.
6. Can the expansion unit be used in a machine retrofit?
Yes, provided the existing controller and system architecture support the expansion unit. Compatibility should be confirmed before modifying the installation.
7. What should be checked before replacing an IC200UER016-BC?
Verify the complete model number, compatible controller, expansion architecture, I/O configuration, power requirements, communication arrangement, and physical installation requirements.
8. What can cause an expansion unit to fail to communicate with the controller?
Possible causes include incorrect system configuration, wiring problems, power issues, incompatible hardware, loose connections, or faults in the expansion network or controller.
9. Can a PLC program need modification after adding an expansion unit?
Potentially. When the expansion changes the system I/O configuration, the hardware configuration and application program may need to be updated so that the controller correctly addresses the additional resources.
10. Why is correct module identification important when replacing this unit?
VersaMax Micro components can have different functions and configurations. Matching the exact model helps ensure compatibility with the controller, system configuration, and existing application.
