Brand:GE Fanuc PLC Item No.:TB63600BJ14 Product Origin:USA Product Dimensions:555.6 × 209.6 × 149.2 mm Product Weight:24.95 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

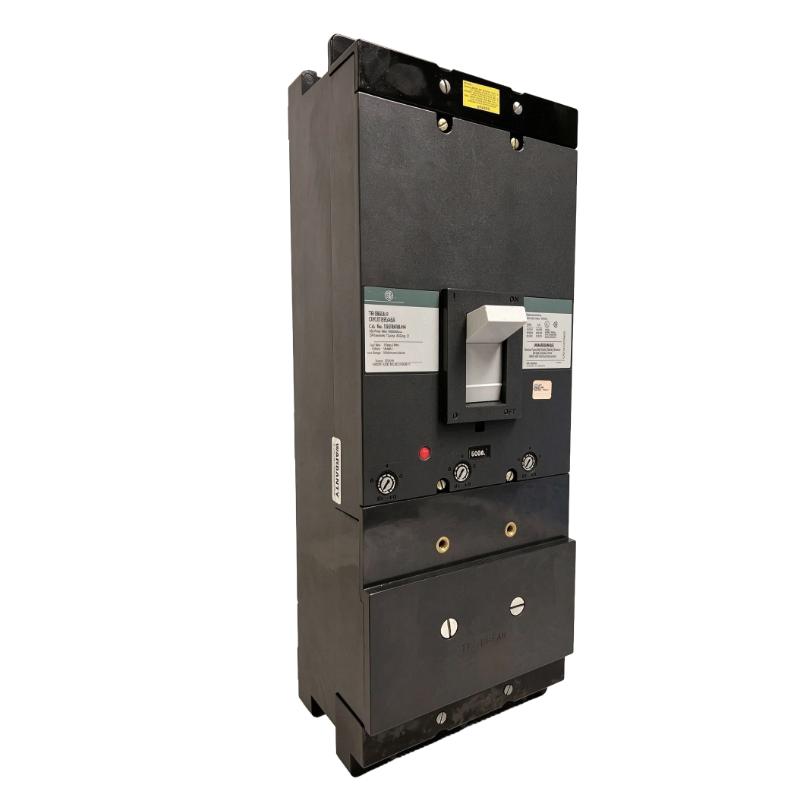

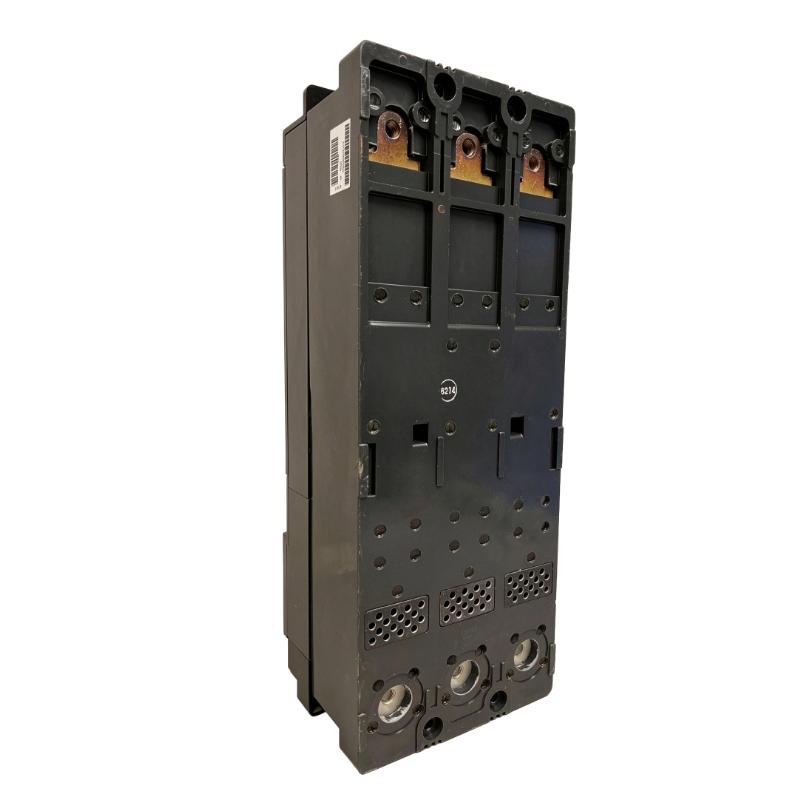

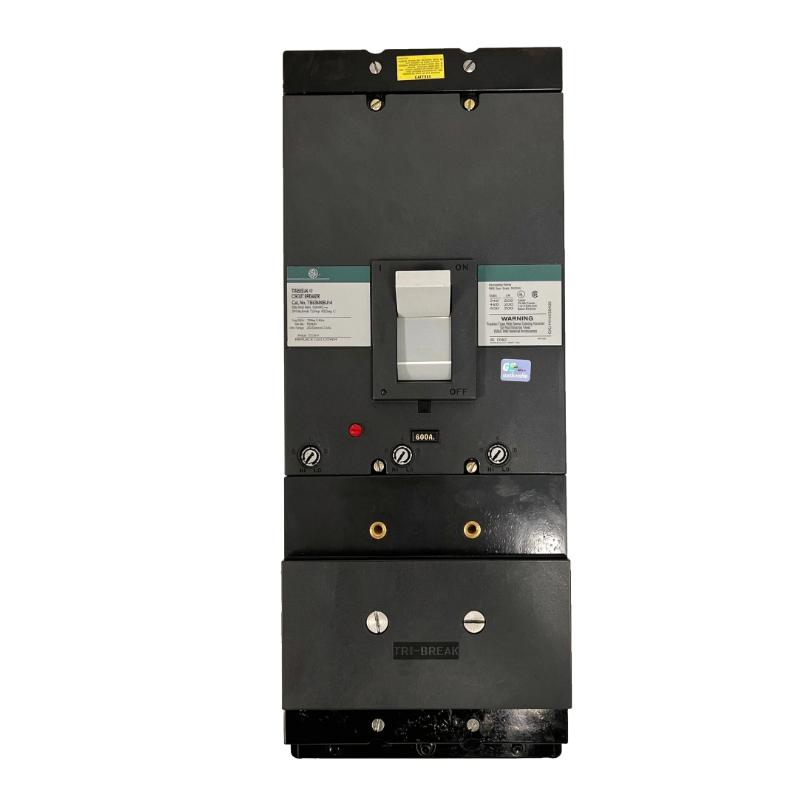

The GE TB63600BJ14 Breaker is a robust switching and protection component intended for industrial electrical distribution applications. Breakers are fundamental elements of power systems because they provide both controlled circuit switching and a means of isolating electrical equipment when abnormal operating conditions occur.
In industrial facilities, a breaker must work as part of a larger protection architecture rather than as an isolated component. Its characteristics need to correspond with the system voltage, available fault current, connected loads, upstream and downstream protection, and physical switchgear arrangement.
The TB63600BJ14 is particularly relevant to maintenance and modernization projects involving compatible GE electrical equipment. Its substantial mechanical construction and industrial form factor make it a practical component for applications where reliable switching and circuit isolation are required.
When selecting this breaker for an existing installation, matching the original electrical and mechanical specifications is essential. Correct application ensures that the breaker can perform its intended switching and protection role without compromising the overall power distribution system.
Technical Specifications
Specification
Details
Brand
GE
Model
TB63600BJ14
Product Type
Breaker
Primary Function
Circuit Switching and Protection
Application
Industrial Power Distribution and Switchgear
Dimensions
555.6 × 209.6 × 149.2 mm
Weight
24.95 kg (55.01 lb)
Installation Role
Electrical Protection and Switching
Application Environment
Industrial Electrical Power Systems
Recommended Related Models
GE TB63600 Series Breakers — Industrial Circuit Breaker Family
GE Spectra Series Breakers — Industrial Power Distribution Breakers
GE Power Break Circuit Breakers — Low-Voltage Power Distribution
GE AKD Switchgear Breakers — Switchgear Circuit Protection
GE EntelliGuard Circuit Breakers — Low-Voltage Protection and Switching
Popular Related Models
GE TB63600BJ14 — Breaker
GE TB63600 Series — Circuit Breaker Series
GE Spectra RMS Breakers — Circuit Protection Equipment
GE Power Break II — Low-Voltage Power Circuit Breaker
GE AKD-5 Switchgear — Low-Voltage Switchgear System
GE EntelliGuard G Circuit Breaker — Low-Voltage Circuit Breaker
Applications and Installation Scenarios
The GE TB63600BJ14 Breaker is a heavy-duty electrical switching component designed for industrial power distribution and equipment protection applications. With its robust construction and substantial mechanical design, the breaker can be used in electrical assemblies where dependable circuit interruption and isolation are essential.
Typical applications include industrial switchgear, power distribution equipment, motor control systems, generator-related electrical installations, and other medium- and low-voltage power-control environments where reliable switching performance is required.
The TB63600BJ14 can be considered for applications such as:
Industrial power distribution
Switchgear and electrical panels
Generator and auxiliary power systems
Motor control and protection assemblies
Industrial equipment power circuits
Electrical system modernization
Replacement of compatible GE breaker assemblies
Maintenance and refurbishment of existing switchgear
For replacement projects, engineers should verify the complete breaker identification, electrical ratings, connection arrangement, mounting configuration, and system compatibility before installation.
Key Benefits of the GE TB63600BJ14
Reliable Circuit Switching
The breaker is designed to provide dependable electrical switching within industrial distribution equipment, supporting controlled energization and interruption of connected circuits.
Heavy-Duty Industrial Construction
Its substantial enclosure and mechanical construction make the TB63600BJ14 suitable for demanding industrial electrical environments where durable switching equipment is required.
Protection-Oriented Design
A properly specified circuit breaker provides an important layer of protection against abnormal electrical conditions and helps isolate affected circuits from the rest of the power system.
Suitable for Switchgear Integration
The breaker can be incorporated into compatible switchgear and electrical distribution assemblies, making it useful for both original installations and equipment refurbishment.
Maintenance-Friendly Replacement Option
For facilities maintaining existing GE electrical equipment, a compatible breaker can simplify replacement and help extend the service life of the overall switchgear installation.
Supports System Reliability
Properly selected and coordinated breakers help electrical systems respond to fault conditions while maintaining the availability of unaffected circuits.
Technical FAQs
1. What is the GE TB63600BJ14 used for?
The TB63600BJ14 is a GE breaker designed for electrical switching and circuit protection applications in industrial power distribution and related electrical equipment.
2. What type of electrical systems can use this breaker?
It can be used in compatible industrial distribution, switchgear, control, and power-management systems. The exact application depends on the breaker's electrical ratings and the requirements of the installation.
3. What should be verified before installing a TB63600BJ14?
Engineers should verify voltage, current, interrupting capability, connection configuration, mounting arrangement, protection requirements, and compatibility with the existing switchgear.
4. Can the TB63600BJ14 be used as a replacement breaker?
It may be suitable as a replacement where the original equipment specifications and breaker configuration match. A complete electrical and mechanical compatibility check should always be performed.
5. Why is breaker coordination important in an industrial power system?
Proper coordination helps ensure that the protective device closest to a fault operates appropriately, reducing unnecessary interruption of upstream circuits and improving system selectivity.
6. Can a breaker such as the TB63600BJ14 be used in generator systems?
Compatible breaker configurations may be incorporated into generator and auxiliary power distribution systems. Application suitability depends on the generator ratings, protection scheme, and breaker specifications.
7. What role does a breaker play in switchgear?
A breaker provides controlled connection and disconnection of an electrical circuit while serving as a key protective device for isolating circuits during abnormal conditions.
8. Is the TB63600BJ14 suitable for industrial environments?
Its industrial breaker construction makes it appropriate for use within compatible industrial electrical equipment, provided the environmental, electrical, and mechanical requirements of the installation are satisfied.
9. What is the importance of the breaker mounting configuration?
Correct mounting ensures proper mechanical installation, electrical connection, and safe operation within the switchgear assembly. Replacement breakers should match the original mounting and connection arrangement.
10. How should an existing TB63600BJ14 installation be evaluated before replacement?
The existing breaker nameplate, electrical ratings, system voltage, protection settings, terminal arrangement, mounting dimensions, and associated switchgear should be checked to ensure the replacement is correctly specified.
