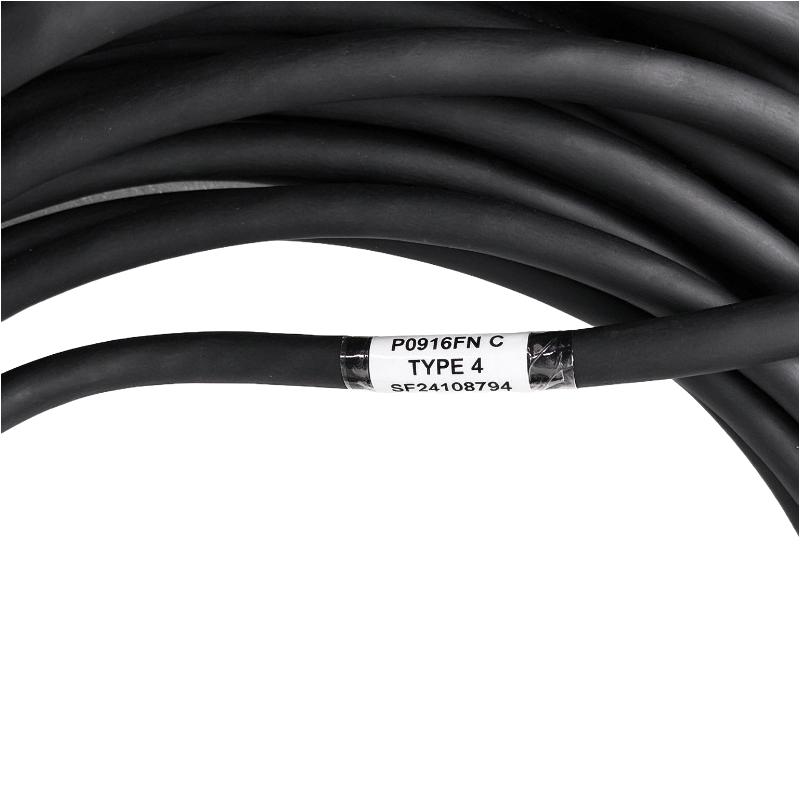

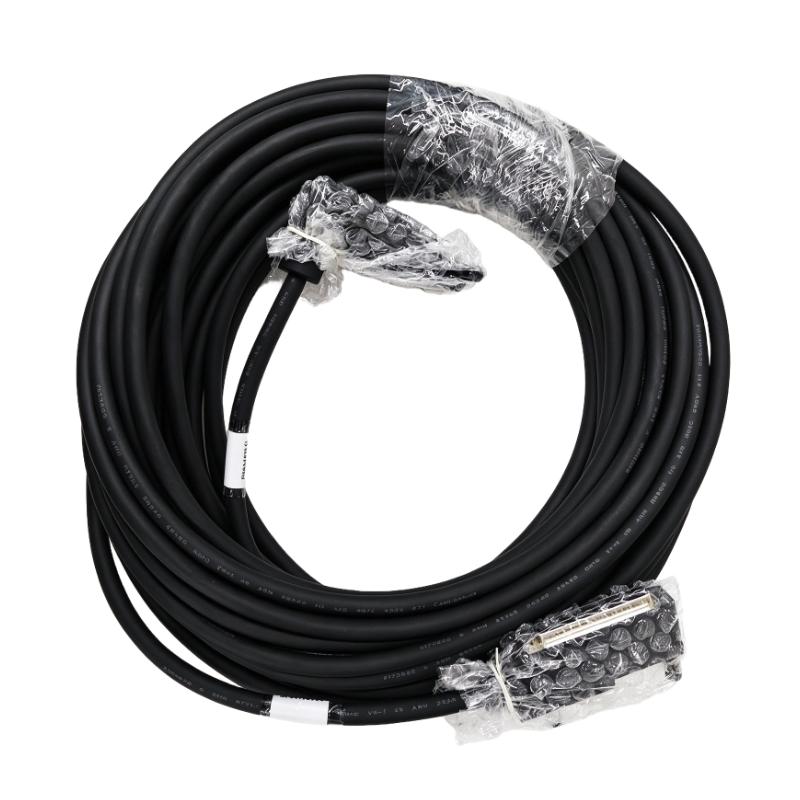

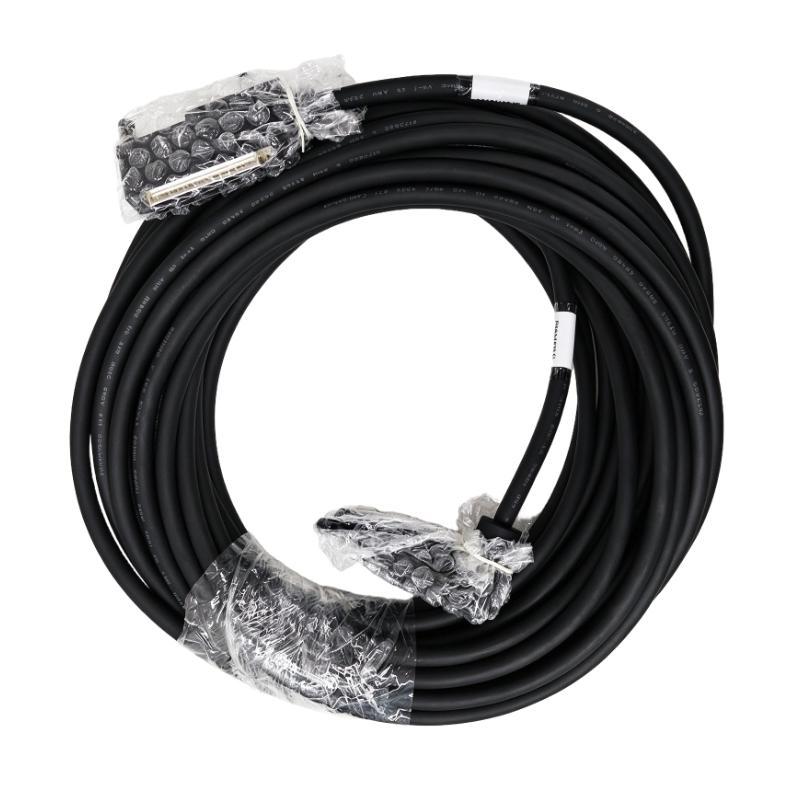

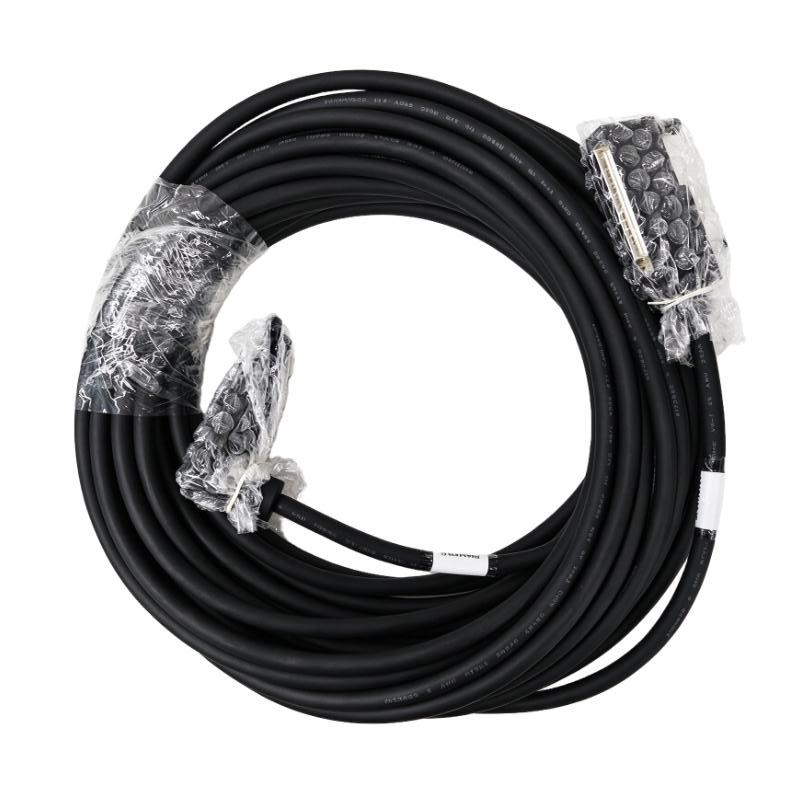

Foxboro P0916FN Terminal Cable

Applications and Connection Scenarios

The Foxboro P0916FN Terminal Cable is an industrial connection cable designed for compatible Foxboro automation and process-control installations. With a 20-meter cable length, it provides extended routing capability for control cabinets, terminal interfaces, I/O assemblies, and other system connection points where standard cable lengths may not be sufficient.

The P0916FN is well suited to process automation environments where reliable and properly organized interconnections are essential. Its extended length can provide additional flexibility during control-system installation, equipment relocation, cabinet modification, and maintenance activities.

Typical applications include:

• Foxboro process control systems
• Industrial automation cabinets
• Terminal and I/O interface connections
• Process instrumentation systems
• Control-system expansion
• Automation equipment replacement
• Control cabinet refurbishment
• Industrial maintenance and retrofit projects

For replacement applications, the original cable identification, connector arrangement, pin configuration, and connected Foxboro equipment should be verified before installation.

Key Advantages and Functional Benefits

20-Meter Cable Reach
The P0916FN provides a 20-meter cable length, offering substantial flexibility for installations where terminal points and associated automation equipment are physically separated.

Simplified System Interconnection
A dedicated terminal cable provides a defined connection between compatible system components, helping reduce the complexity of individually fabricated control wiring.

Flexible Cabinet and Equipment Routing
The extended cable length can accommodate larger control cabinets, distributed equipment layouts, and system modifications that require additional routing distance.

Reliable Control-System Connectivity
When correctly matched with the intended Foxboro equipment, the cable provides a stable physical connection for the associated terminal and control-system interface.

Useful for Replacement and Maintenance
The P0916FN can be considered for maintenance work where an existing compatible cable has deteriorated, been damaged, or needs replacement during system refurbishment.

Supports Automation Modernization
A longer terminal cable can be useful when upgrading or rearranging existing control installations without changing the overall equipment architecture.

Technical FAQs

1. What is the Foxboro P0916FN?
The Foxboro P0916FN is a terminal cable intended for interconnection within compatible Foxboro industrial automation and process-control systems.

2. What is the cable length of the P0916FN?
The P0916FN has a 20-meter cable length, providing extended routing capability for compatible automation installations.

3. What is the main purpose of a terminal cable?
A terminal cable provides an electrical connection between compatible control-system equipment, terminal assemblies, and interface points.

4. Why would an automation system require a 20-meter terminal cable?
A longer cable can be required when connected components are located farther apart or when the installation requires additional routing distance through a control cabinet or equipment area.

5. Can the P0916FN be used in industrial control cabinets?
Yes. The 20-meter length can be useful in compatible control cabinet and process-control applications where extended cable routing is necessary.

6. Can the P0916FN be used as a replacement cable?
It can be used as a replacement where the original cable specification and associated Foxboro equipment are compatible with the P0916FN.

7. What should be checked before installing this cable?
The model number, connector configuration, pin assignment, connected equipment, cable length, and installation requirements should all be verified before installation.

8. Is connector shape alone enough to confirm cable compatibility?
No. Physical connector compatibility does not necessarily guarantee correct electrical compatibility. The complete pinout and system interface should also be confirmed.

9. Can the P0916FN support control-system expansion?
A compatible terminal cable can be useful during automation-system expansion, cabinet modification, equipment relocation, and modernization projects.

10. How should a long terminal cable be routed in an industrial installation?
The cable should be routed to avoid excessive bending, mechanical stress, sharp edges, and unnecessary interference sources while maintaining an organized and serviceable installation.
