Brand:Siemens Item No.:6AG1138-4DD01-7AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.047 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

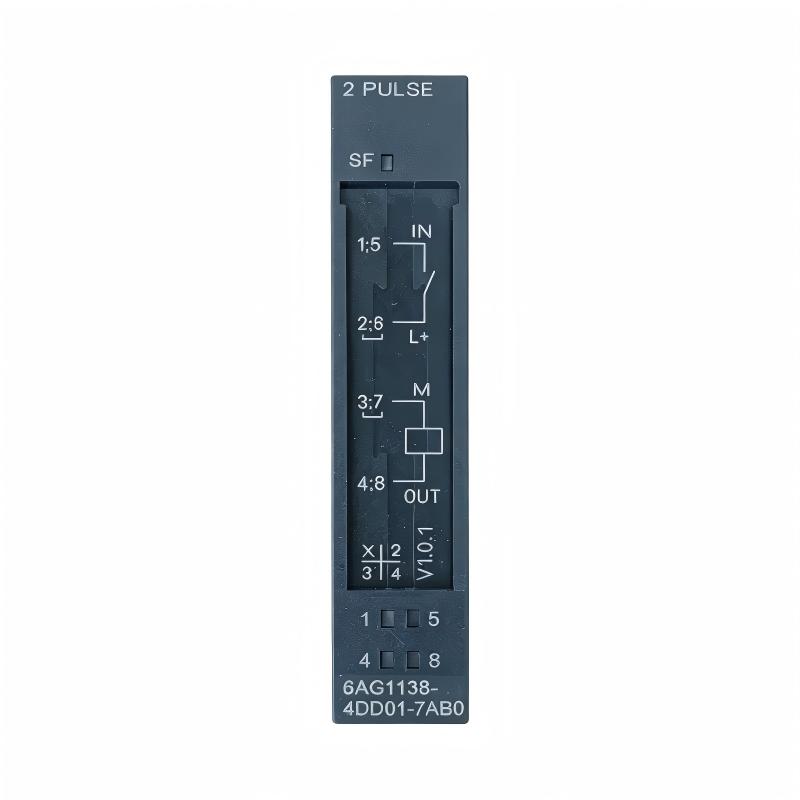

The Siemens 6AG1138-4DD01-7AB0 Pulse Generator is designed for industrial automation applications where a controlled pulse signal is required. Pulse-based control is widely used in automated machinery because pulses can represent timing, movement commands, positioning information, or repetitive machine events.
A dedicated pulse generator provides an appropriate hardware interface for applications in which the timing and characteristics of the output signal are important. It can therefore be useful in machine automation, positioning-related systems, actuator control, and other specialized PLC applications.
The module's compact 15 × 81 × 52 mm form factor makes it particularly attractive for installations with limited cabinet space. Its low weight of 0.047 kg also makes it easy to integrate into compact distributed automation assemblies.
For engineering and replacement projects, the electrical interface and pulse requirements of the connected device should be evaluated before installation. Correct configuration of both the hardware and automation program is important for achieving the intended pulse-generation behavior.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1138-4DD01-7AB0
Product Type
Pulse Generator
Primary Function
Controlled Pulse Generation
Application
Industrial Automation and Machine Control
Dimensions
15 × 81 × 52 mm
Weight
0.047 kg (0.10 lb)
Installation Role
PLC / Distributed I/O System
Application Environment
Industrial Control and Automation
Recommended Related Models
Siemens 6AG1138-4DA04-2AB0 — Counter Module
Siemens 6ES7138-4DA04-0AB0 — Counter Module
Siemens 6AG1138 Series — Technology and Special Function Modules
Siemens SIMATIC ET 200S Modules — Distributed I/O Components
Siemens SIMATIC ET 200SP Modules — Compact Distributed I/O
Popular Related Models
Siemens 6ES7138 Series — Technology and Counter Modules
The Siemens 6AG1138-4DD01-7AB0 Pulse Generator is a compact automation module designed for applications that require controlled pulse generation within a Siemens industrial control architecture. Its compact dimensions make it suitable for space-conscious control cabinets and distributed automation installations.
Pulse-generation functions are commonly used in machine control, timing operations, positioning tasks, frequency-based control, and applications where a PLC must provide accurately controlled digital pulse signals to connected equipment.
Typical applications include:
Industrial machine control
Pulse and frequency generation
Positioning and motion-related applications
Motor and actuator control
Conveyor and material-handling systems
Automated production equipment
Timing and sequence control
Distributed PLC I/O architectures
The module can provide an efficient interface between the automation controller and pulse-driven field equipment when the signal characteristics and system configuration are correctly matched.
Key Advantages of the 6AG1138-4DD01-7AB0
Dedicated Pulse Generation
The module is intended for applications where controlled pulse signals are required, providing a dedicated hardware solution for pulse-oriented automation tasks.
Compact Footprint
At only 15 × 81 × 52 mm, the module occupies minimal installation space and can be advantageous in densely populated control cabinets.
Suitable for Machine Automation
Pulse generation is useful for coordinating machine operations, timing sequences, positioning functions, and other repetitive control processes.
Precise Digital Signal Output
A dedicated pulse-generation interface can provide a more appropriate solution for pulse-driven equipment than a conventional general-purpose output in applications with specific timing requirements.
Flexible Automation Integration
The module can be incorporated into compatible Siemens automation architectures to extend pulse-generation capabilities without requiring a large additional hardware footprint.
Lightweight Construction
With a weight of only 0.047 kg, the module contributes very little mechanical load to the overall distributed I/O assembly.
Technical FAQs
1. What is the Siemens 6AG1138-4DD01-7AB0 used for?
The 6AG1138-4DD01-7AB0 is a pulse generator module intended to provide controlled pulse signals for compatible Siemens automation applications.
2. What applications commonly require pulse generation?
Typical applications include machine control, positioning, frequency-based control, timing functions, actuator control, and other automation processes that depend on repetitive digital pulses.
3. Why use a dedicated pulse generator instead of a standard digital output?
A dedicated pulse-generation interface is designed for applications where pulse timing and signal characteristics are important, providing a more suitable solution than a general-purpose output for specialized pulse-control tasks.
4. Can the module be used for motion-related applications?
It can be applied to compatible motion and positioning systems where the connected equipment requires an appropriate pulse signal and the complete electrical interface meets the system requirements.
5. Is the 6AG1138-4DD01-7AB0 suitable for compact control cabinets?
Yes. Its dimensions of 15 × 81 × 52 mm allow it to fit into installations where available cabinet space is limited.
6. What should be checked when connecting a pulse-driven device?
The required pulse type, voltage level, frequency range, electrical interface, wiring arrangement, and connected-device specifications should be checked before commissioning.
7. Can a pulse generator be used for actuator control?
Yes. In compatible applications, generated pulses can be used as command signals for pulse-controlled actuators or other equipment requiring a defined digital pulse train.
8. How can pulse generation support machine sequencing?
Controlled pulses can provide timing or event signals that allow connected equipment to perform repetitive operations in coordination with the PLC-controlled sequence.
9. What should be verified before replacing this module?
The exact Siemens order number, hardware compatibility, signal requirements, system configuration, wiring, and application-specific pulse requirements should be confirmed.
10. Does software configuration affect pulse-generation performance?
Yes. The controller and module configuration determine how the pulse-generation function is used. Parameters should be configured according to the connected equipment and the required operating sequence.
