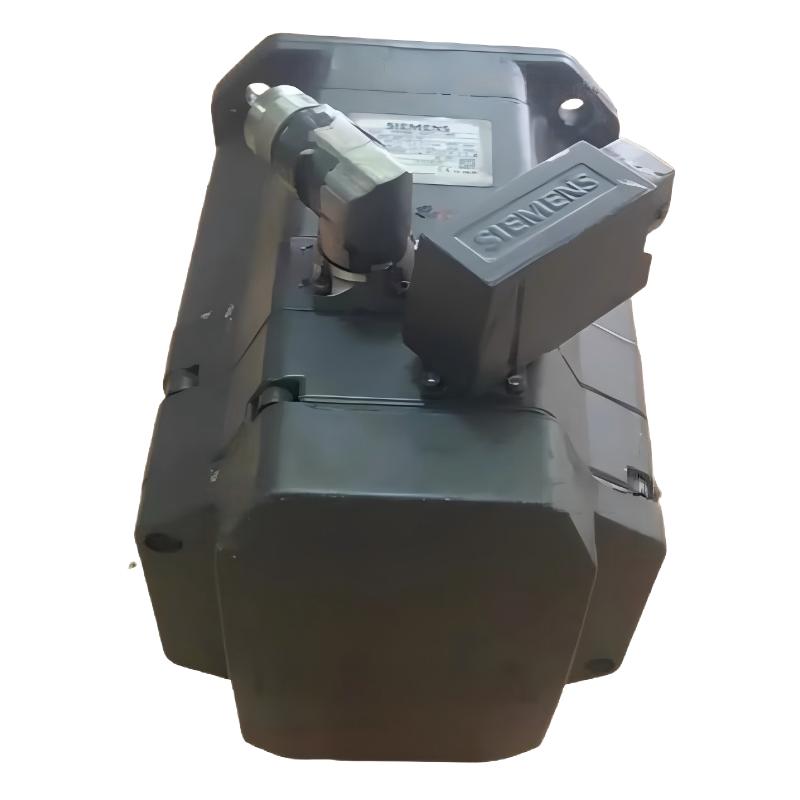

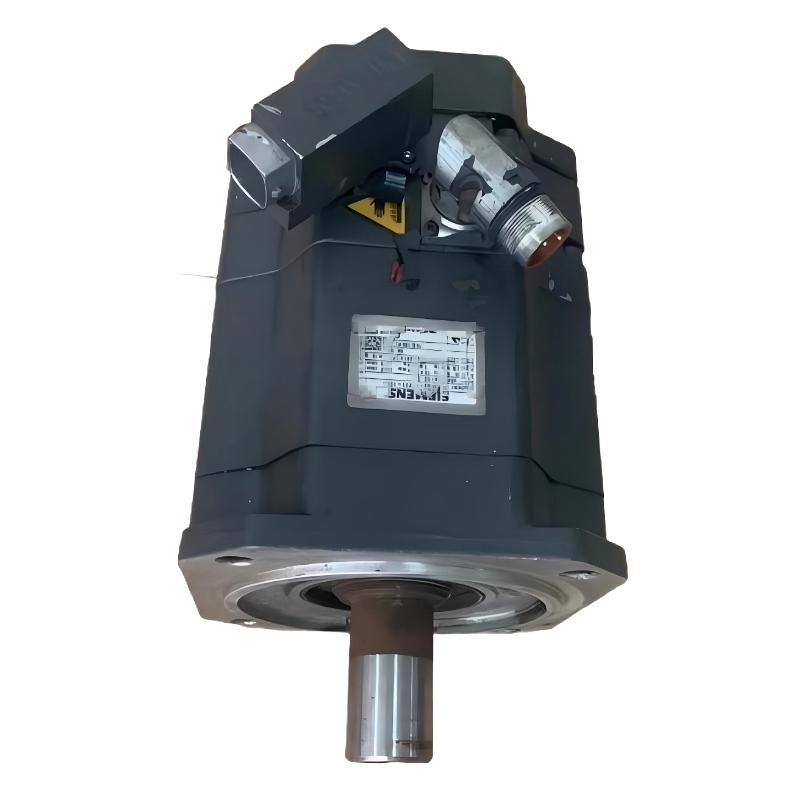

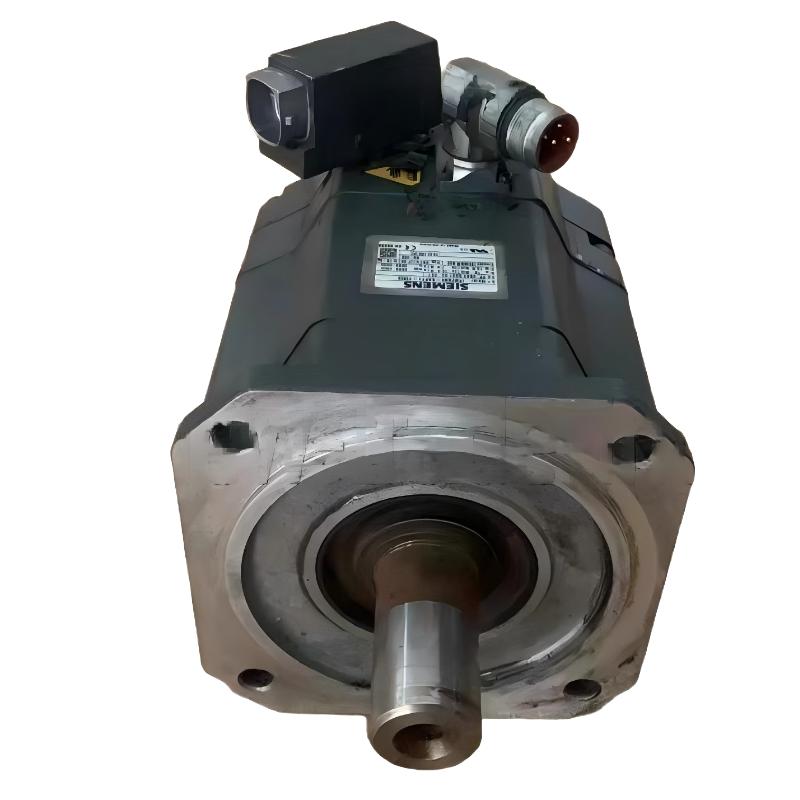

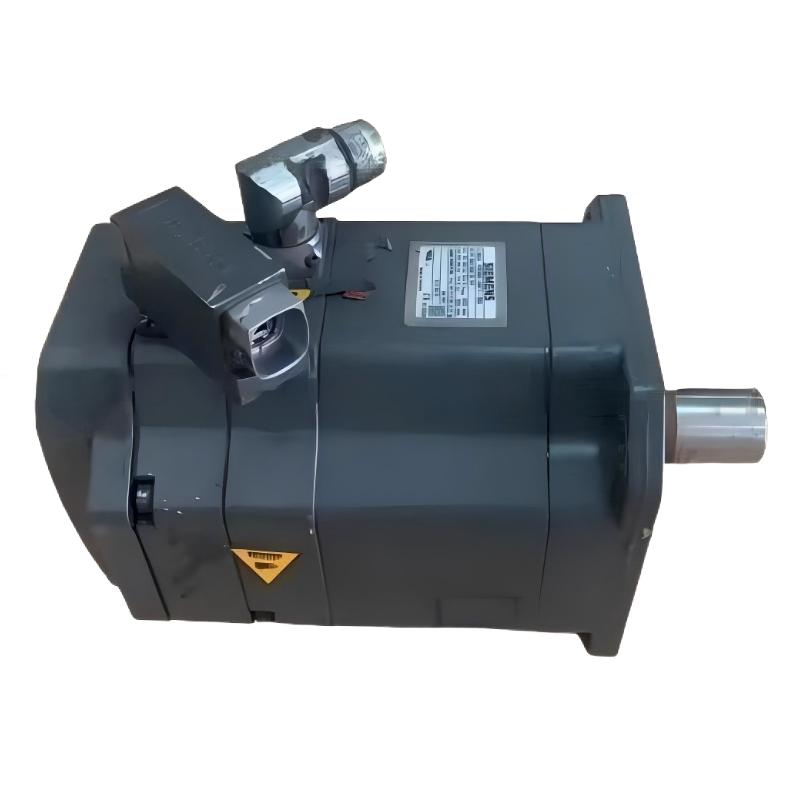

Siemens 1FK7083-5AF71-1DG5 Servo Motor

Applications and Motion Control Functions

The 1FK7083-5AF71-1DG5 is suitable for a broad range of automated machinery and precision motion systems, including:

• CNC machines and machining centers
• Packaging and filling equipment
• Printing and converting machinery
• Material handling and positioning systems
• Assembly and production machines
• Semiconductor and electronics manufacturing equipment
• Robotics and automated handling systems
• Pick-and-place mechanisms
• Synchronized conveyor systems
• Industrial production lines requiring coordinated servo motion

When integrated with an appropriate Siemens motion controller and drive system, the motor can support precise speed, torque, and position control. It is particularly useful in applications where repeatability and dynamic response are important to overall machine performance.

Key Advantages and Functional Benefits

High-Precision Motion Performance
The motor is engineered for controlled and repeatable rotational movement, making it appropriate for positioning-intensive automation applications.

Compact Mechanical Integration
With an 80 mm shaft height, the motor can be incorporated into machine designs where available installation space is limited while maintaining a robust industrial form factor.

Reliable Servo Operation
The 1FK7 family is designed for demanding industrial motion applications, providing a dependable motor platform for continuous automated production.

Suitable for Dynamic Applications
Servo motors are used where frequent acceleration, deceleration, reversing, and positioning operations are required. The 1FK7083 platform is well suited to these demanding motion profiles.

Flexible Motion-System Integration
The motor can be used as part of a coordinated Siemens automation architecture, allowing machine builders to combine motor, drive, controller, and motion functions into an integrated system.

Industrial Automation Compatibility
Its application range covers both general machine automation and specialized motion-control systems, giving engineers flexibility when designing automated equipment.

Technical FAQs

1. What type of product is the Siemens 1FK7083-5AF71-1DG5?
It is a Siemens 1FK7-series servo motor intended for industrial motion-control and automated positioning applications.

2. What is the shaft height of the 1FK7083-5AF71-1DG5?
The specified shaft height is 80 mm.

3. What types of machines can use this servo motor?
It can be applied in CNC equipment, packaging machinery, robotics, material handling, assembly equipment, and other automated machines requiring controlled motion.

4. Can the 1FK7083-5AF71-1DG5 be used for positioning applications?
Yes. Servo motors in this class are intended for applications requiring controlled and repeatable positioning.

5. Is this motor suitable for applications with frequent acceleration and deceleration?
Yes. Servo systems are specifically designed for dynamic motion profiles involving frequent changes in speed and direction.

6. What type of automation system is this motor intended to work with?
It is designed for integration into Siemens industrial motion-control architectures, typically together with a compatible Siemens drive and controller.

7. Why is feedback important in a servo motor system?
Feedback provides the drive and controller with information about motor motion, allowing the system to regulate position, speed, and torque more accurately.

8. What should engineers consider when selecting a drive for this motor?
Motor compatibility, rated electrical characteristics, feedback configuration, required torque and speed, control architecture, and application duty cycle should all be evaluated before selecting the drive.

9. Is the 1FK7083-5AF71-1DG5 appropriate for synchronized machine axes?
Yes. It can be used in multi-axis motion systems where coordinated servo movement is required, provided the complete drive and control system is appropriately configured.

10. What should be checked before replacing an existing servo motor with this model?
Engineers should verify the motor order number, mechanical dimensions, shaft configuration, feedback arrangement, electrical ratings, drive compatibility, and machine-specific performance requirements.
