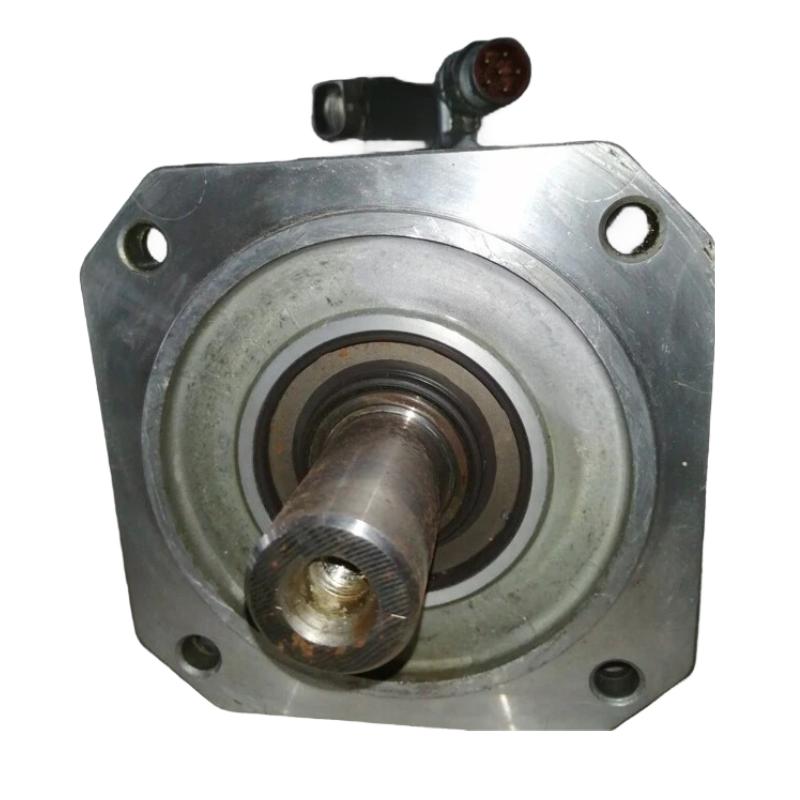

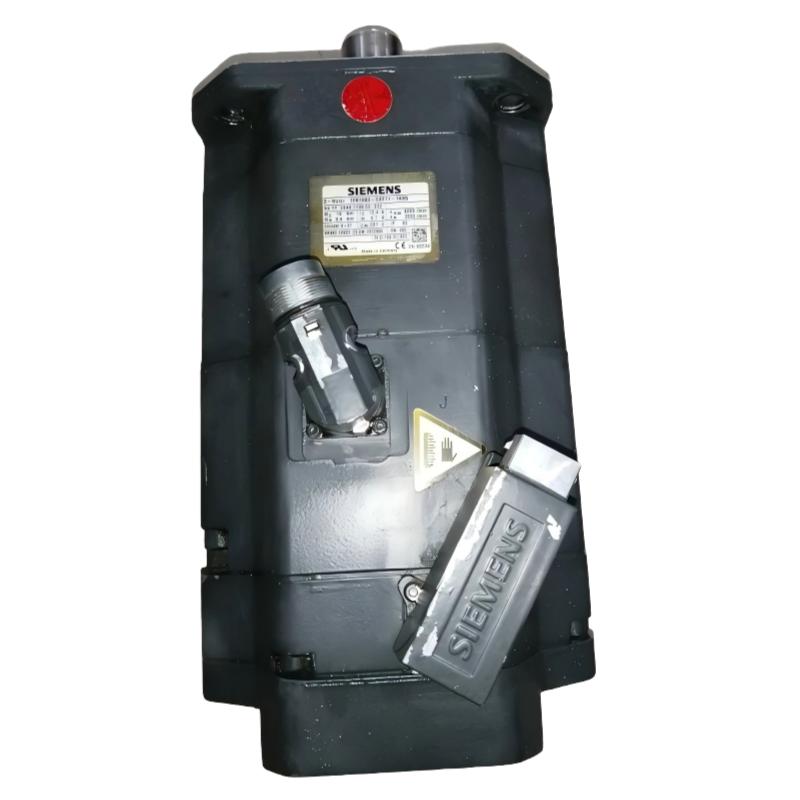

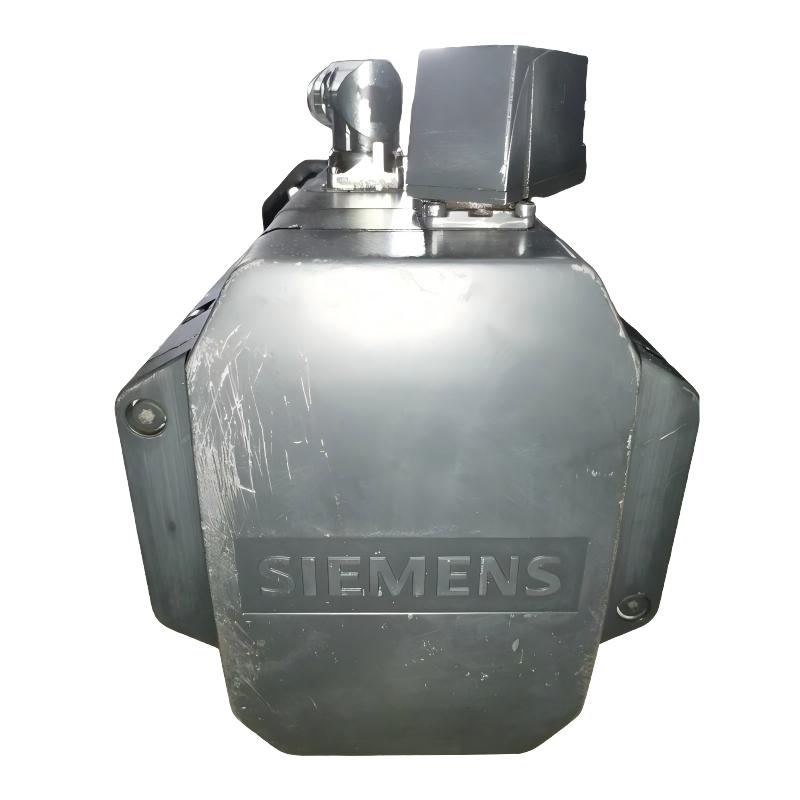

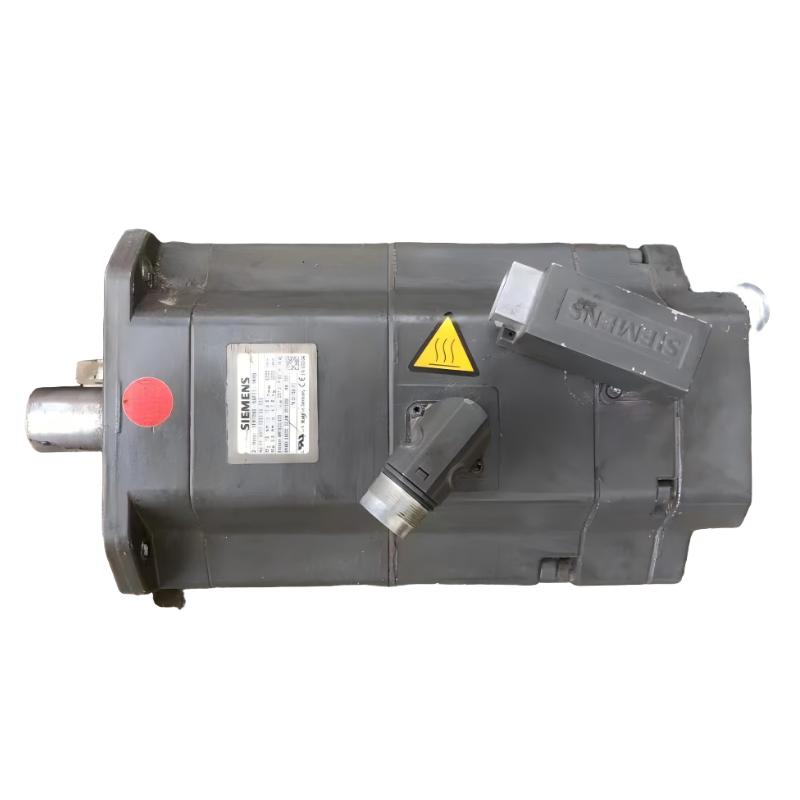

Siemens 1FK7083-5AF71-1KH5 Servo Motor

Applications and Motion Control Functions

The Siemens 1FK7083-5AF71-1KH5 can be integrated into a wide range of automated machinery, including:

• CNC machine tools and machining centers
• Automated assembly equipment
• Packaging and filling machinery
• Material handling systems
• Robotics and automated handling equipment
• Printing and converting machinery
• Production and processing lines
• Pick-and-place systems
• Precision positioning equipment
• Multi-axis machine automation

The motor is particularly suitable for applications involving repeated positioning, controlled acceleration and deceleration, synchronized axes, and continuously coordinated machine movement.

Key Advantages and Functional Benefits

Reliable Servo Performance
The 1FK7083 platform provides a dedicated servo motor solution for industrial motion applications where controlled and repeatable movement is required.

Precision-Oriented Motion
Its servo architecture supports applications requiring accurate positioning and coordinated movement when paired with a suitable drive and feedback system.

Robust Mechanical Configuration
With an 80 mm shaft height and 16.502 kg weight, the motor offers a substantial industrial configuration for machine applications requiring a mechanically robust servo solution.

Suitable for Dynamic Motion Profiles
The motor can be used in systems involving frequent acceleration, deceleration, reversing, and positioning cycles.

Flexible Machine Integration
It can serve as a drive component for production machinery, handling equipment, machine tools, and other automated systems.

Siemens System Compatibility
The motor can be incorporated into Siemens motion-control architectures with an appropriate compatible servo drive, controller, and feedback configuration.

Designed for Industrial Automation
Its 1FK7 family positioning makes it suitable for machine builders, system integrators, and maintenance applications requiring a proven industrial servo motor platform.

Technical FAQs

1. What is the Siemens 1FK7083-5AF71-1KH5?
It is a Siemens 1FK7-series servo motor intended for industrial motion-control, positioning, and automated machine applications.

2. What is the shaft height of the 1FK7083-5AF71-1KH5?
The specified shaft height is 80 mm.

3. What is the weight of this servo motor?
The specified motor weight is 16.502 kg, equivalent to approximately 36.38 lb.

4. What types of equipment can use this motor?
It can be used in CNC machines, packaging equipment, automated assembly systems, material handling machinery, robotics, and other industrial motion systems.

5. Is the 1FK7083-5AF71-1KH5 suitable for positioning applications?
Yes. It is designed as a servo motor for applications requiring controlled and repeatable positioning.

6. Can this motor operate as part of a multi-axis system?
Yes. It can be used as an individual axis motor within a coordinated multi-axis motion-control system when the complete system is correctly configured.

7. What role does the servo drive play in the motor system?
The servo drive supplies and regulates motor power while controlling parameters such as speed, torque, and position according to commands from the automation controller.

8. Why is motor feedback important for servo operation?
Feedback provides motion information to the control system, allowing the servo drive to monitor actual motor behavior and regulate movement more accurately.

9. What factors should be considered when selecting a compatible drive?
Engineers should evaluate motor electrical characteristics, feedback configuration, required speed and torque, duty cycle, controller compatibility, and the intended application profile.

10. What should be checked before replacing an existing 1FK7 motor?
The exact order number, shaft and mounting arrangement, feedback configuration, electrical characteristics, drive compatibility, and machine operating requirements should be verified before replacement.
