Product Introduction

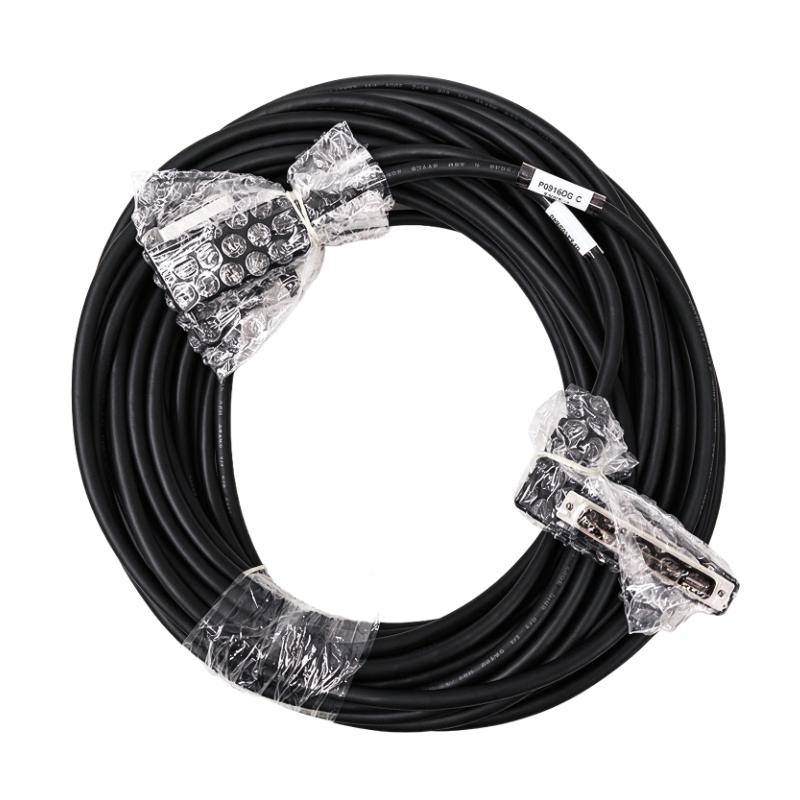

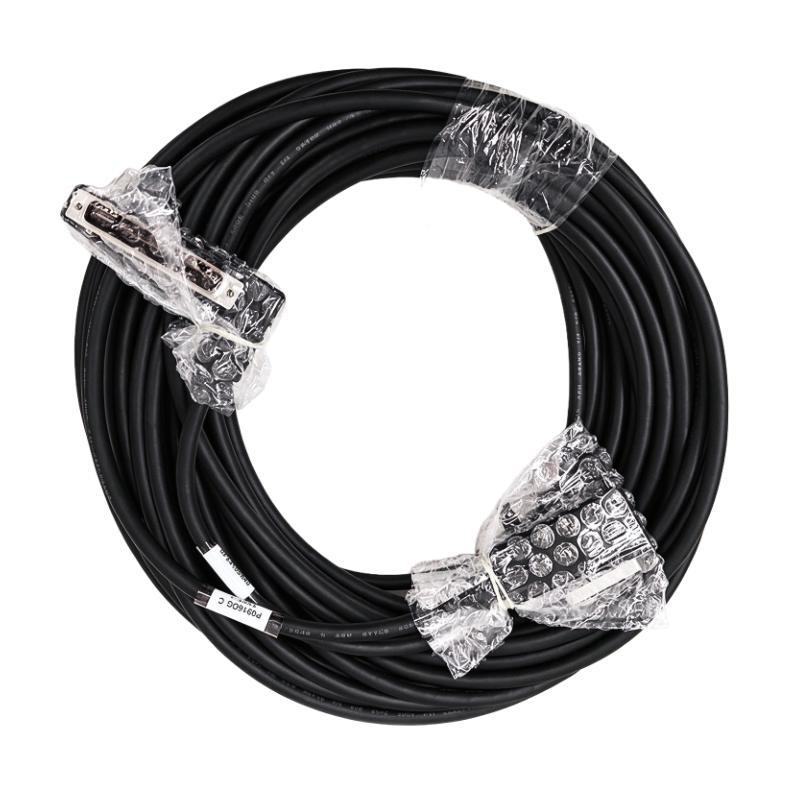

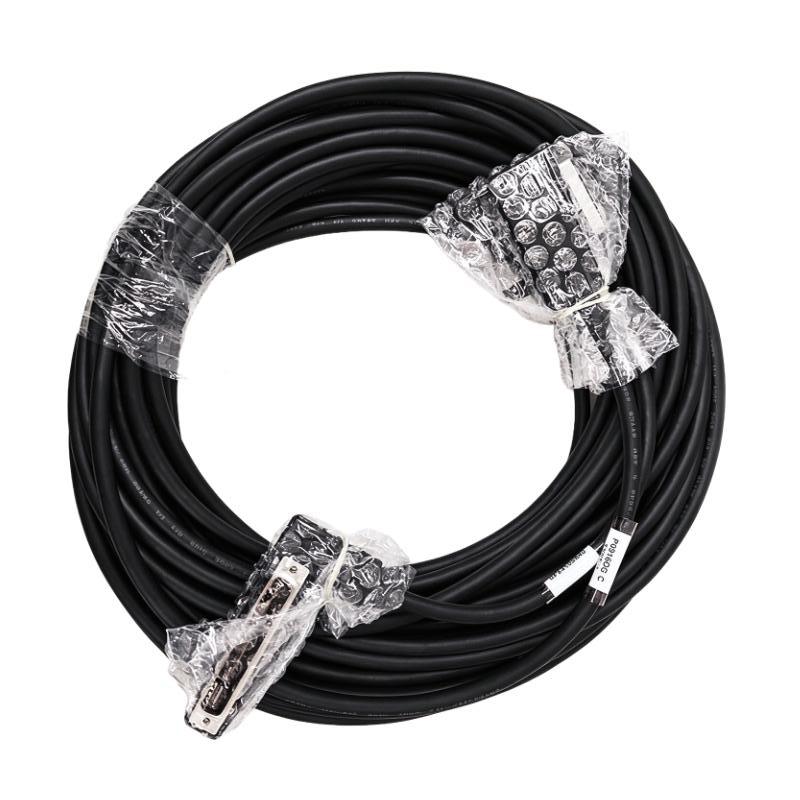

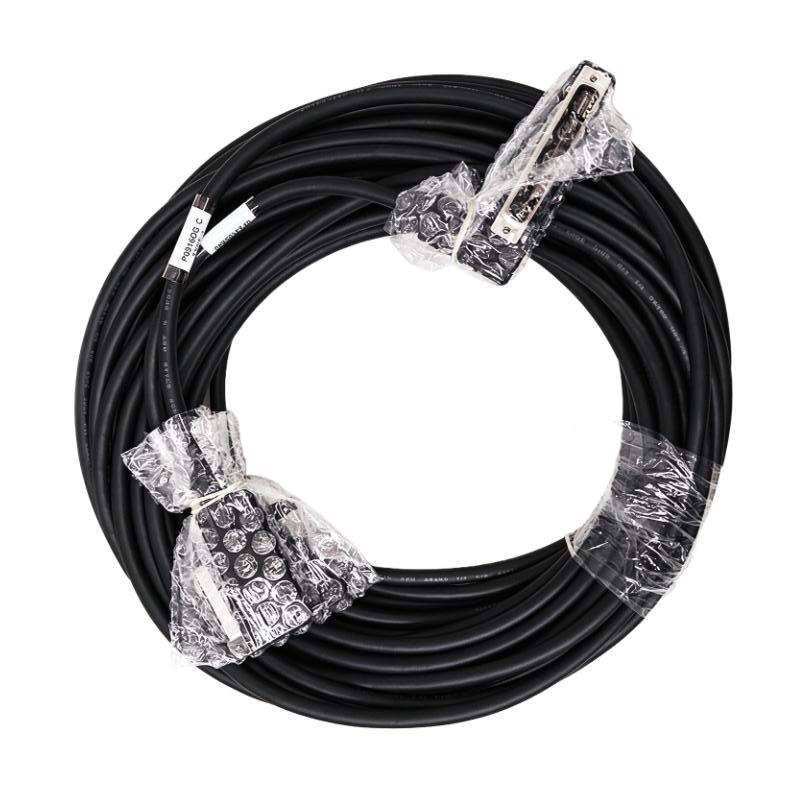

The Foxboro RH916FN Terminal Cable is an industrial connection component intended for applications requiring a specified cable assembly within a compatible control system. With a stated cable length of 20 meters, it offers installation flexibility for equipment layouts in which the connection point and associated hardware are not located immediately next to one another.

In process industries, dependable interconnections are an important part of maintaining control system integrity. Choosing the correct cable helps ensure that the physical connection meets the requirements of the installed equipment, while appropriate routing and inspection practices support long-term maintenance.

For purchasing and replacement projects, confirming the complete model designation is especially important. Buyers should compare the RH916FN identification with the existing cable and verify connector compatibility before installation. This is particularly relevant for older or established automation systems, where a component's physical appearance alone may not establish electrical or mechanical compatibility.

The RH916FN is a practical option to consider when sourcing a specified Foxboro terminal cable for system maintenance, spare-parts planning, or compatible equipment integration.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	RH916FN
Product Type	Terminal Cable
Cable Length	20 meters
Shipping Weight	3 kg / 6.61 lb
Application	Industrial automation and control system interconnection
Installation	According to compatible equipment requirements
Compatibility	Must be verified against the connected hardware
Product Condition	Confirm availability and condition with the supplier

Weight conversion: 3 kg = 6.61 lb, rounded to two decimal places.

Dimensions: Not provided. Confirm the cable assembly's physical dimensions and connector envelope with the supplier if required for installation planning.

Recommended Related Models

The following Foxboro model families may be relevant when maintaining or expanding a Foxboro control system. These are related equipment references, not confirmed direct replacements for the RH916FN.

Model	Product Type	Relationship
Foxboro FBM01	Fieldbus Module	Related control system hardware; verify the specific system configuration
Foxboro FBM02	Fieldbus Module	Potentially relevant to field interface and control system maintenance
Foxboro FBM03	Fieldbus Module	Related automation hardware; cable compatibility must be confirmed separately
Foxboro FBM04	Fieldbus Module	May be relevant when reviewing field module connections
Foxboro FBM05	Fieldbus Module	Consider when identifying components within an existing Foxboro installation

Check the installed system's bill of materials and official equipment documentation before ordering any related component. These models should not be treated as compatible accessories without verification.

Popular Related Models

When sourcing Foxboro automation spare parts, buyers may also investigate the following established product references, depending on the system architecture and maintenance requirements.

Model	Product Category	Typical Purchasing Purpose
Foxboro FBM201	Fieldbus Module	Field I/O system maintenance
Foxboro FBM202	Fieldbus Module	Replacement planning for compatible installations
Foxboro FBM203	Fieldbus Module	Industrial control system spare-parts sourcing
Foxboro FBM204	Fieldbus Module	Field interface equipment maintenance
Foxboro FBM205	Fieldbus Module	Control system lifecycle support

Purchasing note: The related model numbers above have not been verified as compatible with the RH916FN Terminal Cable. Confirm exact part numbers and equipment compatibility before placing an order.

Applications

The Foxboro RH916FN Terminal Cable is designed for industrial automation environments where dependable connections between control system components are essential. In process control installations, a suitable terminal cable helps maintain signal continuity and supports reliable communication between compatible system modules and associated equipment.

Typical application areas include:

DCS installations: Supports interconnections within distributed control system cabinets and related hardware.
Industrial process control: Suitable for integration into process automation environments where stable electrical connections are required.
Control cabinet wiring: Helps organize connections between compatible terminals, interface components, and control equipment.
System maintenance and replacement: Can serve as a replacement cable when maintaining existing Foxboro installations, subject to connector and hardware compatibility.
Industrial equipment integration: Supports connection requirements in established automation systems where the RH916FN is specified.

Selecting the correct cable is important for maintaining an organized control system and minimizing connection-related maintenance issues. Before installation, verify the cable's connector configuration and compatibility with the intended Foxboro equipment.

Key Advantages and Operational Benefits

1. Designed for Industrial Control Applications

The RH916FN is intended for use in industrial automation settings where dependable interconnections are important to overall system operation.

2. Extended 20-Meter Cable Length

With a specified cable length of 20 meters, this cable provides flexibility when connecting equipment located at a distance from the associated control hardware. Proper routing and installation help maintain a clean cabinet and equipment layout.

3. Supports Maintenance and Replacement Requirements

For facilities operating established Foxboro control systems, obtaining the correct replacement cable can help simplify maintenance planning and reduce the risk of using an incompatible connection component.

4. Helps Maintain Organized Wiring

A correctly selected terminal cable supports orderly equipment interconnections, making installation, inspection, and troubleshooting more manageable.

5. Practical for Industrial Spare-Parts Management

The RH916FN can be included in a maintenance inventory when required by the site's installed equipment configuration. Keeping the correct spare available may help reduce delays during planned servicing or fault recovery.

6. Compatibility-Focused Selection

Matching the cable to the exact hardware and connector requirements is essential. This approach helps protect connected equipment and supports dependable operation over the intended service life.

Technical FAQs

Q1. What is the primary function of the Foxboro RH916FN Terminal Cable?

The cable provides an electrical interconnection for compatible industrial control equipment. Its precise function depends on the Foxboro hardware and connection arrangement for which it is specified.

Q2. Which systems can use the RH916FN?

It should be used with equipment that explicitly specifies the RH916FN or confirms compatibility with this cable. Check the equipment documentation and existing cable identification before ordering.

Q3. Can the RH916FN be used in a Foxboro distributed control system?

It may be suitable for a DCS installation when the relevant system components specify this cable. Compatibility should be confirmed against the installed hardware and connection requirements.

Q4. Is the RH916FN suitable for replacing an existing terminal cable?

Yes, when the replacement part matches the original cable specification. Verify the model number, connector arrangement, electrical requirements, and routing conditions before installation.

Q5. What should be checked before connecting the cable?

Inspect the connectors, cable jacket, identification labels, and mating interfaces. Confirm the correct connection points and follow the equipment manufacturer's installation procedures.

Q6. Can an ordinary cable be substituted for the RH916FN?

Substitution is not recommended without technical verification. An alternative must meet the required electrical characteristics, connector specifications, and environmental requirements of the connected equipment.

Q7. Does the RH916FN require special configuration?

A passive cable generally does not require software configuration by itself. However, the connected control equipment may require specific hardware settings or wiring arrangements, depending on the application.

Q8. What precautions should be taken during installation?

Avoid excessive pulling force, sharp bends, crushing, and routing near sources of electrical interference where separation is required. Follow the applicable equipment and site wiring procedures.

Q9. How can connection problems be diagnosed?

Check that the cable is fully seated, inspect the connectors for damage, and verify the wiring arrangement against the system documentation. If necessary, perform continuity checks using an approved procedure with the cable disconnected from sensitive equipment.

Q10. What information is needed to confirm the correct replacement cable?

The RH916FN model number, the connected equipment model, the connector configuration, and the original installation details are useful. These details help confirm that the replacement matches the intended application.
