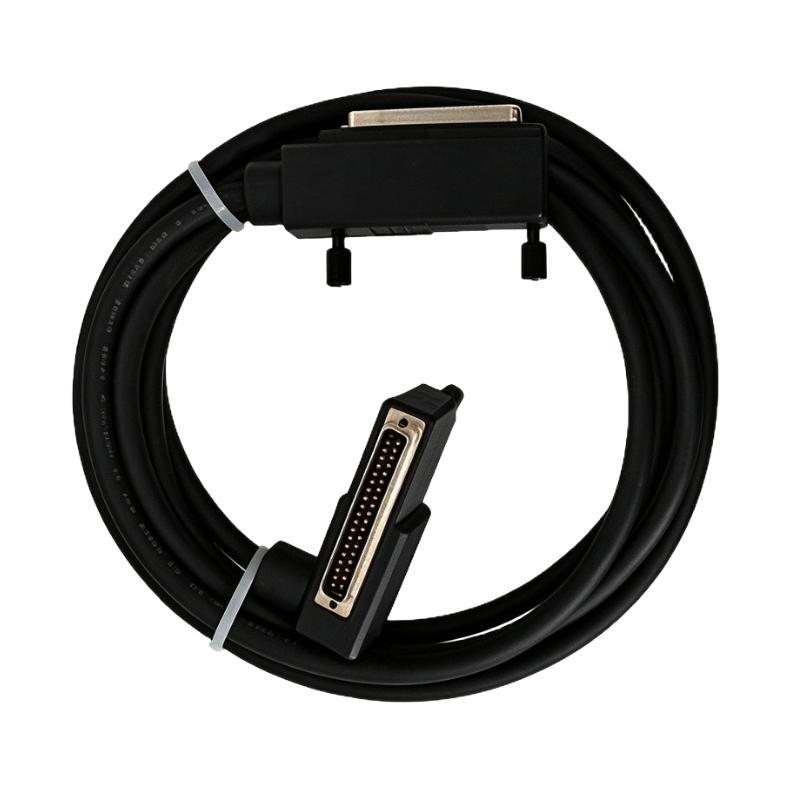

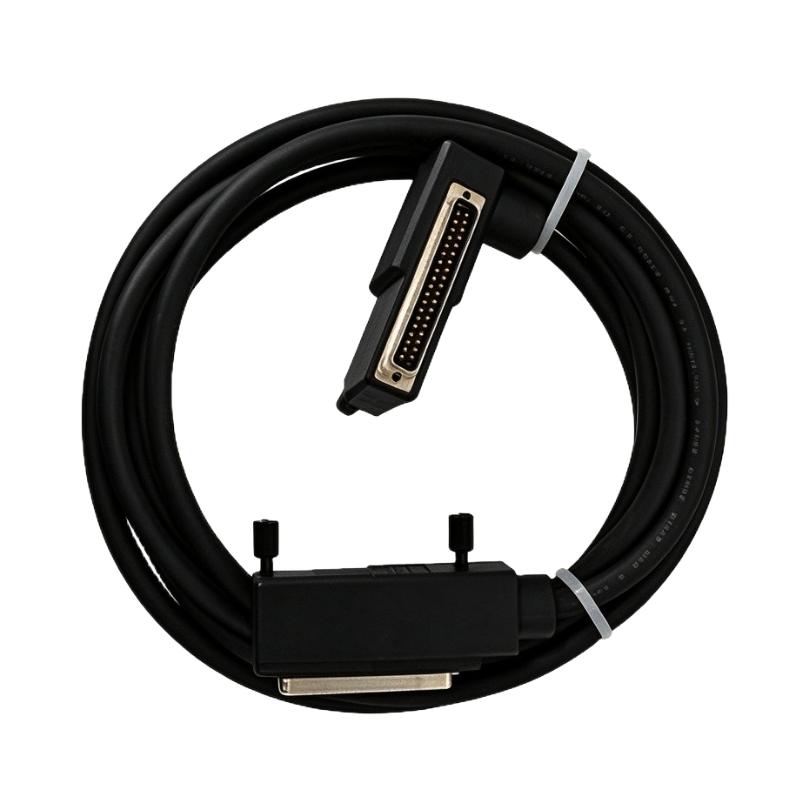

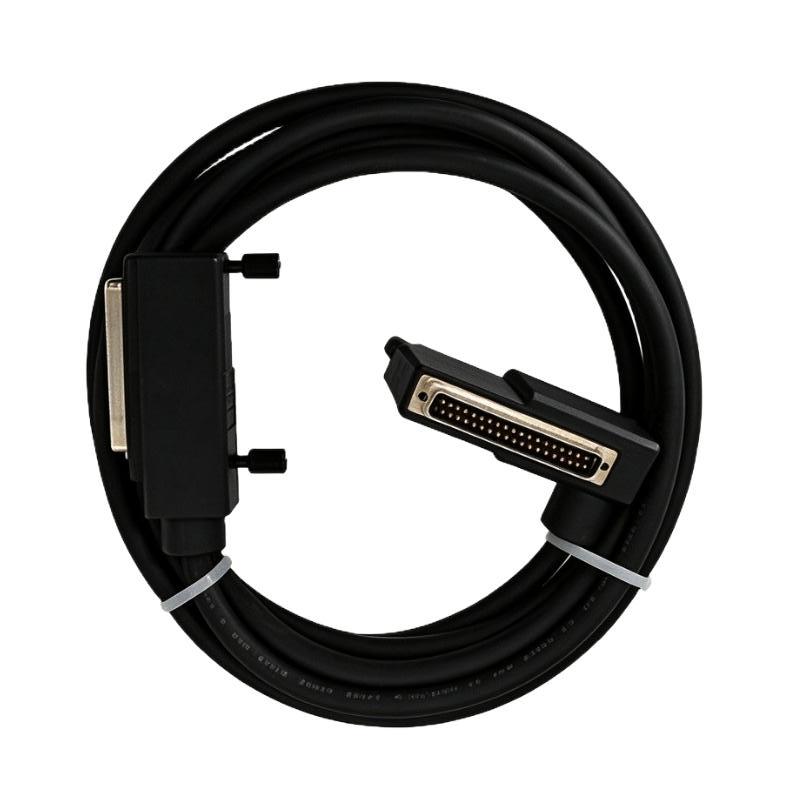

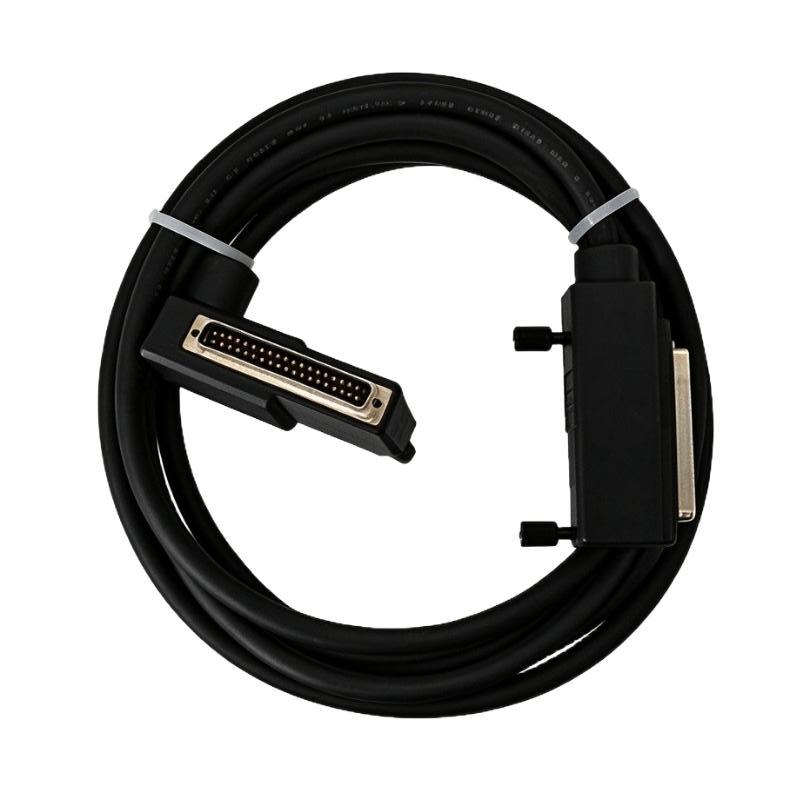

Foxboro RH928AW Terminal Cable

Applications and Industrial Use

The Foxboro RH928AW Terminal Cable is intended for industrial automation applications where a specified cable assembly is required to connect compatible control system components. In process control environments, selecting the correct cable helps maintain an organized wiring arrangement and supports the reliable operation of interconnected equipment.

With a specified cable length of 1 meter, the RH928AW may be suitable for installations where connection points are located close to one another. Its application should be determined by the requirements of the associated Foxboro hardware, including connector type, electrical characteristics, and intended signal path.

Typical application considerations include:

• DCS cabinet connections: For control system installations that specifically call for the RH928AW cable.

• Industrial equipment interconnection: Supports connections between compatible automation components where the cable is specified.

• Maintenance and repair: Can be considered as a replacement part when the existing cable identification matches RH928AW.

• Control system servicing: Helps maintenance teams identify the correct cable for planned equipment work.

• Spare-parts inventory: Provides a model-specific reference for purchasing and inventory management in facilities operating compatible Foxboro equipment.

For dependable results, verify the complete part number and connector arrangement before installation. A matching cable model is particularly important in established control systems where an incorrect connection can interrupt operation or cause equipment compatibility issues.

Advantages and Practical Benefits

1. Short-Distance Connection Flexibility

The specified 1-meter cable length is appropriate for evaluating compact equipment layouts where a relatively short connection is needed. Correct cable selection can reduce excess slack and simplify routing.

2. Model-Specific Replacement Planning

The RH928AW designation provides a clear reference for procurement teams maintaining an equipment-specific spare-parts inventory. Matching the original model helps reduce the risk of selecting an unsuitable substitute.

3. Organized Control Cabinet Wiring

A cable selected for the intended installation can support a more orderly cabinet layout, improving access to connected equipment during inspection and servicing.

4. Supports Industrial Maintenance Operations

Keeping the specified cable available can help maintenance personnel prepare for planned replacement work and respond more efficiently when a cable-related fault is suspected.

5. Compatibility-Based Equipment Integration

Using the correct cable assembly helps preserve the intended connection arrangement between compatible system components. Connector and electrical requirements should always be checked before use.

6. Practical Procurement Identification

The complete model number and specified cable length prov

Technical FAQs

Q1. What is the function of the Foxboro RH928AW Terminal Cable?

It is an industrial terminal cable intended for a specified equipment interconnection. Its exact electrical function and supported hardware should be confirmed using the documentation for the associated Foxboro system.

Q2. Which Foxboro modules are compatible with the RH928AW?

The supported modules cannot be established from the model number alone. Check the relevant hardware documentation or the original installation records to confirm compatible modules and connection points.

Q3. Can the RH928AW be used in an existing distributed control system?

It can be considered when the installed DCS configuration explicitly specifies the RH928AW. Confirm the system platform, module type, and cable interface before installation.

Q4. Is the RH928AW interchangeable with the P0928AW?

Interchangeability should not be assumed. Although both model designations identify Foxboro terminal cables, their connector arrangements, pin assignments, electrical characteristics, or intended applications may differ.

Q5. Does the cable require a separate power supply?

A conventional passive cable does not require an independent power supply. However, the connected equipment may carry power or signals through the cable, depending on the designed interface.

Q6. How can connector compatibility be verified?

Compare the connector type, contact arrangement, keying, pin assignment, and mating interface against the equipment documentation. Physical fit alone does not establish electrical compatibility.

Q7. What installation practices help protect the cable?

Avoid excessive pulling force, crushing, sharp bends, and unnecessary strain on connectors. Route the cable according to the equipment manufacturer's requirements and applicable industrial wiring practices.

Q8. Can a damaged RH928AW cable be repaired in the field?

Repair should only be undertaken if the cable construction and equipment requirements permit it and the work can restore the original electrical and mechanical specifications. Replacement with a verified compatible cable is often the more straightforward maintenance option.

Q9. How should a suspected cable fault be investigated?

Inspect the connectors and cable jacket, confirm that the cable is correctly seated, and review system diagnostics. Where appropriate, perform continuity or other electrical tests with the cable disconnected from sensitive equipment and following approved procedures.

Q10. What should be confirmed before ordering the RH928AW?

Verify the full model number, cable length, connector configuration, intended equipment, and any relevant electrical specifications. Confirm the shipping package details separately if weight affects freight planning.
