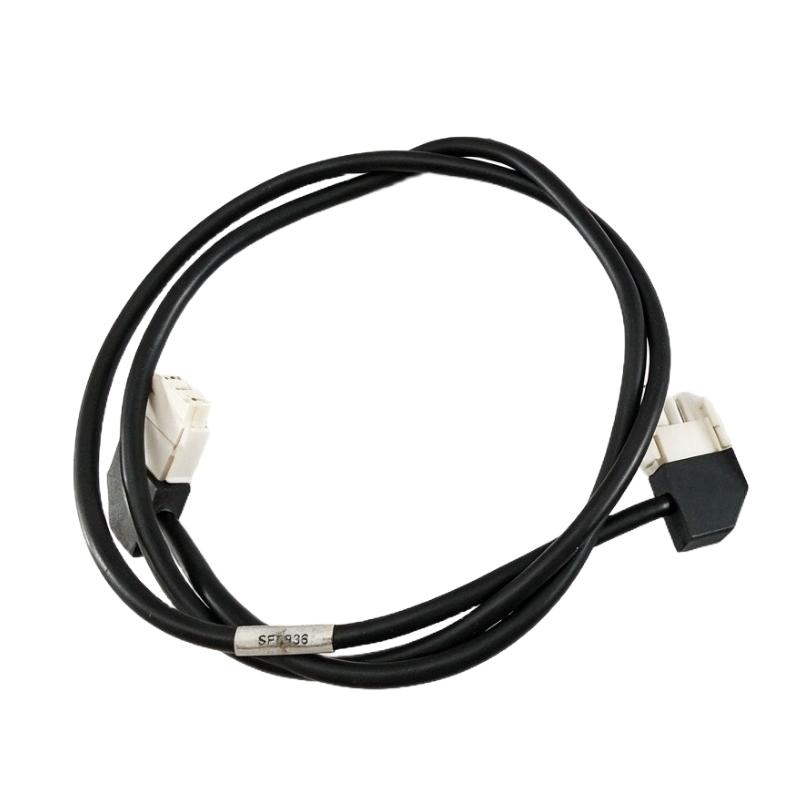

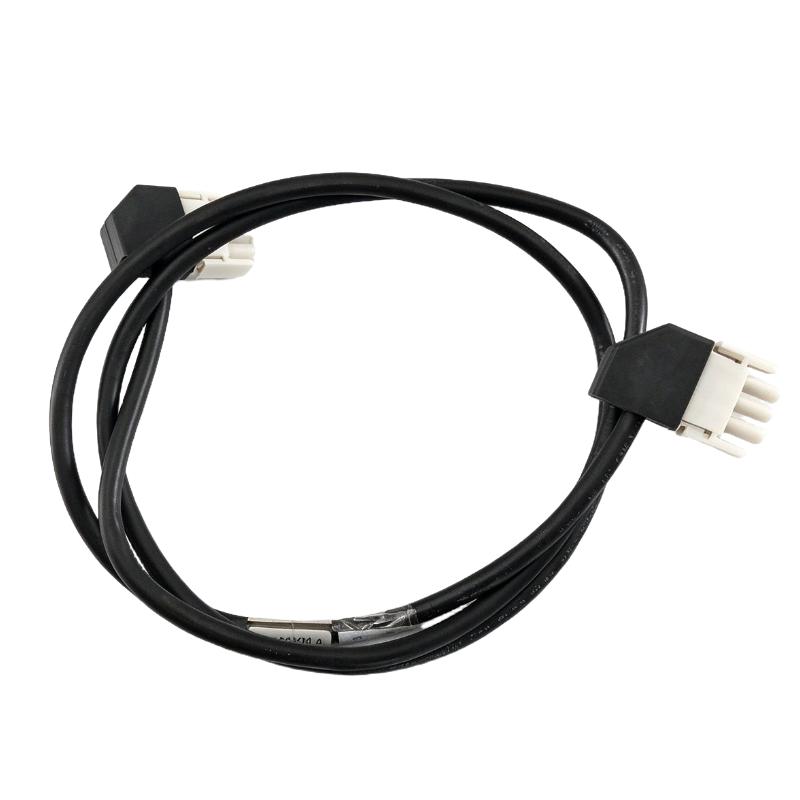

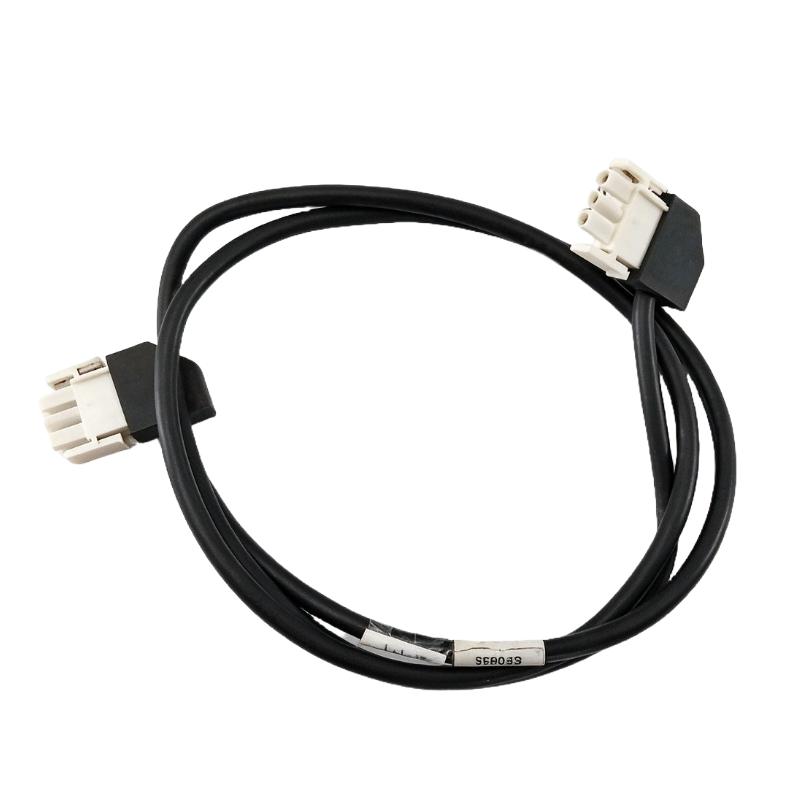

Foxboro P0926KM Modbus Cable

Applications and Industrial Use

The Foxboro P0926KM Modbus Cable is an industrial communication cable intended for use in automation and process control environments where dependable data exchange between compatible devices is essential. In distributed control systems (DCS), communication infrastructure supports the transfer of operating data, device status, and control information between system components.

With a cable length of 1.2 meters, the P0926KM is suited to short-distance connections within control cabinets, equipment racks, and other organized industrial installations, provided the cable matches the required interface and system configuration.

Typical application areas include:

• Distributed Control Systems: Supporting communication connections in Foxboro-based control installations.

• Process Automation: Helping establish communication paths between compatible automation devices.

• Control Cabinet Wiring: Providing a short cable option for connections between nearby components.

• Industrial System Maintenance: Serving as a replacement cable when the existing part number and interface requirements have been verified.

• System Integration: Supporting communication infrastructure in industrial environments where Modbus connectivity is required.

The exact devices, connectors, and communication interfaces supported by P0926KM should be confirmed against the equipment documentation before installation.

Advantages and Operational Benefits

1. Compact 1.2-Meter Cable Length

The short cable length is practical for nearby equipment connections, helping keep control cabinet wiring organized and reducing unnecessary cable slack.

2. Designed for Industrial Communication Applications

The P0926KM is identified as a Modbus cable, making it relevant to industrial communication setups that use the Modbus protocol. Protocol compatibility alone, however, does not guarantee that every Modbus device can connect directly.

3. Helps Simplify Cabinet Wiring

Using an appropriately sized cable can improve wire routing, make connections easier to identify, and support a tidier cabinet layout.

4. Useful for Maintenance and Replacement

Matching the existing model number can help maintenance teams source a replacement part without changing the original system design. Connector type and electrical specifications should still be checked.

5. Supports Industrial Automation Integration

Reliable communication cabling is an important part of maintaining data exchange between compatible control system components. The cable should be installed according to the applicable system wiring instructions.

6. Practical for Spare Parts Inventory

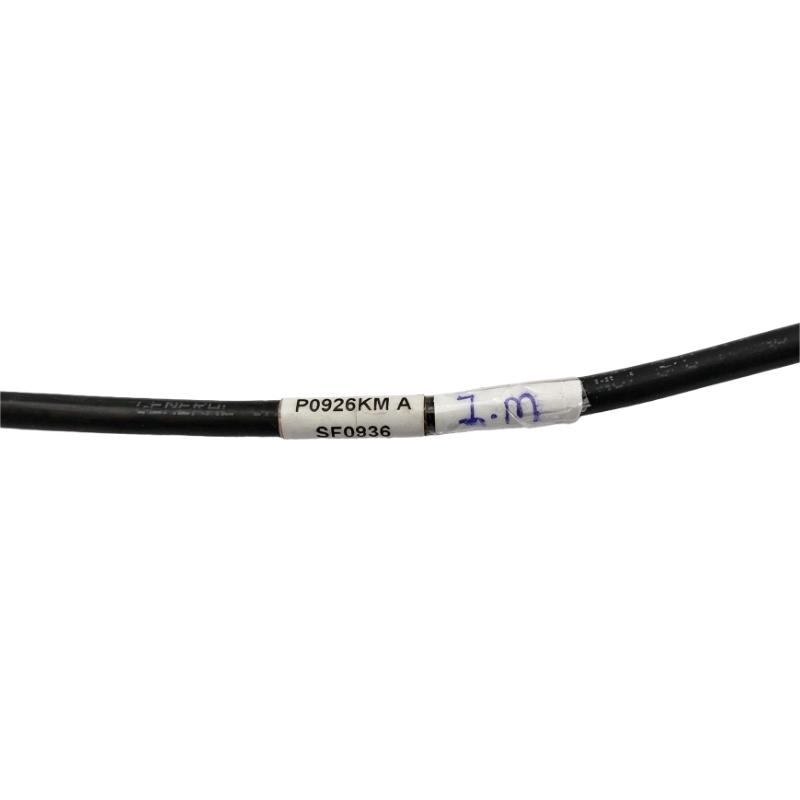

The P0926KM can be listed in maintenance inventories by its full model number, cable type, and length to help reduce confusion when ordering replacement components.

Technical FAQs

Q1: What is the Foxboro P0926KM Modbus Cable used for?

It is identified as a Modbus communication cable for industrial automation applications. Its precise connection purpose depends on the compatible equipment and interface specified for the part.

Q2: What is the cable length of the P0926KM?

The specified cable length is 1.2 meters.

Q3: Does the P0926KM support Modbus RTU or Modbus TCP?

The model name alone does not confirm the specific Modbus implementation. Modbus RTU commonly uses serial communication, while Modbus TCP operates over Ethernet. Verify the cable's connectors and the equipment documentation before selecting it.

Q4: Can this cable connect any two Modbus devices?

No. Both devices must have compatible physical interfaces, connector pin assignments, and electrical requirements. Sharing the Modbus protocol does not automatically make their cabling interchangeable.

Q5: Is the P0926KM suitable for Foxboro control systems?

It is a Foxboro-identified Modbus cable. Confirm the intended controller, communication module, or other equipment model in the relevant Foxboro documentation before use.

Q6: Can the P0926KM be used as a replacement for another Modbus cable?

Only if the alternative cable has matching connectors, wiring, electrical characteristics, and intended application. Cable length and protocol labels alone are not sufficient to establish interchangeability.

Q7: What should be checked before installation?

Check the complete part number, connector types, pinout, interface requirements, routing instructions, and the relevant equipment manual. Disconnect equipment as required by the site's electrical safety procedures.

Q8: Can this cable be used in a noisy industrial environment?

Its suitability depends on its shielding, grounding requirements, cable construction, and the electromagnetic conditions of the installation. Consult the product specifications and follow the system manufacturer's wiring recommendations.

Q9: What are common causes of communication problems involving a Modbus cable?

Possible causes include incorrect pin assignments, loose or damaged connectors, unsuitable cable type, wiring faults, incorrect serial settings, grounding issues, or mismatched communication interfaces.

Q10: What information should be provided when ordering a replacement?

Provide the complete model number, P0926KM, along with the required 1.2-meter length. If possible, also verify the original equipment model and connector configuration to ensure the replacement matches the application.
