Product Introduction

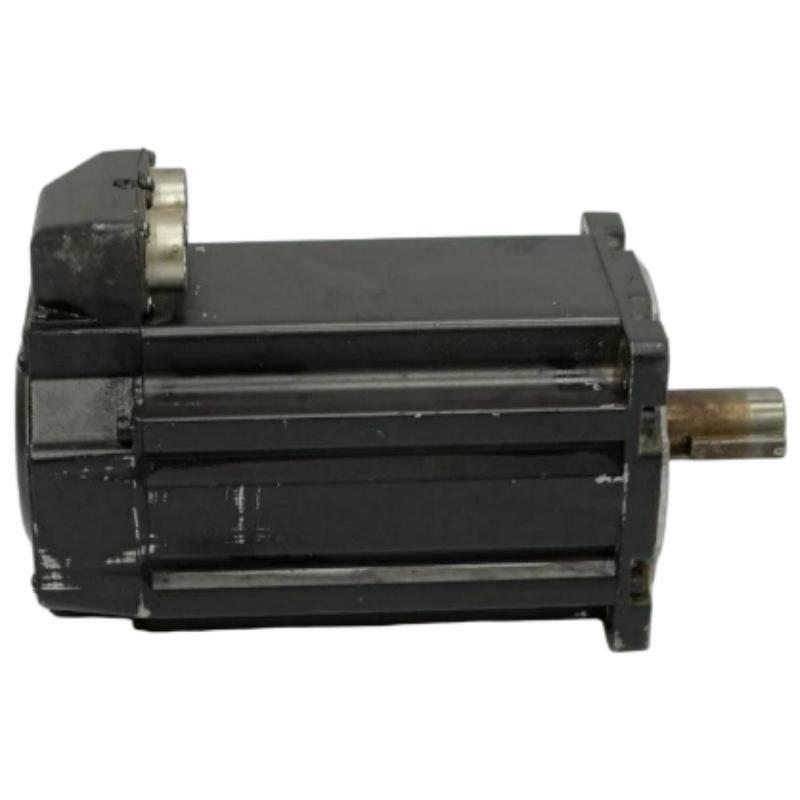

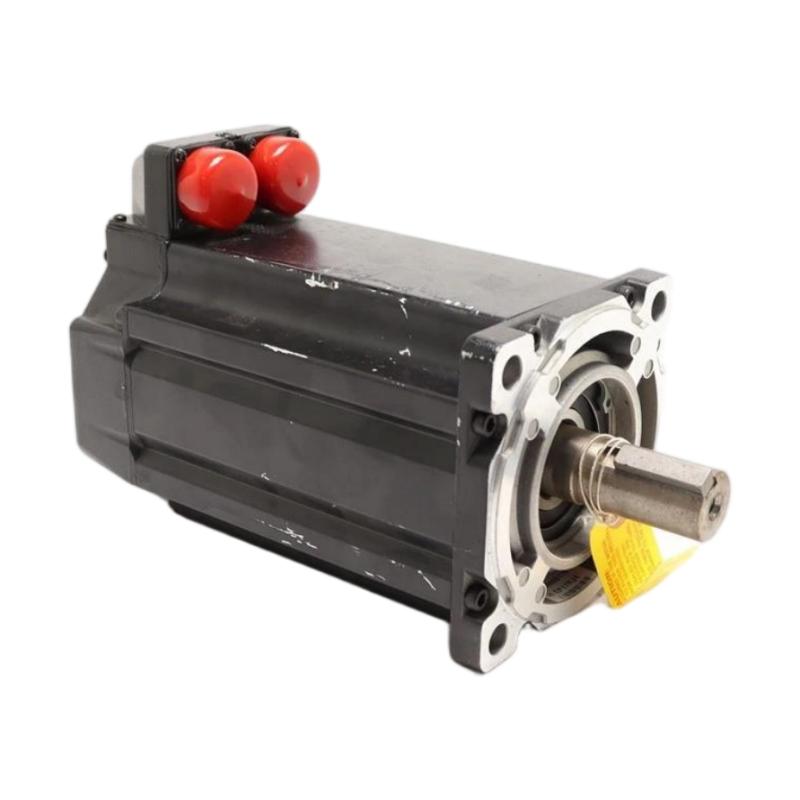

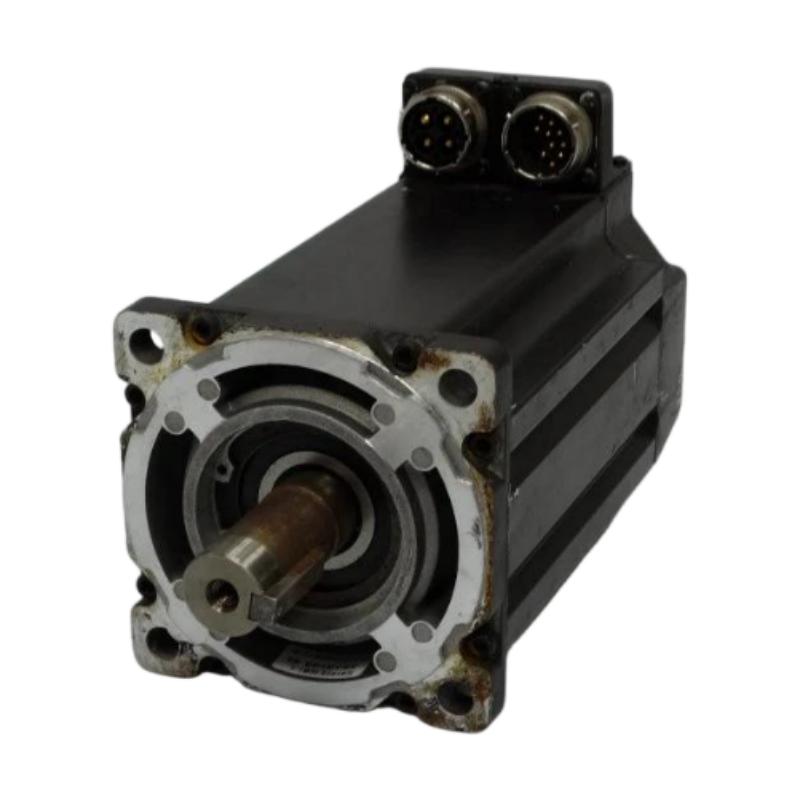

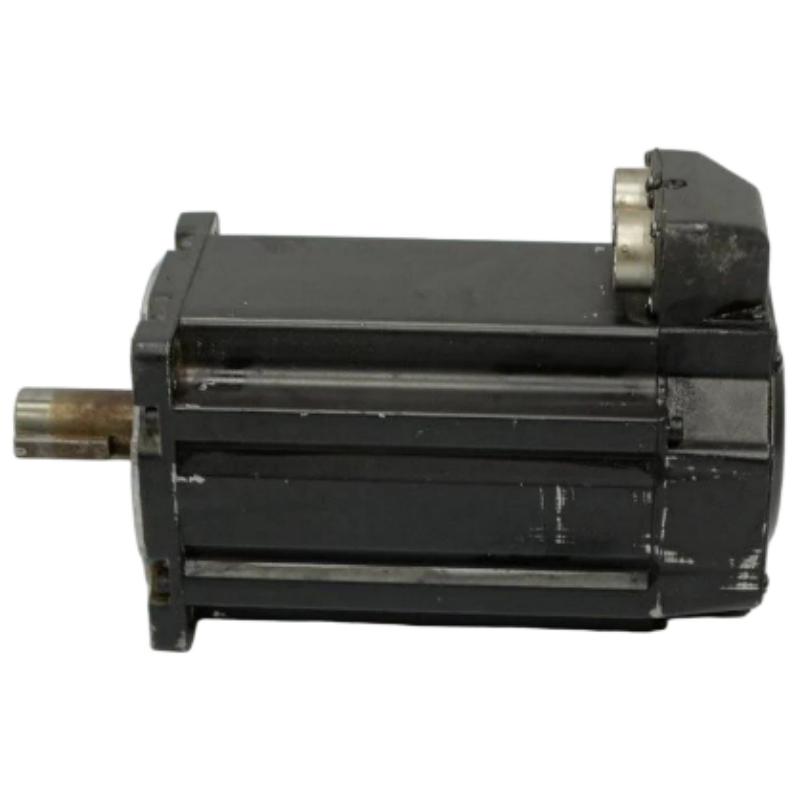

The Allen Bradley MPL-B4540F-RJ74AA Servo Motor is an industrial motion component intended for applications that demand controlled movement and repeatable positioning. As part of the MP-Series family, it is designed for integration into compatible servo systems used in automated machinery and manufacturing equipment.

Servo motor selection involves more than matching a frame size. Electrical ratings, feedback characteristics, mechanical dimensions, shaft configuration, and drive compatibility all influence whether a motor is suitable for a particular machine. These details are especially important when replacing a motor in an established production system.

The specified 130 mm frame size and 8.6 kg weight provide useful initial information for installation planning and spare-parts management. Buyers should confirm the complete catalog number and manufacturer's technical documentation before ordering to ensure the selected motor matches the existing equipment.

For maintenance teams and industrial automation suppliers, accurate model identification helps streamline procurement and reduces the risk of mechanical or electrical incompatibility.

Technical Specifications

Parameter	Specification
Brand	Allen-Bradley
Model	MPL-B4540F-RJ74AA
Product Type	Servo Motor
Product Family	MP-Series
Frame Size	130 mm
Weight	8.6 kg / 18.96 lb
Rated Power	Verify manufacturer's datasheet
Rated Voltage	Verify manufacturer's datasheet
Rated Speed	Verify manufacturer's datasheet
Feedback Type	Verify exact model documentation
Brake Configuration	Verify exact model documentation
Shaft and Mounting Details	Verify manufacturer's mechanical drawings
Typical Application	Industrial servo motion control

Recommended Related Models

The following Allen-Bradley MP-Series motors are related catalog references. Although they share the same general product family and frame size, their electrical or mechanical configurations may differ. Confirm interchangeability before selecting a replacement.

Model	Product Type	Key Consideration
MPL-B4530K-SK74AA	Servo Motor	Verify torque and configuration requirements
MPL-B4540F-HJ72AA	Servo Motor	Check connector and feedback configuration
MPL-B4540F-HJ74AA	Servo Motor	Verify exact catalog specifications
MPL-B4540F-HK72AA	Servo Motor	Confirm system compatibility
MPL-B4540F-HK74AA	Servo Motor	Confirm mechanical and electrical ratings

Popular Related Models

These additional Allen-Bradley MP-Series catalog numbers may be useful when reviewing servo motor requirements or managing replacement-part inventories.

Model	Product Type	Selection Consideration
MPL-B4540F-MJ74AA	Servo Motor	Verify feedback and connector details
MPL-B4540F-MK72AA	Servo Motor	Confirm electrical ratings and mounting
MPL-B4540F-MK74AA	Servo Motor	Check exact model configuration
MPL-B4540F-RJ72AA	Servo Motor	Compare with the existing motor's specifications
MPL-B4540F-MJ22AA	Servo Motor	Verify frame and mechanical interface

For reliable replacement and system integration, compare the full catalog number and official technical specifications rather than relying on product-family names alone.

Applications

The Allen Bradley MPL-B4540F-RJ74AA Servo Motor is part of the Allen-Bradley MP-Series low-inertia servo motor family, designed for motion control applications that require accurate positioning, controlled acceleration, and repeatable operation. Its suitability for a specific machine depends on the drive, feedback configuration, mechanical interface, and system requirements.

Typical applications include:

Industrial Packaging: Supporting synchronized motion in filling, sealing, labeling, and packaging machinery.
Material Handling: Providing controlled motion for automated transfer systems and positioning equipment.
Machine Tools: Supporting precise axis movement in compatible automated machinery.
Assembly Automation: Helping coordinate repeatable movements in automated assembly and production lines.
Printing and Converting: Supporting controlled motion in equipment requiring coordinated axis positioning.
Automated Manufacturing: Serving as a motion component in machinery designed around compatible Allen-Bradley servo systems.

Before installation, confirm the motor's nameplate data and full catalog number against the machine's original specifications.

Advantages and Performance Features

1. Low-Inertia Motion Design

The MP-Series family is designed for responsive motion control. Low-inertia motor designs can support rapid acceleration and deceleration when correctly matched to the mechanical load and servo drive.

2. Precise Positioning

When paired with a compatible servo drive and feedback system, the motor can support closed-loop motion control for applications requiring repeatable positioning and speed regulation.

3. Compact 130 mm Frame

The specified 130 mm frame size helps engineers assess mechanical fit and plan installation within the machine structure. Mounting dimensions and shaft details should still be verified against the manufacturer's drawings.

4. Integration with Allen-Bradley Motion Systems

The motor is intended for use within a compatible servo architecture. Drive selection must account for voltage, current, feedback, connector configuration, and the required control functions.

5. Suitable for Automated Production Equipment

Servo motors are widely used where motion must be coordinated with other machine operations, including indexing, positioning, and synchronized movement.

6. Practical Replacement-Part Identification

Using the complete model number, MPL-B4540F-RJ74AA, helps reduce confusion when sourcing replacement motors for existing equipment.

Technical FAQs

Q1: What is the Allen Bradley MPL-B4540F-RJ74AA?

It is an Allen-Bradley MP-Series servo motor intended for industrial motion control applications. The exact configuration should be confirmed using its complete catalog number and nameplate.

Q2: What is the motor's frame size?

The supplied specification lists a frame size of 130 mm.

Q3: What is the motor's weight?

The supplied weight is 8.6 kg, equivalent to approximately 18.96 lb.

Q4: Which servo drive can operate this motor?

The drive must match the motor's electrical ratings, feedback system, connector arrangement, and control requirements. Confirm the exact compatible drive using Allen-Bradley documentation rather than selecting a drive by frame size alone.

Q5: Is the motor suitable for closed-loop positioning?

Yes, when used with a compatible servo drive and feedback configuration, it can operate as part of a closed-loop motion control system. System performance depends on the complete motion configuration.

Q6: What should be checked before replacing an existing motor?

Verify the full catalog number, rated voltage and current, feedback type, shaft and mounting dimensions, connectors, brake requirements if applicable, and the associated servo drive.

Q7: Can the motor be used in high-speed applications?

Its suitability depends on the specified speed range, load inertia, torque requirements, duty cycle, and drive configuration. Refer to the motor's official performance data before approving it for a high-speed application.

Q8: How does load inertia affect servo motor performance?

Load inertia influences acceleration, deceleration, settling time, and control stability. The motor and drive should be sized for the actual mechanical load and required motion profile.

Q9: What can cause servo motor positioning errors?

Potential causes include incorrect tuning, mechanical backlash, excessive load inertia, feedback problems, loose couplings, wiring faults, or drive configuration errors. Diagnosis should consider the entire motion system.

Q10: What information is needed to order this motor?

Provide the complete catalog number, MPL-B4540F-RJ74AA, and confirm the motor's nameplate and mechanical configuration against the original equipment requirements.
