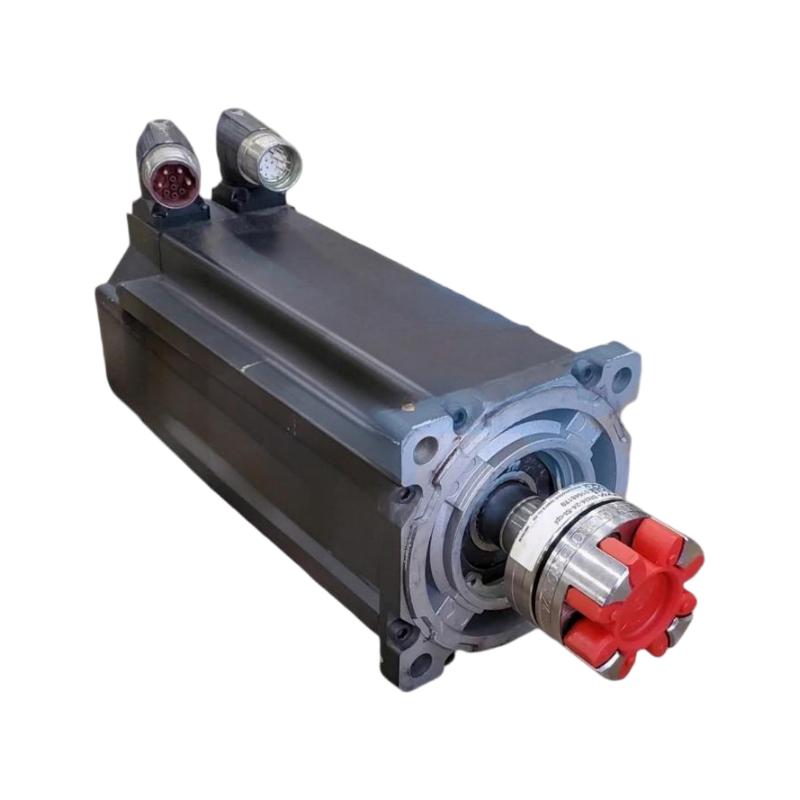

Allen Bradley MPL-B4560F-MJ72AH Servo Motor

Applications and Industrial Use

The Allen Bradley MPL-B4560F-MJ72AH Servo Motor is an industrial motion control component in the Allen-Bradley MP-Series family. It is intended for integration into compatible servo systems used in automated machinery that requires controlled movement, repeatable positioning, and coordinated operation.

With a specified frame size of 130 mm, this motor can be evaluated for machine applications where the mounting arrangement, electrical ratings, and motion performance meet the system requirements.

Typical application areas include:

• Packaging Machinery: Supports controlled motion in automated packaging, indexing, and product-handling equipment.

• Material Handling Systems: Can be used in compatible positioning and transfer mechanisms.

• Automated Assembly: Supports repeatable movement in manufacturing and assembly processes.

• Machine Tools: May be suitable for compatible servo-driven machine axes.

• Printing and Converting Equipment: Supports applications requiring controlled movement and synchronized operation.

• Industrial Automation: Provides a motor option for equipment designed around compatible Allen-Bradley motion control components.

Before installation, verify the motor's complete catalog number, electrical ratings, feedback configuration, and compatibility with the intended servo drive.

Advantages and Performance Features

1. Controlled Servo Motion

When paired with a compatible servo drive and feedback system, the motor can support regulated acceleration, deceleration, and positioning for automated machinery.

2. 130 mm Frame Size

The specified frame size provides a useful reference for installation planning and mechanical integration. Confirm the exact mounting dimensions and shaft specifications using the manufacturer's technical drawings.

3. Integration with Compatible Motion Systems

The motor can be considered for suitable Allen-Bradley servo architectures. Correct integration requires matching electrical characteristics, feedback interfaces, connectors, and drive requirements.

4. Repeatable Positioning

A properly sized and tuned servo system can support consistent motion across repeated machine cycles, helping automated equipment maintain its programmed movement sequence.

5. Clear Replacement-Part Identification

The complete catalog number, MPL-B4560F-MJ72AH, helps maintenance teams distinguish this motor from similar MP-Series models with different suffixes.

6. Practical for Industrial Maintenance

The model number and supplied physical specifications provide useful information for spare-parts identification and replacement planning. Compatibility should always be checked before installation.

Technical FAQs

Q1: What is the Allen Bradley MPL-B4560F-MJ72AH Servo Motor?

It is an Allen-Bradley MP-Series servo motor catalog model intended for industrial motion control applications. Refer to the manufacturer's documentation to confirm its exact configuration.

Q2: What is the frame size of this servo motor?

The supplied specification lists a frame size of 130 mm.

Q3: What is the motor's weight?

The supplied weight is 6.8 kg, equivalent to approximately 14.99 lb.

Q4: Which servo drive is compatible with this motor?

The compatible drive must meet the motor's electrical ratings and support its feedback and connection configuration. Verify the pairing against official documentation for the complete catalog number.

Q5: Can this motor be used for precision positioning?

When integrated with a compatible servo drive, feedback system, and correctly tuned controller, it can form part of a closed-loop motion control system designed for repeatable positioning.

Q6: What should be checked before replacing an existing motor?

Verify the complete catalog number, nameplate ratings, mounting dimensions, shaft configuration, feedback interface, connectors, and brake requirements if applicable. Confirm compatibility with the installed drive.

Q7: Why is the model suffix important?

The suffix can identify differences in motor configuration. Similar-looking models should not be assumed interchangeable without checking their electrical, feedback, and mechanical specifications.

Q8: What factors affect servo motor sizing?

Important factors include required torque, operating speed, acceleration, load inertia, duty cycle, transmission design, and environmental conditions.

Q9: What can cause servo positioning errors?

Possible causes include incorrect tuning, feedback faults, mechanical backlash, loose couplings, excessive load inertia, wiring issues, or incorrect drive parameters.

Q10: What information is needed when ordering this motor?

Provide the complete model number, MPL-B4560F-MJ72AH, and verify the required electrical, feedback, and mechanical specifications against the original equipment documentation.
