Product Introduction

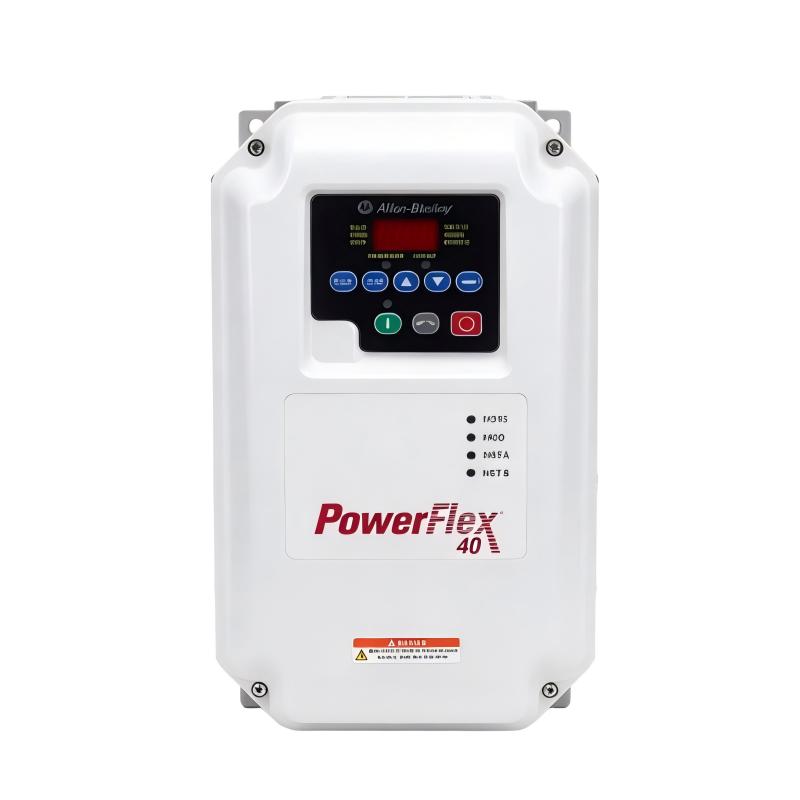

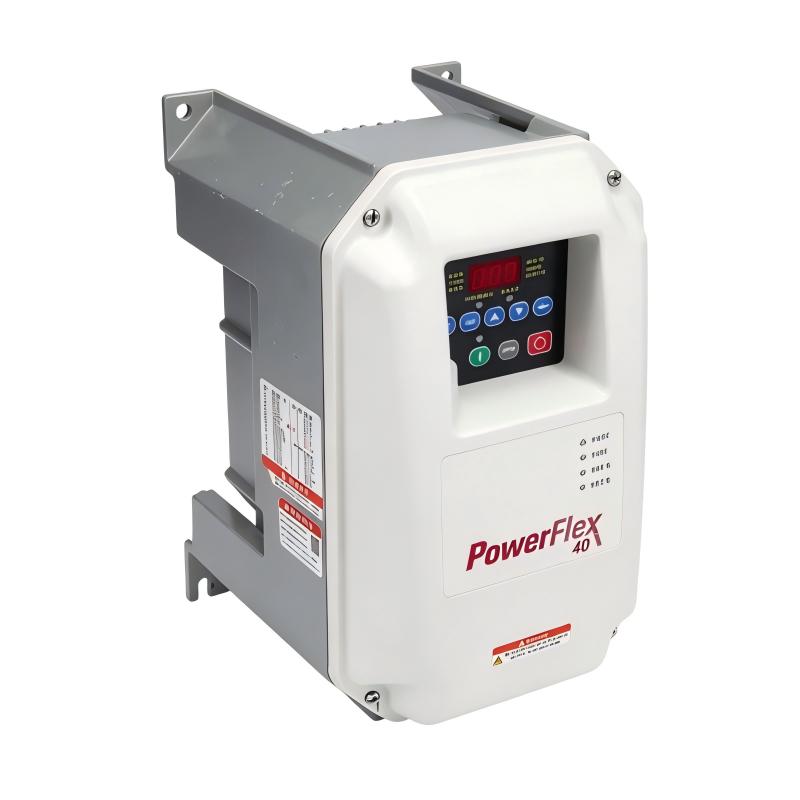

The Allen Bradley 22B-V6P0C104 PowerFlex 40 AC Drive belongs to the PowerFlex 40 family of variable-frequency drives used in industrial motor control. These drives are designed to help regulate motor speed in applications where fixed-speed operation may not provide the required process flexibility.

A variable-frequency drive can adjust motor operation to suit changes in production demand, material flow, or equipment operating conditions. Appropriate configuration is important for achieving reliable performance, particularly where starting torque, acceleration, deceleration, or changing loads affect the application.

The 22B-V6P0C104 catalog number should be verified against the drive nameplate before purchasing. Drives within the same family can differ in voltage class, current rating, and configuration, so family-level similarity alone is not enough to establish interchangeability.

For maintenance engineers and industrial spare parts buyers, checking the electrical ratings and terminal arrangement before installation helps reduce compatibility risks and supports a smoother replacement process.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	22B-V6P0C104
Product Family	PowerFlex 40
Product Type	AC Drive / Variable-Frequency Drive
Dimensions	180 × 100 × 136 mm
Weight	2.2 kg / 4.85 lb
Primary Function	Variable-speed control of compatible AC motors
Typical Applications	Conveyors, pumps, fans, and industrial machinery
Supply Voltage	Verify from the drive nameplate
Rated Output Current	Verify from the exact catalog documentation
Motor Power Rating	Verify from the voltage class and applicable rating table
Control Configuration	Confirm against the required application and installed system

Note: Electrical ratings should be confirmed using the exact catalog number and manufacturer documentation. Do not select a replacement based on dimensions alone.

Recommended Related Models

The following Allen-Bradley drive models are useful references when evaluating other PowerFlex 40 or PowerFlex 525 options. They are not guaranteed drop-in replacements; voltage, current, motor power, and installation requirements must be compared.

Model	Product Family	Product Type
22B-V2P3N104	PowerFlex 40	AC Drive
22B-V5P0C104	PowerFlex 40	AC Drive
25B-V2P5N104	PowerFlex 525	AC Drive
25C-A4P8N114	PowerFlex 525	AC Drive

Popular Related Models

These models may also be relevant when sourcing Allen-Bradley variable-frequency drives for industrial applications.

Model	Product Family	Product Type
22B-V6P0H204	PowerFlex 40	AC Drive — verify exact catalog configuration
22B-D4P0N104	PowerFlex 40	AC Drive — verify exact catalog configuration
25B-D2P3N104	PowerFlex 525	AC Drive — verify exact catalog configuration
25B-V4P8N104	PowerFlex 525	AC Drive — verify exact catalog configuration
25C-D2P3N114	PowerFlex 525	AC Drive — verify exact catalog configuration

Ordering recommendation: Before purchasing the Allen Bradley 22B-V6P0C104 PowerFlex 40 AC Drive, confirm the catalog number and nameplate ratings, especially the supply voltage and output current. Compare these details with the connected motor and the existing installation to ensure the selected drive is suitable.

Applications

The Allen Bradley 22B-V6P0C104 PowerFlex 40 AC Drive is a variable-frequency drive designed to regulate AC motor speed and support controlled operation in industrial machinery. By adjusting motor frequency and voltage through drive control, it can help match motor performance to process requirements and improve flexibility in automated equipment.

Typical applications include:

Conveyor systems: Adjusts motor speed to suit material handling and production line requirements.
Pumps and fans: Provides adjustable-speed operation for compatible motor-driven equipment.
Packaging machinery: Supports controlled motor operation during repetitive production cycles.
Machine tools: Helps regulate motor speed in auxiliary drives and other suitable machine functions.
Material handling equipment: Supports variable-speed operation in industrial transport systems.
General manufacturing: Can be applied to compatible motor-driven machinery where adjustable speed and controlled starting are required.

Before installation, confirm the drive's voltage class, output current, motor ratings, enclosure requirements, and compatibility with the existing control system.

Advantages and Performance Features

1. Adjustable AC Motor Speed

The PowerFlex 40 family is designed to provide variable-speed control for compatible AC motors. This allows machine operators to adjust motor operation to suit process demands.

2. Controlled Motor Starting and Stopping

A suitable drive configuration can provide controlled acceleration and deceleration, helping reduce abrupt changes in motor speed during normal operation.

3. Compact Installation Format

The supplied dimensions of 180 × 100 × 136 mm provide a reference for panel layout and installation planning. Required ventilation and service clearances must also be considered.

4. Integration with Industrial Control Systems

PowerFlex 40 drives are intended for industrial applications and can be incorporated into control arrangements using compatible control signals and communication options.

5. Flexible Parameter Configuration

Drive parameters can be configured for the motor and application, including operating limits and acceleration or deceleration settings. The correct settings depend on the machine and motor requirements.

6. Support for Routine Maintenance

Using the exact catalog number helps maintenance personnel identify the appropriate replacement and check the drive against the existing electrical and mechanical installation.

Technical FAQs

Q1: What is the Allen Bradley 22B-V6P0C104?

It is identified as an Allen-Bradley PowerFlex 40 AC drive. The PowerFlex 40 family is used for variable-frequency control of compatible AC motors in industrial applications.

Q2: What is the main function of a PowerFlex 40 drive?

It controls AC motor speed by varying the output frequency and voltage according to the configured control method and operating requirements.

Q3: Which motors can be used with this drive?

Motor compatibility depends on the drive's voltage class, output current, motor power, and application requirements. Confirm the exact ratings on the drive nameplate and in the relevant technical documentation.

Q4: Can this drive be used for conveyor applications?

Yes, the PowerFlex 40 family is suitable for many conveyor applications when the motor and drive are correctly sized. Load characteristics, starting torque, acceleration time, and stopping requirements should be evaluated.

Q5: Does the drive support acceleration and deceleration settings?

The PowerFlex 40 family supports configurable acceleration and deceleration parameters. The settings should be selected to suit the motor, driven load, and process requirements.

Q6: Can the 22B-V6P0C104 replace another PowerFlex 40 drive?

Not automatically. Compare the complete catalog number, voltage class, current rating, control configuration, terminals, and installation requirements before replacing an existing drive.

Q7: What should be checked before commissioning?

Verify the incoming power supply, protective devices, motor wiring, grounding, parameter settings, control wiring, ventilation, and applicable machine-safety requirements.

Q8: What can cause an AC drive to trip?

Possible causes include overcurrent, overvoltage, undervoltage, overheating, motor overload, wiring faults, and incorrect parameter settings. Consult the drive's fault information to determine the appropriate corrective action.

Q9: What maintenance does a PowerFlex 40 drive require?

Follow the manufacturer's maintenance instructions. Typical checks include ventilation passages, cooling airflow, electrical connections, contamination, signs of overheating, and the condition of connected cables.

Q10: What information is needed to order the correct replacement drive?

Provide the full catalog number, nameplate ratings, photographs of the terminals and labels, the connected motor's specifications, and the installation's supply voltage.
