Product Introduction

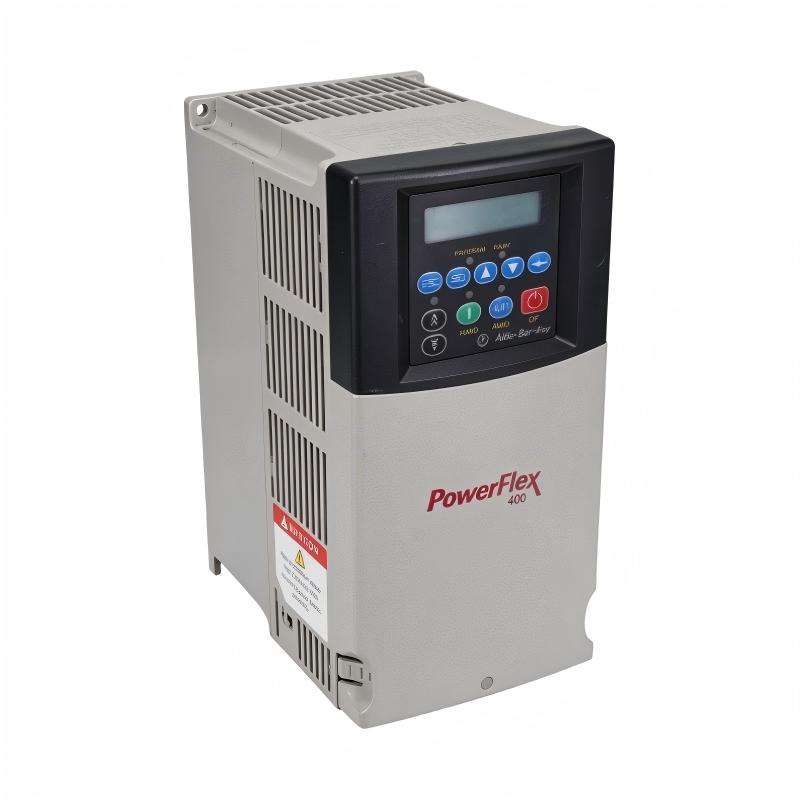

The Allen Bradley 22C-B012N103 PowerFlex 400 AC Drive is an industrial variable-frequency drive from the PowerFlex 400 product family. This family was developed primarily for fan and pump applications, where adjustable motor speed can support process control and potentially reduce energy consumption under suitable operating conditions.

In a fan or pumping system, motor speed often needs to change as ventilation demand, fluid flow, or system pressure varies. A correctly selected drive enables controlled motor operation and can help equipment respond more effectively to changing process requirements.

Before purchasing the 22C-B012N103, buyers should verify the exact catalog number and nameplate information. Electrical ratings and configuration details must be matched to the connected motor and the existing installation. Similar-looking drives may have different voltage classes or output ratings, so physical dimensions alone are not sufficient for replacement selection.

For industrial maintenance teams, OEMs, and spare parts suppliers, checking the catalog number, motor data, and control requirements before installation helps reduce compatibility risks and supports reliable operation.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	22C-B012N103
Product Family	PowerFlex 400
Product Type	AC Drive / Variable-Frequency Drive
Dimensions	260 × 130 × 180 mm
Weight	4.33 kg / 9.55 lb
Primary Application	Fan and pump motor control
Motor Type	Compatible AC motor, subject to drive ratings
Supply Voltage	Confirm from the exact drive nameplate
Rated Output Current	Verify in manufacturer documentation
Motor Power Rating	Verify against the drive's voltage and current ratings
Installation	Industrial electrical cabinet or suitable installation environment

Note: Confirm input voltage, output current, power rating, overload capability, and available control interfaces using the official documentation for the exact catalog number.

Recommended Related Models

The following Allen-Bradley variable-frequency drives may be useful comparison references when sourcing a replacement or planning an alternative installation. They are not confirmed direct substitutes for the 22C-B012N103.

Model	Product Family	Product Type
22B-V2P3N104	PowerFlex 40	AC Drive
22B-V5P0C104	PowerFlex 40	AC Drive
25B-V2P5N104	PowerFlex 525	AC Drive
25C-A4P8N114	PowerFlex 525	AC Drive

Selection should be based on the required motor rating, electrical supply, application, and control configuration.

Popular Related Models

These additional drive models may be relevant to industrial motor-control sourcing. Confirm the full catalog number and manufacturer specifications before considering any of them for an application.

Model	Product Family	Product Type
22C-B024N103	PowerFlex 400	AC Drive — verify exact configuration
22C-B017N103	PowerFlex 400	AC Drive — verify exact configuration
22C-D012N103	PowerFlex 400	AC Drive — verify exact configuration
22B-V6P0C104	PowerFlex 40	AC Drive
25B-V4P8N104	PowerFlex 525	AC Drive — verify exact configuration

Ordering recommendation: Before ordering the Allen Bradley 22C-B012N103 PowerFlex 400 AC Drive, verify the complete catalog number and electrical ratings against the motor nameplate and installation requirements. For replacement projects, also confirm mounting space, ventilation, wiring, and control compatibility.

Applications

The Allen Bradley 22C-B012N103 PowerFlex 400 AC Drive is part of the PowerFlex 400 family of variable-frequency drives designed primarily for fan and pump applications. It provides adjustable-speed control for compatible AC motors, helping industrial facilities match motor operation to process demand.

Typical application areas include:

HVAC systems: Supports variable-speed operation of compatible ventilation fans and air-handling equipment.
Industrial pumping systems: Helps regulate pump motor speed according to process flow and pressure requirements.
Water and wastewater treatment: Can be used in suitable pumping and fluid-handling applications.
Building services: Supports adjustable-speed operation in mechanical equipment used in commercial and industrial facilities.
Industrial ventilation: Provides motor-speed control for compatible exhaust and supply fan systems.
General process equipment: Can be considered where variable-speed control is required and the drive's electrical ratings match the application.

Correct selection depends on the motor's rated voltage and current, the required speed range, load characteristics, installation environment, and control requirements.

Advantages and Performance Features

1. Designed for Fan and Pump Applications

The PowerFlex 400 family is tailored to common fan and pump control requirements, making it a practical option for suitable HVAC and fluid-handling systems.

2. Adjustable Motor Speed

Variable-frequency operation allows compatible AC motor speed to be adjusted to meet changing process requirements rather than relying exclusively on fixed-speed operation.

3. Potential Energy Savings

Reducing motor speed can lower energy consumption in suitable variable-torque fan and pump applications. Actual savings depend on the operating profile, system design, and control strategy.

4. Flexible Control Integration

The drive can be integrated into an appropriate industrial control arrangement using supported control interfaces and configuration options. Verify the requirements of the specific installation.

5. Practical Panel Installation

The supplied dimensions of 260 × 130 × 180 mm provide a reference for cabinet planning. Adequate ventilation, wiring access, and service clearance must also be considered.

6. Support for Industrial Maintenance

Identifying the exact catalog number helps maintenance teams evaluate replacement options and check whether a proposed drive matches the existing motor and electrical installation.

Technical FAQs

Q1: What is the Allen Bradley 22C-B012N103?

It is identified as an Allen-Bradley PowerFlex 400 AC drive, a variable-frequency drive family intended primarily for fan and pump applications.

Q2: What is the primary function of the PowerFlex 400 drive?

Its primary function is to control the speed of a compatible AC motor by varying the output frequency and voltage according to the drive's configuration.

Q3: Is this drive suitable for HVAC applications?

The PowerFlex 400 family is intended for suitable fan and pump applications, including many HVAC systems. The specific drive must be correctly rated for the motor and electrical supply.

Q4: Can a variable-frequency drive reduce energy consumption?

It can reduce energy use in appropriate applications, particularly variable-torque fan and pump systems operating below full speed. Results depend on system characteristics and operating conditions.

Q5: How should the motor be matched to this drive?

Compare the motor's rated voltage, full-load current, power, frequency, and operating requirements with the drive's nameplate ratings and manufacturer documentation.

Q6: Can the 22C-B012N103 replace another PowerFlex drive?

Not necessarily. Verify voltage class, current rating, power rating, control features, enclosure requirements, and terminal configuration before selecting a replacement.

Q7: What installation conditions should be considered?

Check ambient temperature, airflow, mounting orientation, electrical clearances, grounding, cable routing, and the manufacturer's specified environmental limits.

Q8: What can cause a PowerFlex 400 drive to trip?

Possible causes include overcurrent, overvoltage, undervoltage, overheating, motor overload, wiring problems, and incorrect parameter settings. Use the drive's fault indication and troubleshooting documentation to identify the cause.

Q9: What maintenance is recommended?

Follow the manufacturer's maintenance instructions. Regularly inspect cooling passages, airflow, electrical connections, cable condition, contamination, and signs of overheating.

Q10: What information should be checked before ordering a replacement?

Confirm the complete catalog number, nameplate ratings, connected motor specifications, incoming supply voltage, control wiring, and physical installation requirements.
