Product Introduction

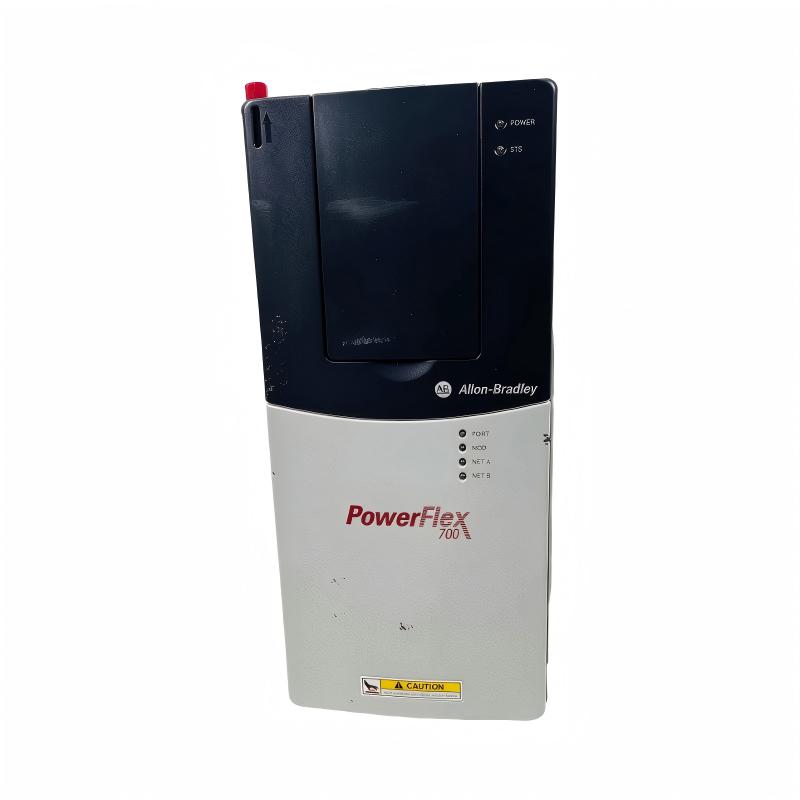

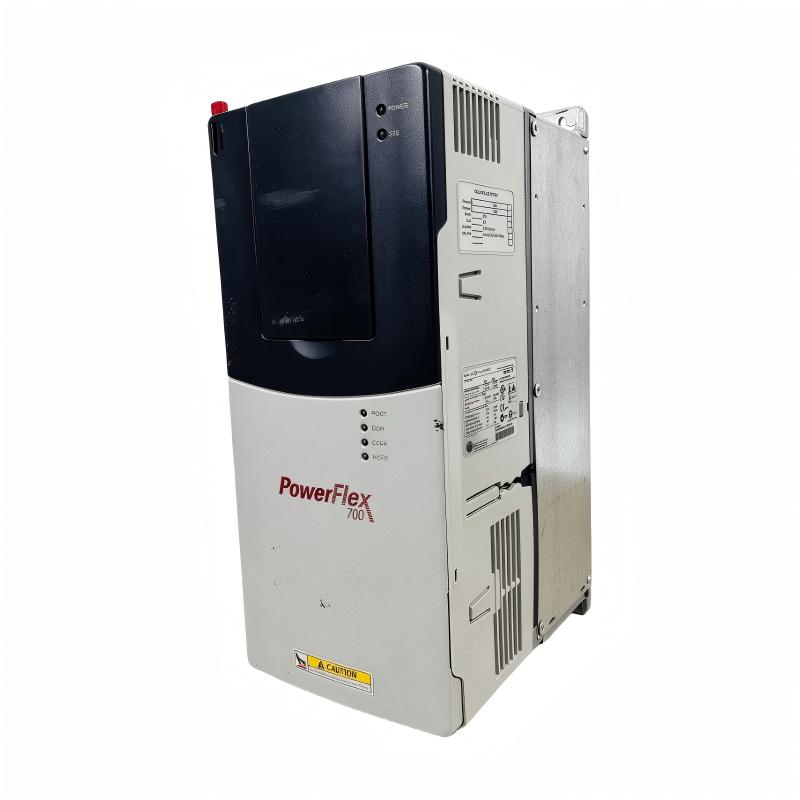

The Allen Bradley 20BD014A0AYNANC0 PowerFlex 700 AC Drive is an industrial motor-control component intended for integration into compatible variable-speed drive systems. The PowerFlex 700 family is used in applications where controlled motor operation, configurable drive parameters, and integration with industrial automation equipment are important.

In manufacturing environments, variable-frequency drives allow motor speed to be adjusted to match the requirements of the driven equipment. Depending on the application and system configuration, this can support smoother machine operation, process flexibility, and coordinated control of motor-driven equipment.

The complete catalog number is essential when purchasing this drive. PowerFlex 700 products may differ in voltage class, current rating, enclosure or hardware configuration, and available options. A model should therefore not be selected solely on the basis of its family name or physical dimensions.

For maintenance teams and industrial spare-parts buyers, checking the nameplate, motor specifications, communication requirements, and mounting arrangement before ordering helps reduce replacement errors and supports a more reliable commissioning process.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	20BD014A0AYNANC0
Product Family	PowerFlex 700
Product Type	AC Drive / Variable-Frequency Drive
Dimensions	336 × 200 × 135 mm
Weight	7.03 kg / 15.50 lb
Primary Function	Adjustable-speed control of compatible AC motors
Typical Applications	Conveyors, material handling, manufacturing machinery, and other suitable motor-driven equipment
Supply Voltage	Verify using the exact catalog documentation

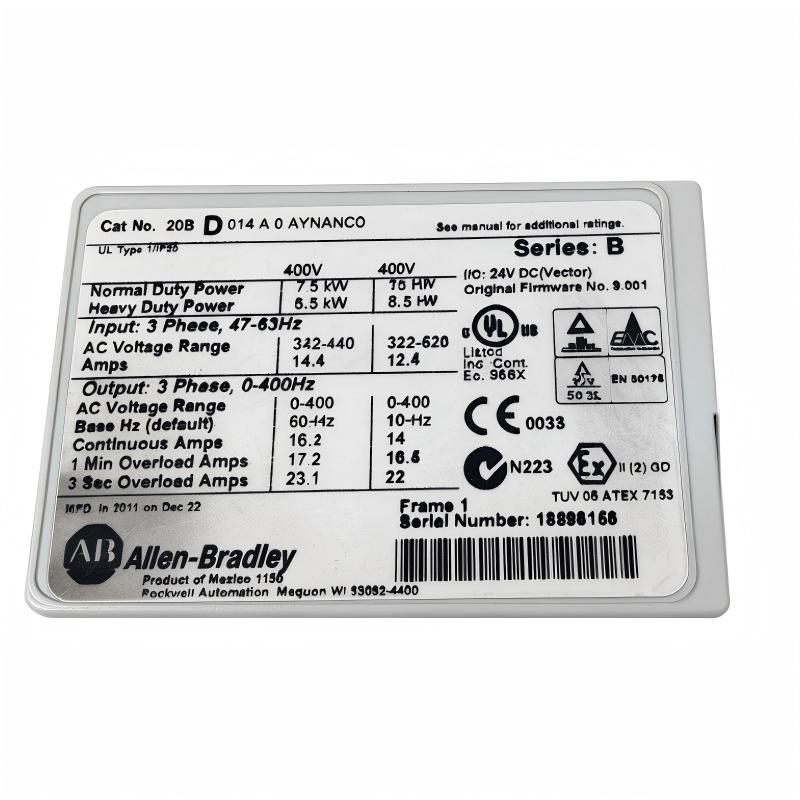

Rated Output Current	Verify using the drive nameplate
Motor Power Rating	Confirm against the voltage and current ratings
Communication Options	Verify the installed configuration
Installation Requirements	Follow manufacturer instructions for mounting, wiring, cooling, and clearances

Note: The dimensions and weight above are based on the supplied product data. Confirm electrical ratings, enclosure details, and option codes against the manufacturer's documentation for the complete catalog number.

Recommended Related Models

The following Allen-Bradley AC drives are useful comparison references for industrial motor-control applications. They belong to other PowerFlex families and should not be considered direct replacements without checking the required electrical and control specifications.

Model	Product Family	Product Type
22B-V2P3N104	PowerFlex 40	AC Drive
22B-V5P0C104	PowerFlex 40	AC Drive
22C-B012N103	PowerFlex 400	AC Drive
25B-V2P5N104	PowerFlex 525	AC Drive
25C-A4P8N114	PowerFlex 525	AC Drive

Popular Related Models

These additional models may be relevant when evaluating Allen-Bradley drive inventory or planning maintenance for other variable-frequency drive installations. Verify each model's exact ratings and configuration before purchase.

Model	Product Family	Product Type
20BD027A0AYNANC0	PowerFlex 700	AC Drive — verify exact configuration
20BD040A0AYNANC0	PowerFlex 700	AC Drive — verify exact configuration
20AD014A0AYNANC0	PowerFlex 70	AC Drive — verify exact configuration
22B-V6P0C104	PowerFlex 40	AC Drive
22C-B012N103	PowerFlex 400	AC Drive

Ordering recommendation: Before purchasing the Allen Bradley 20BD014A0AYNANC0 PowerFlex 700 AC Drive, confirm the full catalog number and nameplate ratings. Compare the drive with the connected motor, incoming power supply, required control interfaces, and physical installation conditions to ensure suitability.
