Brand:Siemens Item No.:1FK7100-5AF71-1AG0 Product Origin:Germany Product Dimensions:Shaft Height: 100 mm Product Weight:19.003 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

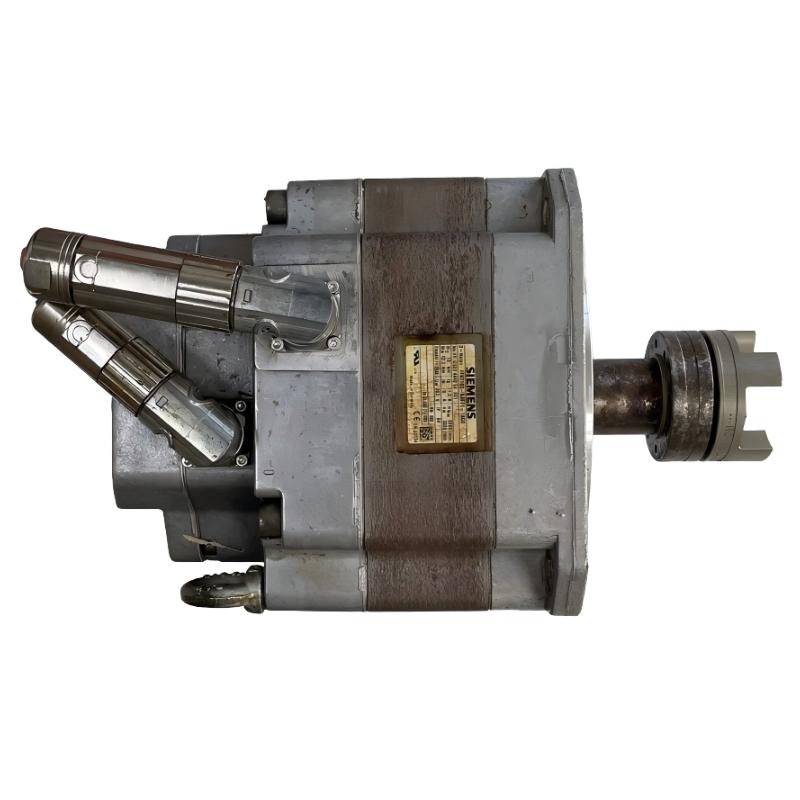

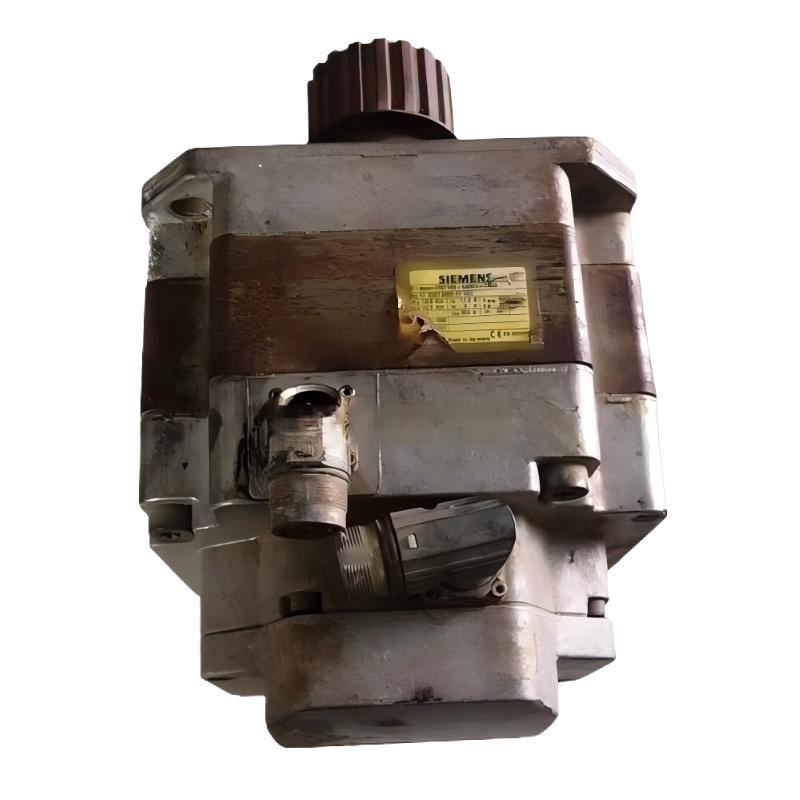

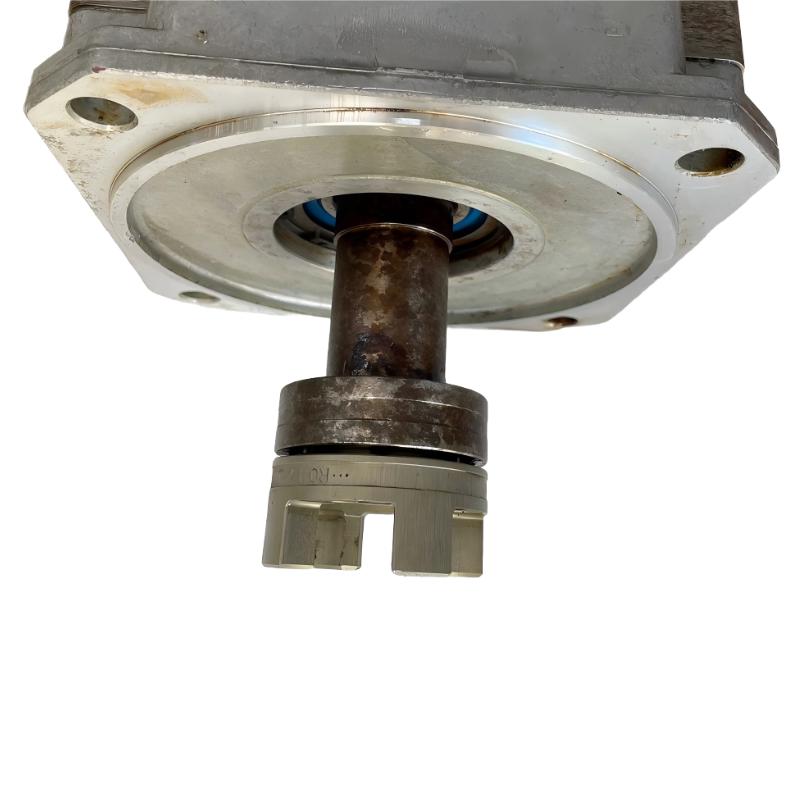

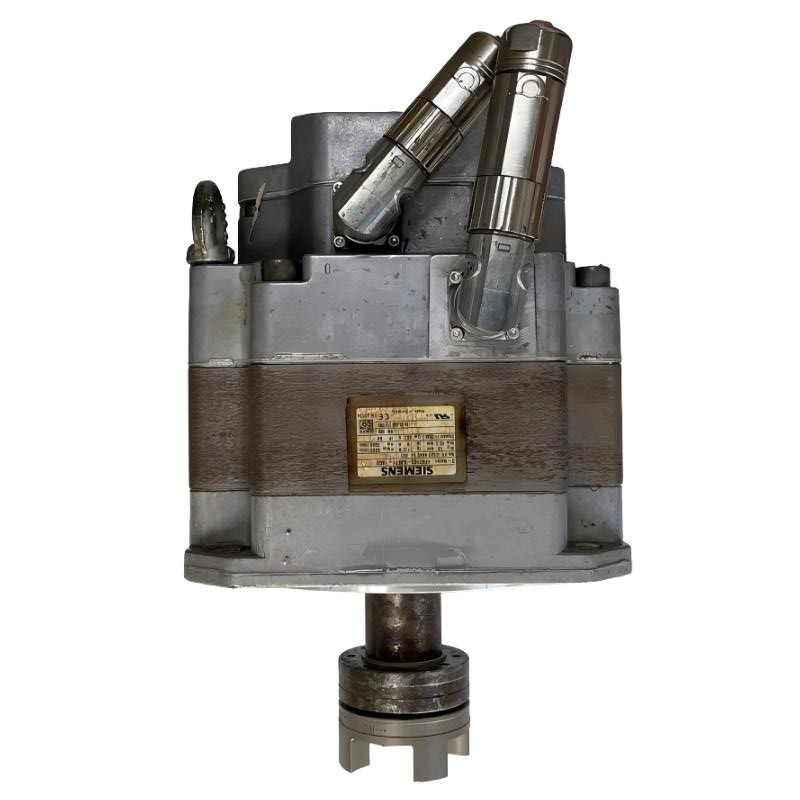

The Siemens 1FK7100-5AF71-1AG0 Servo Motor is part of the SIMOTICS S series, offering precise and dynamic motion performance for industrial automation systems. Designed for applications where accuracy, repeatability, and controlled movement are critical, this servo motor provides a dependable solution for modern machine designs.
With a 100 mm shaft height, this model is suitable for applications requiring a larger motor frame while maintaining the benefits of servo technology, including precise positioning and rapid response. It is commonly integrated into automation systems where motors, drives, and controllers must operate together with high coordination.
The 1FK7 series is widely recognized for its compact construction, efficient performance, and compatibility with advanced Siemens motion-control platforms. For replacement projects, engineers should confirm electrical characteristics, mechanical dimensions, feedback configuration, and drive compatibility before installation.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
1FK7100-5AF71-1AG0
Product Type
Servo Motor
Series
SIMOTICS S
Motor Technology
Permanent Magnet Synchronous Servo Motor
Shaft Height
100 mm
Weight
19.003 kg (41.89 lb)
Application
Industrial motion control
Feedback System
Verify according to motor configuration
Drive Compatibility
Siemens compatible servo drive systems
Mounting Type
Flange mounting
Cooling Method
Verify according to product configuration
Protection Rating
Verify according to technical documentation
Recommended Related Models
The following Siemens servo motors are related references for industrial motion-control applications. They should be evaluated according to the required torque, speed, and system configuration.
Model
Product Type
Selection Consideration
1FK7100-5AF71-1DG0
SIMOTICS S Servo Motor
Related 1FK7 series model; compare mechanical and electrical parameters.
1FK7100-5AF71-1SG0
SIMOTICS S Servo Motor
Similar frame family; verify application requirements before selection.
1FK7100-5AF71-1KG0
SIMOTICS S Servo Motor
Alternative configuration; confirm feedback and drive compatibility.
1FK7083 Series Servo Motors
SIMOTICS S Servo Motor
Smaller frame option for applications requiring reduced motor size.
Popular Related Models
Model
Product Type
Typical Application
Siemens 1FK7 Series
SIMOTICS S Servo Motor
Precision automation, robotics, and machine-tool applications.
Siemens 1FT7 Series
SIMOTICS Servo Motor
High-performance industrial motion systems.
Siemens 1PH8 Series
Industrial Motor
Higher-power industrial drive applications.
Siemens SINAMICS S120
Servo Drive System
Multi-axis motion control and advanced automation solutions.
Ordering Note: Before purchasing the Siemens 1FK7100-5AF71-1AG0 Servo Motor, confirm the complete ordering code, motor performance requirements, compatible drive system, feedback configuration, and mechanical installation conditions to ensure reliable operation.
Applications
The Siemens 1FK7100-5AF71-1AG0 Servo Motor is a high-performance synchronous servo motor from the SIMOTICS S family, designed for industrial motion-control applications that demand precise positioning, reliable speed regulation, and excellent dynamic response. With a 100 mm shaft height, this motor provides increased mechanical capability for larger automation systems while maintaining the accuracy expected from Siemens servo technology.
Typical application areas include:
Advanced machine automation: Provides controlled motion for production machinery requiring high precision and repeatability.
CNC and machine tools: Supports accurate axis movement, positioning tasks, and coordinated machining operations.
Robotics and handling equipment: Enables smooth and precise movement in automated robotic systems.
Packaging and processing machinery: Delivers stable performance in applications requiring frequent acceleration and deceleration.
Printing and converting systems: Supports synchronized motion control for complex production processes.
Industrial retrofit solutions: Provides a reliable replacement option for compatible Siemens motion-control installations.
Product Advantages
High-performance motion control: Delivers accurate positioning and stable speed control for demanding automation tasks.
Larger frame capability: The 100 mm shaft height supports applications requiring greater mechanical strength and power output.
Excellent dynamic characteristics: Designed for fast response during acceleration, braking, and positioning cycles.
Industrial reliability: Built for continuous operation in professional automation environments.
Flexible system integration: Works with compatible Siemens drive and controller solutions for complete motion systems.
Optimized maintenance support: The clear Siemens ordering code simplifies identification during equipment service and replacement.
Technical FAQs
Q1: What type of motor is the Siemens 1FK7100-5AF71-1AG0?
The Siemens 1FK7100-5AF71-1AG0 is a synchronous servo motor designed for precision industrial motion applications.
Q2: What are the common applications of this servo motor?
It is commonly used in CNC equipment, robotics, automated production machinery, packaging systems, and other applications requiring accurate motion control.
Q3: Can this servo motor be combined with Siemens SINAMICS drives?
SIMOTICS S servo motors are designed for integration with compatible Siemens drive systems. The exact motor and drive combination should be verified according to the application requirements.
Q4: What factors determine whether this motor is suitable for a machine?
Selection depends on required torque, speed, acceleration, load characteristics, positioning accuracy, duty cycle, mechanical mounting, and drive compatibility.
Q5: Does this motor use encoder feedback?
Servo motors are designed for closed-loop operation and typically use feedback devices. The exact encoder type depends on the complete motor ordering code.
Q6: What problems can affect servo motor performance?
Common issues include incorrect drive parameters, poor tuning, mechanical overload, encoder faults, wiring problems, or unsuitable operating conditions.
Q7: How should this servo motor be maintained?
Maintenance includes checking electrical connections, monitoring operating temperature, inspecting mechanical coupling, and verifying drive parameters during operation.
Q8: Can this model directly replace another Siemens 1FK7 servo motor?
Direct replacement requires checking the complete model code, torque characteristics, mounting dimensions, encoder configuration, and drive compatibility.
Q9: Why is the shaft height important for servo motor selection?
The shaft height identifies the motor frame size and affects mechanical compatibility, coupling selection, and integration into the machine structure.
Q10: What should be confirmed before purchasing this servo motor?
Verify the complete part number, machine requirements, compatible drive system, feedback option, installation conditions, and application environment.
