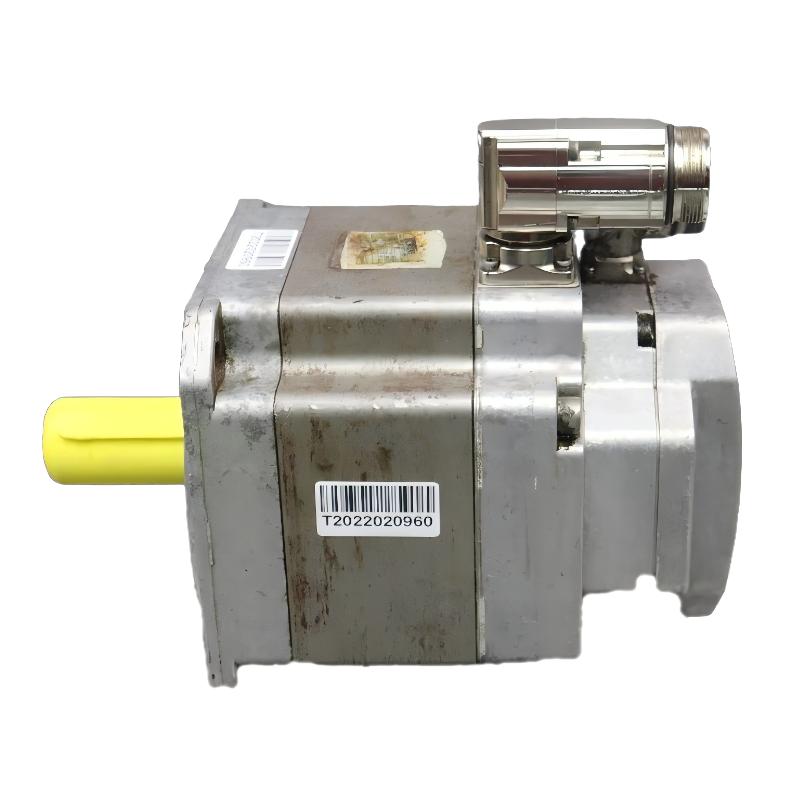

Siemens 1FK7101-5AF71-1AG0 Servo Motor

Applications

The Siemens 1FK7101-5AF71-1AG0 Servo Motor is part of the Siemens 1FK7 family of permanent-magnet synchronous servo motors, developed for industrial motion-control applications requiring accurate positioning, controlled speed, and repeatable movement. When paired with a compatible servo drive and automation controller, it can support coordinated motion in a range of industrial machines.

Typical application areas include:

• CNC Machine Tools: Supports controlled axis movement and repeatable positioning in automated machining operations.

• Packaging Machinery: Helps coordinate feeding, filling, sealing, and product-handling movements when correctly sized for the application.

• Automated Assembly Equipment: Supports controlled motion in assembly stations and production machinery.

• Material Handling Systems: Can be integrated into suitable servo-driven handling mechanisms and automated equipment.

• Printing and Converting Machinery: Supports synchronized movement in applications requiring coordinated machine axes.

• General Industrial Automation: Provides servo motion for machines that require controlled acceleration, speed regulation, and positioning.

Application suitability depends on the motor's verified torque and speed ratings, electrical characteristics, feedback interface, mechanical configuration, and drive compatibility.

Key Advantages

1. Accurate Positioning

The Siemens 1FK7 servo motor family is designed for motion-control tasks requiring repeatable positioning. When paired with an appropriately configured drive and controller, the motor can support precise movement in automated machinery.

2. Responsive Motion Performance

Servo systems can respond to changing speed and position commands, making them useful for applications with frequent acceleration, deceleration, and positioning cycles. Overall performance depends on motor sizing, drive tuning, and machine mechanics.

3. Integration with Industrial Automation

The motor can be incorporated into compatible servo-drive and control architectures. For Siemens-based installations, confirm the appropriate drive configuration and motor data before commissioning.

4. Broad Application Potential

Servo motors are widely used in packaging, machine tools, assembly equipment, and material handling systems. The 1FK7 family offers options for different motion-control requirements, subject to individual model specifications.

5. Clear Identification for Replacement

The complete ordering code helps distinguish motor configurations during maintenance and procurement. Matching the full code is important because similar-looking motors may differ in winding, feedback, connection, or mechanical details.

6. Defined Mechanical Reference

The specified 100 mm shaft height provides an initial reference for equipment integration. A complete fit assessment must also consider shaft dimensions, mounting geometry, connectors, and available installation space.

Technical FAQs

Q1: What is the Siemens 1FK7101-5AF71-1AG0 Servo Motor?

It is a Siemens 1FK7-series servo motor intended for suitable industrial motion-control applications. Exact operating characteristics should be confirmed from the complete model code and product nameplate.

Q2: What is the shaft height of this motor?

The supplied shaft height is 100 mm. Check the mounting arrangement and relevant mechanical dimensions before fitting the motor to existing equipment.

Q3: What is the weight of the Siemens 1FK7101-5AF71-1AG0?

The supplied weight is 21.003 kg, equivalent to approximately 46.30 lb.

Q4: Which servo drive is compatible with this motor?

The selected drive must support the motor's rated voltage, current, torque, speed, and feedback interface. Verify the exact combination before installation or commissioning.

Q5: Can this motor be used in a Siemens SINAMICS system?

Siemens 1FK7 motors are used in compatible Siemens motion-control configurations. Compatibility for this particular ordering code should be checked against the motor data and intended drive.

Q6: Is this motor suitable for CNC machinery?

It may be suitable for CNC applications if its rated performance matches the axis requirements. Important selection factors include torque, speed, acceleration, load inertia, and positioning performance.

Q7: What should be checked before replacing an existing servo motor?

Confirm the full model number, rated torque, rated speed, voltage, current, feedback system, shaft and mounting dimensions, connector arrangement, and brake requirements, if applicable.

Q8: Does this motor require a dedicated feedback cable?

The correct feedback cable depends on the motor's feedback interface and the connected drive. Verify the required cable and connector type for the exact configuration.

Q9: What factors influence servo motor reliability?

Operating temperature, mechanical loading, vibration, contamination, alignment, cable condition, and drive configuration can affect reliability. Proper installation and maintenance help support stable operation.

Q10: Can this model directly replace another Siemens 1FK7 servo motor?

Not necessarily. Motors in the same family can have different electrical ratings, feedback interfaces, connectors, and mechanical configurations. Confirm technical compatibility before selecting a replacement.
