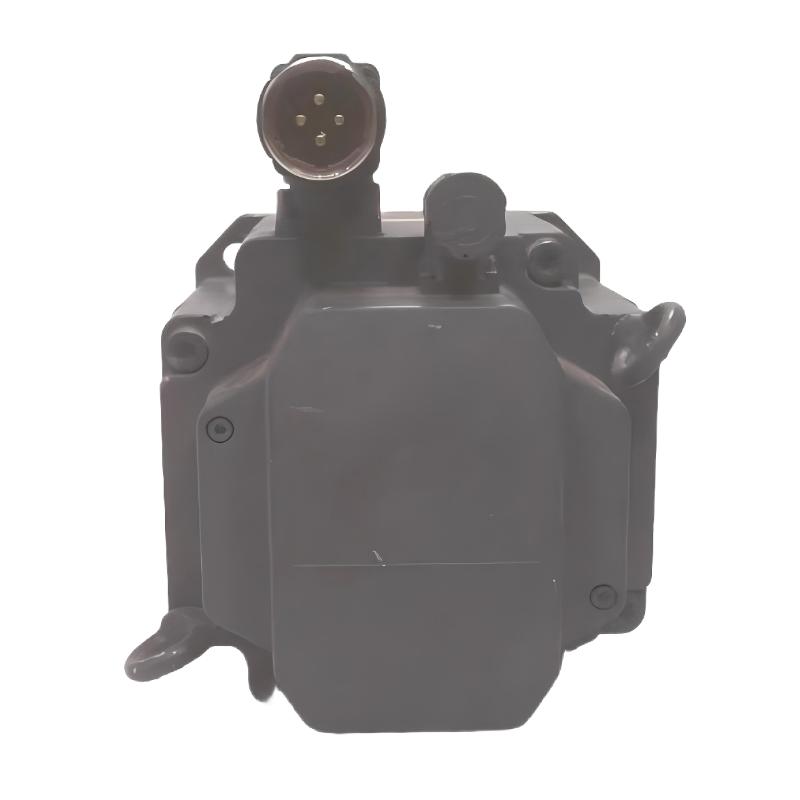

Siemens 1FK7101-5AF71-1AG3 Servo Motor

Applications

The Siemens 1FK7101-5AF71-1AG3 Servo Motor belongs to the Siemens 1FK7 servo motor family, designed for industrial motion-control applications requiring controlled rotation, repeatable positioning, and coordinated movement. When configured with a compatible servo drive and automation controller, it can be integrated into machinery that depends on accurate and consistent motion.

Typical application areas include:

• CNC Machine Tools: Supports controlled axis movement and repeatable positioning in automated machining equipment.

• Packaging Machinery: Helps coordinate product feeding, handling, and synchronized machine movements.

• Automated Assembly Systems: Supports controlled movement in assembly stations and production equipment.

• Material Handling Equipment: Can be used in compatible servo-driven mechanisms for moving and positioning components.

• Printing and Converting Machines: Supports coordinated movement in applications where machine axes must operate in synchronization.

• Industrial Manufacturing Lines: Integrates into suitable motion-control systems for repetitive and controlled production tasks.

The motor's suitability for a particular application depends on its verified torque and speed ratings, electrical characteristics, feedback interface, mechanical configuration, and drive compatibility.

Key Advantages

1. Precise Motion Control

The Siemens 1FK7 family is designed for applications requiring accurate positioning and repeatable movement. When paired with a properly configured drive, the motor can support controlled motion sequences in industrial machinery.

2. Responsive Operating Performance

Servo systems are designed to respond to speed and position commands. This makes them suitable for equipment involving frequent acceleration, deceleration, and changes in motion, subject to the capabilities of the complete system.

3. Industrial Automation Integration

The motor can be integrated into compatible automation architectures using an appropriate servo drive and controller. Siemens-based installations require verification of the motor-drive combination and configuration parameters.

4. Flexible Machine Applications

Servo motors are used in a broad range of automated machinery, including packaging systems, CNC equipment, assembly lines, and material handling applications. The correct selection depends on the requirements of the individual machine.

5. Reliable Model Identification

The complete ordering code helps distinguish the required motor configuration during procurement and maintenance. Even small differences in the suffix can indicate configuration differences that should be checked before ordering.

6. Practical Installation Planning

The specified 100 mm shaft height provides an initial mechanical reference for equipment integration. Installation planning should also account for mounting dimensions, shaft details, connectors, cable routing, and available space.

Technical FAQs

Q1: What is the Siemens 1FK7101-5AF71-1AG3 Servo Motor?

It is a Siemens 1FK7-series servo motor intended for suitable industrial motion-control applications. Confirm the exact technical characteristics using the complete ordering code and the motor's nameplate.

Q2: What is the shaft height of this motor?

The supplied shaft height is 100 mm. Confirm the machine's mounting arrangement and relevant mechanical dimensions before installation.

Q3: How much does the Siemens 1FK7101-5AF71-1AG3 weigh?

The supplied weight is 21.003 kg, equivalent to approximately 46.30 lb.

Q4: Which servo drive can operate this motor?

The drive must support the motor's rated voltage, current, torque, speed, and feedback interface. Verify compatibility for the exact motor code before installation and commissioning.

Q5: Can this motor be used with a Siemens SINAMICS drive?

Siemens 1FK7 motors are used in compatible Siemens motion-control systems. Confirm that the specific motor configuration is supported by the intended drive and its configuration.

Q6: Is this motor suitable for automated packaging equipment?

It may be suitable when its performance characteristics match the machine's requirements. Important factors include cycle frequency, load inertia, acceleration, positioning needs, and operating duty.

Q7: What should be checked before replacing an existing servo motor?

Check the full model number, rated torque and speed, voltage, current, feedback interface, shaft dimensions, mounting arrangement, connector configuration, and brake requirements if applicable.

Q8: Does this motor require a dedicated feedback cable?

The correct feedback cable depends on the motor's feedback system and the connected drive. Verify the required cable and connector specifications for the exact configuration.

Q9: What can affect servo motor service life?

Operating temperature, mechanical loading, vibration, contamination, alignment, cable condition, and drive tuning can influence reliability. Proper installation and maintenance help support consistent operation.

Q10: Can the 1FK7101-5AF71-1AG3 replace the 1FK7101-5AF71-1AG0?

Do not assume direct interchangeability based only on the similar model numbers. Compare the complete ordering codes and verify electrical, mechanical, feedback, and drive compatibility before selecting a replacement.
