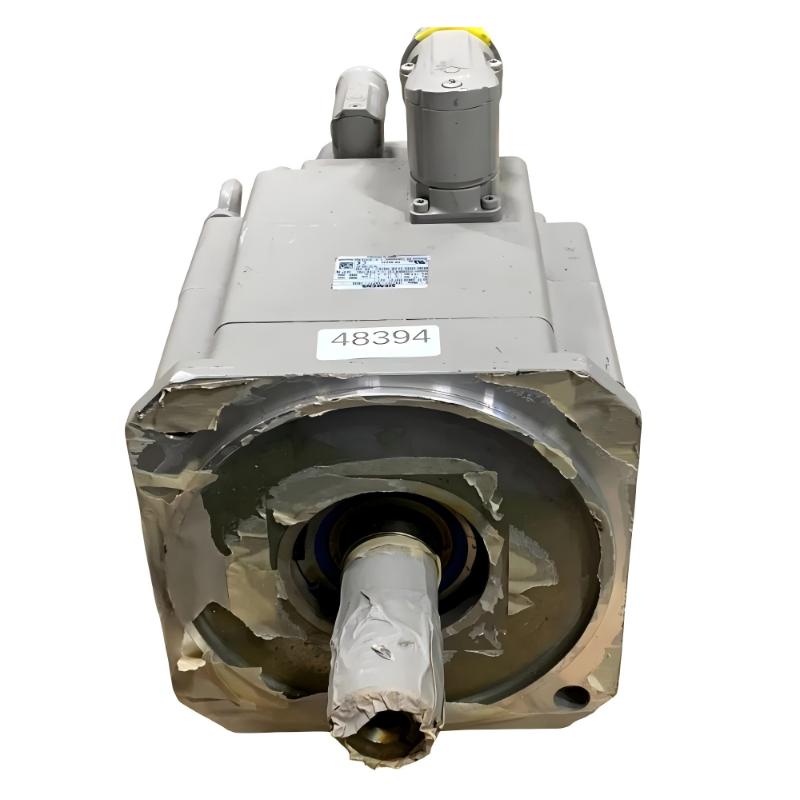

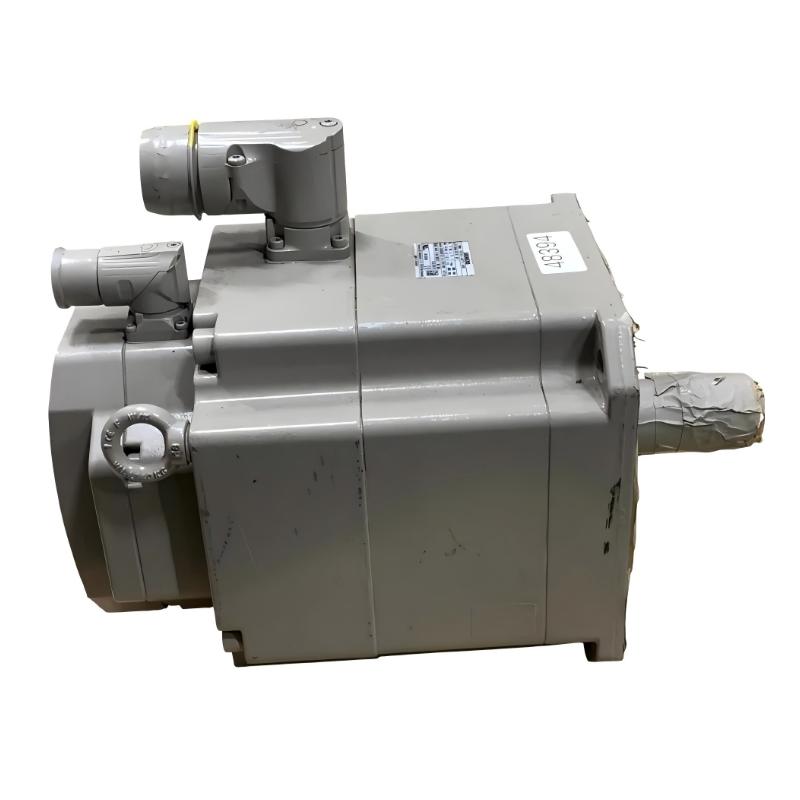

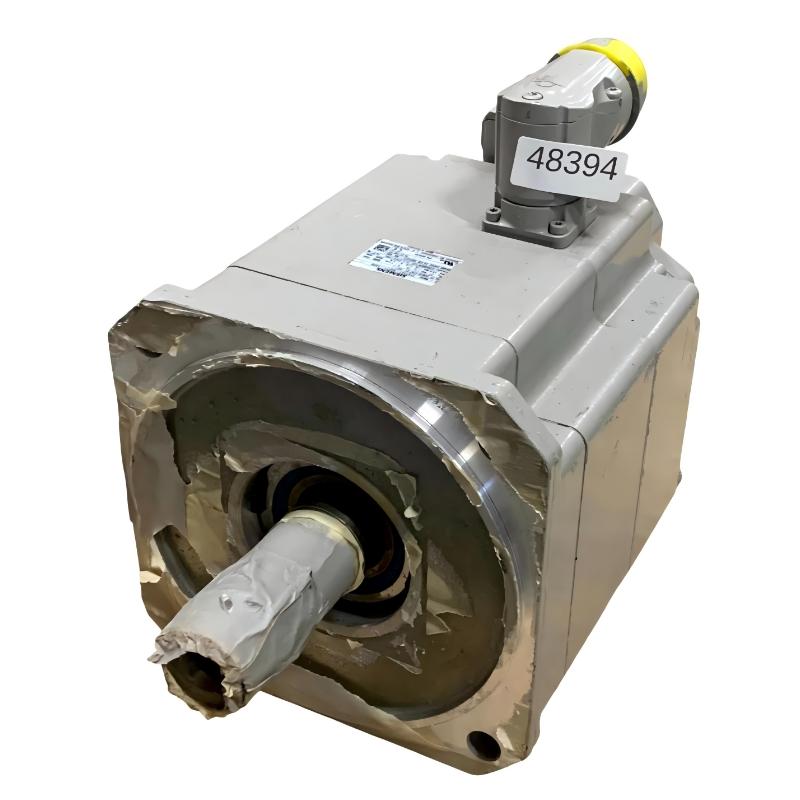

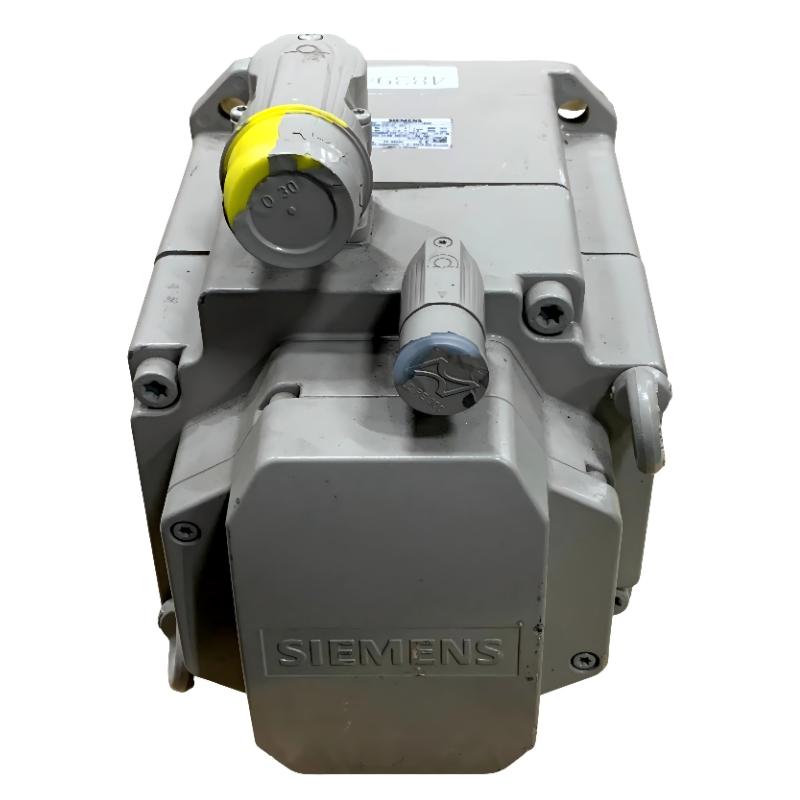

Siemens 1FK7101-5AF71-1AH0 Servo Motor

Applications

The Siemens 1FK7101-5AF71-1AH0 Servo Motor belongs to the Siemens 1FK7 family of servo motors used in industrial motion-control systems. When matched with a compatible drive and controller, it can support applications requiring controlled movement, repeatable positioning, and coordinated machine operation.

Typical application areas include:

• CNC Machine Tools: Supports controlled axis movement and positioning in automated machining equipment.

• Packaging Machinery: Helps coordinate feeding, handling, and synchronized movements throughout production cycles.

• Automated Assembly Equipment: Provides servo-driven movement for assembly stations and manufacturing systems.

• Material Handling Systems: Can be integrated into compatible mechanisms for controlled movement and positioning.

• Printing and Converting Machinery: Supports coordinated motion in equipment requiring synchronized machine axes.

• Industrial Production Lines: Serves as a motion-control component in suitable automated manufacturing equipment.

The motor's suitability depends on the application's torque, speed, acceleration, positioning, and duty-cycle requirements, as well as compatibility with the selected drive.

Key Advantages

1. Accurate Motion Control

The Siemens 1FK7 servo motor family is designed for industrial applications that require controlled and repeatable movement. With a compatible drive and properly configured control system, it can support precise motion sequences.

2. Responsive Servo Operation

Servo systems respond to position and speed commands, making them useful in machinery that frequently accelerates, decelerates, or changes position. Performance depends on system sizing, tuning, and mechanical loading.

3. Integration with Automation Equipment

The motor can be incorporated into compatible industrial automation architectures. For Siemens installations, the drive configuration and motor-specific parameters should be verified before commissioning.

4. Versatile Industrial Use

Servo motors are used in machine tools, packaging systems, material handling equipment, and automated production machinery. The correct model selection depends on the requirements of the specific application.

5. Accurate Ordering-Code Identification

The complete model number helps distinguish a motor's configuration during procurement and maintenance. This is particularly important when comparing similar models within the same product family.

6. Defined Mechanical Reference

The supplied 100 mm shaft height provides a useful starting point for equipment-fit assessment. Mounting dimensions, shaft geometry, connector layout, and installation clearances must also be checked.

Technical FAQs

Q1: What is the Siemens 1FK7101-5AF71-1AH0 Servo Motor?

It is a Siemens 1FK7-series servo motor intended for suitable industrial motion-control applications. Its exact ratings and configuration should be verified using the full ordering code and motor nameplate.

Q2: What is the shaft height of this servo motor?

The supplied shaft height is 100 mm. Check the machine's mounting requirements and relevant mechanical dimensions before installation.

Q3: What is the weight of the Siemens 1FK7101-5AF71-1AH0?

The supplied weight is 24.002 kg, equivalent to approximately 52.92 lb.

Q4: Which servo drive is compatible with this motor?

The drive must support the motor's rated voltage, current, torque, speed, and feedback interface. Confirm compatibility for the exact motor configuration before commissioning.

Q5: Can this motor be used in a Siemens SINAMICS system?

Siemens 1FK7 motors are used in compatible Siemens motion-control configurations. Verify the precise motor-drive combination against the relevant technical data.

Q6: Is this motor suitable for CNC machinery?

It may be suitable for CNC applications when its performance matches the axis requirements. Consider rated torque, speed range, acceleration, load inertia, and positioning needs.

Q7: What should be checked before replacing an existing servo motor?

Verify the complete ordering code, rated torque and speed, voltage, current, feedback system, shaft and mounting dimensions, connector configuration, and brake requirements if applicable.

Q8: Does this servo motor require a dedicated feedback cable?

The required feedback cable depends on the motor's feedback interface and connected drive. Confirm the correct cable and connector specifications for the specific configuration.

Q9: What factors affect servo motor reliability?

Operating temperature, mechanical loading, vibration, contamination, alignment, cable condition, and drive configuration can influence reliability. Correct installation and routine maintenance help support stable operation.

Q10: Can this motor replace another Siemens 1FK7 motor?

Not automatically. Models in the same family may differ in electrical ratings, feedback technology, connectors, shaft details, and other configuration parameters. Verify compatibility before ordering a replacement.
