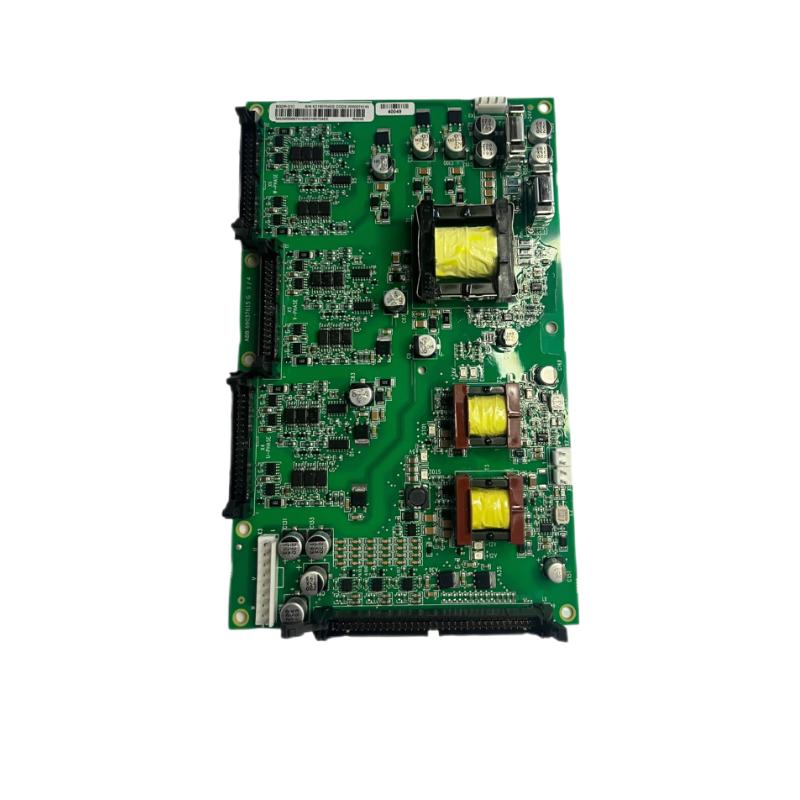

ABB BGDR-01C – Advanced General Application Digital Relay Module for Efficient Control

Applications

The ABB BGDR-01C Digital Relay Module is ideal for a wide range of industrial and commercial applications where reliable relay control is essential:

• Manufacturing Automation: Provides control for machinery, conveyors, actuators, and alarms in automated production lines, ensuring smooth operation with minimal downtime.

• Process Control Systems: Used in industries such as chemicals, pharmaceuticals, and food processing, the BGDR-01C helps control pumps, valves, and other critical devices that require digital relay activation.

• Energy Management: Controls energy-saving devices like lights, HVAC systems, and motors, optimizing energy consumption in industrial facilities and commercial buildings.

• Building Automation: Powers lighting systems, HVAC units, and security systems in commercial and industrial buildings, ensuring efficient control of building operations.

• Material Handling: Controls relays for automated sorting, conveyors, and lifts in warehouses, distribution centers, and logistics operations.

• Infrastructure Projects: Ensures reliable control of relay outputs for large-scale infrastructure systems such as transportation, utilities, and public facilities.

Advantages

• High Performance: The BGDR-01C is equipped with 6 relay channels (Form C, SPDT), capable of controlling a variety of devices, including motors, lights, and alarms, with high reliability.

• Compact Design: With dimensions of 125 mm x 75 mm x 60 mm, the BGDR-01C is compact and can be easily integrated into control panels without occupying excessive space.

• Advanced Protection Features: The module includes built-in overcurrent, overvoltage, and short-circuit protection, ensuring both the module and connected devices are safeguarded against electrical faults.

• Wide Temperature Range: Operating within a temperature range of -10°C to 60°C (14°F to 140°F), the BGDR-01C performs reliably even in harsh industrial environments.

• Relay Contact Rating: The 5A, 250V AC relay contact rating ensures compatibility with a wide range of industrial control devices, offering versatility for various applications.

• Effortless Integration: The BGDR-01C integrates seamlessly with other ABB control systems such as PLCs and power supplies, enabling scalable automation solutions.

• Global Compliance: The BGDR-01C is certified with UL, CE, CSA, and RoHS, ensuring compliance with international safety, performance, and environmental standards.

• Cost-Effective Solution: The BGDR-01C provides a reliable relay control solution at an affordable price point, making it a cost-effective choice for industrial applications that require digital relay control.

• Low Maintenance: With its durable design and reliable performance, the BGDR-01C requires minimal maintenance, reducing the need for costly repairs and downtime.

Technical FAQs

1. What is the relay contact rating of the ABB BGDR-01C?

   • The BGDR-01C offers a 250V AC, 5A relay contact rating, allowing it to control a wide range of industrial devices such as motors, lights, and alarms.

2. How many relay channels are available in the BGDR-01C?

   • The BGDR-01C provides 6 relay channels (Form C, SPDT), ideal for controlling multiple devices simultaneously.

3. What is the operating voltage for the BGDR-01C?

   • The BGDR-01C operates with a 24V DC input voltage, which is common in many industrial control systems.

4. Can the BGDR-01C be used for outdoor installations?

   • The BGDR-01C is designed for indoor use with an IP20 protection rating. For outdoor installations, it should be housed in a suitable enclosure to prevent damage from environmental factors.

5. What is the temperature range for the BGDR-01C?

   • The BGDR-01C operates effectively within a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for most industrial environments.

6. What is the mounting style of the BGDR-01C?

   • The BGDR-01C is designed for DIN rail mounting, making it easy to install in industrial control panels.

7. What certifications does the BGDR-01C have?

   • The BGDR-01C is certified with UL, CE, CSA, and RoHS, ensuring it meets international standards for safety and environmental compliance.

8. How much does the BGDR-01C weigh?

   • The BGDR-01C weighs approximately 0.35 kg (0.77 lbs), making it lightweight and easy to handle during installation.

9. Can the BGDR-01C control motors or high-power devices?

   • Yes, the BGDR-01C can control motors, lights, alarms, and other high-power devices with its 250V AC, 5A relay contact rating.

10. What is the protection rating of the BGDR-01C?

• The BGDR-01C has an IP20 protection rating, offering basic protection from dust and debris, suitable for indoor applications.
