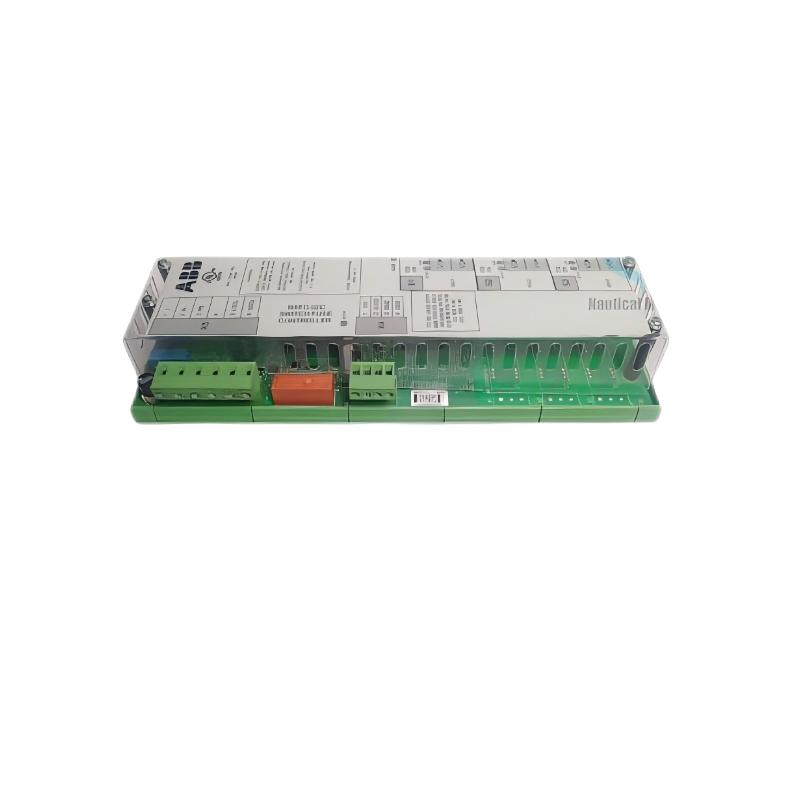

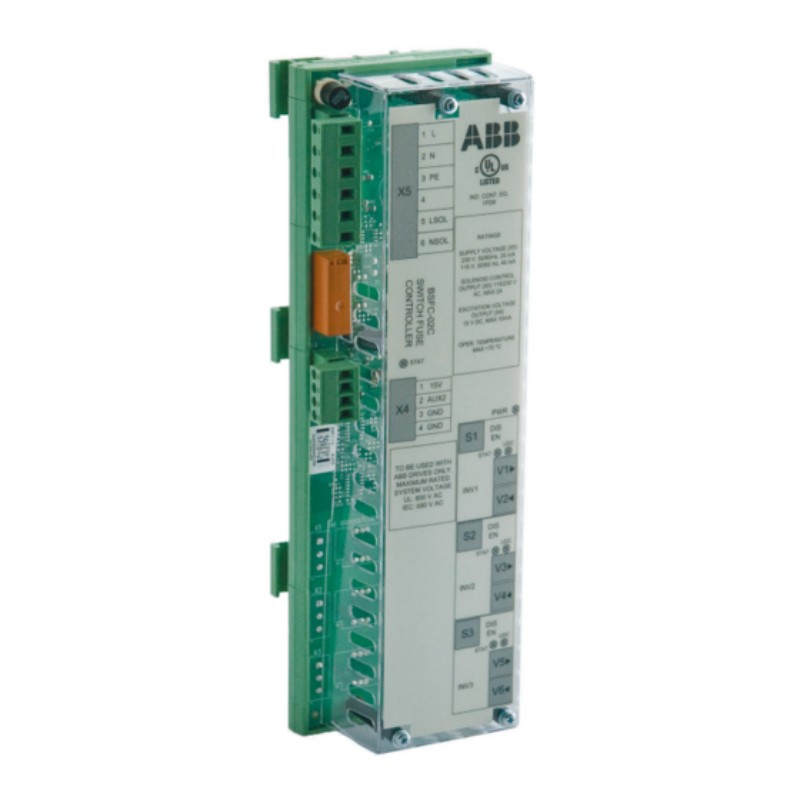

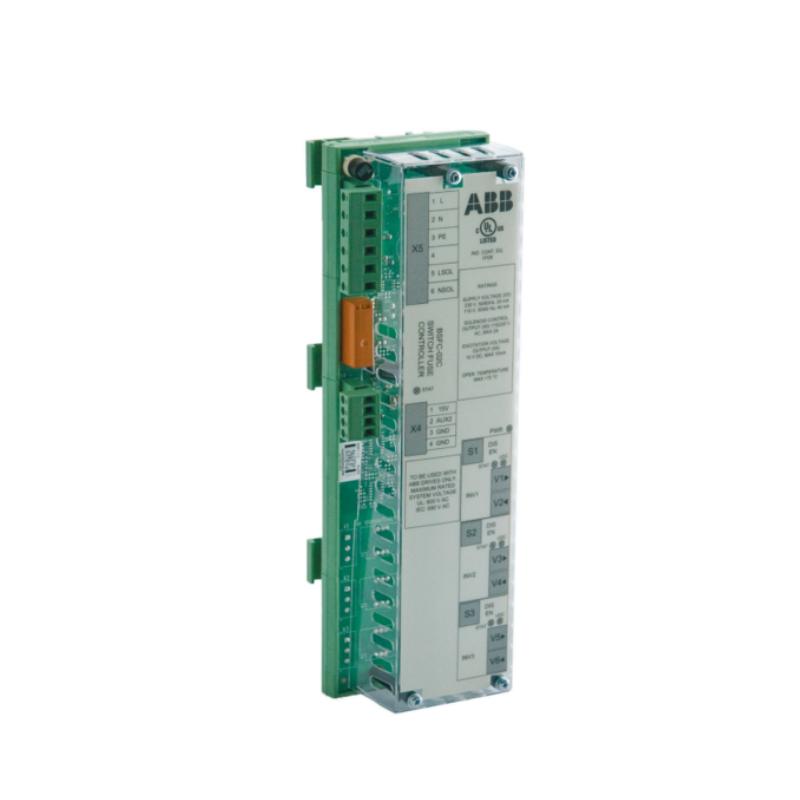

ABB BSFC-02C – Advanced Synchronous Motor Control Module for Efficient Power Management

Applications

The ABB BSFC-02C Synchronous Motor Control Module is engineered for applications where high precision and efficiency in motor control are essential:

• Manufacturing Automation: Controls synchronous motors driving conveyors, automated machines, and other motor-dependent processes in production lines.

• Process Control Systems: Used in chemical, pharmaceutical, and food processing industries to ensure precise motor control for pumps, mixers, and other critical equipment.

• Energy Management: Powers and controls synchronous motors in energy-intensive applications, optimizing energy consumption and enhancing system efficiency.

• Pumping Stations: In water and wastewater treatment plants, the BSFC-02C helps control pump motors for consistent operation and energy savings.

• HVAC Systems: Controls synchronous motors for heating, ventilation, and air conditioning systems, optimizing energy use and performance.

• Material Handling Systems: Ideal for managing motors in automated material handling systems, such as in warehouses, sorters, and distribution centers.

Advantages

• Precision Control: The BSFC-02C provides precise control of synchronous motors, ensuring high torque efficiency and accurate motor speed management.

• Energy Efficiency: By controlling synchronous motors with optimal precision, the module helps reduce energy consumption, making it ideal for power-hungry applications.

• Compact and Robust Design: With a compact size of 160 mm x 90 mm x 250 mm, the module is easy to integrate into control panels, offering high reliability and durability in industrial environments.

• Wide Voltage Compatibility: The BSFC-02C supports input voltages between 380V to 480V AC, making it adaptable for a range of industrial motor control systems.

• High Rated Current: With a 10A rated current, it is capable of controlling motors in demanding applications requiring high performance and reliability.

• Advanced Protection Features: Features such as overcurrent protection, overvoltage protection, and short-circuit protection ensure the safety of both the module and connected motors.

• Effortless Integration: The BSFC-02C integrates easily with other ABB automation products, making it an ideal choice for users looking for a scalable and flexible motor control solution.

• Global Certifications: Certified with UL, CE, CSA, and RoHS, the module complies with international standards for safety and environmental protection.

• Durable for Harsh Environments: Designed for operation in -10°C to 50°C temperatures, it performs reliably in demanding industrial environments.

Technical FAQs

1. What type of motor is the ABB BSFC-02C designed to control?

   • The BSFC-02C is specifically designed for synchronous motor control, providing precise and efficient management of synchronous motors.

2. What is the input voltage range for the BSFC-02C?

   • The BSFC-02C supports an input voltage of 380V to 480V AC, making it suitable for a variety of industrial motor control applications.

3. What is the rated current for the BSFC-02C?

   • The BSFC-02C has a rated current of 10A, making it ideal for applications where moderate to high power is required.

4. Can the BSFC-02C control both synchronous and asynchronous motors?

   • While the BSFC-02C is optimized for synchronous motor control, it can also work in systems where asynchronous motors are present, though its primary function is for synchronous motors.

5. What is the protection rating of the BSFC-02C?

   • The BSFC-02C has an IP20 protection rating, offering basic protection against dust and debris, making it suitable for indoor industrial environments.

6. What is the temperature range for the BSFC-02C?

   • The module operates within a temperature range of -10°C to 50°C (14°F to 122°F), ensuring reliable performance in most industrial conditions.

7. How is the BSFC-02C mounted?

   • The BSFC-02C is designed for DIN rail mounting, making installation in control panels quick and easy.

8. What certifications does the BSFC-02C have?

   • The BSFC-02C is certified with UL, CE, CSA, and RoHS, meeting international safety and environmental standards.

9. How much does the BSFC-02C weigh?

   • The BSFC-02C weighs approximately 1.5 kg (3.31 lbs), offering a solid and reliable design for industrial applications.

10. Can the BSFC-02C be used in energy-saving applications?

• Yes, the BSFC-02C is designed to optimize energy consumption in applications requiring synchronous motor control, such as HVAC systems, pumps, and other motor-driven systems.
