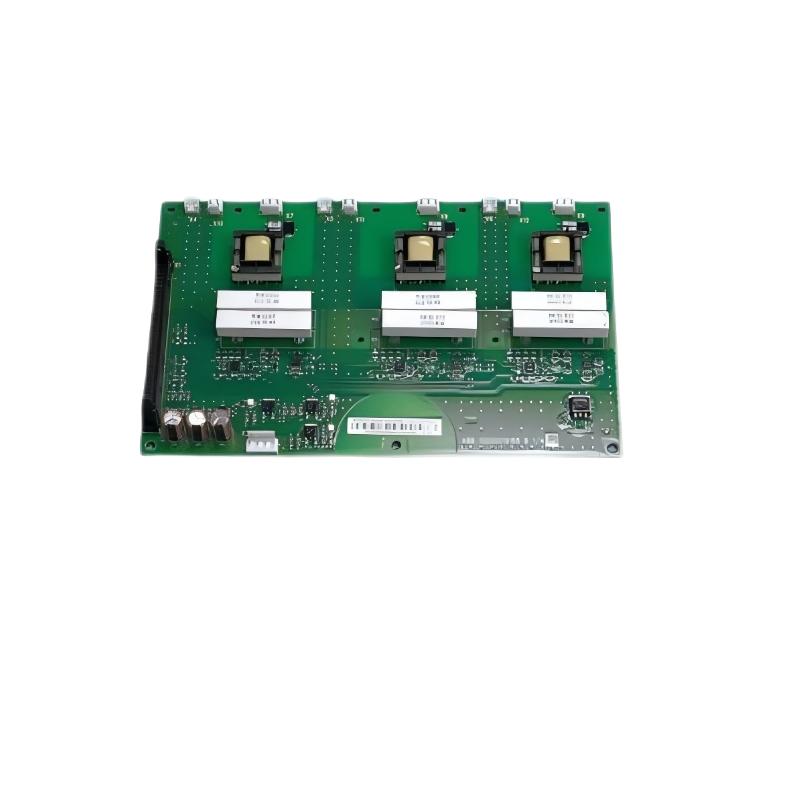

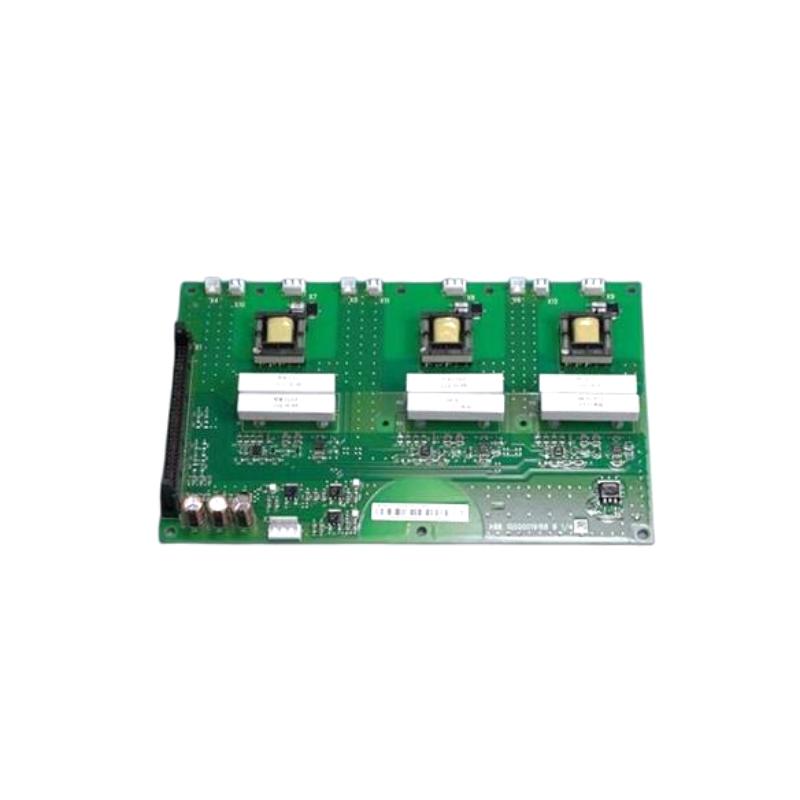

ABB BTDR-01C – Digital Relay Input/Output Module for Advanced Control and Automation

Applications

The ABB BTDR-01C Digital Relay Input/Output Module is ideal for applications requiring digital signal monitoring and relay control:

• Manufacturing Automation: Controls actuators, switches, and sensors on production lines, facilitating automated processes such as assembly, inspection, and packaging.

• Process Control Systems: Used in industries such as chemical, pharmaceutical, and food processing to control valves, pumps, mixers, and other process-critical devices.

• Building Automation: Powers and controls systems like lighting, HVAC, and security in commercial and industrial buildings.

• Material Handling Systems: Monitors inputs and controls outputs for automated systems like conveyor belts, sorters, and robotic arms in warehouses and distribution centers.

• Energy Management Systems: Integrates with energy meters and controls energy-saving devices, optimizing power usage across industrial facilities.

• Alarms and Safety Systems: Provides input from safety devices (e.g., emergency stop buttons, sensors) and controls outputs for alarms and safety mechanisms.

Advantages

• Dual Input/Output Capabilities: The BTDR-01C combines both digital input and digital output functionalities, enabling seamless switching and monitoring within a single module.

• Relay Contact Rating: With a 250V AC, 5A relay output rating, the BTDR-01C is capable of controlling high-power devices such as motors, lights, and alarms.

• Compact and Reliable Design: The module’s 125 mm x 75 mm x 60 mm size allows for easy integration into control panels without occupying excessive space, while its durable construction ensures long-lasting performance.

• Wide Temperature Range: It operates effectively within a temperature range of -10°C to 60°C (14°F to 140°F), ensuring reliable performance in a variety of industrial environments.

• Flexible Input Types: Supports dry contact, NPN, and PNP sensors, allowing integration with a wide range of field devices.

• Advanced Protection Features: Features such as overcurrent, overvoltage, and short-circuit protection ensure that the module and connected devices are protected from electrical faults.

• Effortless Integration: The BTDR-01C integrates easily with other ABB automation products, such as PLCs and power supplies, offering a scalable solution for expanding control systems.

• Global Certifications: Certified with UL, CE, RoHS, and CSA, ensuring that it meets international safety, performance, and environmental standards.

• Cost-Effective Solution: The BTDR-01C offers a reliable and versatile control solution at an affordable price point, making it an excellent choice for a wide range of industrial applications.

Technical FAQs

1. What is the input configuration of the ABB BTDR-01C?

   • The BTDR-01C provides 6 digital inputs supporting dry contact, NPN, and PNP types, ideal for receiving signals from sensors and switches.

2. How many relay outputs does the BTDR-01C have?

   • The module features 6 digital outputs, which are SPDT (Form C) relay outputs, capable of controlling high-power devices.

3. What is the relay output rating for the BTDR-01C?

   • The BTDR-01C's relay outputs are rated for 250V AC, 5A, making it suitable for controlling various industrial equipment like motors and alarms.

4. What is the operating voltage for the BTDR-01C?

   • The BTDR-01C operates with a 24V DC input, which is standard for many industrial automation systems.

5. Can the BTDR-01C be used outdoors?

   • The BTDR-01C is designed for indoor use and has an IP20 protection rating. For outdoor installations, it should be housed in a protective enclosure.

6. What is the temperature range for the BTDR-01C?

   • The BTDR-01C operates within a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for use in most industrial environments.

7. How is the BTDR-01C mounted?

   • The BTDR-01C is designed for DIN rail mounting, which simplifies installation in industrial control panels.

8. What certifications does the BTDR-01C have?

   • The BTDR-01C is certified with UL, CE, RoHS, and CSA, ensuring compliance with international safety and environmental standards.

9. What is the weight of the BTDR-01C?

   • The BTDR-01C weighs approximately 0.35 kg (0.77 lbs), making it lightweight and easy to install.

10. What type of protection does the BTDR-01C offer?

• The BTDR-01C includes protection features like overcurrent, overvoltage, and short-circuit protection, ensuring both the module and connected devices are safeguarded from electrical faults.
