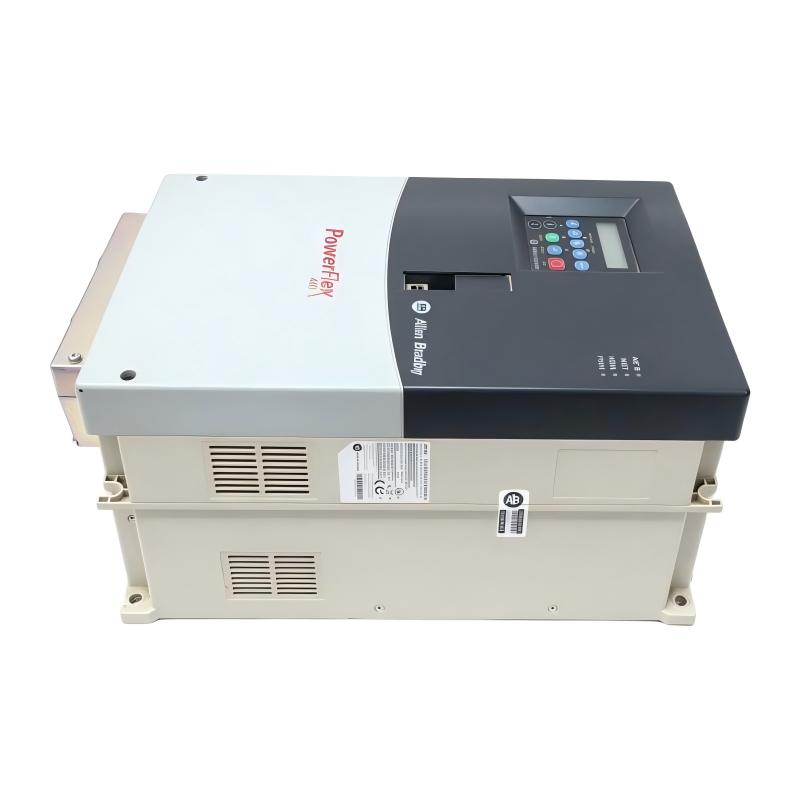

Allen Bradley 22C-B090A103 PowerFlex 400 AC Drive

Applications in Industrial Motor Control

The Allen Bradley 22C-B090A103 PowerFlex 400 AC Drive is an industrial variable-frequency drive designed for applications requiring controlled AC motor operation. The PowerFlex 400 family is associated primarily with fan and pump systems, including HVAC equipment, ventilation installations, and fluid-handling applications.

By adjusting the frequency supplied to a compatible AC motor, a variable-frequency drive allows motor speed to respond to changing operating requirements. In suitable applications, this can improve process flexibility and help reduce energy consumption when full-speed operation is unnecessary.

Typical application areas include:

• HVAC and air-handling equipment: Adjusting fan speed to match ventilation and airflow demand.

• Industrial ventilation systems: Controlling exhaust and supply fans in manufacturing facilities.

• Water and fluid circulation: Regulating compatible pump motors used for fluid transfer and circulation.

• Building services: Supporting motor-driven equipment in commercial and industrial facilities.

• Industrial maintenance: Providing a potential replacement option for existing PowerFlex installations after verifying electrical and mechanical compatibility.

Before selecting this drive, confirm the complete catalog number, input supply requirements, motor nameplate data, rated output current, and required control functions.

Key Advantages of the PowerFlex 400 AC Drive

Variable-Speed Motor Operation

The PowerFlex 400 family supports adjustable-speed operation for compatible AC motor applications. This allows suitable fan and pump systems to respond to changing process requirements instead of operating continuously at a fixed speed.

Potential Energy Savings

In appropriate fan and pump applications, reducing motor speed can lower power consumption. Actual savings depend on the system design, operating schedule, load profile, and control strategy.

Suitable for Utility and Building Systems

The PowerFlex 400 range is associated with HVAC, ventilation, and fluid-handling applications. It is therefore relevant to industrial facilities and commercial buildings that require controlled motor operation.

Automation System Integration

Depending on the exact configuration, the drive may support integration with external control equipment through available control terminals or supported communication interfaces. Confirm the relevant features before designing the control system.

Support for Maintenance and Replacement

The complete catalog number helps purchasing teams and maintenance engineers identify the required drive variant. Comparing the nameplate and technical documentation before ordering can reduce the risk of an incorrect replacement.

Reliable Performance Through Proper Configuration

Correct sizing, wiring, grounding, ventilation, and parameter settings are essential for reliable operation. Matching the drive to the motor and application helps prevent avoidable commissioning problems.

Technical FAQs

1. What is the Allen Bradley 22C-B090A103 PowerFlex 400?

It is identified as an Allen-Bradley PowerFlex 400 AC drive. The PowerFlex 400 family is intended primarily for variable-speed fan and pump applications.

2. What does an AC drive do?

An AC drive controls the frequency and voltage supplied to a compatible AC motor, allowing the motor's operating speed to be adjusted according to application requirements.

3. Can this drive be used in HVAC systems?

The PowerFlex 400 family is associated with HVAC-related fan and pump applications. Confirm the exact drive ratings and configuration against the requirements of the intended installation.

4. How do I determine whether the drive matches my motor?

Compare the motor's rated voltage, current, power, frequency, and operating requirements with the drive specifications. Consider overload requirements and environmental derating where applicable.

5. Can the drive communicate with a PLC?

Integration depends on the control interfaces and communication options supported by the specific drive configuration. Consult the applicable documentation to confirm wiring, supported protocols, and setup requirements.

6. What can cause an overcurrent fault?

Potential causes include excessive mechanical load, rapid acceleration, motor or cable faults, incorrect motor parameters, or an unsuitable drive-to-motor combination. Check the fault code and investigate the underlying cause before restarting.

7. Why might the motor fail to start?

Possible causes include missing input power, an active fault, an incorrect run command, control wiring problems, parameter settings, or external interlocks. Check the drive status and control configuration systematically.

8. How can unstable motor speed be investigated?

Inspect the speed reference, control signals, motor data, wiring, load conditions, and drive parameters. If an external controller provides the speed command, verify the reference signal and control logic.

9. Can the 22C-B090A103 replace another PowerFlex drive?

Not automatically. Verify the full catalog number, supply voltage, output-current rating, motor compatibility, enclosure, mounting requirements, and control configuration before selecting a replacement.

10. What safety precautions are necessary when servicing the drive?

Isolate all power sources and follow the site's lockout/tagout procedures. Observe the manufacturer's DC-bus discharge instructions and verify that hazardous voltage has dissipated before touching electrical terminals or internal components.
