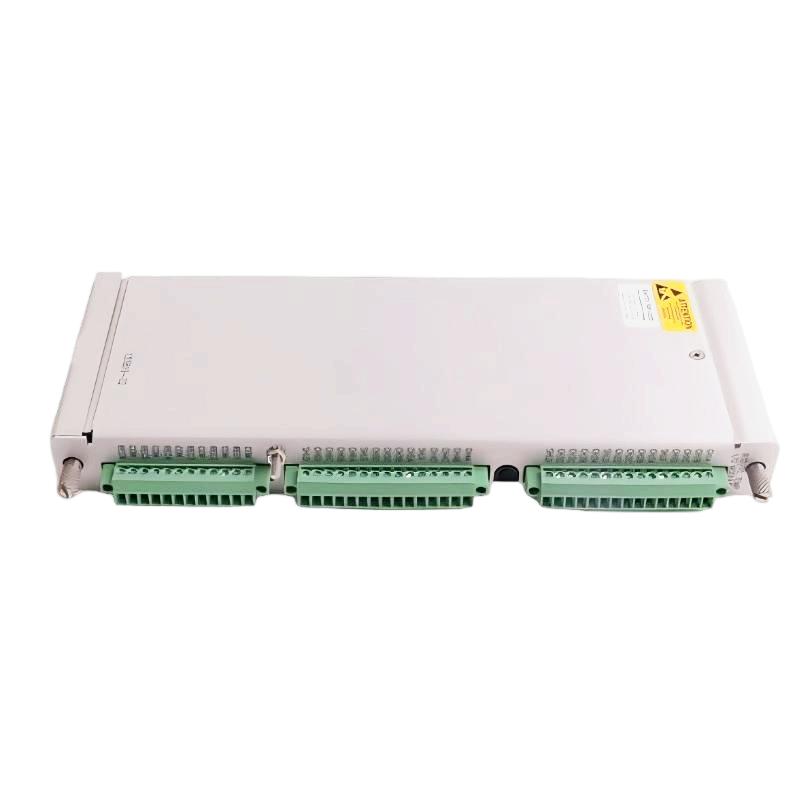

Bently Nevada 3500/61 133835-02 TC isolated I/O Module Internal Terminals

Applications

The Bently Nevada 3500/61 133835-02 TC Isolated I/O Module is designed to interface thermocouple temperature signals with the 3500 machinery protection and condition monitoring system. It is commonly used for accurate temperature acquisition from bearings, casings, and other critical machinery components. This module is ideal for temperature monitoring in turbines, compressors, generators, and auxiliary equipment across power generation, oil & gas, petrochemical, and heavy industrial applications.

Advantages

• Isolated Thermocouple Inputs: Ensures accurate temperature measurement with reduced electrical interference

• Internal Terminal Design: Clean, compact wiring suitable for high-density installations

• Stable Signal Integrity: Maintains reliable temperature data under harsh industrial conditions

• Seamless 3500 System Compatibility: Fully integrates with Bently Nevada 3500 monitors

• Industrial-Proven Reliability: Engineered for continuous operation in mission-critical environments

Technical FAQs

1. What is the primary function of the 133835-02 module?
   It provides isolated thermocouple signal interfacing for temperature monitoring.

2. Which temperature sensors does it support?
   Thermocouple sensors used in industrial machinery applications.

3. Why is input isolation important?
   It protects signal accuracy by minimizing noise and ground loop interference.

4. Is this module suitable for continuous operation?
   Yes, it is designed for reliable 24/7 industrial use.

5. What is the benefit of internal terminals?
   Improved wiring organization and reduced space requirements within the rack.

6. Which systems is it compatible with?
   Bently Nevada 3500 Series machinery protection systems.

7. Can it be used in high-vibration environments?
   Yes, it is engineered for stability in demanding machinery applications.

8. Does it support critical temperature protection functions?
   Yes, it provides accurate data for alarms and protective actions.

9. Where is the module installed?
   Inside a Bently Nevada 3500 system rack alongside temperature monitors.

10. Is replacement or maintenance straightforward?
    Yes, the modular design allows quick replacement with minimal downtime.
