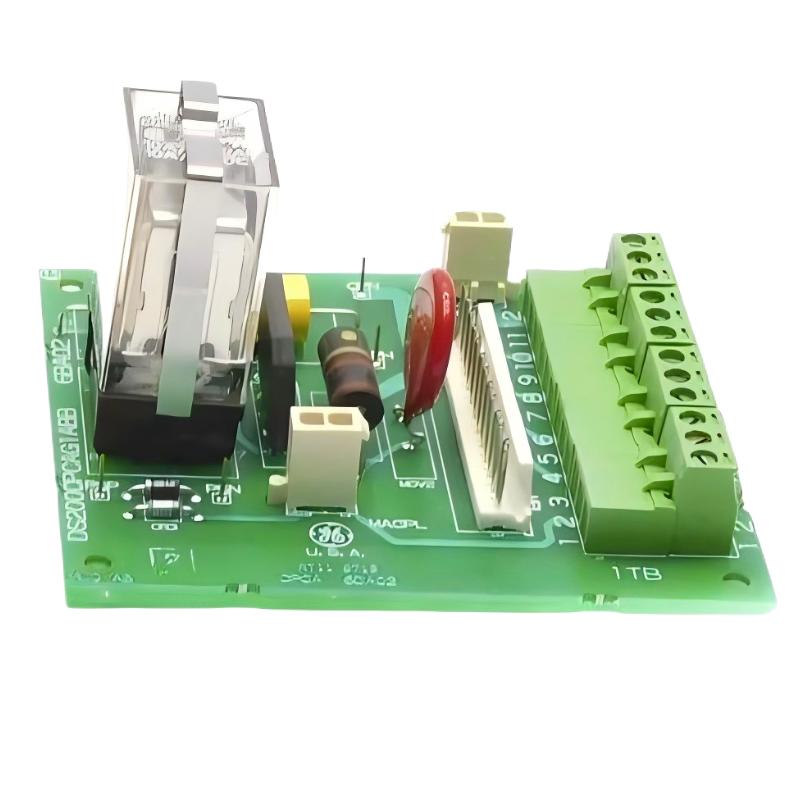

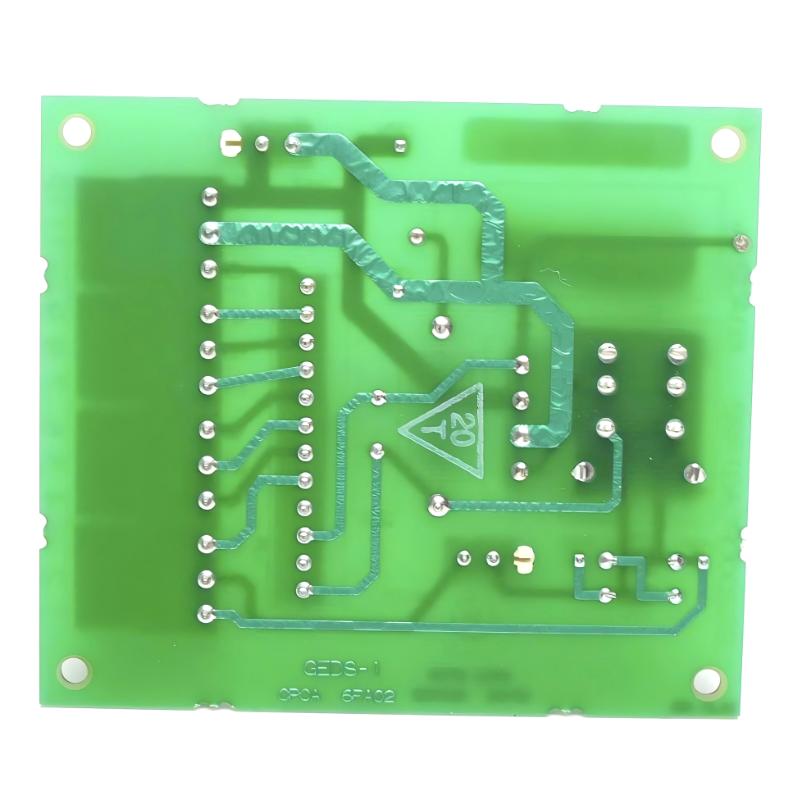

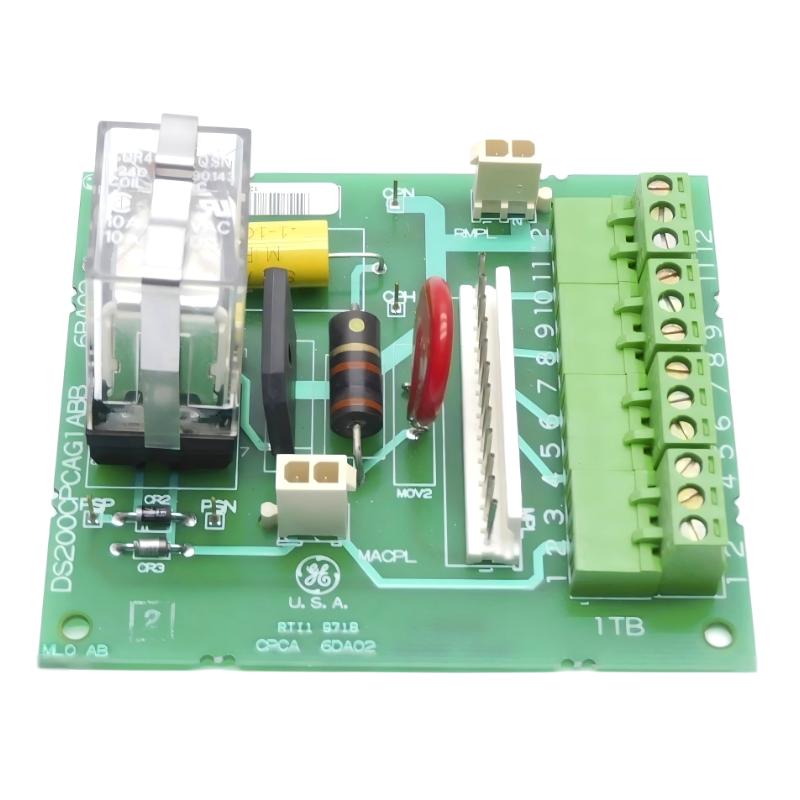

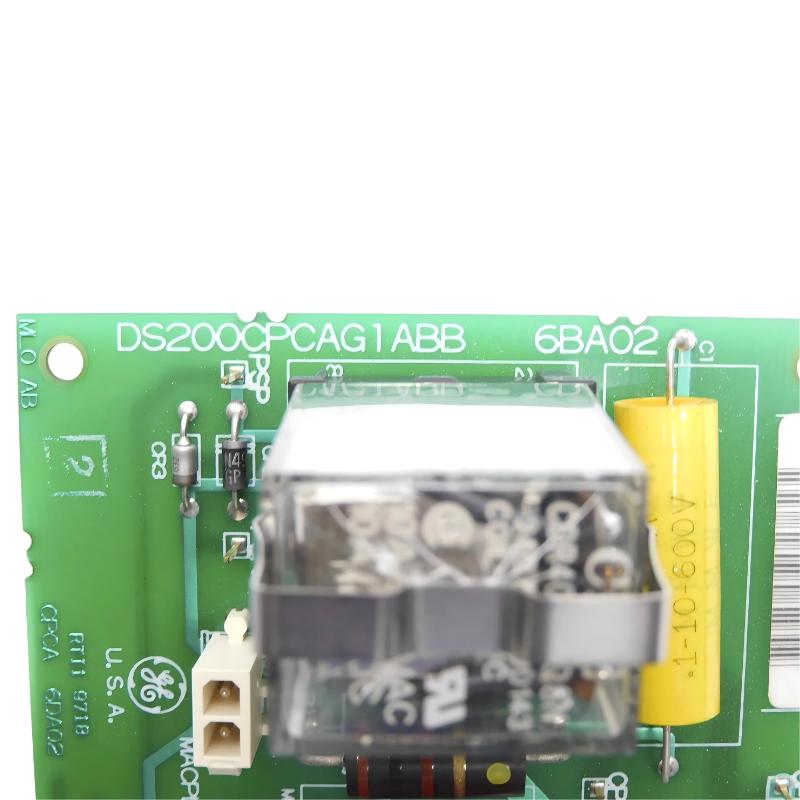

The GE DS200CPCAG1ABB is a Contactor Pilot Board used within the GE Mark V Speedtronic turbine control system. It is designed to manage and regulate high-voltage contactor switching circuits, ensuring safe and coordinated operation between the turbine control logic and external power switching devices.
This module plays a crucial role in enabling reliable energization and de-energization of contactors, making it an essential component in turbine start/stop sequencing, protection logic, and auxiliary system control. Its robust design is optimized for high-reliability industrial environments where electrical switching precision is critical.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200CPCAG1ABB |
| Series | Mark V Speedtronic |
| Product Type | Contactor Pilot Board |
| Functional Acronym | CPCA |
| Function | Contactor control & pilot switching interface |
| Relay Type | 24VDC 15A socket power relay (turn0search11) |
| Input Voltage | 115 VAC / 125 VDC conversion capability (turn0search11) |
| Output Voltage | ~105 VDC for contactor actuation (turn0search11) |
| Connectors | 1 × 12-pin, 2 × 2-pin connectors (turn0search11) |
| Terminal Blocks | 4 blocks supporting up to 12 signal wires (turn0search11) |
| Voltage Regulation | Rectifiers, capacitors, diodes for stabilization (turn0search11) |
| PCB Coating | Industrial-grade protective coating |
| Operating Temperature | -40°C to +70°C (turn0search3) |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 152 × 127 × 76 mm (turn0search3) |
| Weight | approx. 0.35 – 0.45 kg (turn0search11) |
| Mounting Type | Rack-mounted PCB module |
Its compact but high-power design ensures reliable switching performance while maintaining electrical safety and isolation.
Recommended Related Models
- GE DS200TCRAG1ACC Relay Output Board
- GE DS200TCDAH1BGD Digital I/O Board
- GE DS200TCPSG1AME Power Supply Module
- GE DS200DTBCG1AAA Output Termination Module
- GE DS200TCCBG1BED Analog Processor Board
These modules work together to form a complete control, power, and switching ecosystem within GE Mark V turbine systems.
