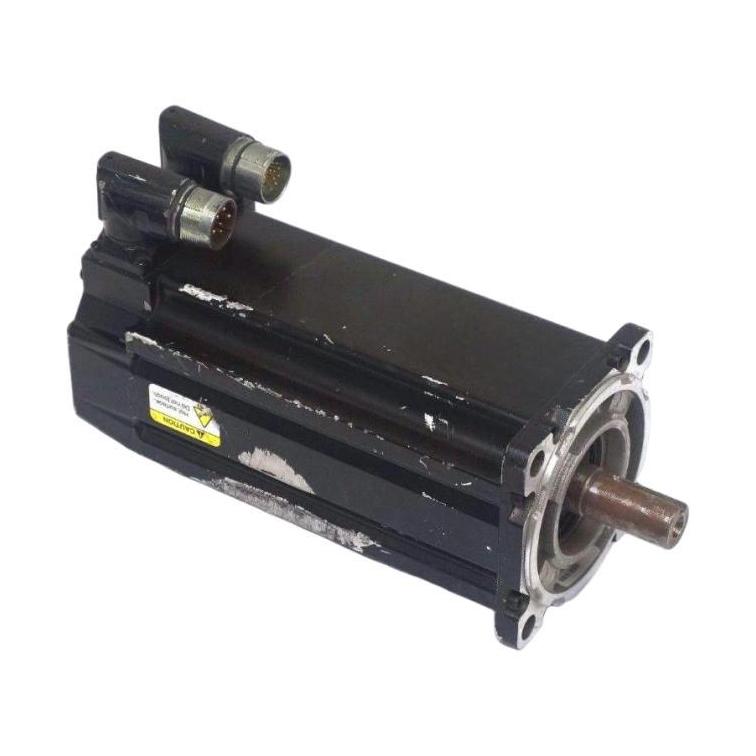

Allen Bradley MPL-B680H-SJ74AA Servo Motor

Applications

The Allen Bradley MPL-B680H-SJ74AA Servo Motor is designed for industrial motion control applications that require accurate positioning, controlled acceleration, and consistent dynamic response. As part of the Allen-Bradley Kinetix motion control ecosystem, the MPL servo motor family is used in automated machinery where coordinated movement and repeatable operation are essential.

Typical application areas include:

• Packaging Machinery: Supports controlled movement in filling, sealing, labeling, and automated packaging equipment.

• Material Handling Systems: Suitable for motion axes used in automated transfer systems, positioning equipment, and industrial handling applications.

• Industrial Automation: Can be applied to compatible servo-driven machinery requiring precise control of rotational movement.

• Assembly and Production Lines: Supports repeatable positioning and synchronized motion in automated manufacturing processes.

• Machine Tool Applications: May be used for controlled mechanical movement where the motor's torque, speed, and feedback characteristics meet the machine requirements.

• Equipment Maintenance and Replacement: Provides a model-specific sourcing option for compatible machinery using the corresponding Allen-Bradley servo motor configuration.

The final application depends on the motor's electrical ratings, feedback configuration, mechanical interface, and compatibility with the selected servo drive.

Advantages

Precision Motion Control

The MPL servo motor family is designed for applications requiring controlled movement and accurate positioning. When paired with a compatible drive and properly configured feedback system, it supports repeatable motion performance.

Dynamic Response for Automated Machinery

Servo motors are well suited to machines that repeatedly accelerate, decelerate, stop, and change position. Correctly matched motor and drive combinations help maintain predictable response during changing operating conditions.

Integration with Allen-Bradley Motion Systems

The MPL family is associated with Allen-Bradley Kinetix motion control systems. Using a compatible motor and drive combination can simplify integration into supported automation architectures.

Support for Demanding Production Cycles

Automated production equipment often requires frequent starts, stops, and changes in speed. Properly selected servo motors provide controlled motion for applications with demanding cycle requirements.

Feedback-Based Control

Depending on the exact motor configuration, feedback devices can provide information required for position and speed control. The installed feedback type must be confirmed before selecting the corresponding servo drive.

Practical Replacement Identification

The complete model number, MPL-B680H-SJ74AA, helps maintenance teams identify the intended motor configuration. Verifying the full catalog number is particularly important when replacing a motor in an established machine.

Technical FAQs

Q1: What is the main function of the Allen Bradley MPL-B680H-SJ74AA?

A: It is an industrial servo motor intended for controlled motion applications. When used with a compatible servo drive, it converts electrical power into regulated mechanical movement.

Q2: Which servo drive should be used with this motor?

A: The drive must match the motor's electrical ratings, feedback interface, power requirements, and supported motor configuration. Consult the applicable Allen-Bradley motor and drive selection documentation before choosing a replacement or new drive.

Q3: Does the motor require an encoder or feedback device?

A: Servo systems commonly use feedback to regulate position, speed, or other motion variables. The feedback device and interface fitted to this specific model should be verified from its complete catalog information.

Q4: Can this motor operate directly from a standard AC power supply?

A: It should not be treated as a direct-on-line AC motor. A compatible servo drive is normally required to control motor current, speed, and position according to the motion system design.

Q5: What factors determine the motor's torque requirements?

A: Torque requirements depend on the driven load, inertia, acceleration, friction, transmission ratio, and duty cycle. Engineers should evaluate continuous and peak torque requirements rather than selecting a motor based on frame size alone.

Q6: Why is motor and drive compatibility important?

A: An incompatible drive may not support the motor's electrical characteristics or feedback interface. Incorrect matching can prevent commissioning, cause faults, or compromise motion performance.

Q7: What can cause servo motor following errors?

A: Possible causes include excessive mechanical load, incorrect tuning, feedback problems, loose couplings, transmission issues, or unsuitable acceleration settings. Diagnosis should include both the drive fault information and the mechanical system.

Q8: Can this servo motor be used in a position-controlled application?

A: Yes, servo motors are commonly used for position control when paired with a suitable drive and controller. The achievable performance depends on the complete motion system, feedback configuration, mechanical transmission, and tuning.

Q9: What should be checked before replacing the motor?

A: Verify the full catalog number, electrical ratings, shaft and mounting arrangement, connector configuration, feedback type, brake requirements where applicable, and drive compatibility. The replacement should also meet the machine's torque and speed requirements.

Q10: What maintenance practices help support reliable operation?

A: Recommended practices include inspecting connectors and cables, checking mounting hardware and couplings, monitoring drive alarms, and examining unusual noise, vibration, or temperature changes. Follow the manufacturer's service instructions and isolate hazardous energy before maintenance.
