Brand:Allen Bradley PLC Item No.:5094-AENTR Product Origin:USA Product Dimensions:96.5 x 92.7 x 94 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

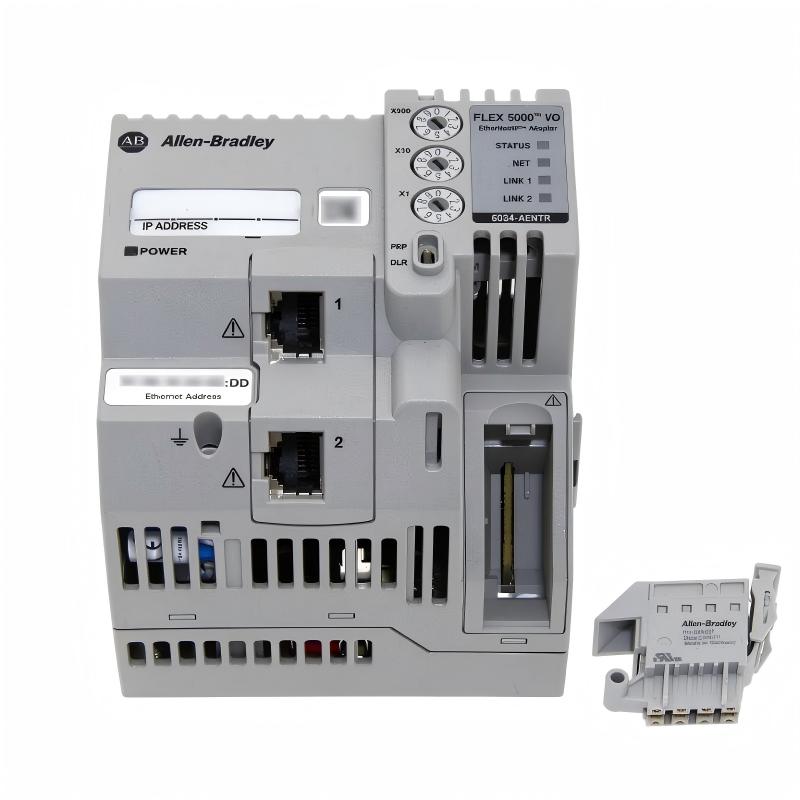

The Allen-Bradley 5094-AENTR Flex 5000 EtherNet/IP Adapter is an important component in distributed industrial automation systems built around the Flex 5000 I/O platform. It provides the communication interface that allows compatible I/O modules to exchange data with a controller over an EtherNet/IP network.
Distributed I/O architectures can reduce the need to route every field signal back to a central control cabinet. By placing compatible I/O near equipment or process areas, system designers can organize field wiring and integrate remote devices into a coordinated control architecture.
The 5094-AENTR is suitable for applications requiring networked I/O connectivity in manufacturing, machine automation, and process control. When purchasing this adapter for maintenance or system expansion, verify the exact catalog number, supported I/O modules, controller compatibility, firmware requirements, and network configuration.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
5094-AENTR
Product Series
Flex 5000
Product Type
EtherNet/IP Adapter
Communication Network
EtherNet/IP
Function
Flex 5000 I/O network interface
Dimensions
96.5 × 92.7 × 94 mm
Weight
0.4 kg / 0.88 lb
Application
Distributed industrial I/O and automation networking
System Compatibility
Compatible Flex 5000 I/O and supported Logix controller configurations
Recommended Related Models
The following Rockwell Automation products may be relevant when designing or maintaining a Flex 5000 control system. They serve different roles, so verify technical compatibility before selecting components.
Allen-Bradley 5094-IB16 — Flex 5000 Digital Input Module
Allen-Bradley 5094-OB16 — Flex 5000 Digital Output Module
Allen-Bradley 5094-IF8 — Flex 5000 Analog Input Module
Allen-Bradley 5094-OF8 — Flex 5000 Analog Output Module
Applications
The Allen-Bradley 5094-AENTR Flex 5000 EtherNet/IP Adapter is designed to connect Flex 5000 I/O modules to an EtherNet/IP industrial network. It serves as a communication interface between the distributed I/O system and a compatible Logix controller, supporting the exchange of input and output data in industrial automation applications.
Typical applications include:
Distributed I/O systems: Connect Flex 5000 I/O modules to compatible industrial control networks.
Factory automation: Support communication between controllers, field I/O, and automated machinery.
Process control: Integrate remote I/O points into distributed control architectures.
Machine automation: Enable network communication for sensors, actuators, and other field devices connected through compatible I/O modules.
Remote equipment monitoring: Transfer I/O data between distributed equipment and a controller.
Industrial system expansion: Add compatible Flex 5000 I/O to an existing EtherNet/IP architecture.
Advantages
EtherNet/IP connectivity: Provides a network interface for compatible Flex 5000 distributed I/O systems.
Distributed I/O integration: Supports communication between remote I/O modules and compatible Logix controllers.
Industrial network compatibility: Designed for integration into supported EtherNet/IP automation architectures.
Flexible system design: Helps distribute I/O closer to machines and field devices, depending on the application.
Centralized controller communication: Enables input and output data exchange with a compatible controller over the industrial network.
Modular architecture: Supports I/O configurations built around the Flex 5000 platform.
Simplified system expansion: Can help integrate additional compatible I/O locations into an appropriately designed automation network.
Technical FAQs
Q1: What is the Allen-Bradley 5094-AENTR?
The 5094-AENTR is a Flex 5000 EtherNet/IP adapter that provides network communication for compatible Flex 5000 I/O modules.
Q2: What is the main function of an EtherNet/IP adapter?
An EtherNet/IP adapter connects an I/O system to an industrial Ethernet network, allowing a compatible controller to exchange input and output data with the connected modules.
Q3: Is the 5094-AENTR a PLC processor?
No. It is an I/O communication adapter rather than a standalone PLC processor. It works as part of a compatible control system.
Q4: Which controllers can communicate with the 5094-AENTR?
The adapter is intended for use with compatible Logix-based control architectures. Confirm controller compatibility, firmware requirements, and supported configuration in the applicable Rockwell Automation documentation.
Q5: Does the 5094-AENTR support EtherNet/IP communication?
Yes. EtherNet/IP is the industrial communication network associated with this adapter. The network design and controller configuration must support the intended application.
Q6: Can the adapter support remote I/O applications?
Yes. It is designed to connect Flex 5000 I/O modules to a controller over an EtherNet/IP network, making it suitable for compatible distributed I/O applications.
Q7: What should be checked when configuring the adapter?
Verify the controller and adapter firmware compatibility, network settings, I/O module arrangement, electronic keying settings, and project configuration in the applicable engineering software.
Q8: What could cause communication loss between the adapter and controller?
Possible causes include network cable faults, incorrect IP configuration, switch or network issues, power problems, firmware incompatibility, or an incorrect controller project configuration.
Q9: Can the 5094-AENTR replace another Flex 5000 adapter directly?
Not automatically. Confirm the catalog number, network interfaces, supported features, firmware, power requirements, and system configuration before choosing a replacement.
Q10: What should be considered when expanding a Flex 5000 I/O system?
Check the supported module combinations, adapter capacity, power requirements, network topology, controller resources, and configuration limits documented for the specific system.
