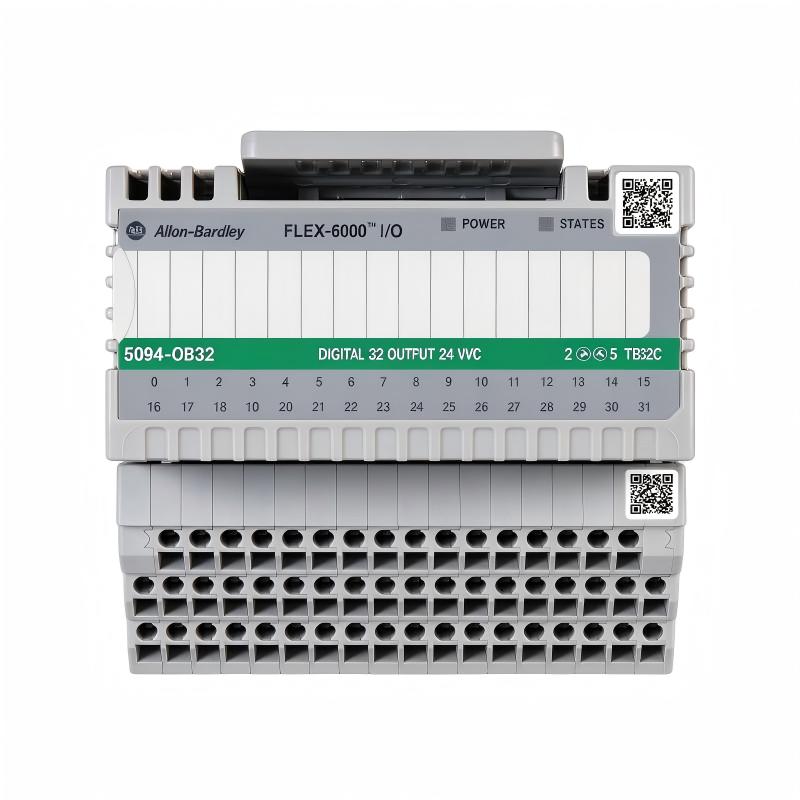

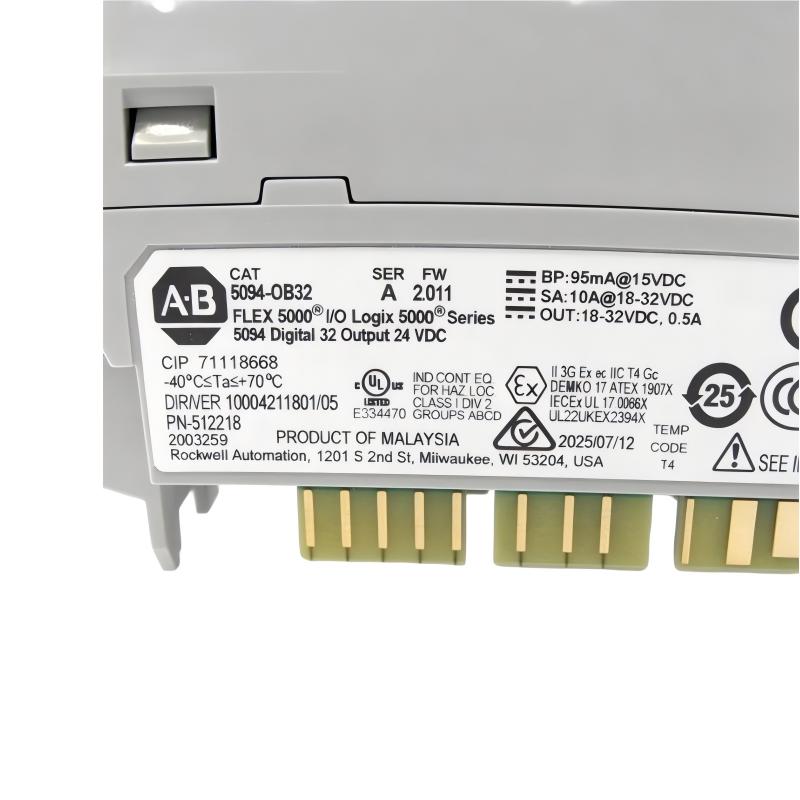

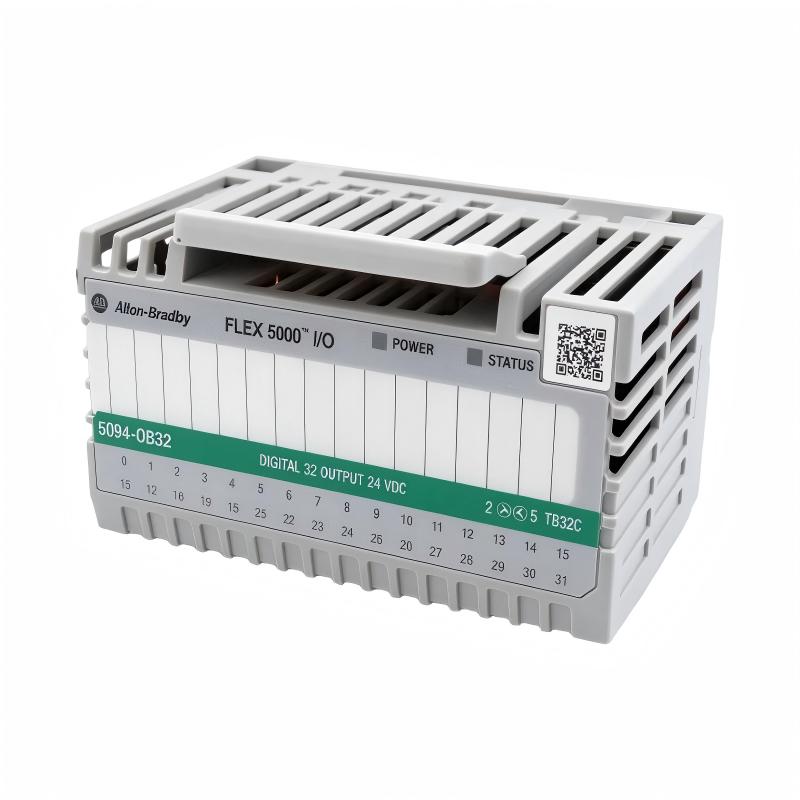

Allen-Bradley 5094-OB32 FLEX 5000 Digital Output Module
Allen-Bradley 5094-OB32 FLEX 5000 Digital Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:5094-OB32 Product Origin:USA Product Dimensions:94 x 54 x 87 mm Product Weight:0.249 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5094-OB32 FLEX 5000 Digital Output Module is intended for industrial applications that require controller-operated discrete outputs. Digital output modules serve as the interface between automation logic and field equipment, allowing programmed commands to operate compatible devices and coordinate production activities.
Within a compatible FLEX 5000 distributed I/O system, output modules can be incorporated into a networked control architecture managed by a supported Logix controller. This approach is useful for manufacturing equipment, machine automation, and process systems that require organized output control across multiple devices.
For system integrators, maintenance engineers, and industrial spare-parts buyers, the 5094-OB32 may be relevant when servicing or expanding an existing FLEX 5000 installation. Before purchasing or installing the module, confirm its electrical ratings, supported output loads, terminal requirements, and system compatibility using the manufacturer's documentation.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
5094-OB32
Product Series
FLEX 5000
Product Type
Digital Output Module
Function
Discrete output control
Dimensions
94 × 54 × 87 mm
Weight
0.249 kg / 0.55 lb
Application
Industrial automation and machine control
System Compatibility
Compatible FLEX 5000 I/O architecture; verify controller and adapter requirements
Recommended Related Models
The following Allen-Bradley products may be relevant when maintaining or expanding a FLEX 5000 automation system. They perform different functions and should not be considered direct substitutes without verifying their specifications.
Allen-Bradley 5094-OB16 — FLEX 5000 Digital Output Module
Allen-Bradley 5094-IB32 — FLEX 5000 Digital Input Module
Allen-Bradley 5094-IB16 — FLEX 5000 Digital Input Module
Allen-Bradley 5094-IF8 — FLEX 5000 Analog Input Module
Allen-Bradley 5094-OF8 — FLEX 5000 Analog Output Module
The Allen-Bradley 5094-OB32 FLEX 5000 Digital Output Module is designed to provide discrete output control in compatible industrial automation systems. It enables a controller to send output commands to supported field devices, helping coordinate machine operations, production sequences, and automated processes.
Typical applications include:
Factory automation: Control compatible actuators and other discrete output devices.
Machine control: Execute programmed switching commands for machine operations and equipment sequencing.
Production line automation: Coordinate output signals for manufacturing stations and automated machinery.
Material handling: Control compatible equipment in conveyor and material transfer systems.
Process automation: Support discrete control functions in industrial process installations.
FLEX 5000 integration: Designed for use within compatible Allen-Bradley FLEX 5000 I/O systems.
Digital output control: Provides discrete output functionality for supported industrial devices.
Distributed automation support: Enables output control through a compatible remote I/O architecture.
Modular system design: Supports flexible I/O arrangements in industrial control applications.
Controller-based operation: Allows output commands to be coordinated through compatible Logix controller logic.
Maintenance support: Provides a catalog-specific component for servicing existing FLEX 5000 installations.
System expansion: Can help increase available output capacity when supported by the overall I/O configuration.
Technical FAQs
Q1: What is the Allen-Bradley 5094-OB32?
The 5094-OB32 is identified as a FLEX 5000 Digital Output Module designed to provide discrete output control in compatible automation systems.
Q2: What is the function of a digital output module?
A digital output module receives commands from a controller and switches compatible output channels to control connected field devices.
Q3: What devices can be controlled by the 5094-OB32?
Depending on the module's electrical ratings, digital outputs may be used with compatible indicators, interface relays, solenoid valves, and other discrete-control devices. Verify load compatibility before connecting equipment.
Q4: Is the 5094-OB32 compatible with FLEX 5000 systems?
It is identified as part of the FLEX 5000 product family. Confirm the required adapter, controller, firmware, and module configuration before installation.
Q5: Can the module be used in a Logix-based control system?
It can be considered for compatible Logix-based architectures. Check the controller model, engineering software version, and supported I/O configuration.
Q6: How is the 5094-OB32 configured?
Configuration is typically performed through supported Rockwell Automation engineering software. The correct catalog number and applicable module settings must be selected in the controller project.
Q7: What could cause an output channel not to operate?
Potential causes include incorrect configuration, wiring faults, an unsuitable field supply, an overloaded output, a damaged load, or a module fault. Review the module diagnostics and installation documentation.
Q8: Can the module directly drive every type of industrial load?
No. Output voltage, current capacity, load type, and switching characteristics must match the module's specifications. Additional interface hardware may be required for some applications.
Q9: What should be checked before replacing the 5094-OB32?
Verify the exact catalog number, output electrical characteristics, terminal arrangement, firmware support, controller compatibility, and configuration requirements.
Q10: What should be considered when expanding a FLEX 5000 output system?
Check adapter capacity, supported module combinations, available power, network configuration, output load requirements, and controller resources before adding modules.
