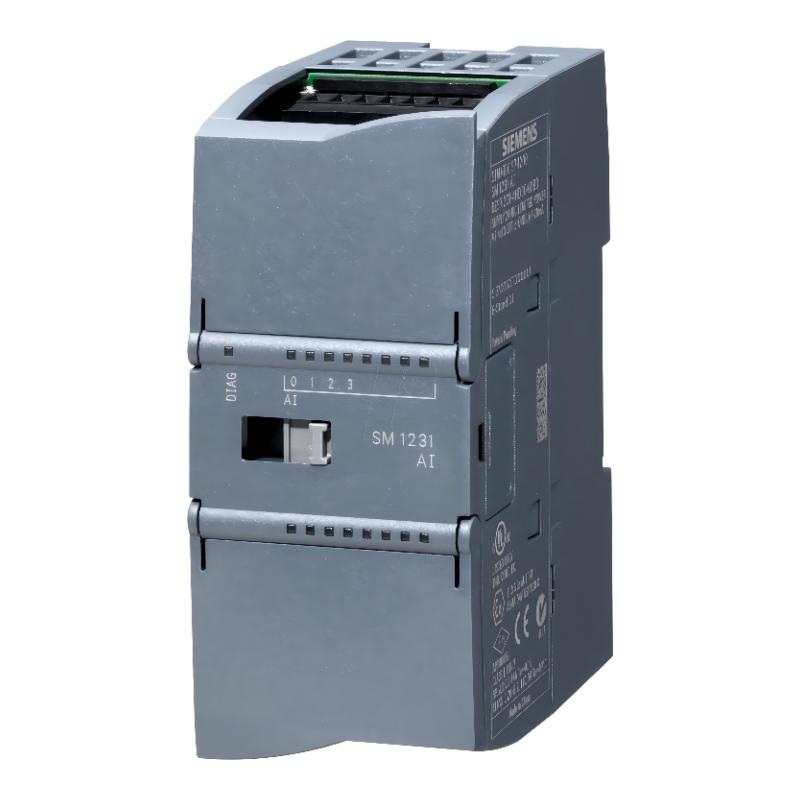

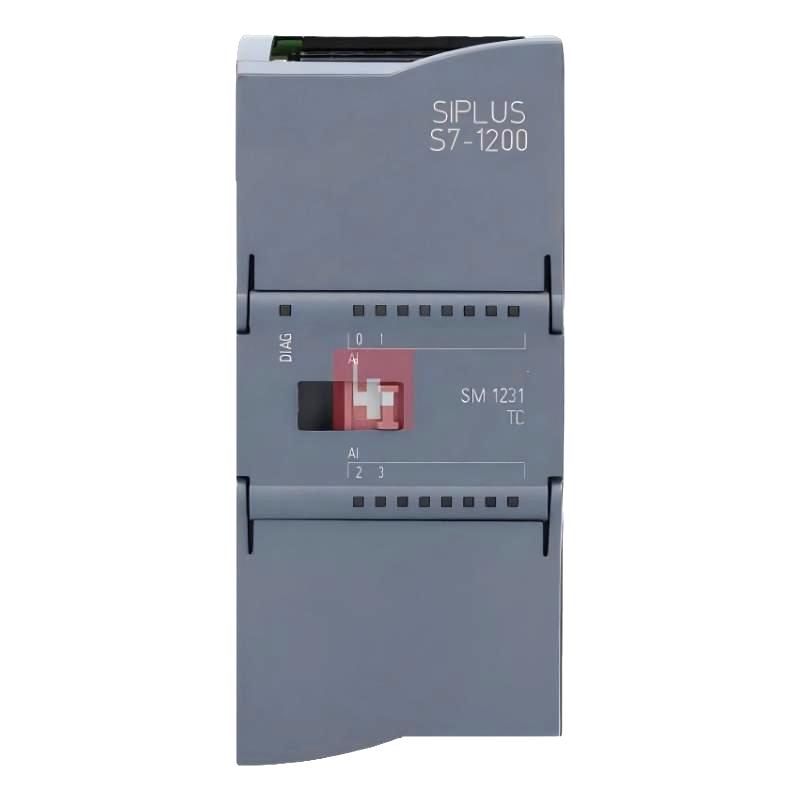

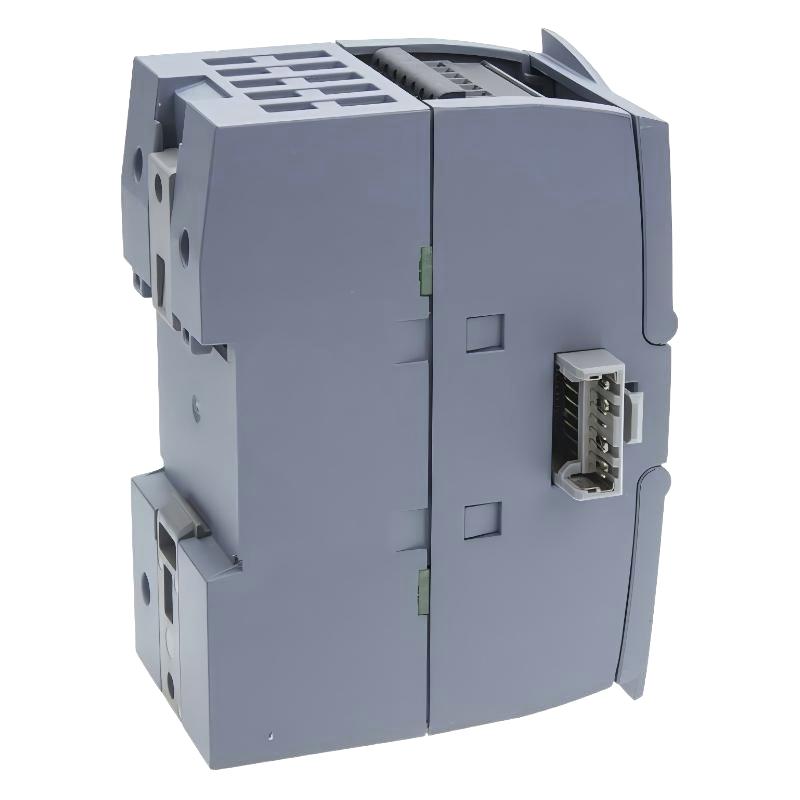

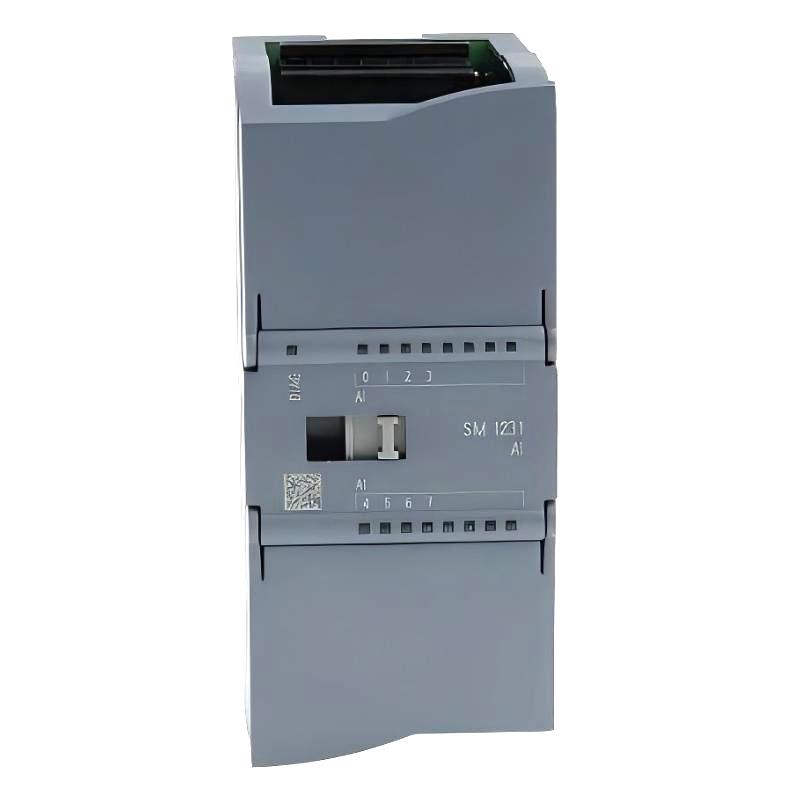

Siemens 6AG1231-5QD32-4XB0 Thermocouple Module

Applications

The Siemens 6AG1231-5QD32-4XB0 Thermocouple Module is intended for temperature measurement applications in industrial automation systems. Thermocouples generate a small electrical signal related to temperature differences, allowing compatible measurement hardware to collect temperature data for process monitoring and control.

Typical application areas include:

• Industrial Temperature Monitoring: Acquiring temperature signals from compatible thermocouple sensors.

• Process Automation: Monitoring temperature conditions in manufacturing and industrial processes.

• Machine Temperature Control: Providing temperature feedback for automated machinery and equipment.

• Furnace and Heating Systems: Supporting temperature measurement in suitable industrial heating applications.

• Manufacturing Lines: Helping monitor temperature-dependent production processes.

• Industrial Equipment Monitoring: Providing temperature information for operational supervision and process diagnostics.

Advantages

• Thermocouple Measurement: Intended for temperature sensing applications using compatible thermocouple types.

• Process Monitoring Support: Enables temperature data to be incorporated into suitable automation and monitoring systems.

• Automation Integration: Designed for use with compatible Siemens control hardware and system configurations.

• Compact Form Factor: Supports integration into suitable industrial equipment assemblies.

• Modular System Design: Can be incorporated into a configured automation system according to hardware requirements.

• Maintenance Flexibility: Provides a potential replacement option when the complete catalog number and compatibility are confirmed.

Technical FAQs

Q1: What is the Siemens 6AG1231-5QD32-4XB0?

The Siemens 6AG1231-5QD32-4XB0 is identified as a thermocouple module for industrial temperature measurement applications. Confirm the exact technical specifications and intended host system using Siemens product documentation.

Q2: What is the main function of a thermocouple module?

A thermocouple module interfaces with compatible thermocouple sensors and enables their temperature-related electrical signals to be acquired by an automation system.

Q3: How does a thermocouple measure temperature?

A thermocouple uses the voltage generated by two dissimilar conductors joined at a measuring junction. This voltage changes with the temperature difference between the measuring junction and the reference junction.

Q4: Which thermocouple types can be connected to this module?

Supported thermocouple types depend on the module's specifications. Verify the approved sensor types, measurement ranges, wiring requirements, and reference-junction compensation capabilities before installation.

Q5: Can the 6AG1231-5QD32-4XB0 be used with a Siemens PLC?

Compatibility depends on the intended SIMATIC platform, host hardware, firmware, and configuration. Confirm the supported hardware combination before integrating the module into a PLC system.

Q6: What is cold-junction compensation?

Cold-junction compensation accounts for the temperature at the thermocouple's reference connection so that the measured voltage can be interpreted correctly. The implementation depends on the measurement hardware.

Q7: What can cause inaccurate thermocouple readings?

Potential causes include incorrect thermocouple type selection, reversed polarity, unsuitable extension wires, loose connections, electrical interference, and incorrect configuration.

Q8: What should be checked if no temperature value is available?

Check sensor wiring, polarity, terminal connections, module installation, configuration settings, host-device compatibility, and available diagnostic information. Follow the manufacturer's troubleshooting instructions.

Q9: Can this module replace an RTD signal module?

Not necessarily. Thermocouples and RTDs use different measurement principles and electrical interfaces. Verify sensor compatibility, supported measurement types, hardware interfaces, and system configuration before selecting a replacement.

Q10: What should be verified before purchasing this module?

Confirm the full catalog number, product revision, supported thermocouple types, measurement range, host-system compatibility, wiring requirements, and any necessary accessories.
