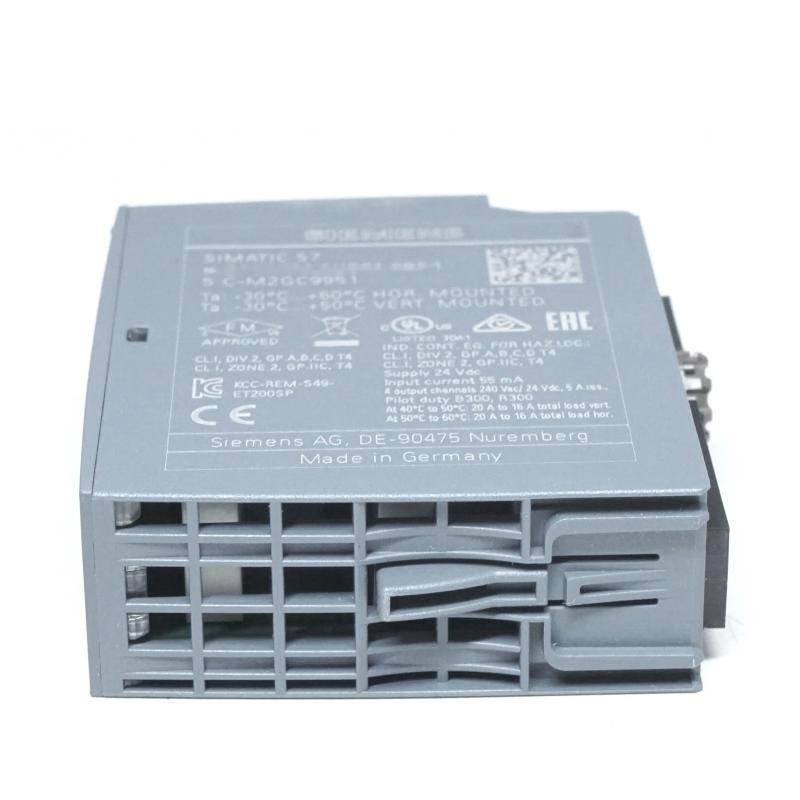

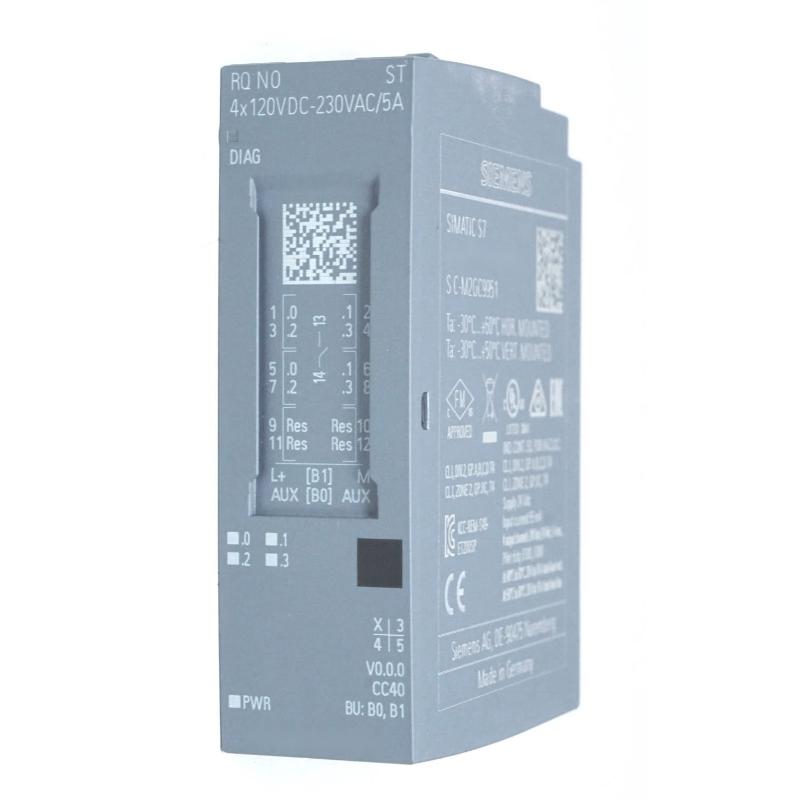

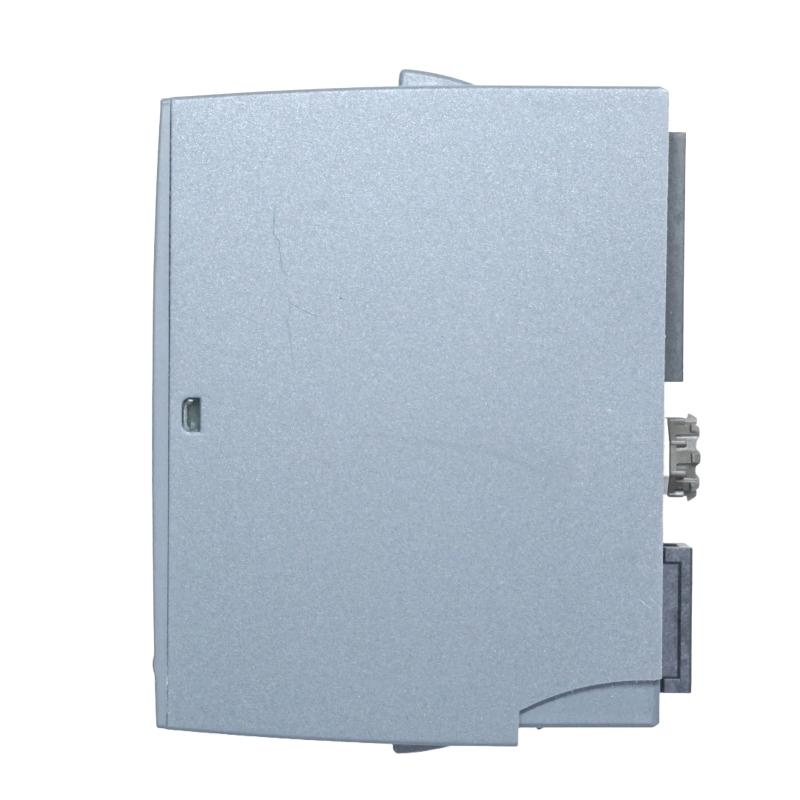

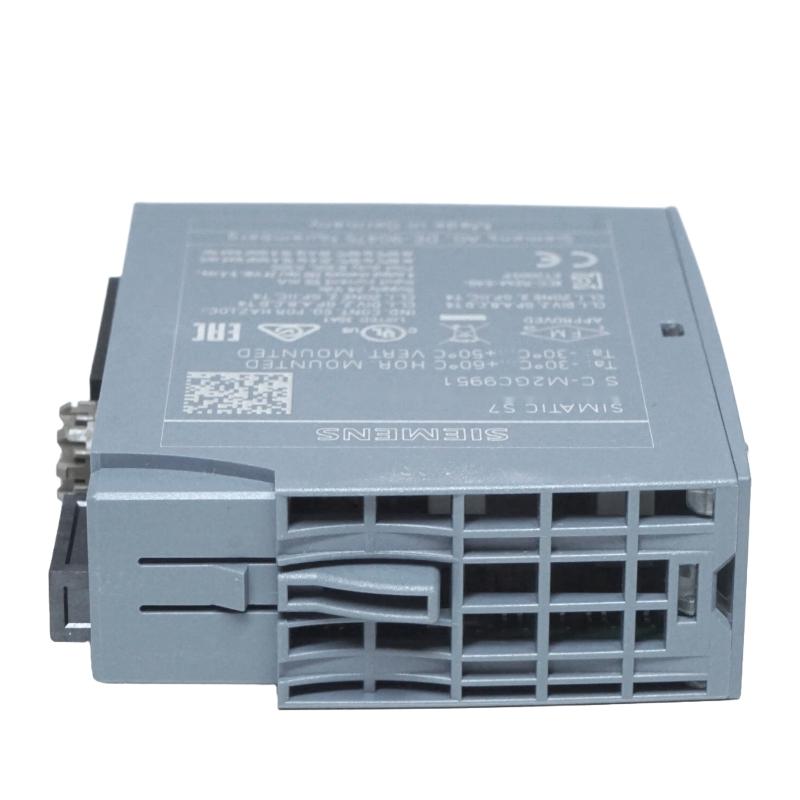

Siemens 6AG2132-6HD01-4BB1 Digital Relay Output Module

Applications

The Siemens 6AG2132-6HD01-4BB1 Digital Relay Output Module is intended for industrial automation applications that require digital switching between a control system and external equipment. Relay output modules allow PLC-controlled signals to operate compatible electrical loads, supporting automated machine sequences, equipment control, and industrial process operations.

Typical application areas include:

• Industrial Machine Control: Supports switching operations for compatible devices in automated machinery and production lines.

• Control Cabinet Integration: Can be considered for control panels requiring relay-based digital output functions.

• Equipment Switching: Provides output switching for compatible electrical circuits according to the module's rated specifications.

• Manufacturing Automation: Supports programmed switching sequences in industrial production equipment.

• System Maintenance: Offers a specific Siemens order number for spare-parts identification and replacement planning.

Advantages

• Relay-Based Switching: Supports digital switching functions for compatible external circuits.

• Compact Dimensions: The specified 20 × 73 × 58 mm size helps with installation-space planning.

• PLC Control Integration: Enables output switching controlled by the automation program when used in a compatible system.

• Practical Equipment Interfacing: Can connect control logic with suitable external electrical loads within its rated limits.

• Simplified Identification: The complete model number supports accurate purchasing and inventory management.

• Maintenance Planning: Clear product identification helps technicians verify replacement requirements and reduce ordering errors.

Technical FAQs

Q1: What is the Siemens 6AG2132-6HD01-4BB1 Digital Relay Output Module?

It is identified as a Siemens digital relay output module for industrial automation. The exact output configuration and electrical ratings should be confirmed against the technical documentation for the complete order number.

Q2: What does a digital relay output module do?

A digital relay output module switches electrical circuits in response to control signals from an automation system. It is commonly used to operate compatible devices as part of an automated sequence.

Q3: What types of equipment can a relay output module control?

Depending on the rated contact specifications, relay outputs may switch compatible indicators, control relays, solenoids, or other electrical loads. The load voltage, current, and characteristics must remain within the module's permitted limits.

Q4: How is a digital relay output module different from a transistor output module?

Relay outputs use electromechanical contacts, while transistor outputs use electronic switching components. Relay and transistor outputs differ in switching speed, load compatibility, service life, and electrical characteristics.

Q5: Can this module switch AC and DC loads?

Relay contacts may support AC, DC, or both, depending on their specified ratings. Verify the manufacturer's voltage and current limits for the exact module before connecting a load.

Q6: Does a relay output module provide electrical isolation?

Relay-based outputs can provide electrical separation between control and switched circuits. However, the actual isolation rating and circuit arrangement must be confirmed from the product documentation.

Q7: What should be checked before installation?

Verify the module's supported controller or I/O system, wiring diagram, terminal assignment, output ratings, mounting requirements, and applicable electrical safety instructions.

Q8: What can cause a relay output to fail?

Possible causes include excessive load current, switching surges, incorrect wiring, contact wear, loose connections, or incompatibility with the connected equipment. Troubleshooting should follow the manufacturer's diagnostic guidance.

Q9: How can relay contact life be extended?

Operate the contacts within their specified ratings, account for inductive loads, use appropriate suppression where required, and avoid excessive switching cycles or unsuitable load conditions.

Q10: Can the 6AG2132-6HD01-4BB1 replace another Siemens digital output module?

Not automatically. Confirm the output technology, channel arrangement, electrical ratings, system compatibility, and configuration requirements before selecting a replacement.
