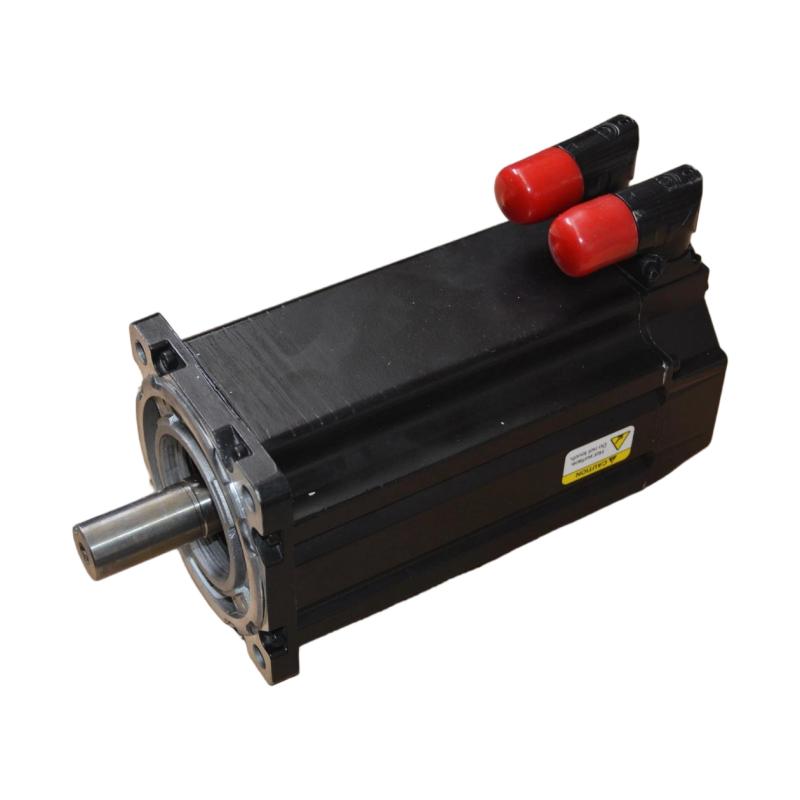

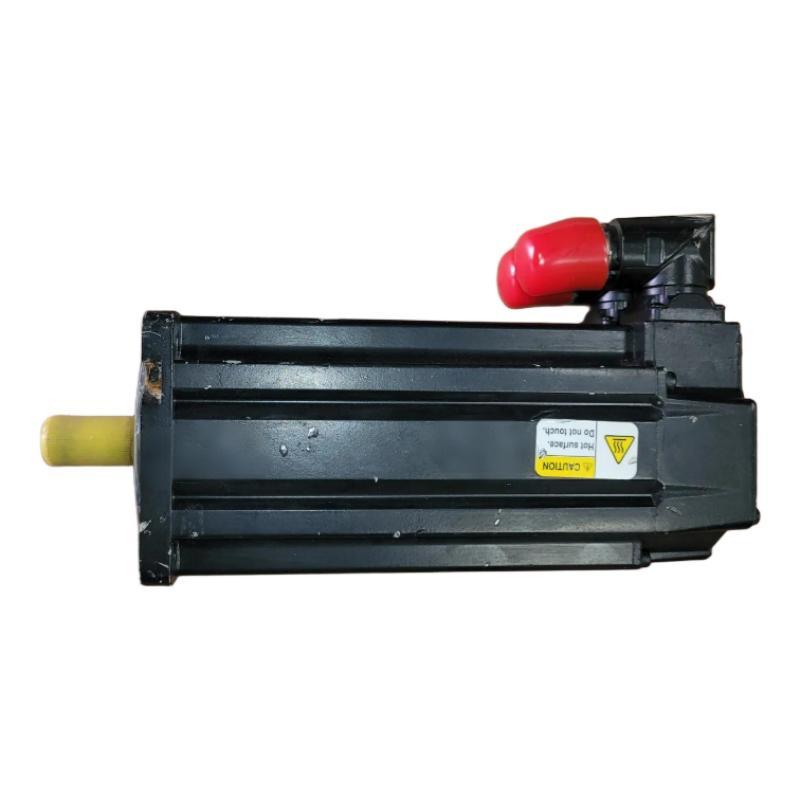

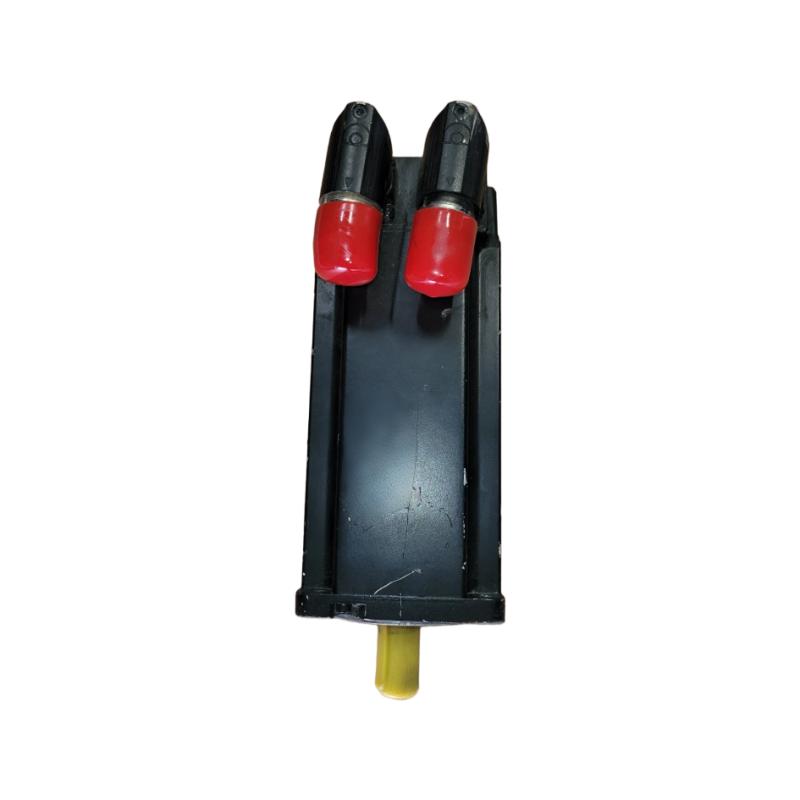

Allen Bradley MPL-B880C-SJ74AA Servo Motor

Applications

The Allen-Bradley MPL-B880C-SJ74AA is a low-inertia brushless AC servo motor designed for industrial motion control systems that require accurate positioning, controlled acceleration, and consistent rotational performance. With a 460 V-class design, a 265 mm frame size, and a rated speed of 1500 RPM, it is suited to demanding automated machinery where coordinated motion and dependable operation are essential.

Typical applications include:

• Packaging and Processing Equipment: Supports controlled movement in automated packaging, filling, and material-handling systems.

• Industrial Automation: Provides servo-driven motion for synchronized production machinery and automated workstations.

• Machine Tools: Enables controlled rotary movement in compatible CNC and precision machining equipment.

• Material Handling: Supports positioning and motion control in industrial transfer and handling systems.

• Automated Assembly Lines: Helps maintain repeatable movement and coordinated operation across production stages.

• Converting Machinery: Suitable for applications requiring controlled rotary motion in compatible cutting, winding, and processing equipment.

Advantages

Low-Inertia Motion Performance

The MPL motor family is designed for responsive motion control. Its low-inertia characteristics help servo systems accelerate and decelerate efficiently when properly matched with the load and drive.

High-Resolution Position Feedback

The SJ74AA configuration uses a single-turn high-resolution encoder, providing position feedback within one mechanical revolution. This supports accurate closed-loop positioning when paired with a compatible servo drive and correctly configured control system.

Industrial-Grade Electrical Design

Designed for 460 V AC-class servo applications, the motor integrates into appropriately rated industrial motion systems, helping manufacturers maintain coordinated machine operation.

Flexible Mechanical Integration

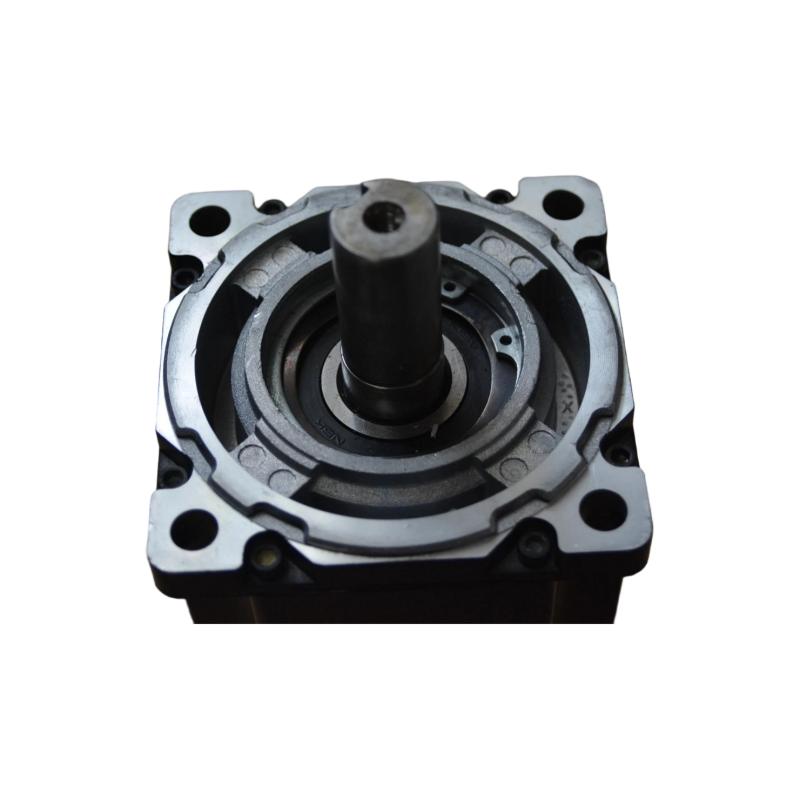

The motor features a keyed shaft extension and IEC metric mounting provisions. These characteristics support integration into compatible industrial machine assemblies while allowing secure mechanical power transmission.

Integrated Holding Brake

The SJ74AA configuration includes a 24 V DC brake. When correctly wired and controlled, the brake helps hold the motor shaft when required, particularly during stationary periods. It should not be treated as a substitute for a safety-rated stopping system.

Practical Replacement Option

For maintenance teams supporting existing Allen-Bradley MP-Series installations, the MPL-B880C-SJ74AA can be considered when replacing a matching motor. Confirm the complete catalog number, feedback requirements, brake wiring, mounting arrangement, and drive compatibility before ordering.

Technical FAQs

Q1: Which servo drive is suitable for the MPL-B880C-SJ74AA?

Select a compatible Allen-Bradley servo drive rated for the motor's electrical characteristics and feedback interface. Verify the drive catalog number, firmware compatibility, motor configuration, and required feedback support before commissioning.

Q2: What type of feedback does this motor use?

This model uses a single-turn high-resolution encoder. It provides position information within one revolution rather than maintaining an absolute multi-turn position count across multiple revolutions.

Q3: Does the MPL-B880C-SJ74AA include a holding brake?

Yes. The SJ74AA configuration includes a 24 V DC brake. The brake circuit must be wired and controlled according to the motor and drive requirements.

Q4: What is the difference between a single-turn and a multi-turn encoder?

A single-turn encoder reports absolute position within one revolution. A multi-turn encoder additionally tracks position across multiple revolutions, subject to its specified operating and backup arrangements.

Q5: Can this motor operate with a third-party servo drive?

Compatibility should not be assumed. The drive must support the motor's feedback interface, electrical ratings, commutation requirements, and brake-control arrangement. An unsupported combination may prevent proper operation.

Q6: How should the motor be commissioned?

Verify the motor nameplate and wiring, confirm mechanical alignment, configure the correct motor profile in the drive, check feedback polarity and brake operation, and perform initial tests at conservative speed and torque limits.

Q7: What causes a servo following error?

Common causes include excessive load, mechanical binding, incorrect tuning, acceleration settings that exceed system capability, feedback faults, or a mismatch between commanded and actual position.

Q8: How can motor overheating be prevented?

Check load torque, duty cycle, acceleration demands, ambient temperature, ventilation, cable connections, and drive settings. Sustained operation beyond the motor's specified limits can cause overheating.

Q9: Can the holding brake stop a moving machine under load?

The brake should not be assumed suitable for routine dynamic stopping. Unless explicitly rated for that duty, use the servo drive's appropriate stopping functions and a separately engineered safety system.

Q10: What should be checked before replacing an existing servo motor?

Confirm the complete catalog number, voltage class, feedback type, brake option, shaft and mounting dimensions, connector arrangement, drive compatibility, and machine-specific commissioning requirements.
