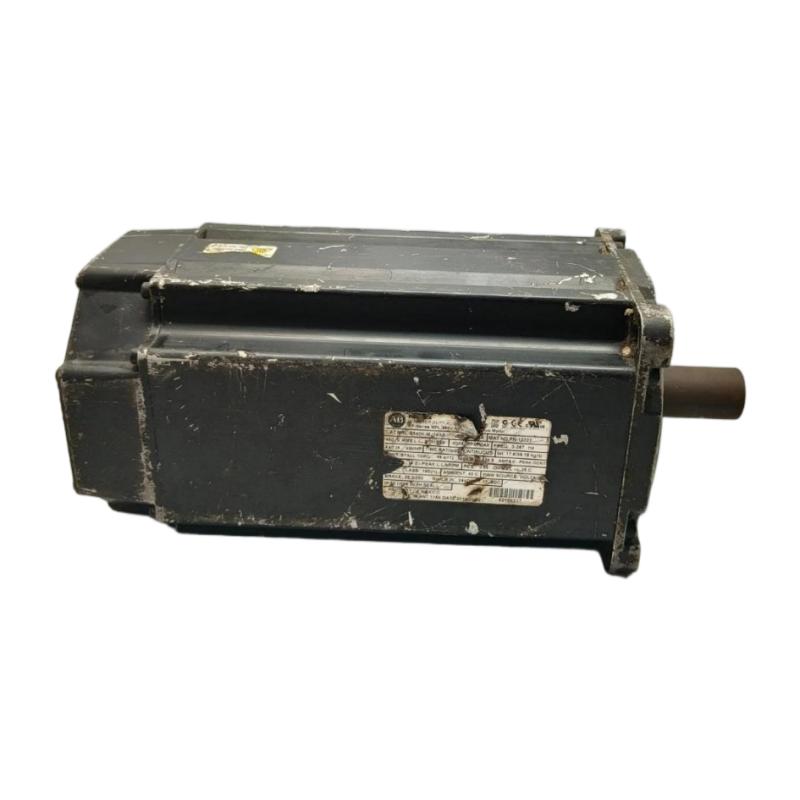

Allen Bradley MPL-B880D-MJ74AA Servo Motor

Applications

The Allen-Bradley MPL-B880D-MJ74AA Servo Motor is designed for industrial motion-control applications where accurate positioning, dynamic response, and dependable shaft holding are important. As part of the MP-Series MPL family, this low-inertia brushless AC servo motor is intended for use with compatible Allen-Bradley servo drives and automation controllers.

With a 2000 RPM speed rating, multi-turn feedback, and an integrated 24 V DC holding brake, it is suited to machine axes that require controlled movement and secure positioning during stationary periods.

• Automated Manufacturing: Supports coordinated motion in production equipment requiring repeatable positioning and controlled speed.

• Packaging Machinery: Helps manage indexing, product transfer, and synchronized movement in automated packaging lines.

• Industrial Robotics and Handling: Can serve as a rotary drive in compatible positioning and handling mechanisms.

• Machine Tools: Supports closed-loop motion control in appropriately configured machining and processing equipment.

• Material Processing: Suitable for selected cutting, feeding, and converting applications that require accurate motor control.

• Automated Assembly: Provides controlled motion for production stations where repeatability and equipment uptime are priorities.

Advantages

High-Performance Motion Response

The low-inertia design of the MPL motor family supports responsive acceleration and deceleration. When properly matched to the load and drive, it can help improve machine responsiveness and motion consistency.

Multi-Turn Position Feedback

The MJ74AA configuration incorporates multi-turn feedback, providing position information across multiple shaft revolutions. This capability is beneficial for applications where position tracking extends beyond a single mechanical revolution.

Integrated 24 V DC Holding Brake

The motor includes a holding brake for applications requiring the shaft to remain stationary when the brake is engaged. Correct brake sequencing and control are essential, and the brake should not be treated as a substitute for a safety-rated stopping system.

Industrial-Grade Integration

Designed for compatible Allen-Bradley motion-control systems, the motor can support coordinated operation with suitable drives and controllers, helping simplify maintenance planning for established automation installations.

Secure Mechanical Coupling

The keyed shaft extension supports mechanical power transmission through compatible couplings and driven components. Proper alignment and load assessment help reduce vibration and premature mechanical wear.

A Practical Replacement Candidate

For maintenance teams working with existing MP-Series equipment, the MPL-B880D-MJ74AA is worth evaluating when the application requires a comparable 2000 RPM motor with multi-turn feedback and a holding brake. Confirm the complete catalog number and system compatibility before procurement.

Technical FAQs

Q1: Which servo drive should be used with the MPL-B880D-MJ74AA?

Choose a compatible Allen-Bradley servo drive that supports the motor's voltage class, feedback interface, current requirements, and brake-control arrangement. Confirm compatibility against the full catalog number and the drive's supported motor list.

Q2: What is the benefit of multi-turn feedback?

Multi-turn feedback provides position information across multiple shaft revolutions, in addition to angular position within a revolution. Its behavior during power interruption depends on the encoder's design and operating specifications.

Q3: Does this motor have an integrated holding brake?

Yes. The MJ74AA configuration includes a 24 V DC holding brake. The brake must be wired and controlled according to the applicable motor and drive specifications.

Q4: Can the holding brake be used for emergency stopping?

Do not assume that the holding brake is rated for dynamic stopping or emergency braking. The machine requires a properly engineered stopping and safety system appropriate to its risk assessment.

Q5: What is the difference between the MJ74AA and MJ72AA variants?

The principal configuration difference is the brake option: MJ74AA includes a holding brake, while MJ72AA does not. Verify all other electrical, feedback, and mechanical details before treating the variants as interchangeable.

Q6: How does servo tuning affect machine performance?

Servo tuning adjusts the control response to the motor and connected load. Appropriate tuning can improve stability, positioning accuracy, and response while helping prevent excessive oscillation.

Q7: What can cause an encoder-related drive fault?

Possible causes include damaged feedback cables, loose connectors, electrical interference, incompatible drive configuration, or an encoder fault. Check the drive's diagnostic information before replacing components.

Q8: How should the holding brake be controlled?

Follow the specified brake wiring and drive sequencing requirements. Typically, the brake is released before motion begins and engaged after the motor has stopped, subject to the system design and manufacturer's instructions.

Q9: Can the motor handle continuously changing loads?

Its suitability depends on the load torque, inertia ratio, duty cycle, acceleration profile, and thermal limits. Confirm that the complete motion system remains within the motor and drive ratings.

Q10: What should be checked before commissioning?

Verify motor identification, drive compatibility, grounding, feedback wiring, brake operation, mechanical alignment, load coupling, and control parameters. Begin testing with conservative motion limits and confirm stable operation before increasing production demands.
