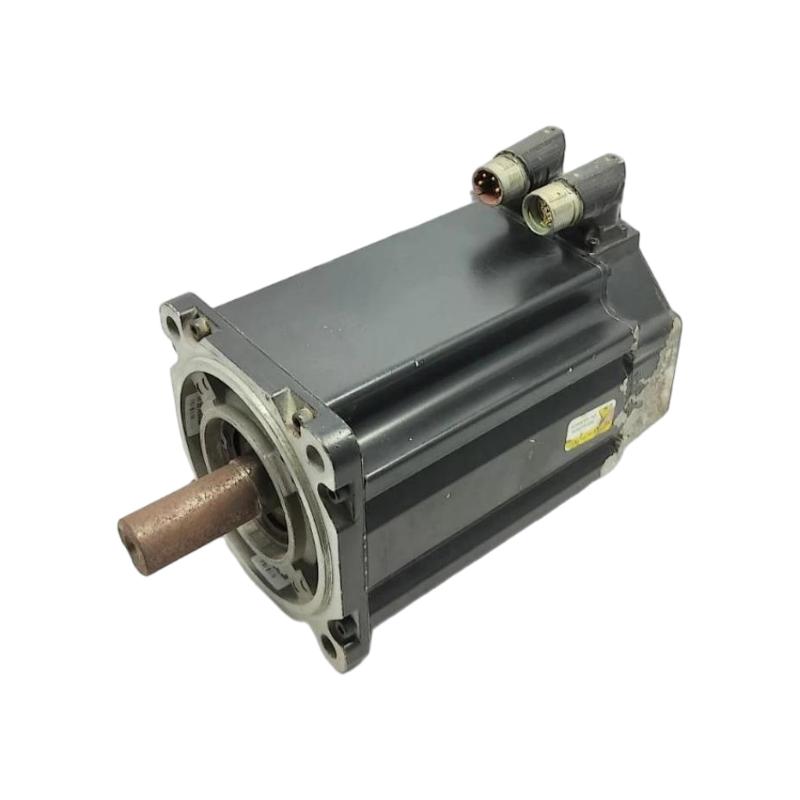

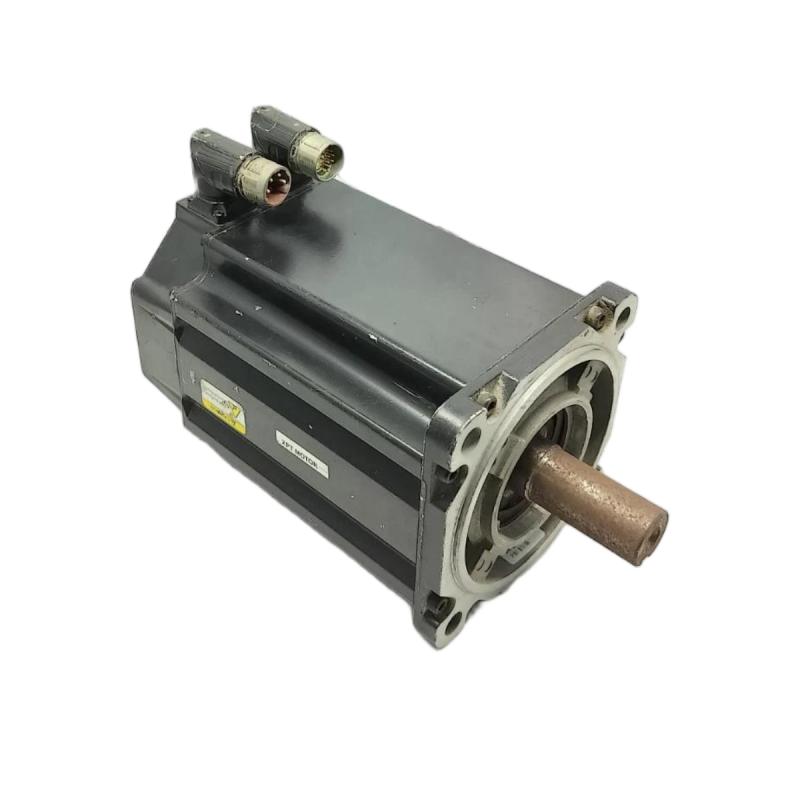

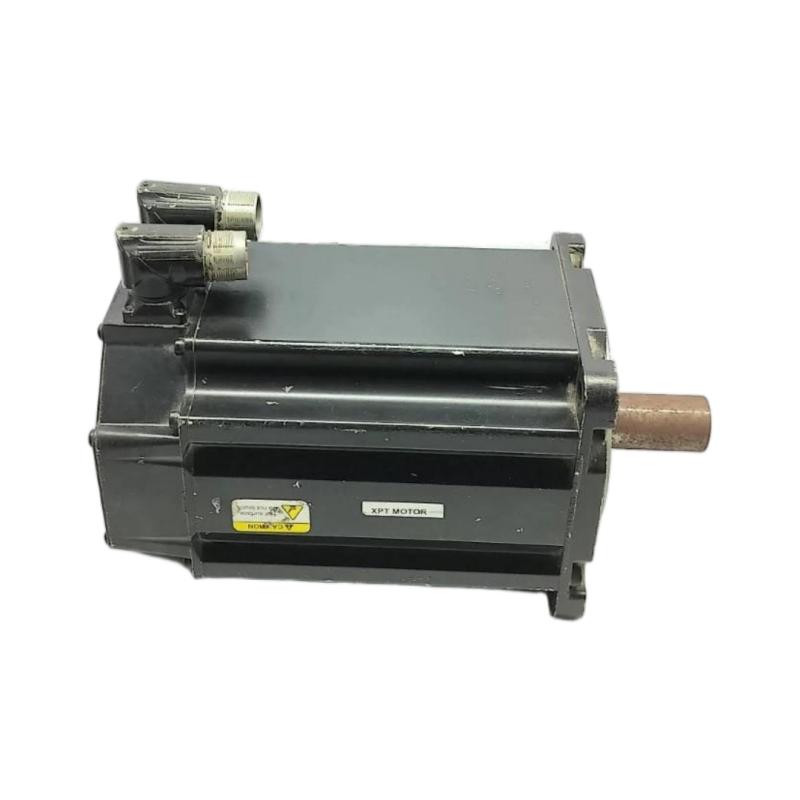

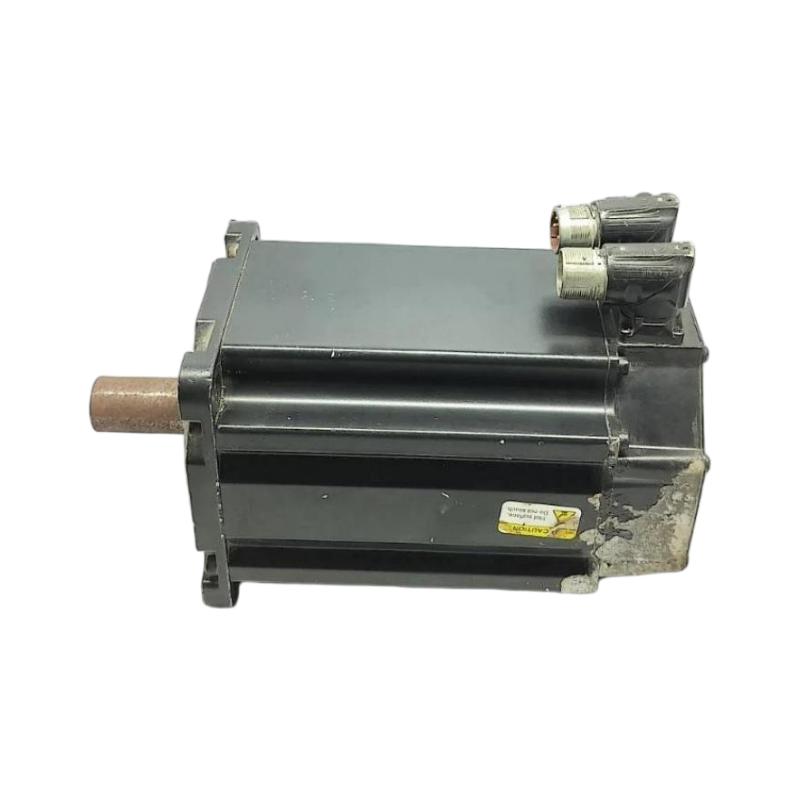

Allen Bradley MPL-B880D-SJ72AA Servo Motor

Applications

The Allen-Bradley MPL-B880D-SJ72AA Servo Motor is designed for industrial motion-control systems that demand fast response, precise positioning, and consistent rotational performance. As part of the MP-Series MPL family, this low-inertia brushless AC servo motor is intended for use with compatible Allen-Bradley servo drives and automation controllers.

With a 2000 RPM speed rating, single-turn high-resolution feedback, and a design intended for industrial environments, this motor is suitable for applications where repeatable motion and reliable machine operation are essential.

• Automated Manufacturing: Supports controlled movement and coordinated positioning across production equipment.

• Packaging Machinery: Helps maintain repeatable indexing and synchronized product movement in automated packaging systems.

• CNC and Machine Tools: Provides servo-driven rotary motion for compatible machine axes and positioning mechanisms.

• Material Handling: Supports controlled movement in automated transfer and handling equipment.

• Assembly Systems: Enables repeatable motion in industrial assembly stations requiring coordinated positioning.

• Printing and Converting Equipment: Can be applied to suitable feeding, processing, and cutting mechanisms that require controlled rotary movement.

Advantages

Responsive Low-Inertia Design

The MPL motor family is designed to support dynamic acceleration and deceleration. When appropriately matched to the load and servo drive, this design can help achieve responsive motion and consistent positioning.

High-Resolution Single-Turn Feedback

The SJ72AA configuration uses single-turn high-resolution feedback to provide detailed position information within one mechanical revolution. This supports closed-loop positioning in applications where precise angular feedback is required.

Reliable Industrial Motion Control

When integrated with a compatible drive and controller, the motor supports coordinated control of speed, torque, and position, making it suitable for demanding automated machinery.

Keyed Shaft Connection

The keyed shaft extension allows mechanical power transmission through compatible couplings and driven components. Correct alignment and coupling selection help minimize vibration and mechanical stress.

Flexible Connector Orientation

The right-angle connector design, with 180-degree rotation capability, can help accommodate different cable-routing arrangements within compatible machine installations.

Suitable for Existing Equipment Maintenance

For facilities maintaining Allen-Bradley MP-Series installations, the MPL-B880D-SJ72AA is a potential replacement candidate when the original motor requires the same speed class, feedback configuration, and mechanical interface.

Technical FAQs

Q1: Which servo drive is compatible with the MPL-B880D-SJ72AA?

Choose a compatible Allen-Bradley servo drive that supports the motor's electrical ratings, single-turn feedback interface, and commutation requirements. Verify the exact catalog number and drive configuration before installation.

Q2: What does single-turn feedback mean?

Single-turn feedback reports the shaft's angular position within one revolution. It differs from multi-turn feedback, which also tracks position across multiple revolutions.

Q3: Does the MPL-B880D-SJ72AA have an integrated holding brake?

The SJ72AA configuration is the non-brake variant. If the application requires shaft holding, evaluate an appropriate brake-equipped motor or a separately engineered braking solution.

Q4: Can this motor operate at speeds above 2000 RPM?

The stated 2000 RPM rating should not be interpreted as permission to exceed the motor's specified operating limits. Confirm the permitted speed range, load conditions, and drive configuration before changing operating speed.

Q5: How does a servo drive control motor position?

The controller sends motion commands, while the servo drive regulates motor current based on feedback and the configured control loops. This closed-loop process helps the system follow the commanded position and speed.

Q6: What can cause unstable positioning?

Potential causes include incorrect servo tuning, mechanical backlash, excessive load inertia, loose couplings, resonance, or feedback problems. Check both the mechanical system and the drive diagnostics.

Q7: How can encoder faults be diagnosed?

Inspect feedback cables and connectors, check grounding and electrical noise, review the drive's fault codes, and verify the configured feedback type. Replace components only after identifying the likely cause.

Q8: Is this motor suitable for continuous-duty operation?

Suitability depends on the actual torque demand, duty cycle, ambient conditions, cooling arrangement, and the manufacturer's specified thermal limits. The application must remain within the motor's rated operating envelope.

Q9: Can the motor be connected directly to a standard AC power supply?

No. This is a servo motor intended for operation with a compatible servo drive. Direct connection to a standard AC supply is not an appropriate substitute for the required motion-control system.

Q10: What should be verified when replacing this motor?

Check the complete catalog number, voltage class, rated speed, feedback type, brake configuration, shaft interface, mounting arrangement, connector compatibility, and drive support before ordering and commissioning.
