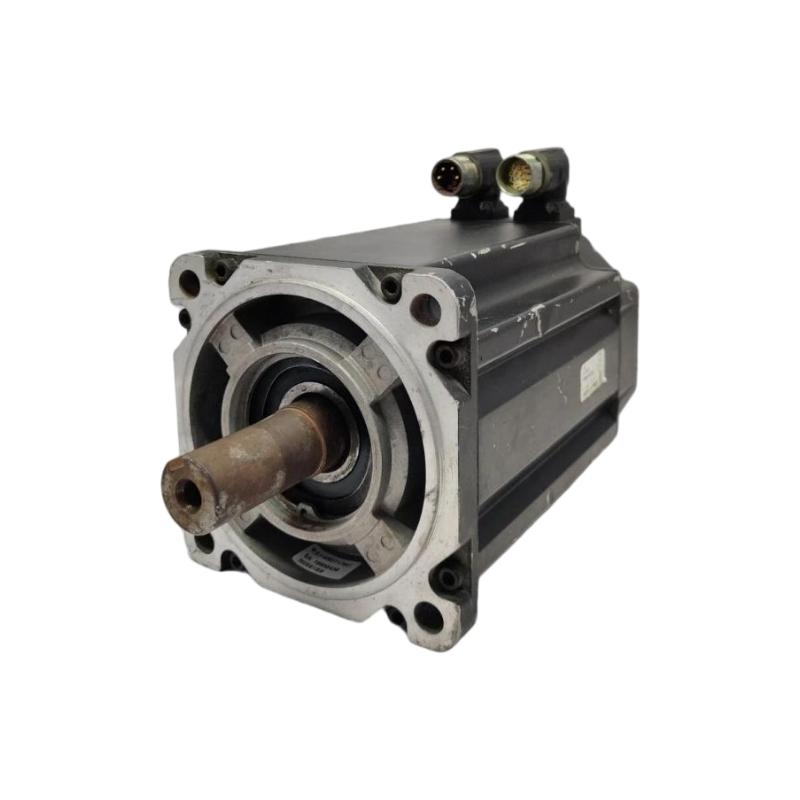

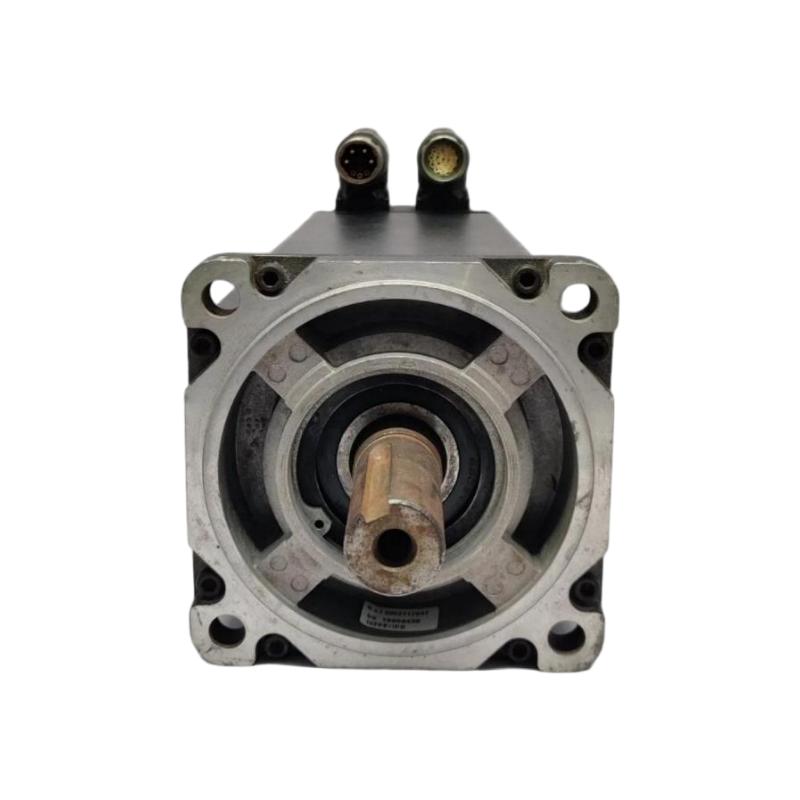

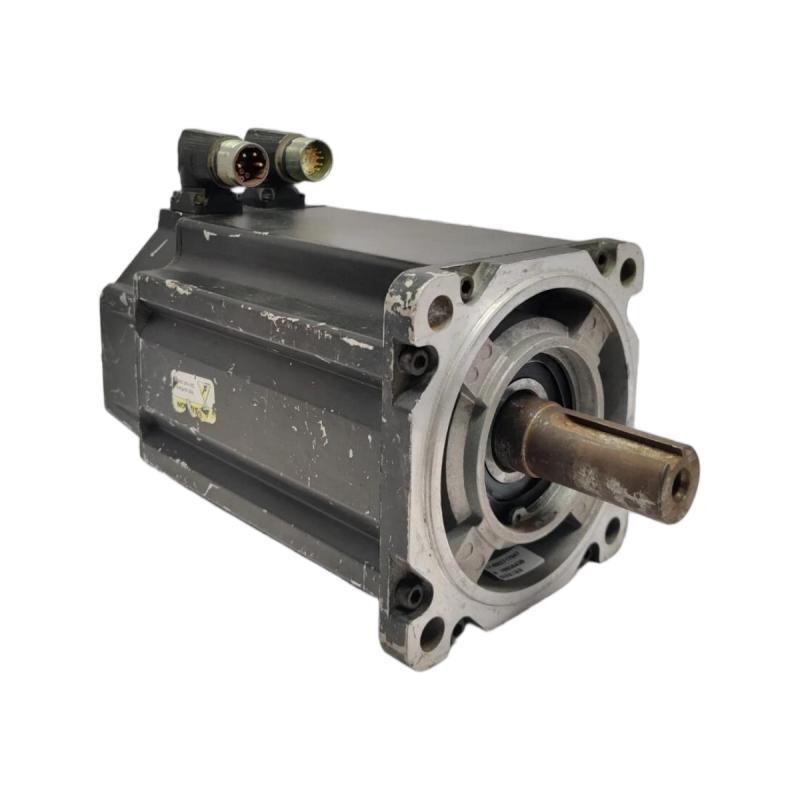

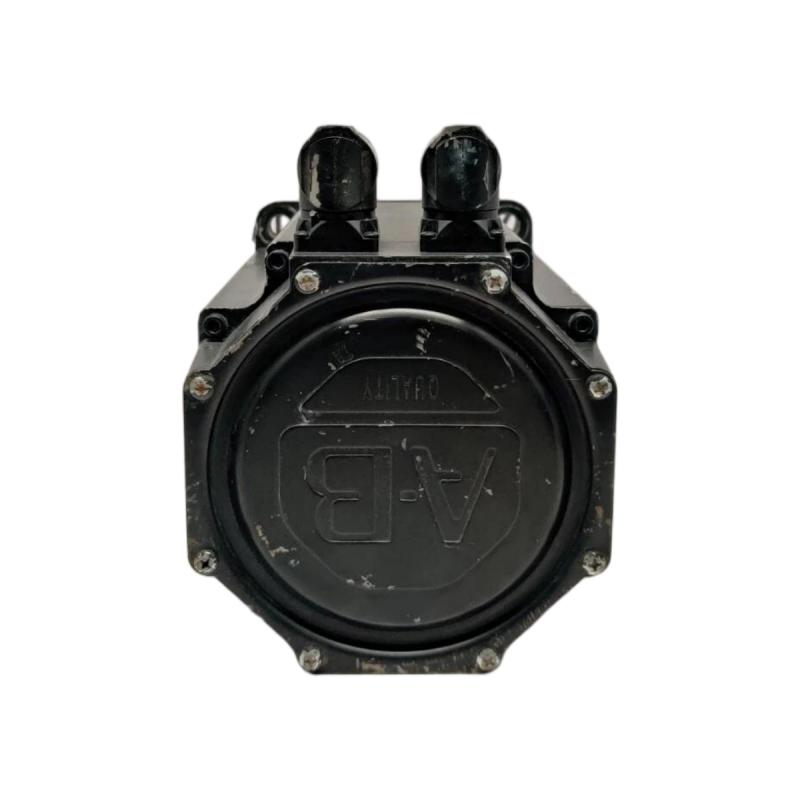

Allen Bradley MPL-B960B-MJ72AA Servo Motor

Applications

The Allen-Bradley MPL-B960B-MJ72AA Servo Motor is designed for industrial automation systems that require controlled rotary motion, reliable feedback, and consistent performance under demanding operating conditions. As part of the MP-Series MPL family, this brushless AC servo motor is intended for integration with compatible Allen-Bradley servo drives and motion controllers.

Its large 300 mm frame size makes it relevant to industrial machinery requiring a substantial servo motor installation. With multi-turn feedback, the motor can support applications where position tracking across multiple shaft revolutions is important.

• Heavy Industrial Automation: Supports controlled movement in appropriately sized production machinery and automated systems.

• Packaging and Processing Lines: Provides servo-driven motion for synchronized feeding, indexing, and transfer mechanisms.

• Material Handling Equipment: Supports rotary movement in compatible industrial handling and positioning systems.

• Machine Tools: Can be integrated into suitable machine axes requiring closed-loop position and speed control.

• Automated Manufacturing: Helps maintain repeatable movement across coordinated production stations.

• Special-Purpose Machinery: Offers a motion-control option for OEM equipment designed around compatible MP-Series servo technology.

Advantages

Multi-Turn Position Feedback

The MJ72AA configuration uses multi-turn feedback, allowing the control system to obtain position information across multiple shaft revolutions. This can be valuable in applications requiring position tracking beyond a single revolution.

Brushless Servo Motor Design

The brushless construction supports controlled operation in industrial motion systems and avoids the brush maintenance associated with brushed motor designs.

Closed-Loop Motion Control

When paired with a compatible servo drive and controller, the motor can participate in coordinated speed, torque, and position control, helping maintain consistent machine performance.

Industrial Mechanical Integration

The keyed shaft configuration supports mechanical power transmission through suitable couplings and driven components. Correct shaft alignment and load matching remain essential for dependable operation.

Flexible Automation Integration

The motor can be considered for existing Allen-Bradley MP-Series installations where the required feedback interface, electrical ratings, and mechanical mounting are compatible.

Practical Spare-Parts Planning

For maintenance departments and industrial equipment resellers, identifying the exact MPL-B960B-MJ72AA catalog number helps narrow replacement options and reduce the risk of ordering a motor with a different feedback or brake configuration.

Technical FAQs

Q1: What type of servo drive is required for the MPL-B960B-MJ72AA?

Use a compatible Allen-Bradley servo drive that supports the motor's voltage class, feedback interface, electrical ratings, and commutation requirements. Confirm the precise drive and motor combination before commissioning.

Q2: What is the purpose of multi-turn feedback?

Multi-turn feedback reports angular position within a revolution and tracks position across multiple revolutions, subject to the encoder's design and operating specifications.

Q3: Does the MJ72AA model include a holding brake?

The MJ72AA configuration is the non-brake variant. If the machine requires a holding function, evaluate a brake-equipped motor or a separately engineered braking solution.

Q4: Can the motor be operated without a motion controller?

A compatible servo drive is required. Depending on the drive architecture, motion commands may come from a separate controller or from supported drive-based control functions.

Q5: How is the correct motor configuration selected?

Match the required torque and speed, load inertia, feedback interface, electrical ratings, mechanical mounting, shaft connection, and braking requirements to the application.

Q6: What can cause a servo drive to report an overcurrent fault?

Possible causes include excessive acceleration demand, mechanical binding, incorrect motor parameters, wiring faults, or a drive configuration mismatch. Follow the drive's diagnostic procedures to identify the underlying cause.

Q7: Why is mechanical alignment important?

Misalignment can increase vibration, coupling stress, and bearing loads. Correct mounting and alignment help protect the motor and the connected machinery.

Q8: How can positioning accuracy be improved?

Verify feedback configuration, tune the servo loops appropriately, minimize mechanical backlash, check coupling integrity, and ensure that the load remains within the system's capabilities.

Q9: What maintenance does a brushless servo motor require?

Maintenance should follow the manufacturer's recommendations and the machine's operating environment. Typical checks include connectors, cables, mounting hardware, coupling condition, contamination, vibration, and signs of overheating.

Q10: What should be confirmed before installing a replacement?

Verify the complete catalog number, drive compatibility, feedback type, brake configuration, shaft and mounting details, cable connections, and applicable commissioning procedures.
