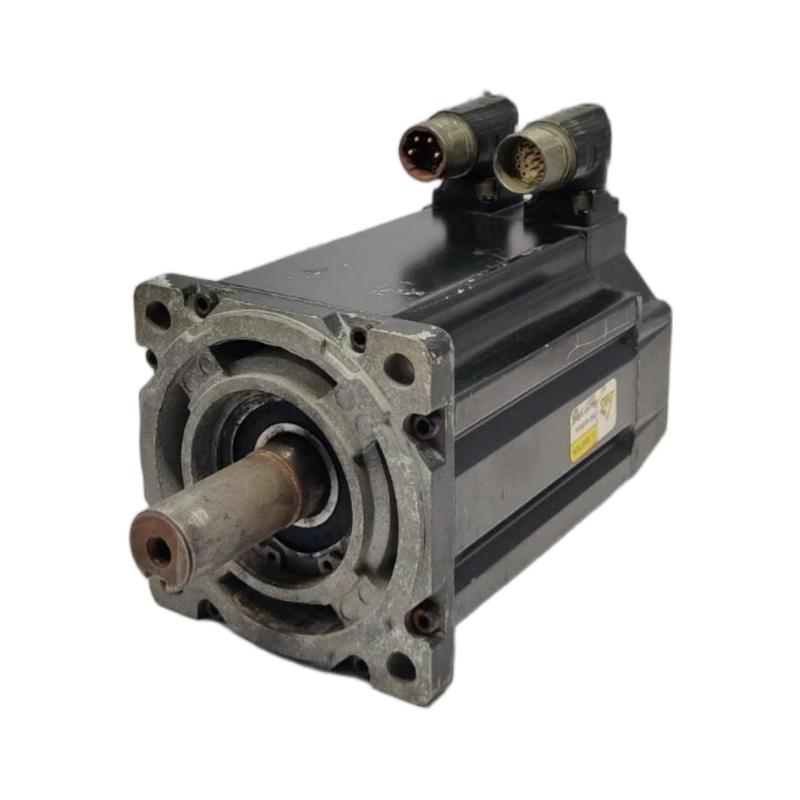

Allen Bradley MPL-B960B-MJ74AA Servo Motor

Applications

The Allen-Bradley MPL-B960B-MJ74AA Servo Motor is designed for industrial motion-control systems that require controlled movement, reliable position feedback, and dependable shaft holding. As part of the MP-Series MPL family, it is intended for integration with compatible Allen-Bradley servo drives and automation controllers.

Its 300 mm frame size and integrated brake configuration make it a candidate for machinery where both precise motion control and stationary shaft holding are important. The multi-turn feedback configuration also supports applications that require position information across multiple shaft revolutions.

• Industrial Production Machinery: Supports coordinated movement in automated manufacturing equipment.

• Packaging and Processing Lines: Helps control positioning and synchronized movement in compatible production systems.

• Material Handling Systems: Provides servo-driven rotary motion for industrial transfer and positioning mechanisms.

• Automated Assembly: Supports repeatable movement in production stations that rely on closed-loop motion control.

• Machine Tools: Can be used in compatible machine axes requiring controlled speed and position.

• Special-Purpose Equipment: Offers an option for OEM machinery designed around the motor's electrical, feedback, and mechanical requirements.

Advantages

Multi-Turn Position Feedback

The MJ74AA configuration uses multi-turn feedback to provide position information across multiple shaft revolutions, subject to the encoder's operating specifications. This supports motion applications where position tracking extends beyond one revolution.

Integrated Holding Brake

The motor's brake configuration supports shaft holding when the motor is stationary and the brake is properly engaged. Correct brake sequencing is important for protecting the mechanism and ensuring predictable operation.

Brushless Motor Construction

The brushless design avoids the routine brush replacement associated with brushed motors and supports integration into industrial servo systems.

Closed-Loop Motion Performance

When matched with a compatible servo drive, the motor can support precise control of speed, torque, and position, helping maintain repeatable machine movements.

Mechanical Integration for Industrial Equipment

The motor can be evaluated for existing MP-Series installations where the mounting arrangement, shaft interface, feedback system, and drive requirements match.

Useful for Maintenance and Replacement

For industrial buyers and maintenance teams, the exact MPL-B960B-MJ74AA catalog number helps distinguish the brake-equipped configuration from similar models without a brake. Confirm the full specification before purchasing to avoid configuration mismatches.

Technical FAQs

Q1: Which servo drive is suitable for the MPL-B960B-MJ74AA?

Select a compatible Allen-Bradley servo drive that supports the motor's electrical ratings, feedback interface, commutation requirements, and brake-control arrangement. Verify compatibility using the complete motor catalog number.

Q2: What does multi-turn feedback provide?

Multi-turn feedback reports angular position within a revolution and tracks position across multiple revolutions, according to the encoder's specified operating characteristics.

Q3: Does this motor include a holding brake?

Yes. The MJ74AA configuration is the brake-equipped variant. Confirm the brake's electrical requirements and control method before connecting it to the machine.

Q4: Can the holding brake be used to stop a moving load?

Do not assume that the holding brake is rated for routine dynamic stopping. Use the specified drive stopping functions and an appropriately engineered safety system for machine stopping requirements.

Q5: What is the difference between the MJ74AA and MJ72AA models?

The key configuration difference is the holding brake: MJ74AA includes a brake, while MJ72AA is the non-brake variant. Confirm other specifications before considering them interchangeable.

Q6: What can cause a servo drive overcurrent fault?

Potential causes include excessive acceleration demand, mechanical binding, wiring problems, incorrect motor parameters, or an unsuitable drive configuration. Check the drive's diagnostic information before replacing components.

Q7: How does servo tuning affect performance?

Servo tuning adjusts the control response to the connected load. Appropriate tuning can improve stability, positioning accuracy, and responsiveness while reducing unwanted oscillation.

Q8: How should the brake be sequenced during operation?

Follow the specified motor and drive instructions. In a typical arrangement, the brake is released before motion begins and engaged after the shaft has stopped, subject to the system's design.

Q9: What maintenance checks help preserve reliable operation?

Inspect connectors, feedback and power cables, mounting hardware, mechanical couplings, vibration, contamination, and signs of overheating. Follow the manufacturer's maintenance guidance for the installed system.

Q10: What should be checked before ordering a replacement?

Confirm the complete catalog number, voltage rating, speed and torque requirements, feedback type, brake configuration, mounting dimensions, shaft interface, and drive compatibility.
