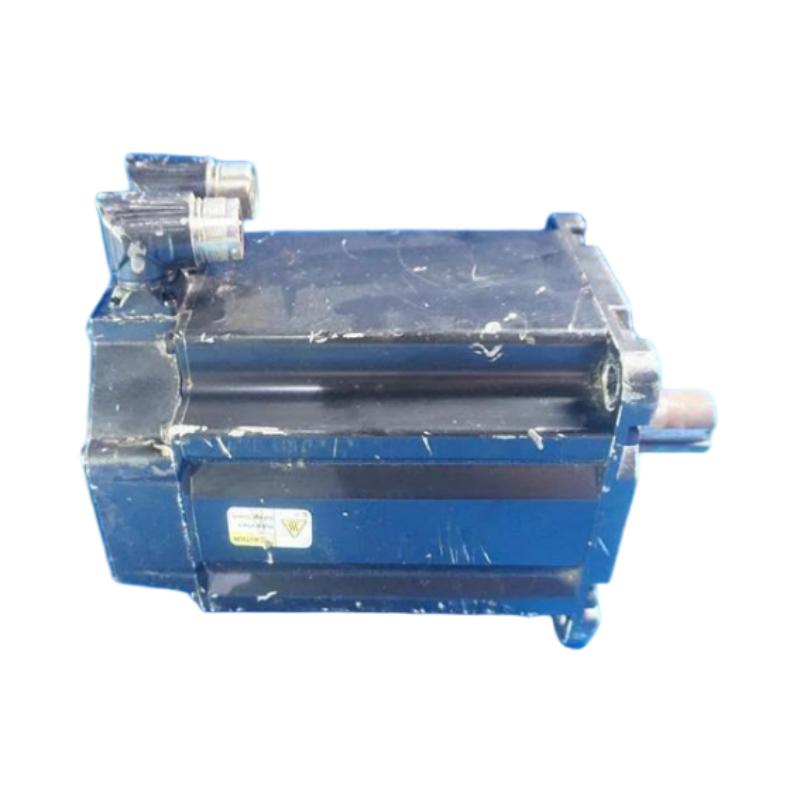

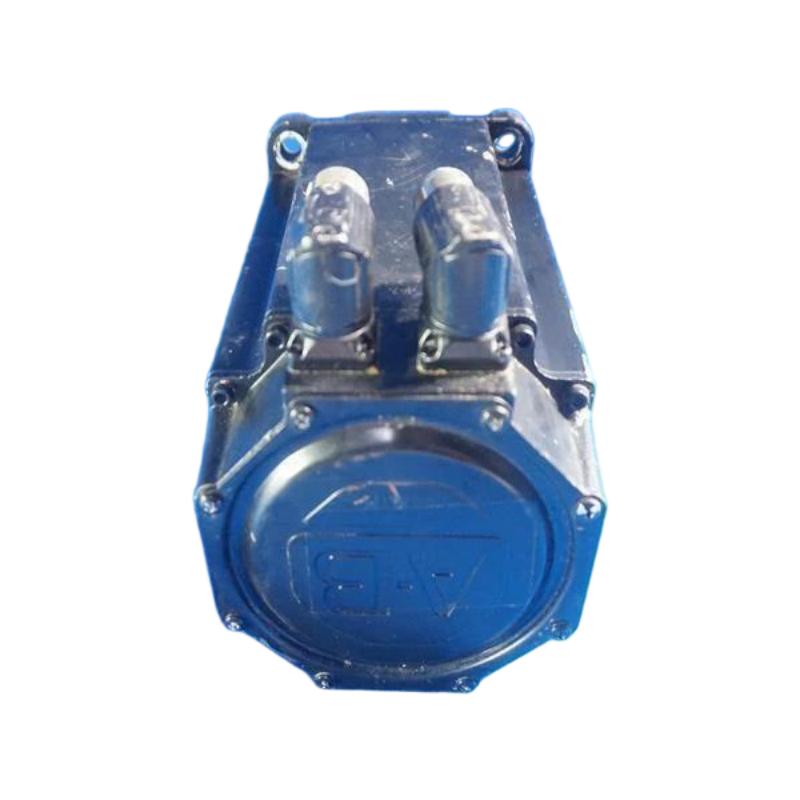

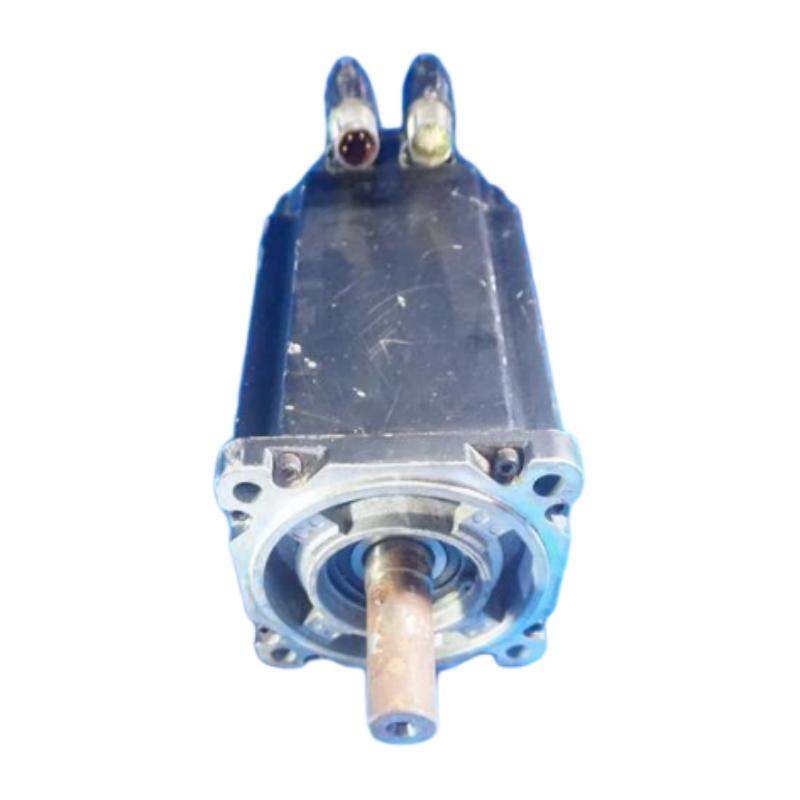

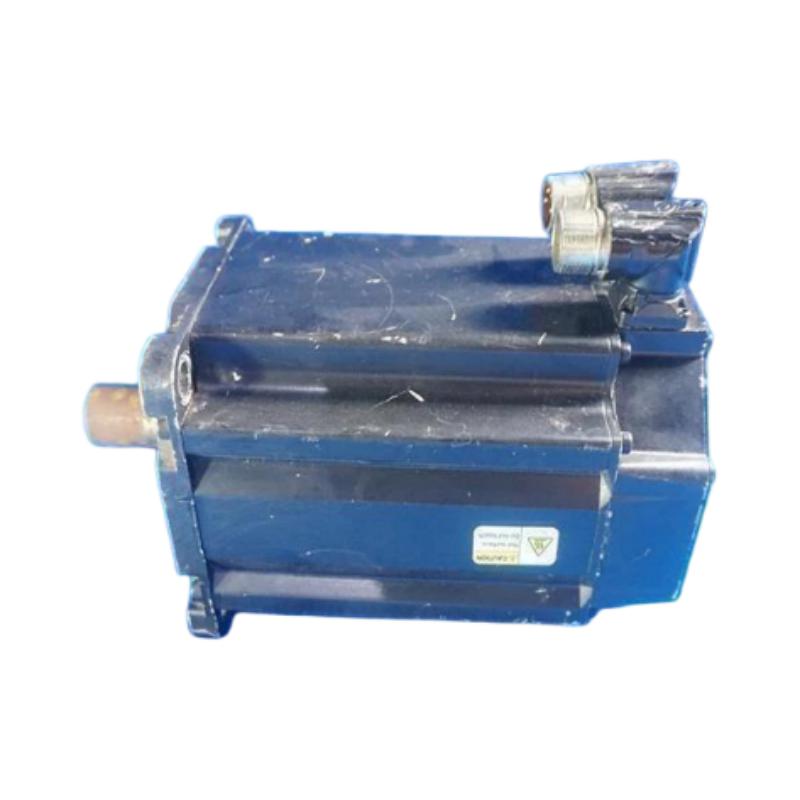

Allen Bradley MPL-B960B-SJ72AA Servo Motor

Applications

The Allen-Bradley MPL-B960B-SJ72AA Servo Motor is designed for industrial automation systems that require controlled rotary motion, repeatable positioning, and dependable closed-loop performance. As part of the MP-Series MPL family, this brushless AC servo motor is intended for use with compatible Allen-Bradley servo drives and motion controllers.

Its single-turn feedback configuration provides position information within one shaft revolution, making it suitable for applications where accurate angular positioning and coordinated movement are important. For machine builders and maintenance teams, selecting the correct motor configuration helps support reliable operation and efficient integration.

• Automated Manufacturing: Supports repeatable motion in production machinery and automated workstations.

• Packaging Equipment: Helps coordinate indexing, feeding, and positioning operations in compatible packaging lines.

• Industrial Processing: Provides controlled rotary motion for selected cutting, converting, and material-processing equipment.

• Machine Tools: Supports closed-loop positioning in compatible machine axes.

• Material Handling: Enables controlled movement in automated transfer and positioning mechanisms.

• Assembly Systems: Helps maintain consistent motion across production stages requiring coordinated machine operation.

Advantages

Accurate Single-Turn Feedback

The SJ72AA configuration uses single-turn high-resolution feedback to report shaft position within one revolution. This is useful for applications where precise angular position information is required.

Low-Inertia Motor Design

The MPL family is designed for responsive motion control. When properly matched to the load and drive, the motor can support controlled acceleration, deceleration, and repeatable positioning.

Brushless Construction

The brushless design avoids routine brush replacement and is suited to industrial servo applications requiring dependable operation and reduced maintenance associated with motor brushes.

Closed-Loop Control Capability

When paired with a compatible servo drive and controller, the motor supports regulated speed, torque, and position, helping maintain consistent machine performance.

Practical Mechanical Integration

The keyed shaft arrangement supports power transmission through suitable couplings. Correct alignment and load selection are important for minimizing vibration and mechanical stress.

Suitable for Existing MP-Series Systems

The MPL-B960B-SJ72AA may be considered for compatible installations where the original motor's feedback configuration, electrical characteristics, mounting arrangement, and performance requirements match.

Technical FAQs

Q1: Which servo drive is suitable for the MPL-B960B-SJ72AA?

Use a compatible Allen-Bradley servo drive that supports the motor's electrical ratings, feedback interface, and commutation requirements. Verify the complete catalog number against the drive's supported motor configurations.

Q2: What does single-turn feedback mean?

Single-turn feedback provides shaft position within one mechanical revolution. Unlike multi-turn feedback, it does not independently provide a multi-revolution absolute position count.

Q3: Does the SJ72AA configuration include a holding brake?

The SJ72AA variant does not include an integrated holding brake. If the machine requires shaft holding, evaluate a brake-equipped configuration or a separately engineered braking solution.

Q4: Can this servo motor connect directly to an AC power supply?

No. It is designed to operate through a compatible servo drive, which controls motor current and manages the feedback-based motion-control process.

Q5: What factors determine whether the motor is suitable for an application?

Important factors include required torque, operating speed, load inertia, duty cycle, feedback requirements, drive compatibility, mounting arrangement, and environmental conditions.

Q6: What causes a servo motor to lose positioning accuracy?

Possible causes include mechanical backlash, loose couplings, incorrect tuning, excessive load inertia, feedback faults, or resonance in the machine structure.

Q7: How can encoder communication faults be investigated?

Inspect feedback connectors and cables, check grounding and electrical interference, review drive diagnostic codes, and verify that the configured feedback type matches the installed motor.

Q8: Is servo tuning necessary after motor replacement?

The drive configuration and tuning should be reviewed after replacement. Depending on the application, retuning may be necessary to account for differences in motor characteristics, load inertia, or mechanical behavior.

Q9: Can the motor run continuously at its rated speed?

Continuous operation depends on the motor's rated torque, thermal limits, duty cycle, ambient conditions, and cooling requirements. The complete application must remain within the manufacturer's specified operating limits.

Q10: What should be checked before purchasing a replacement?

Confirm the complete catalog number, voltage class, feedback type, brake configuration, shaft interface, mounting dimensions, connector arrangement, and compatibility with the existing drive.
