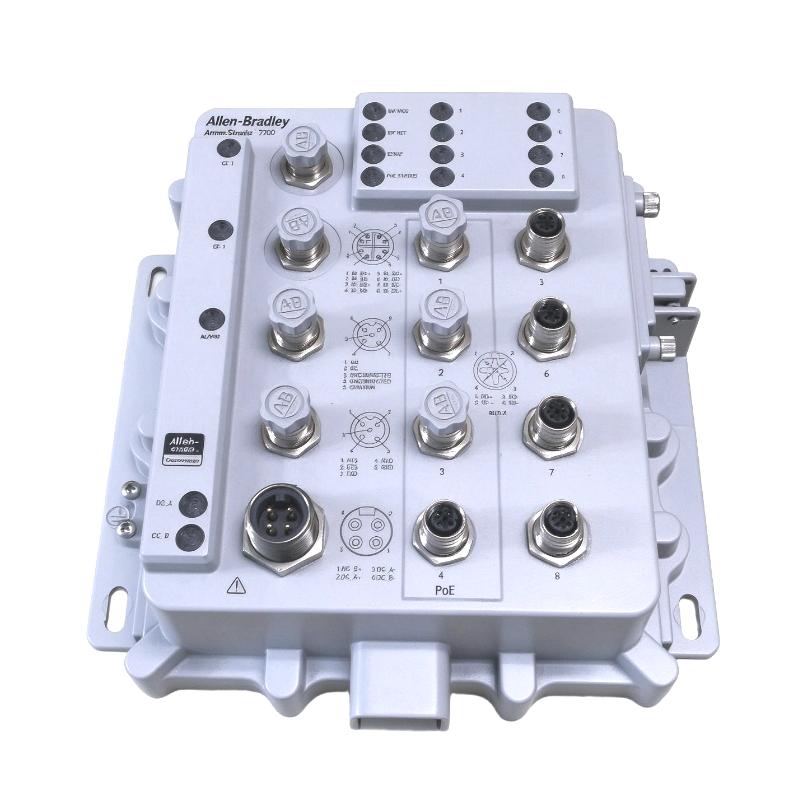

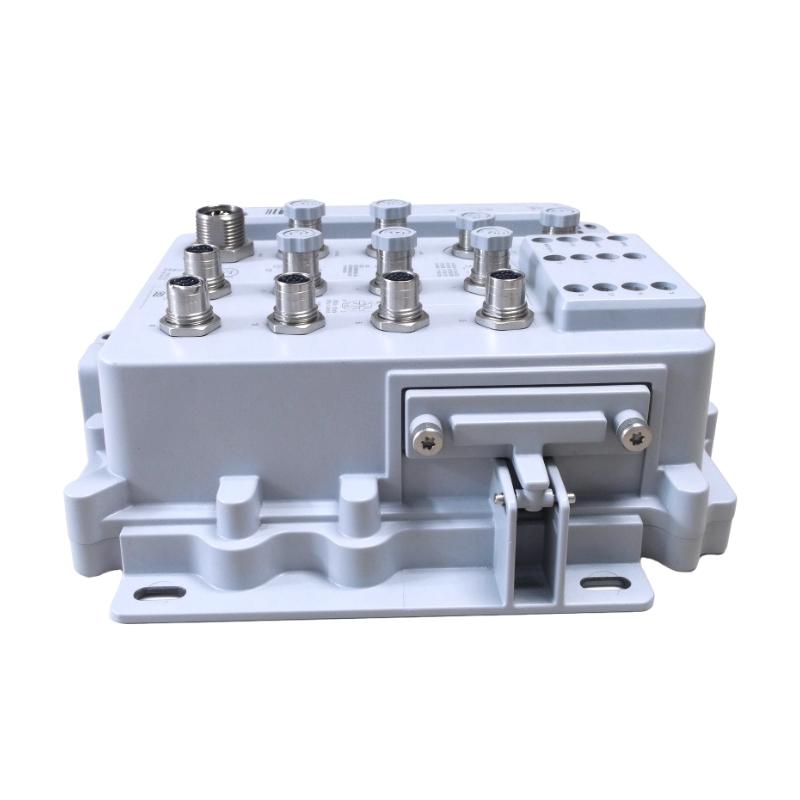

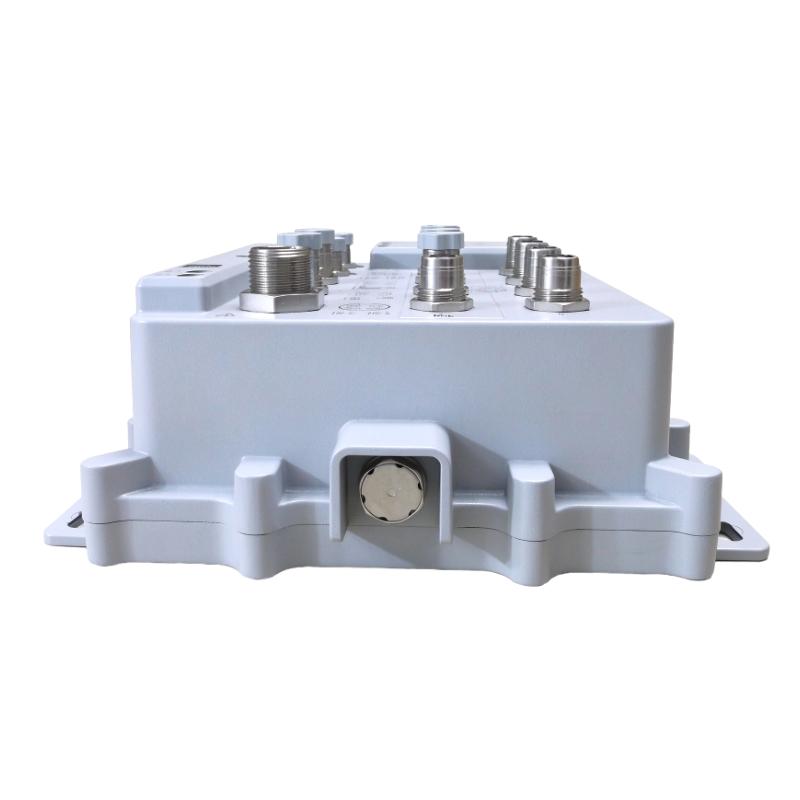

The Allen-Bradley 1783-ZMS4T4E2TGP ArmorStratix 5700 Managed Ethernet Switch is designed for industrial communication systems that need a combination of standard Ethernet connectivity, Gigabit uplinks, and PoE capability. Its 10-port configuration allows multiple industrial devices to connect through a managed network architecture.
The switch also supports CIP Sync and Device Level Ring, making it relevant to compatible EtherNet/IP installations where time synchronization and network resilience are important. Its M12 connectors are designed for industrial Ethernet connections, while DIN-rail mounting supports integration into suitable machine and control installations.
Because this model is discontinued, buyers sourcing it for maintenance or system expansion should verify the full catalog number and hardware condition. The related 1783-ZMS4T4E2TGN model differs in its support for NAT, so the two variants should not be treated as interchangeable without checking network requirements.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
1783-ZMS4T4E2TGP
Product Family
ArmorStratix 5700
Product Type
Managed Industrial Ethernet Switch
Total Ethernet Ports
10
M12 D-code Ports
4 × 10/100 Mbps Fast Ethernet
M12 X-code Ports
2 × 10/100/1000 Mbps Gigabit Ethernet
PoE Ports
4 × 10/100 Mbps
PoE Support
IEEE 802.3af
CIP Sync
Yes, IEEE 1588
Device Level Ring (DLR)
Yes
Network Address Translation (NAT)
No
Firmware Type
Full

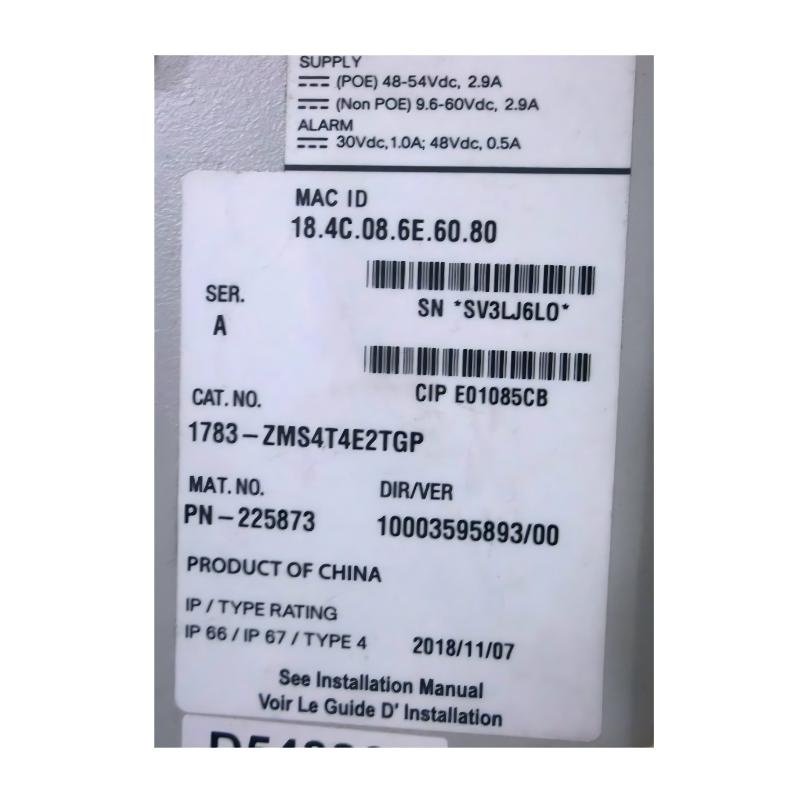

Power Supply, Non-PoE
9.6–60 V DC
Maximum Non-PoE Input Current
2.9 A
Mounting
DIN rail
Dimensions
248.4 × 99 × 237.5 mm
Weight
3.00 kg / 6.61 lb
Lifecycle Status
Discontinued
Recommended Related Models
The following ArmorStratix 5700 models offer different port configurations or networking features. Verify individual specifications before selecting an alternative.
Allen-Bradley 1783-ZMS4T4E2TGN — Similar 10-port configuration with NAT support.
Allen-Bradley 1783-ZMS8T8E2TGP — 18-port configuration with additional Fast Ethernet and PoE ports.
Allen-Bradley 1783-ZMS8T8E2TGN — 18-port variant with NAT support.
These industrial Ethernet switches may also be useful when comparing networking requirements for automation systems:
Allen-Bradley 1783-BMS10CL
Allen-Bradley 1783-BMS10CA
Allen-Bradley 1783-BMS10CGP
Allen-Bradley 1783-BMS10CGN
Allen-Bradley 1783-BMS20CL
Allen-Bradley 1783-BMS20CGP
Selection note:These products belong to the broader Stratix industrial networking family, but their port layouts, connector types, firmware features, and power requirements may differ. Confirm the complete model number before ordering.
Applications
The Allen-Bradley 1783-ZMS4T4E2TGP ArmorStratix 5700 is an industrial managed Ethernet switch designed to connect automation devices in demanding industrial environments. With a combination of Fast Ethernet, Gigabit Ethernet, and Power over Ethernet (PoE) ports, it supports industrial communication networks that require reliable data exchange and coordinated device operation.
DIN-Rail Installation: Designed for integration into compatible industrial mounting arrangements.
Product lifecycle note: This model has been discontinued by Rockwell Automation. Confirm availability, condition, and compatibility before purchasing a replacement or spare unit.
Technical FAQs
1. What is the Allen-Bradley 1783-ZMS4T4E2TGP?
It is a 10-port managed industrial Ethernet switch from the ArmorStratix 5700 family, intended for industrial automation networking.
2. How many Ethernet ports does this switch provide?
It provides 10 ports: four 10/100 Mbps M12 D-code ports, two 10/100/1000 Mbps Gigabit M12 X-code ports, and four 10/100 Mbps PoE ports.
3. Does the 1783-ZMS4T4E2TGP support Power over Ethernet?
Yes. Four ports support PoE, allowing compatible network devices to receive power and data over Ethernet. Check the device power requirements and the switch's available PoE budget before connecting equipment.
4. Does this switch support IEEE 1588 Precision Time Protocol?
Yes. The model supports CIP Sync based on IEEE 1588, which can help synchronize compatible devices in industrial automation systems.
5. What is Device Level Ring (DLR)?
DLR is an EtherNet/IP network technology that supports ring topologies and network recovery when used with compatible devices and a properly configured network.
6. Does this model support Network Address Translation (NAT)?
The 1783-ZMS4T4E2TGP variant is listed without NAT support. Do not confuse it with the related 1783-ZMS4T4E2TGN variant, which includes NAT.
7. What type of Ethernet connectors does it use?
It uses M12 D-code connectors for its Fast Ethernet ports and M12 X-code connectors for its Gigabit Ethernet ports, making it suitable for compatible industrial cabling systems.
8. What is the power supply requirement?
The non-PoE user supply is specified at 9.6–60 V DC, with a maximum input current of 2.9 A. PoE power has separate input requirements; confirm the installation and connected-device power budget using the technical documentation.
9. Can this switch be used with Allen-Bradley PLC systems?
It can be used in compatible EtherNet/IP networks containing Allen-Bradley controllers and other industrial devices. Network architecture, configuration, and device requirements should be reviewed before commissioning.
10. Is the 1783-ZMS4T4E2TGP still in production?
Rockwell Automation lists this catalog number as discontinued, effective March 1, 2023, with no planned direct replacement. Existing units may still be encountered in installed systems and the spare-parts market.
