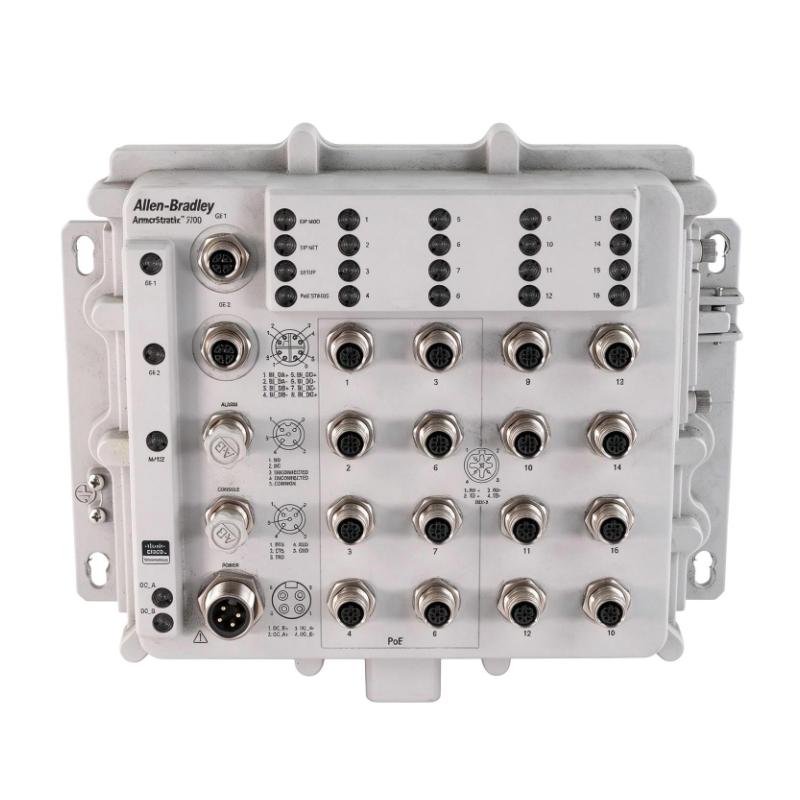

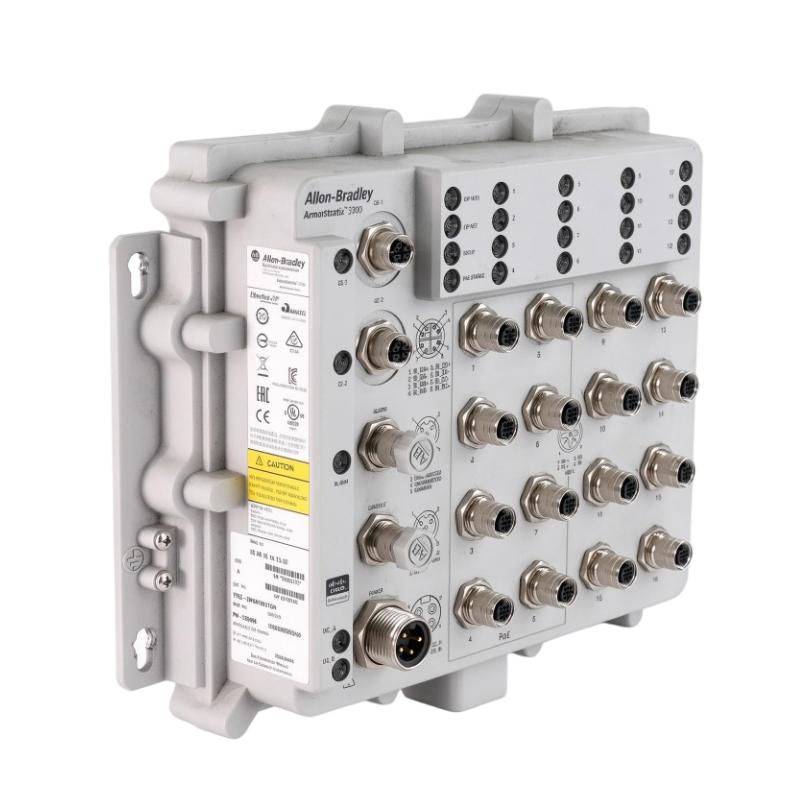

Allen Bradley 1783-ZMS8T8E2TGN ArmorStratix 5700 Managed Ethernet Switch

Applications

The Allen-Bradley 1783-ZMS8T8E2TGN ArmorStratix 5700 Managed Ethernet Switch is designed for industrial networking applications that require reliable communication between automation devices. Its combination of managed Ethernet capabilities, industrial connectors, and Power over Ethernet (PoE) support makes it suitable for integrating compatible equipment into industrial Ethernet networks.

Typical applications include:

• Factory Automation: Connects PLCs, remote I/O systems, and Ethernet-enabled automation equipment.

• Industrial Machine Networks: Provides managed connectivity for distributed machine components and control devices.

• EtherNet/IP Communication: Supports data exchange between compatible controllers, industrial devices, and network infrastructure.

• PoE Device Integration: Connects compatible Ethernet devices that receive power through supported PoE ports.

• Industrial Network Resilience: Supports Device Level Ring (DLR) configurations when used with compatible equipment.

• Time-Sensitive Automation: Supports CIP Sync for applications that require synchronized industrial network devices.

Advantages

• Multiple Ethernet Connections: Offers a combination of Fast Ethernet, Gigabit Ethernet, and PoE connectivity for industrial installations.

• Managed Switching: Provides network management capabilities to help configure and maintain industrial Ethernet infrastructure.

• PoE Functionality: Simplifies installation of compatible powered devices by carrying network data and electrical power over Ethernet.

• Industrial Network Support: Designed for use in compatible EtherNet/IP environments.

• Precision Time Synchronization: Supports CIP Sync based on IEEE 1588 for applications requiring coordinated timing.

• NAT Capability: The TGN variant supports Network Address Translation, which can help separate IP addressing between compatible industrial networks.

• Industrial Installation: The ArmorStratix family is designed for industrial environments and appropriate control-cabinet or machine-network installations.

Technical FAQs

1. What is the Allen-Bradley 1783-ZMS8T8E2TGN?

It is an ArmorStratix 5700 managed industrial Ethernet switch designed to provide network connectivity for compatible industrial automation systems.

2. What is the difference between the TGN and TGP variants?

The TGN variant supports Network Address Translation (NAT), whereas the TGP variant does not. Confirm the exact catalog number and required network features before selecting a unit.

3. Does the switch support Power over Ethernet?

This model family includes configurations with PoE ports. Verify the exact port allocation and power budget for the 1783-ZMS8T8E2TGN before connecting powered devices.

4. Can it connect to Allen-Bradley PLCs?

Yes, it can be used in compatible industrial Ethernet networks containing Allen-Bradley controllers and other EtherNet/IP devices. Correct network configuration is essential.

5. What is the purpose of NAT in an industrial network?

Network Address Translation allows devices on one network to communicate through translated IP addresses. In industrial applications, it can help manage overlapping IP address ranges and separate machine-level networks.

6. Does the switch support Device Level Ring?

The ArmorStratix 5700 platform supports Device Level Ring (DLR) functionality for compatible EtherNet/IP devices. Verify the intended topology and configuration before deployment.

7. What is CIP Sync used for?

CIP Sync provides time synchronization using IEEE 1588 Precision Time Protocol. It is useful in industrial systems that need coordinated timestamps or synchronized operations.

8. What should be checked when replacing an existing switch?

Check the exact catalog number, port count, connector type, PoE requirements, NAT functionality, firmware compatibility, and network topology.

9. Can the switch be used in a standard office Ethernet network?

Industrial Ethernet switches can connect to compatible standard Ethernet equipment, but their configuration, connector types, power requirements, and management features should be evaluated for the intended environment.

10. Is the 1783-ZMS8T8E2TGN still available as a new product?

Product lifecycle and inventory status should be confirmed with the supplier or Rockwell Automation. For discontinued equipment, check the condition, hardware revision, and availability of compatible alternatives.
