Allen Bradley 1783-ZMS8T8E2TGP ArmorStratix 5700 Managed Ethernet Switch
Allen Bradley 1783-ZMS8T8E2TGP ArmorStratix 5700 Managed Ethernet Switch
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-ZMS8T8E2TGP Product Origin:USA Product Dimensions:300.9 x 81.5 x 248.4 mm Product Weight:3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

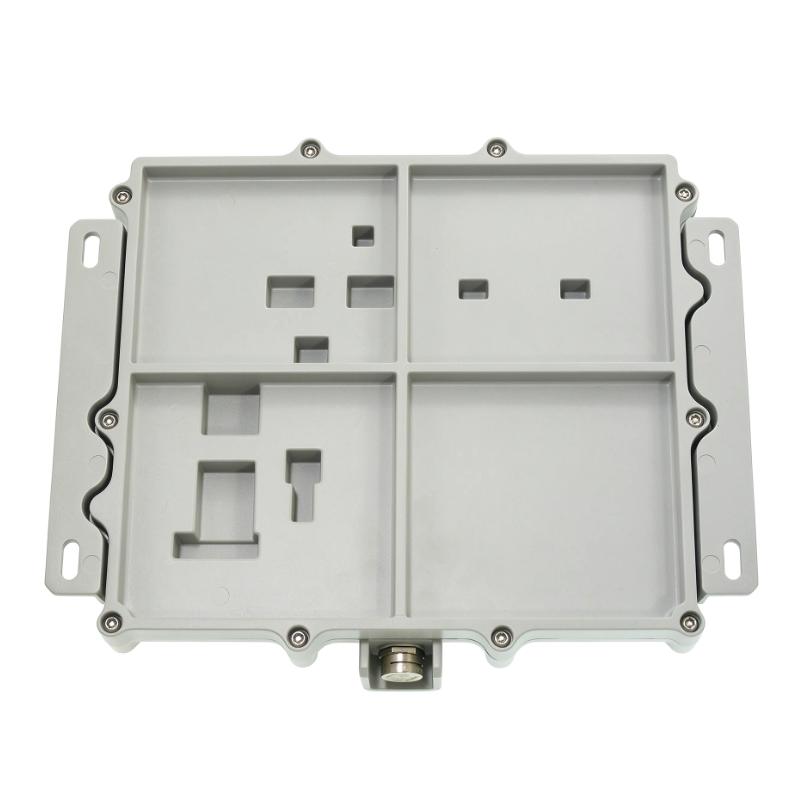

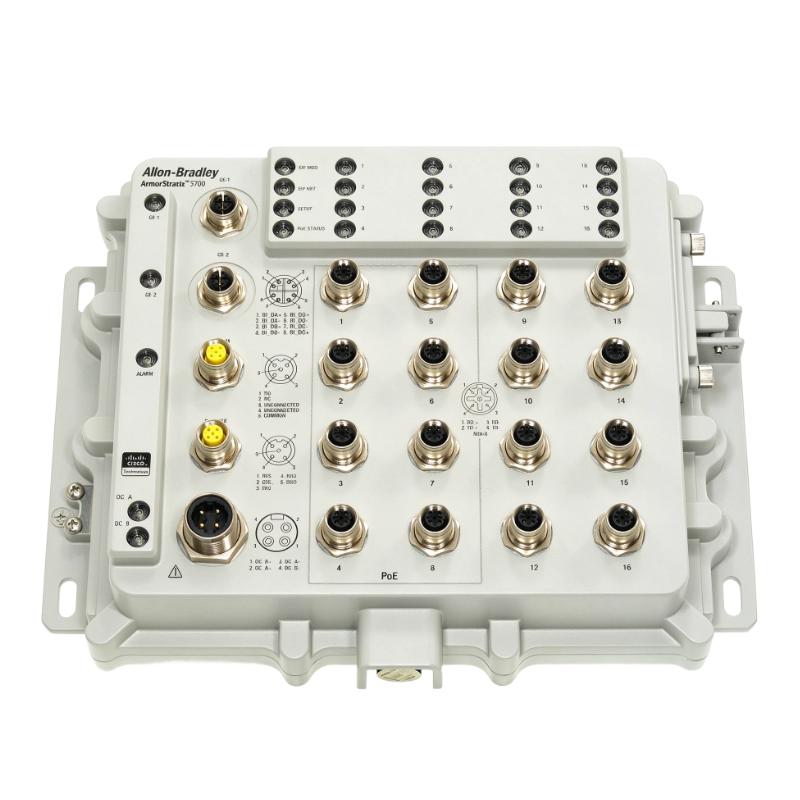

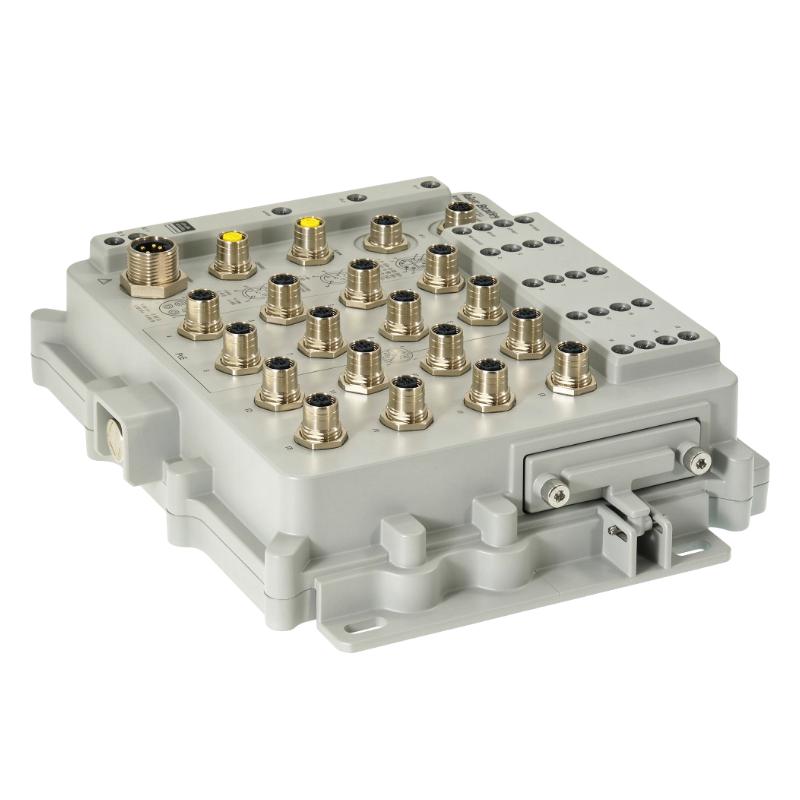

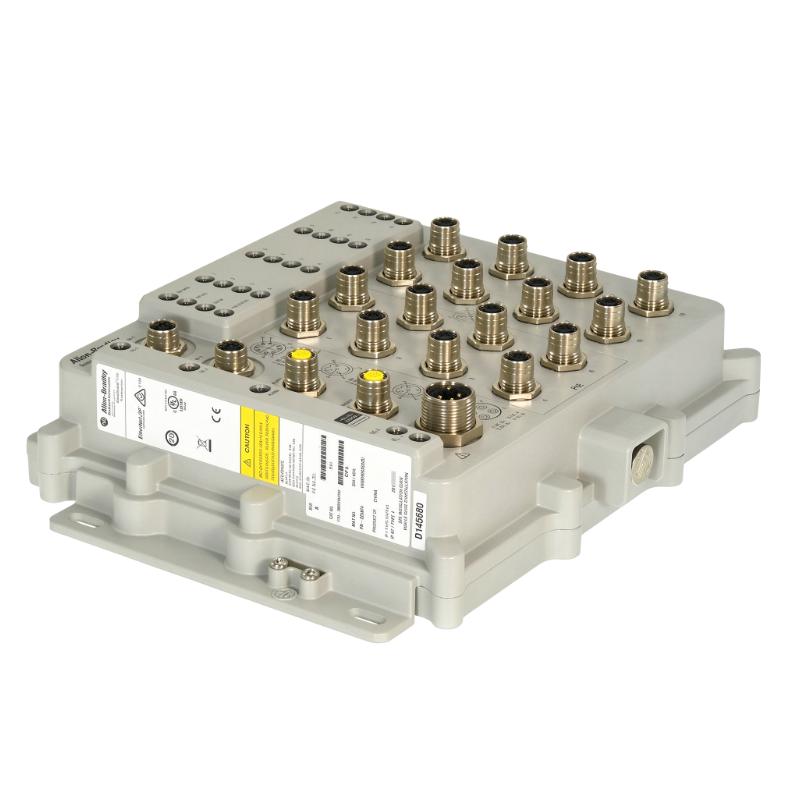

The Allen-Bradley 1783-ZMS8T8E2TGP ArmorStratix 5700 Managed Ethernet Switch is designed for industrial applications requiring multiple network connections, managed switching, and PoE capability. Its 18-port configuration accommodates a range of compatible automation devices, while its Gigabit ports provide additional bandwidth for supported network connections.
The switch supports industrial networking features including CIP Sync and Device Level Ring, helping engineers build coordinated and resilient EtherNet/IP networks. Its M12 connector design is suited to industrial cabling systems, and DIN-rail mounting facilitates integration into compatible installations.
One important selection detail is that the TGP version does not support NAT. If network segmentation using address translation is required, the related TGN model may be worth evaluating, although its other specifications and compatibility must also be checked.
Since this catalog number has been discontinued, buyers should verify product condition, hardware revision, and application compatibility before purchasing it for maintenance or replacement purposes.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
1783-ZMS8T8E2TGP
Product Family
ArmorStratix 5700
Product Type
Managed Industrial Ethernet Switch
Total Ethernet Ports
18
M12 D-code Ports
8 × 10/100 Mbps Fast Ethernet
M12 X-code Ports
2 × 10/100/1000 Mbps Gigabit Ethernet
PoE Ports
8 × 10/100 Mbps
PoE Standard
IEEE 802.3af
Maximum PoE Power
120 W
CIP Sync
Yes, IEEE 1588
Device Level Ring (DLR)
Supported
Network Address Translation (NAT)
No
Firmware Type
Full
Non-PoE Power Supply
9.6–60 V DC
Maximum Non-PoE Input Current
3.3 A
Mounting
DIN rail
Dimensions
300.9 × 81.5 × 248.4 mm
Weight
3.00 kg / 6.61 lb
Lifecycle Status
Discontinued
Recommended Related Models
The following Allen-Bradley ArmorStratix 5700 models may be useful when comparing port capacity and network functionality:
Allen-Bradley 1783-ZMS8T8E2TGN — Similar 18-port model with NAT support.
Allen-Bradley 1783-ZMS4T4E2TGP — 10-port managed switch without NAT.
Allen-Bradley 1783-ZMS4T4E2TGN — 10-port managed switch with NAT support.
Other Allen-Bradley Stratix switches to consider when comparing industrial networking requirements include:
Allen-Bradley 1783-BMS10CL
Allen-Bradley 1783-BMS10CA
Allen-Bradley 1783-BMS10CGP
Allen-Bradley 1783-BMS10CGN
Allen-Bradley 1783-BMS20CL
Allen-Bradley 1783-BMS20CGP
Selection note: Related models may differ in port count, PoE capacity, connector type, NAT support, and management features. Confirm the required network functions and electrical specifications before selecting a substitute.
Applications
The Allen-Bradley 1783-ZMS8T8E2TGP ArmorStratix 5700 Managed Ethernet Switch is an industrial networking solution designed to connect automation devices in demanding manufacturing and machine-control environments. With 18 Ethernet ports, Gigabit connectivity, and Power over Ethernet (PoE) support, it provides flexible connectivity for distributed industrial systems.
Gigabit Connectivity: Two Gigabit Ethernet ports support higher-speed network connections for compatible equipment.
Industrial Protocol Support: Designed for use in EtherNet/IP automation networks.
Time Synchronization: Supports CIP Sync for applications requiring coordinated device timing.
Ring Network Support: Supports Device Level Ring technology when configured with compatible equipment.
Industrial Mounting: Designed for DIN-rail installation in suitable industrial environments.
Technical FAQs
1. What is the Allen-Bradley 1783-ZMS8T8E2TGP?
It is an 18-port managed industrial Ethernet switch in the ArmorStratix 5700 family, designed for industrial automation networking.
2. How many Ethernet ports does this switch have?
It has 18 ports: eight 10/100 Mbps M12 D-code ports, two 10/100/1000 Mbps Gigabit M12 X-code ports, and eight 10/100 Mbps PoE ports.
3. Does the 1783-ZMS8T8E2TGP support Power over Ethernet?
Yes. It supports IEEE 802.3af PoE, with a maximum stated PoE power capacity of 120 W. Check the available power budget before connecting multiple powered devices.
4. Does this model support Network Address Translation (NAT)?
No. The TGP variant does not include NAT functionality. Applications requiring NAT should be evaluated against the corresponding TGN variant.
5. What is the purpose of CIP Sync?
CIP Sync uses IEEE 1588 Precision Time Protocol to synchronize compatible devices across an industrial network.
6. Can this switch support a Device Level Ring network?
Yes. It supports DLR for compatible EtherNet/IP devices, subject to the network topology and configuration requirements.
7. What power supply does the switch require?
For non-PoE operation, the specified user supply range is 9.6–60 V DC, with a maximum input current of 3.3 A. PoE operation requires a separate compatible power input; confirm the installation requirements in the product documentation.
8. What types of Ethernet connectors are used?
The switch uses M12 D-code connectors for its eight Fast Ethernet ports and M12 X-code connectors for its two Gigabit Ethernet ports.
9. Can it be integrated into an Allen-Bradley PLC system?
Yes. It can be used in compatible EtherNet/IP networks containing Allen-Bradley PLCs, remote I/O, and other Ethernet-enabled automation equipment.
10. Is the 1783-ZMS8T8E2TGP discontinued?
Yes. Rockwell Automation lists this model as discontinued effective March 1, 2023, with no planned direct replacement. Verify stock status and condition when sourcing a unit.
